Dashboard PopUp modify

[globe]

Hi Zabbixer,

I'd like to get an idea how i can integrate a 3rdParty URL in the Dashboard in the popup menu.
Background: we're integrating a config archive system with ViewVC and new ticket system and like to have a direct integration from the Dashboard.

I've been able to add it in /js/menupopup.js but all URLs get extended with the "sid" so it's unsable for 3rd Party URLs.

Does someone have an idea?

thx globe

[globe]

HI @all,

found a solution which helped me, so here's how i did it.

Use Scripts:
I used w3m, the command line browser on the console to grab the link per device and display it in a pop-up window, that’s exactly how I wanted it to work.

it's very good that the Global Macros can be used in the command to make it dynamic.

e.g.: Administration -> Scripts -> Create Script:
Script run from Zabbix Server
command: w3m http://<URL to Display>/{HOST.NAME}.html

hope this helps others, as well.

cheers Globe

P.S.: above was done in Zabbix 3.0 but should work with others, as well.

[zhura]

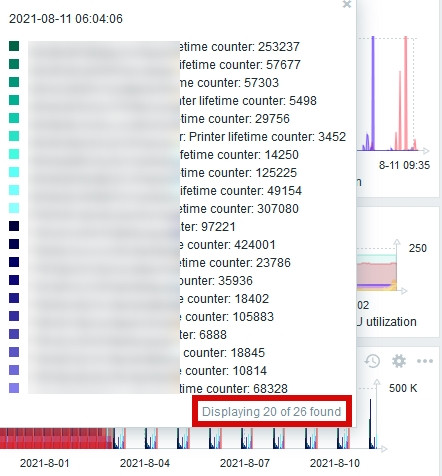

need help adjusting height of dashboard popup to display all values. i'm weak in php programming stuff...
or maybe i need just find constant "20" and change it to "26" but where to dig?

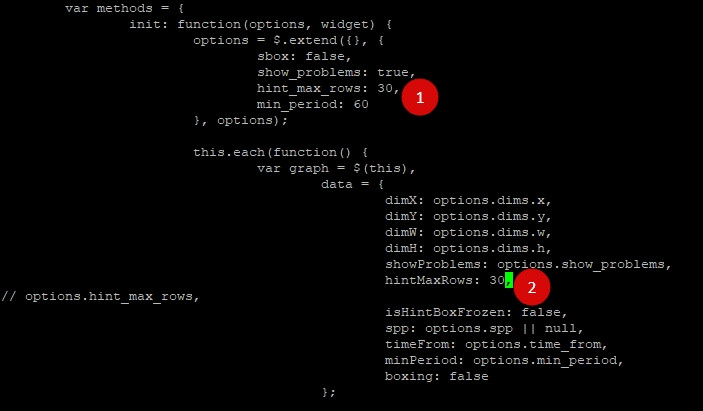

found "svg-graph-hintbox" in "/usr/share/zabbix/js/class.csvggraph.js" here was constant "hint_max_rows" which i've changed from 20 to 30 but nothing changed... restarted nginx and php-fpm on zabbix server and cleared cache on my firefox - still only 20 rows
there is no /var/cache/nginx directory on my zabbix server...

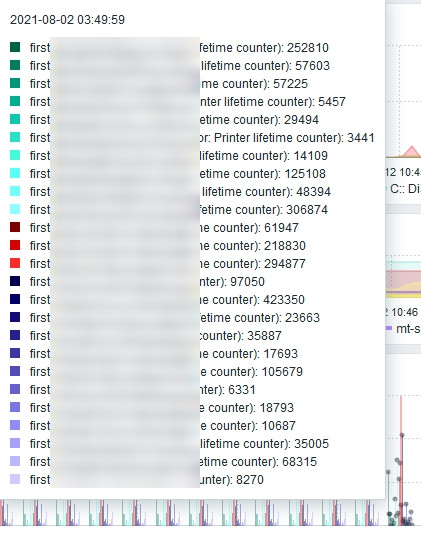

so. substitution of options.hintMaxRows doesn't work for unknown reason but when i changes data.hintMaxRows all looks wonderfull

problem was not in the browser or zabbix cache as i thought at first
