Why my snmp items cannot get any value

[bab]

When I am running snmpwalk snmpwalk -v 2c -c SNMP IP 1.3.6.1.4.1.9.9.117.1.2.1.1.8
It is showing follow output :

SNMPv2-SMI::enterprises.9.9.117.1.2.1.1.8.22 = Gauge32: 126997199
SNMPv2-SMI::enterprises.9.9.117.1.2.1.1.8.23 = Gauge32: 126997199
SNMPv2-SMI::enterprises.9.9.117.1.2.1.1.8.24 = Gauge32: 126997374
SNMPv2-SMI::enterprises.9.9.117.1.2.1.1.8.25 = Gauge32: 126997168
SNMPv2-SMI::enterprises.9.9.117.1.2.1.1.8.26 = Gauge32: 126997197
SNMPv2-SMI::enterprises.9.9.117.1.2.1.1.8.28 = Gauge32: 126997345
SNMPv2-SMI::enterprises.9.9.117.1.2.1.1.8.29 = Gauge32: 126997338
SNMPv2-SMI::enterprises.9.9.117.1.2.1.1.8.30 = Gauge32: 126997342
SNMPv2-SMI::enterprises.9.9.117.1.2.1.1.8.31 = Gauge32: 126997335
SNMPv2-SMI::enterprises.9.9.117.1.2.1.1.8.32 = Gauge32: 126997331
SNMPv2-SMI::enterprises.9.9.117.1.2.1.1.8.33 = Gauge32: 126997331

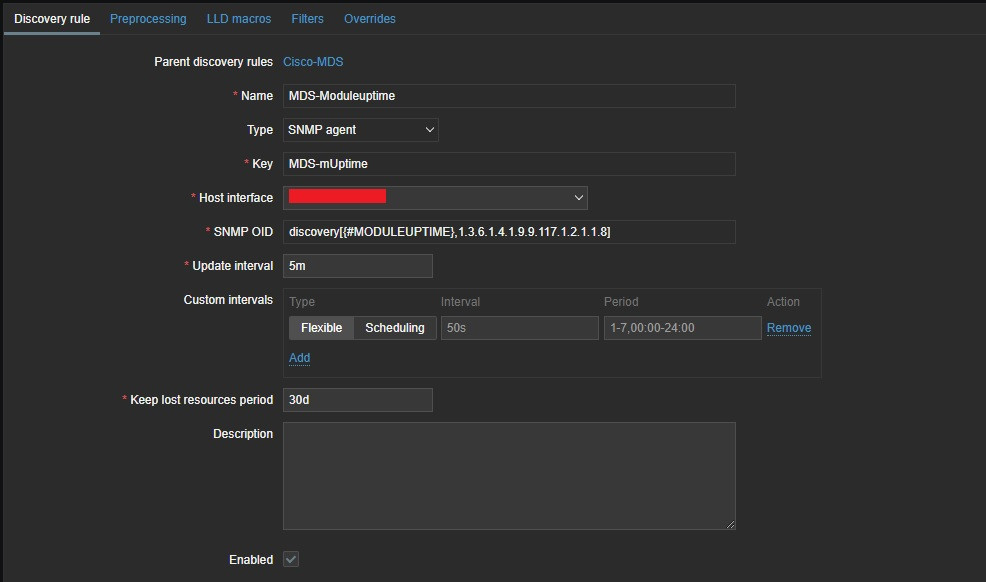

Now I have created a discovery such as pic1.jpg



and it contains an itemprototype

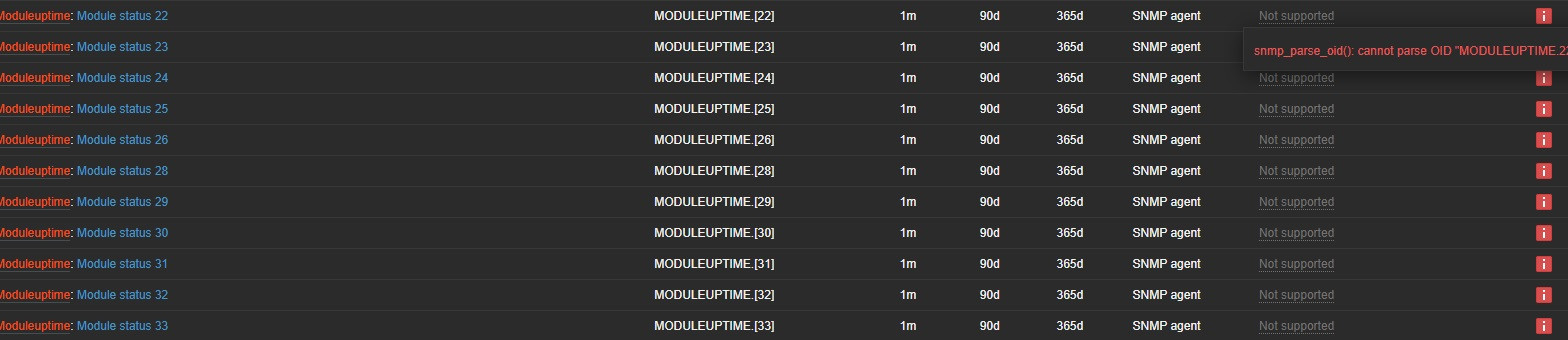

Now it can detect and create new items such as follow pic but as you can see it cannot return value . What is the issue ?

[Markku]

The issue is that in the item prototype your SNMP OID is invalid.

Try: 1.3.6.1.4.1.9.9.117.1.2.1.1.8.{#SNMPINDEX}

Markku
