    Newbie - SNMP Wan Interface daily throughput graph

    Hi, I am new to Zabbix, and using version 6.4.6 have successful started to monitor our main router to get the Bits received using the key net.if.in[ifInOctets.10002]
    As these values are cumulative, i would like to have a calculation that converts the data into relative values.

    so for example from the latest monitored data
    Time Bits
    Tnow : 2023-09-20 10:33:30 = 1349718079440
    Tprev : 2023-09-20 10:30:30 = 1349527019071​

    so the calculation i need is
    Delta change = (Bits[Tnow] - Bits[Tprev) / (Time[tnow] - Time[Tprev] )
    Delta change = ( 1349718079440 - 1349527019071) / (2023-09-20 10:33:30 - 2023-09-20 10:30:30 )
    Delta change = (191060369 ) / 180) ( note convert 3 mins into seconds)
    Delta Change = 1061446.494 Bits/Sec or 1036kbps

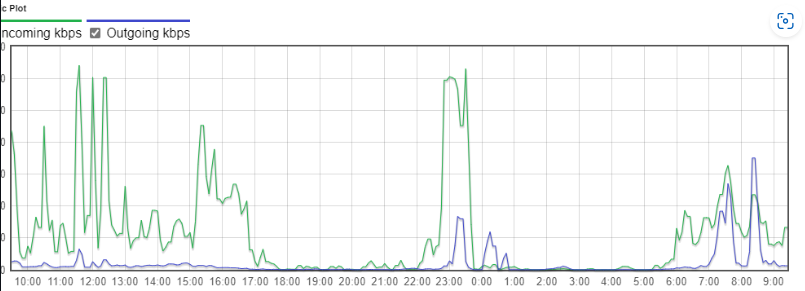

    ​The purpose is to be able to display a more conventional daily graph that our router displays like
    Click image for larger version

Name:	image.png
Views:	249
Size:	68.3 KB
ID:	470714

    Can anyone point me in the right direction to create a graph like this.
    Many thanks​
    Attached Files
  • Answer selected by supertramp4 at 21-09-2023, 15:15.
    cyber
    Senior Member
    Zabbix Certified SpecialistZabbix Certified Professional
    • Dec 2006
    • 4807

    But you can add preprocessing "change per sec" ...

    Comment

    • cyber
      Senior Member
      Zabbix Certified SpecialistZabbix Certified Professional
      • Dec 2006
      • 4807

      #2
      But you can add preprocessing "change per sec" ...

      Comment

      • supertramp4
        Junior Member
        • Sep 2023
        • 8

        #3
        Perfect - Thank you. Its obvious once you know where to get the answer !
