How to display the IP Address of Host in Monitoring

[kamal.patel]

Dear Team,

There is no any items-key which is showing the IP Address of Host.

Request to kindly help, how we can get this and showing on dashboard, as i have more than 100 servers and we need to require this details on dashboard.

IP Address, subnet mask, gateway and DNS

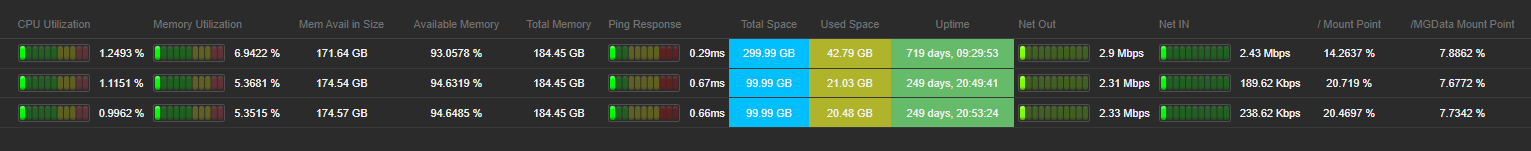

see the below screenshot where we need to also add IP Address column as well.

[DrunkSktrPilot]

I'm also looking for how to add IP Address of host device to Dashboard widget column. Is there no built-in, like 'Data > Host name' is?

[DrunkSktrPilot]

I'm also looking for how to add IP Address of host device to Dashboard widget column. Is there no built-in, like 'Data > Host name' is?

Ok took me literally 5 minutes to figure it out, and the answer is so easy -- Zabbix practically gives you the answer in the text box column hint, but here is the AI Summarizer answer:

Configure Columns: In the widget configuration, navigate to the "Columns" section.

• Add a "Text" column: Click "Add" and select "Text" as the column type.
• Specify Text: In the "Text" field, enter the host macro for the IP address. For example, {HOST.IP} will display the main interface IP address. You can also use other macros like {HOST.CONN} for the IP or DNS name depending on the connection setting.
• Save: Save the widget configuration and then the dashboard.
