    HP 5820 - 10Gbps Zabbix problem

    Last week, we started using 10Gbps SFP module with optic.

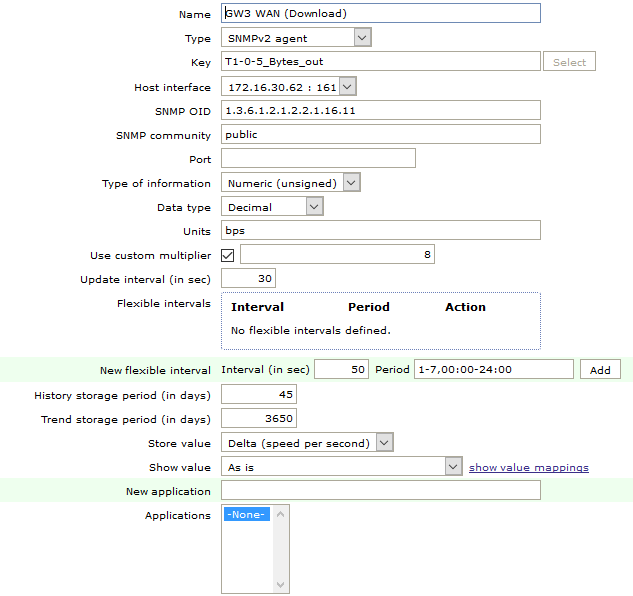

    At this time, traffic is between 0,6 - 1,4 Gbps. But there is problem with zabbix. Zabbix configurarion is attached bellow as image. Problem is also shown on attached picture - when traffic Raise up to ~1,2, zabbix start storing bad history :/


    Can somebody help me to solve this problem ?
    Thank you
    Attached Files
  • Atsushi
    Senior Member
    • Aug 2013
    • 2028

    #2
    Please try change from IF-MIB::ifOutOctets to IF-MIB::ifHCOutOctets?

    OID:
    from
    .1.3.6.1.2.1.2.2.1.16.11
    to
    .1.3.6.1.2.1.31.1.1.1.10.11

    IF-MIB::ifOutOctets is 32bit Counter.
    In a high-speed network, overflow of digits occurs immediately.
