Need help with getting an item to display in trigger alert.

[TheVito]

I am using 7.0 forgot to mention that.

I am using zabbix_sender to send a text item that looks like this: customer-1, customer is the name of the customer and the 1 is the error number.

I created an item that is a zabbix Trapper named: CustomerLogError
The key field is named customerID-errorID
I created 2 other items they are both dependent on CustomerLogError.

The first one is named CustomerLogError: CustomerLogErrorID it is a dependent item
with Key value of CustomerLogError.ID it has a preprocessing regular expresssion of ^[^-]*-(.*)$ \1
which grabs the “1” off of the data sent via zabbix_sender.

The second one is named CustomerLogError: CustomerLogName it is a dependent item
with the Key value of CustomerLog.name it has a preprocessing regular expresssion of ^(.*)-.*$ \1
which grabs the “customer” off of the data sent via zabbix_sender.

There are two triggers setup which use the CustomerLogError.ID to evaluate which error occurred.

last(/PRDLOGSVR1/CustomerLogError.ID)=1
and
last(/PRDLOGSVR1/CustomerLogError.ID)=2

I have a trigger action setup which is setup like this:

Action

Name: CustomerLogAction

Type of calculation: Custom expression (A or B)

Conditions:

Label Name Action

A Trigger equals PRDLOGSVR1: CustomerConnectionLeakTrigger Remove

B Trigger equals PRDLOGSVR1: CustomerPrimaryKeyTrigger Remove

Add

Enabled

The Operation is set to send an email, no matter what I have tried I can not get CustomerLog.name
to display in the email, as you can see below I tried multiple ways, it doesn’t display the customer name, it just puts the syntax of the macro in the email

Problem started at {EVENT.TIME} on {EVENT.DATE}

Problem name: {TRIGGER.NAME}

Host: {HOST.NAME}

Severity: {TRIGGER.SEVERITY}

Item: {ITEM.NAME}

Current Value: {ITEM.VALUE}

Description: {TRIGGER.DESCRIPTION}

Event Details:

- Trigger Expression: {TRIGGER.EXPRESSION}

- Event ID: {EVENT.ID}

- Original Problem ID: {EVENT.ID}

Additional Information:

- Operational Data: {ITEM.VALUE1}Log into PRDLOGSVR1 and review the log. It will be in this folder E:\ProductionAppServerLogs\{HOST.HOST}:CustomerLog .name.last()-connection-leaks-as-of-{EVENT.DATE}

{{HOST.HOST}:CustomerLog.name.last()}-connection-leaks-as-of-{EVENT.DATE}

Custom Log Name: {{PRDLOGSVR1:CustomerLog.key}}

{servername:top.last(0)} {PRDLOGSVR1::CustomerLogName.last()}

{HOST.TAG} {HOST.INVENTORY.VENDOR}

{$CUSTOMER_LOG_NAME}

[markfree]

You see... There are some formatting options available in the message editor. They help to make the text visually easier to read. Also, pictures help to visualize the context.

Anyway... So you must include the customer's name in the email message and this name is stored in the "CustomerLogError: CustomerLogName" item with the "CustomerLog.name" key. Right?

Are you using Expression Macros for this?

[TheVito]

That is correct I am trying to get that item to display in the alert email, but everything i try does not produce it. I am not sure what i am doing wrong, and no i am not using Expression Macros, should I be?

[markfree]

That is correct I am trying to get that item to display in the alert email, but everything i try does not produce it. I am not sure what i am doing wrong, and no i am not using Expression Macros, should I be?

Look at the expression macro syntax at the link above and try using it. This seems like a good approach.

[TheVito]

I have tried everything i am sure it has to be something simple, i just do not know how to use these macros properly i am guessing....

Here is the latest output from the trigger alert, I tried numerous variations to try to get the NAME displayed.

Problem started at 07:05:52 on 2024.06.24

Problem name: CustomerConnectionLeakTrigger
Host: PRDLOGSVR1
Severity: High
Item: CustomerLogErrorID
Current Value: 1

Event Details:
- Trigger Expression: last(/PRDLOGSVR1/CustomerLogError.ID)=1
- Event ID: 33241
- Original Problem ID: 33241

Additional Information:

{PRDLOGSVR1:CustomerLogName.last())} I tried multiple variations to try to get this to print the value tstdoc
What is the correct syntax to do this, please help :-)

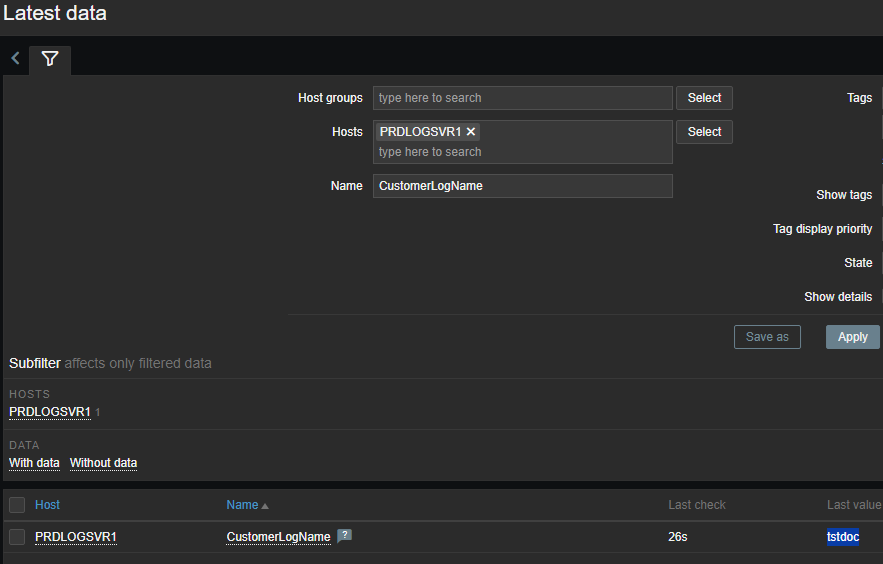

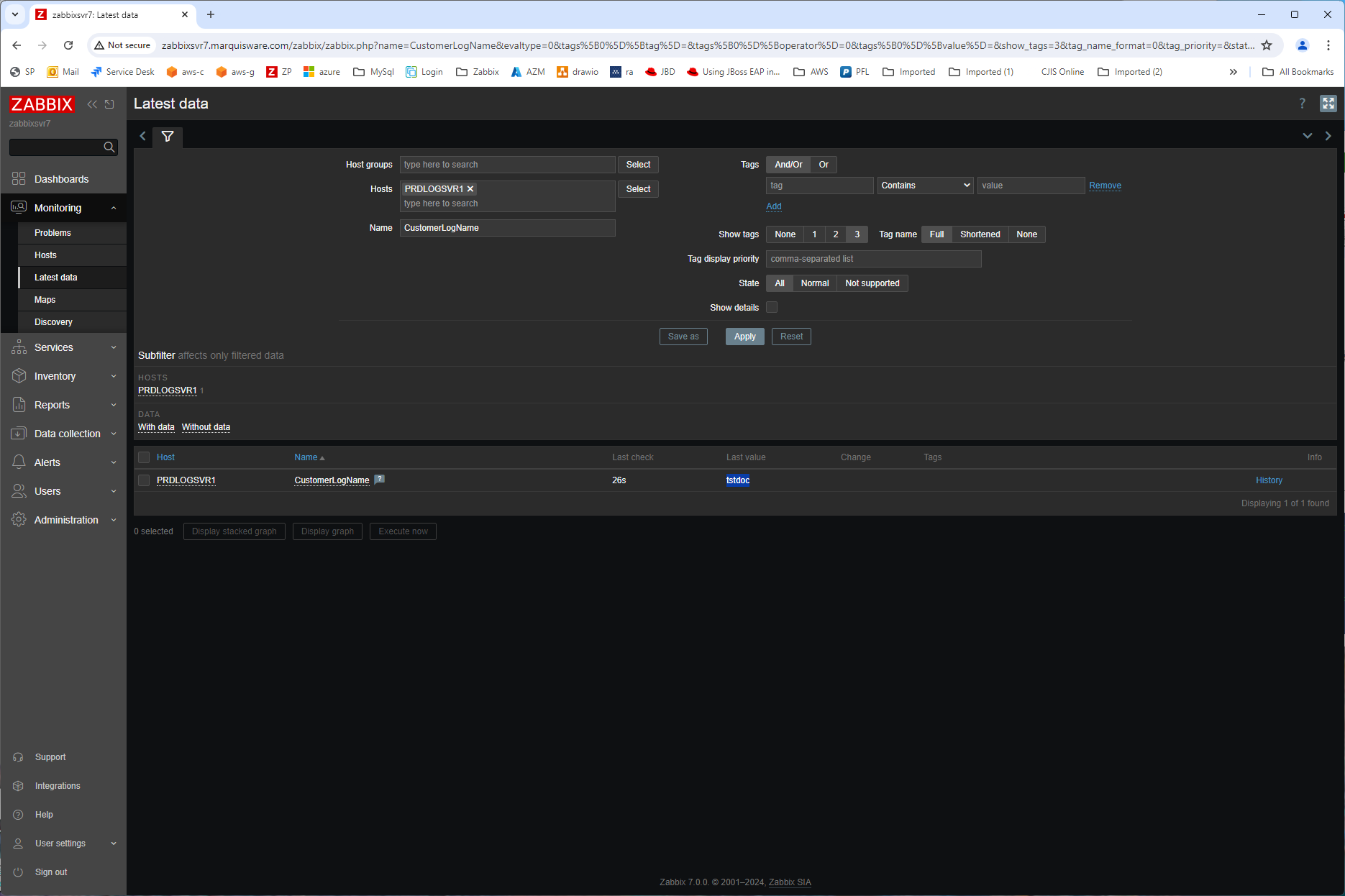

Here is a screen shot of the latest data: as you can see it has a value of tstdoc

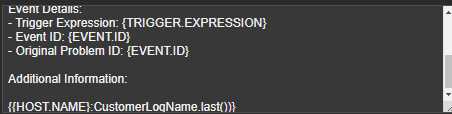

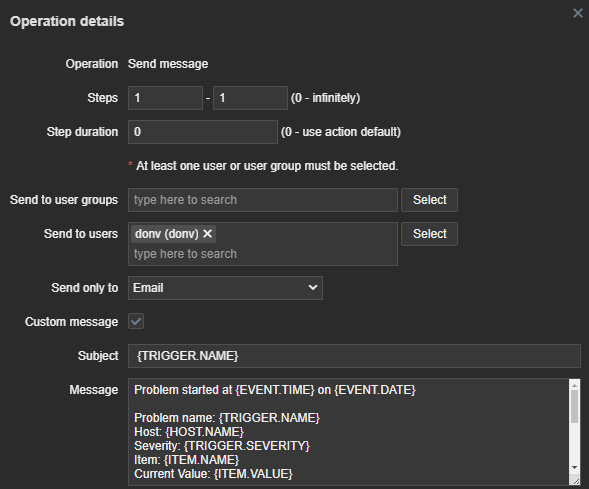

My trigger email definition looks like this:

[earth-spark]

Did you ever manage to do this? I want to enrich the description with another item related to the host. This will then give the operator further context, without manually checking on the host.

[earth-spark]

Did you ever manage to do this? I want to enrich the description with another item related to the host. This will then give the operator further context, without manually checking on the host.

Some further context: I have two traps being sent via Zabbix Trapper.

One is a numeric value; the other is a string value.

I want to display the string within the problem description to give more context for the agent. An example of the string being passed:

FAILURE: ERROR: Authentication failed for A.B.C.D. Details: 401 Client Error: Unauthorized for url: https://A.B.C.D/mmi/api/jsonrpc

I can only seem to reference items utilised in the expression, so I included the value within the expression even though it's not required to identify the problem.

Even doing this, the string is truncated in the description.

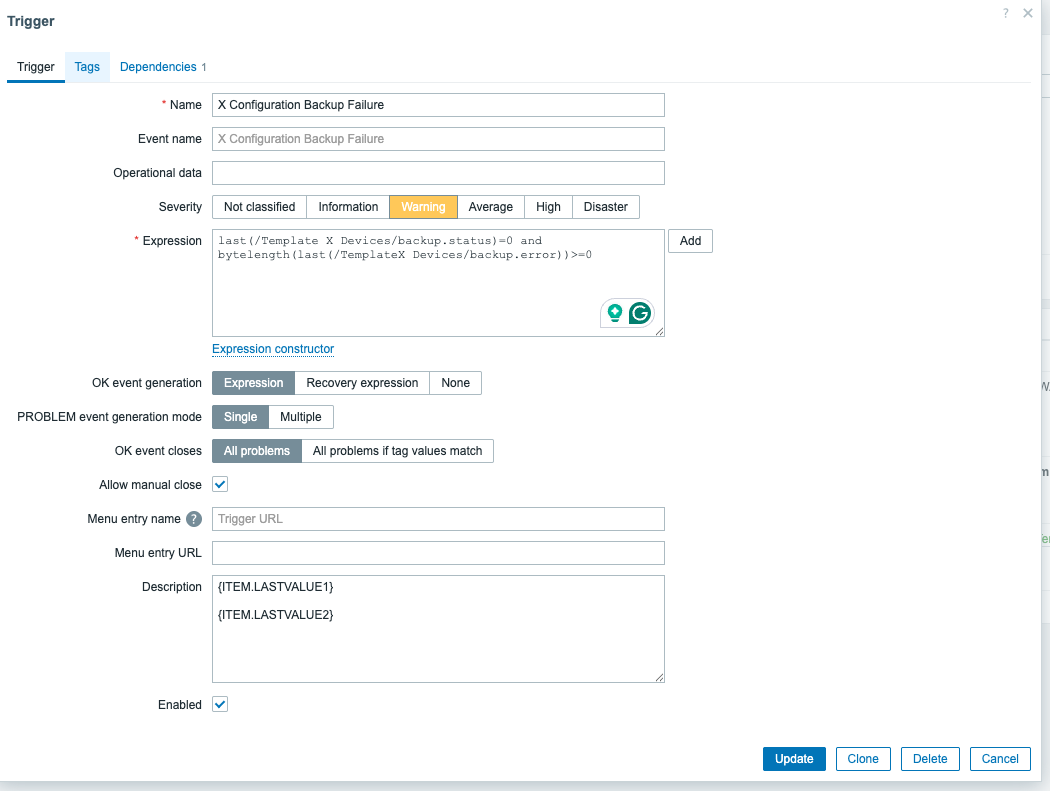

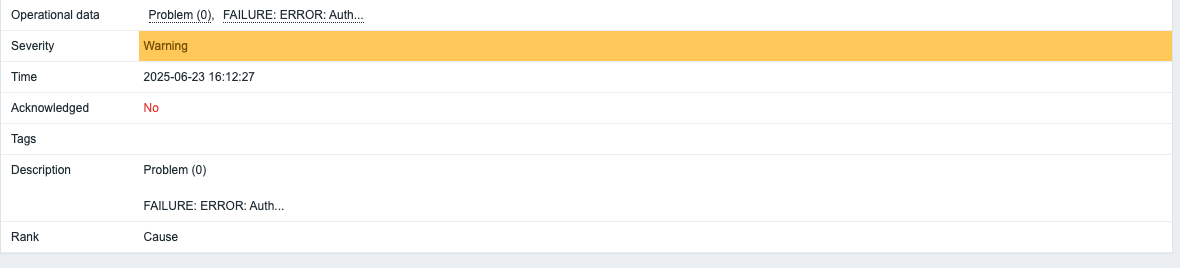

See both the Trigger and Problem screenshots.



Is there a method to show the full string received within the description of the problem triggered?

It's not the best fix; however, I could patch /usr/share/zabbix/ui/include/items.inc.php—so true $trim = false is false.

function formatAggregatedHistoryValueRaw($value, array $item, int $function, bool $force_units = false,
bool $trim = false, array $convert_options = []): array {
$units = $force_units || CAggFunctionData:reservesUnits($function) ? $item['units'] : '';

[cyber]

Look at the expression macro syntax at the link above and try using it. This seems like a good approach.

but you can still only use those items and values that you are using in trigger expression... If expression only uses CustomerLogErrorID, then you cannot use CustomerLogName. So, to have a name also available, you can add another (useless) equation to expression ... like bytelenght(last(host/item))>0 and then you can reference that items value in your event name.
