ZABBIX MAP character issue

[mayza5106]

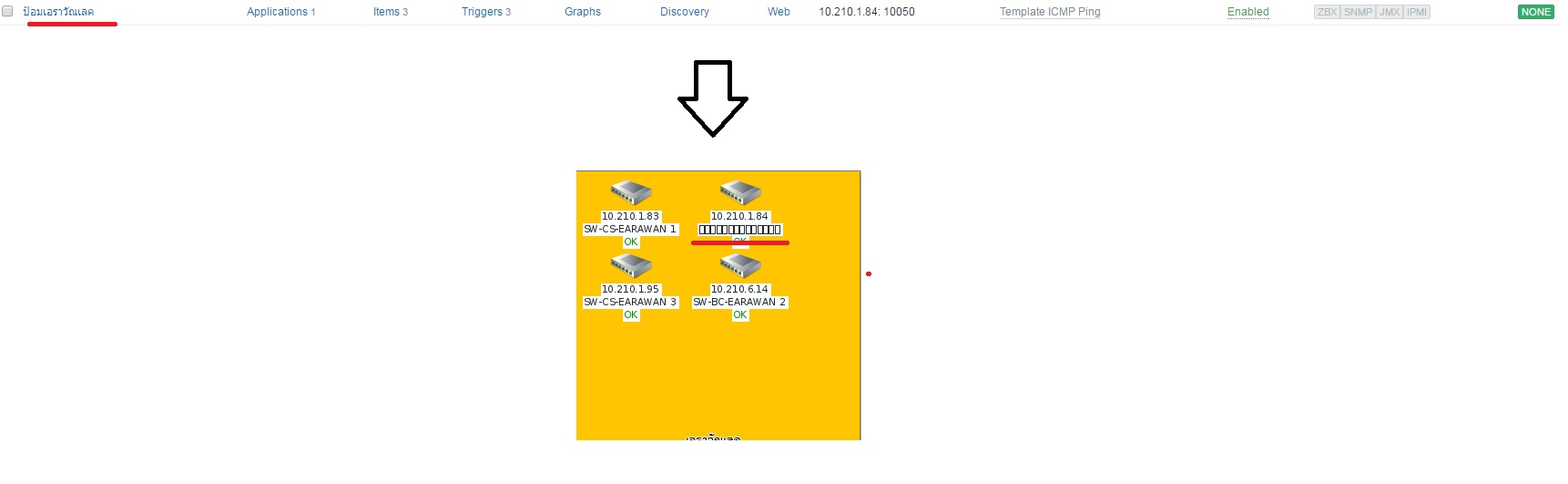

I add THAI Language to Visible name But display Map issue Help!!!

[Atsushi]

For graphs and maps, TrueType fonts are used.
Even when using Japanese, it is not displayed properly by default.
By switching to a font that can be displayed in Japanese as a font used in graph display, it can be displayed normally.

Also in Thai language, I think that you can display normally if you switch to a font that can display Thai language.

If you are using packages for RHEL or CentOS, you can use alternatives to change them.
If installing from the source, modify include/defines.inc.php of the web frontend.
(ZBX_GRAPH_FONT_NAME and ZBX_FONT_NAME value)

Please tell me the version of OS you are using and how to install Zabbix.

[mayza5106]

ZABBIX MAP character issue

I install Zabbix on Ubuntu

[Atsushi]

Please tell me the detailed version of Zabbix and Ubuntu.
And, did you install the official package?

--- added
If you are using Zabbix LLC's package on Ubuntu 16.04,
you can correspond by installing and configuring fonts.

$ sudo apt-get install fonts-tlwg-garuda-ttf
$ sudo update-alternatives --install /usr/share/zabbix/fonts/graphfont.ttf zabbix-frontend-font /usr/share/fonts/truetype/tlwg/Garuda.ttf 30
$ sudo service apache2 restart
