    Template graph not showing in host

    Hi, I'm on 7.0.5 and I created a template from scratch to monitor a datastore, I attached the template to a host (the datastore system) and the values are showing as expected. On the template I created a graph too, with some of the metrics that are shown in the host, but in this case it doesn't show.

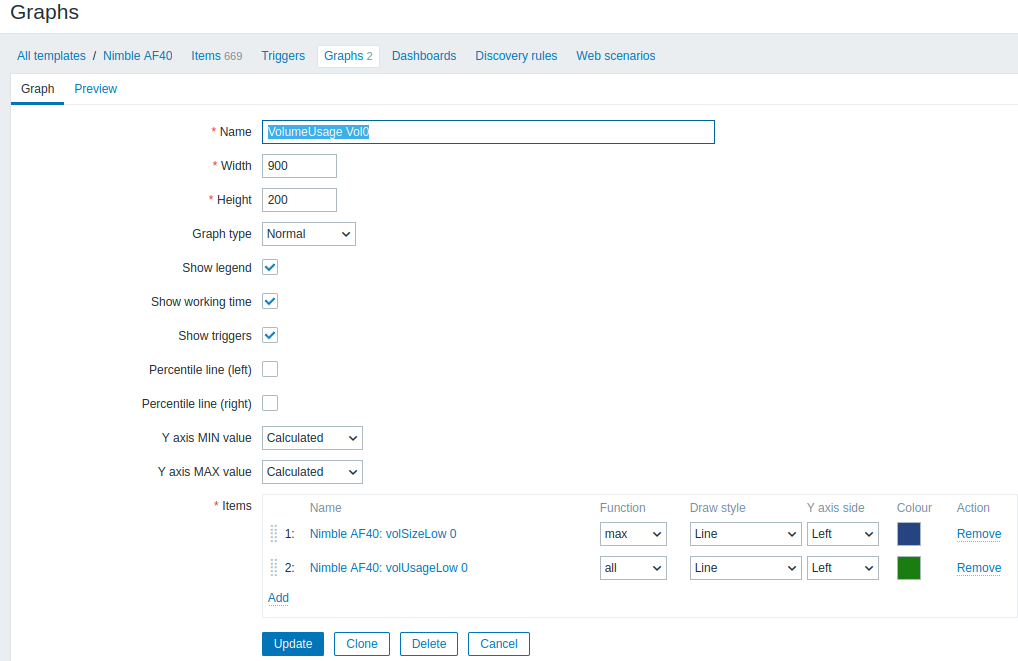

    This is the template page
    Click image for larger version

Name:	ksnip_20241120-083218.png
Views:	99
Size:	58.9 KB
ID:	494578
    On the graph view for the host doesn't show anything
    Click image for larger version

Name:	ksnip_20241120-083456.png
Views:	89
Size:	14.9 KB
ID:	494579
    Attached Files
  • aseques
    Member
    • May 2019
    • 40

    #2
    I am replying myself because I found the solution and it might help someone with the same situation, it was a silly filter I used for another host, it seems that the filters are kept active even when changing the hosts, so in my case it was a matter of removing the filter and then the graphs showed immediately.
    Click image for larger version

Name:	ksnip_20241120-083825.png
Views:	86
Size:	34.1 KB
ID:	494581

    Comment

    • troffasky
      Senior Member
      • Jul 2008
      • 568

      #3
      Yeah, I think this is a bug. It does not make any sense to apply a tag filter to a host, that does not even have that tag on it.

      Comment

      • troffasky
        Senior Member
        • Jul 2008
        • 568

        #4
        https://support.zabbix.com/browse/ZBX-21916 been around for a while now.
