Trigger action - condition is ignored

[dpit]

Hi,

I'm struggling with a trigger action where it is ignoring a condition.

So a trigger action is created to restart a Windows service when Zabbix detects it's stopped.

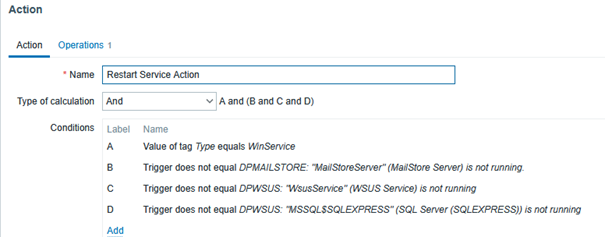

I added a few conditions where I don't want this to happen because I stop a service on purpose during an offline backup of a database.

So far so good.


There is another trigger action to execute a script on a host when a ups is running on battery (and capacity below a certain value).
That is working fine as well, as a remote command a batch file is run on a specified client to stop certain services.

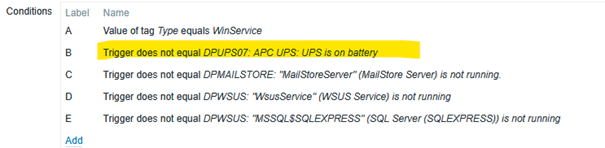

But when I add another condition to the screenshot above so a service is NOT restarted when ups is on battery, that condition is getting ignored?



So conditions C, D and E are working but when B is added, it is still restarting a service even though the trigger that that ups is on battery has status = problem.

I tried playing around with AND/OR calculations but I can't get it to work when this "ups on battery condition" is added.
I tried it with removing conditions C, D and E but still I see a service being restarted (I used the W32Time server for testing)?

5448:20250220:103940.569 Executing command 'C:\Program Files\Zabbix Agent\shutdown_by_ups.bat'
5444:20250220:104222.833 Executing command 'c:\windows\system32\net start W32Time'

Anyone got a clue why this condition for the ups on battery trigger is ignored here and why other conditions like the service names are working?

This is on Zabbix 6.4

[Brambo]

Take a look how the Type of calculation looks when you add the extra B, you didn't put that in the second screenshot so it's hard to say how it's handled. A and ( .... )

Could it be that the UPS doesn't have a tag WinService

[dpit]

Hi,

>> Could it be that the UPS doesn't have a tag WinService

Yes I had questions about that one as well so I removed all conditions other than "Trigger does not equal DPUPS07: APC UPS: UPS is on battery".
But even with this single condition the trigger action was still restarting a service even though that ups was on battery so the condition check should have been false (at least that's what I thought).


I played around with some other options and it the end it seems I got it working:

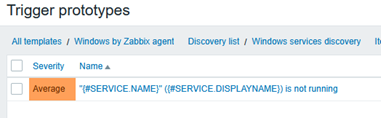

I removed the tag "WinService" from Template Windows by Zabbix agent > Discovery rules > Windows service discovery > Trigger prototypes

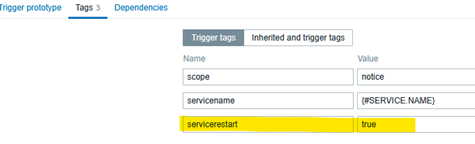

I created a new tag there "servicerestart" with value = true

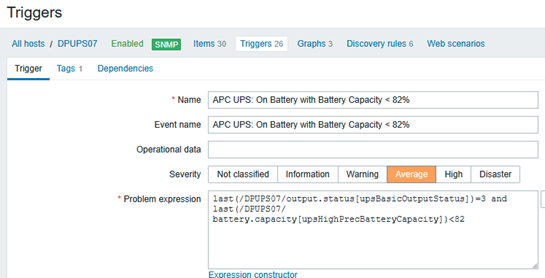

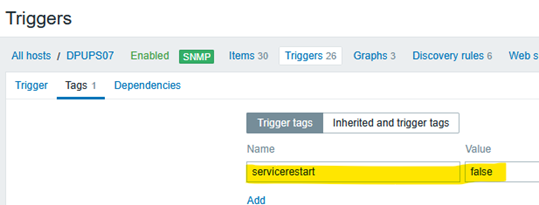

Then on the trigger that ups is on battery with battery capacity < xx% I added that same tag but now with value = false

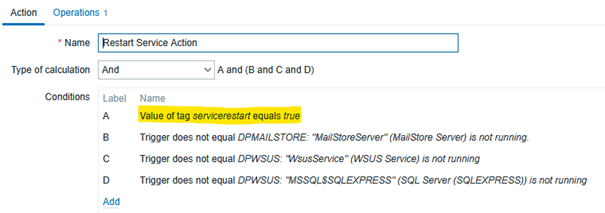

The conditions in the trigger action now look like this:



I did some tests:
- I put ups on battery and when battery capacity was below 82% a remote command was executed to stop the W32Time service. OK
- When Zabbix detected that this service was stopped, the trigger was shown as a problem but now it was not restarted. OK
- With ups back to 100% I manually stopped the W32Time service and now it was being restarted by this trigger action. OK
- With ups back to 100% I manually stopped the WsusService service and this was not restarted because it's listed as an additional condition in the action trigger. OK
