Require help in config JSONPath in item prototype preprocessing.

[vijayk]

Hi,

I have configured the discovery rule with the help of external script and retrieve the JSON data as below format.
{
"data": [
{
"{#IPCNO}": "1",
"{#IPCNAME}": "Main Road ",
"{#IPCIP}": "192.168.1.1",
"{#IPCPORT}": "80",
"{#IPCSTATUS}": "ONLINE",
"{#IPCMODEL}": "IPC2343EBR-DZ28 IPC.Software: DIPC-B1219.6.13.220512 ",
"{#IPCSOFTWARE}": "DIPC-B1219.6.13.220512 "
},
{
"{#IPCNO}": "2",
"{#IPCNAME}": "Gate Road ",
"{#IPCIP}": "192.168.1.2",
"{#IPCPORT}": "80",
"{#IPCSTATUS}": "OFLINE",
"{#IPCMODEL}": "IPC3A33LB-F60K IPC.Software: DIPC-B1219.6.13.220512 ",
"{#IPCSOFTWARE}": "DIPC-B1219.6.13.220512 "
}
]
}

Now I want to create the item prototype which return the IPCSTATUS in value.

I have tried the JSONPath preprocessing but it's not working.

Can someone please help me?

[bbonno]

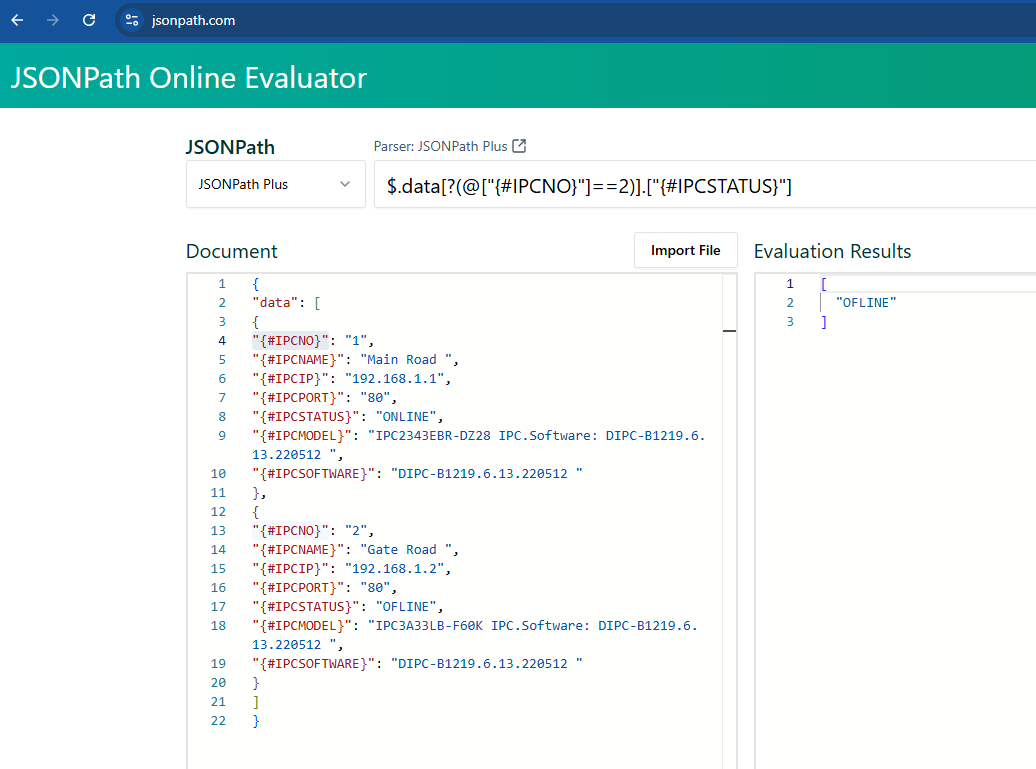

The following JSONPath works with the JSON you provided above, and returns the status of ICPNO 2.

However, from your question i can't tell where in the prototype createn you are stuck, and there are number of things you need to get right before your first item prototype will work.
Can you provide some screenshots, especially of any errors?


$.data[?(@["{#IPCNO}"]==1)].["{#IPCSTATUS}"]

[vijayk]

bbonno Thanks for the help. My issue is resolved with JavaScript instead of JSONPath.
