Host Availability Widget doesn't show all hosts

Collapse
X

  • Time
  • Show
Clear All
new posts
  • avbxl
    Junior Member
    • Jul 2024
    • 9

    #1

    Host Availability Widget doesn't show all hosts

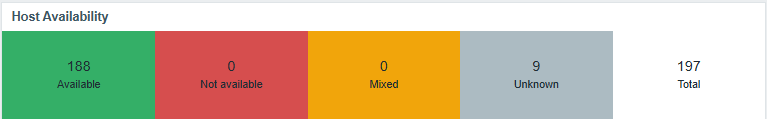

    I've been Using Zabbix for a while now, and noticed a discrepancy between the Host Availability widget and my number of hosts:
    Click image for larger version

Name:	image.png
Views:	131
Size:	5.8 KB
ID:	502566

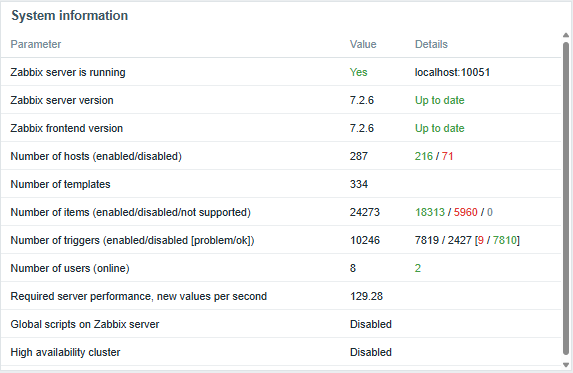

    The total in the widget shows as 197, but the Zabbix Server Information widget shows something else:
    Click image for larger version

Name:	image.png
Views:	98
Size:	26.4 KB
ID:	502567
    All host groups are selected to be in the Host Availability widget, and there are no hosts that don't belong to a host group (as far as I know).
    What could be causing this difference?
    Attached Files
  • cyber
    Senior Member
    Zabbix Certified SpecialistZabbix Certified Professional
    • Dec 2006
    • 4807

    #2
    "host availability" widget allows you to check, what type of interfaces you consider - Agent, JMX, SNMP... If you only select agents and you have a bunch of snmp only devices, numbers will not match..

    Comment


    • avbxl
      avbxl commented
      Editing a comment
      I selected all of them, including hosts in maintenance mode...
  • cyber
    Senior Member
    Zabbix Certified SpecialistZabbix Certified Professional
    • Dec 2006
    • 4807

    #3
    avbxl commented
    Yesterday, 13:51
    I selected all of them, including hosts in maintenance mode...
    No you did not... otherwise you would have also lines for other IF types there... You selected all hosts, but not all IF types..

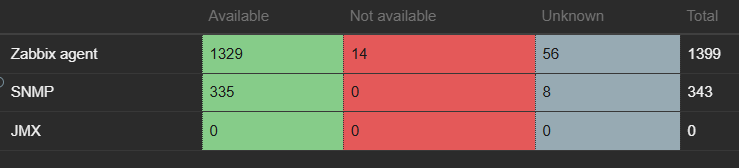

    Click image for larger version

Name:	image.png
Views:	100
Size:	11.3 KB
ID:	502723

    I know for sure, that I have bunch of hosts, which have no Interfaces.. used for calculated items etc..

    Comment

    • avbxl
      Junior Member
      • Jul 2024
      • 9

      #4
      Originally posted by cyber
      No you did not... otherwise you would have also lines for other IF types there... You selected all hosts, but not all IF types..

      Click image for larger version  Name:	image.png Views:	0 Size:	11.3 KB ID:	502723

      I know for sure, that I have bunch of hosts, which have no Interfaces.. used for calculated items etc..
      Click image for larger version

Name:	image.png
Views:	86
Size:	10.2 KB
ID:	502730

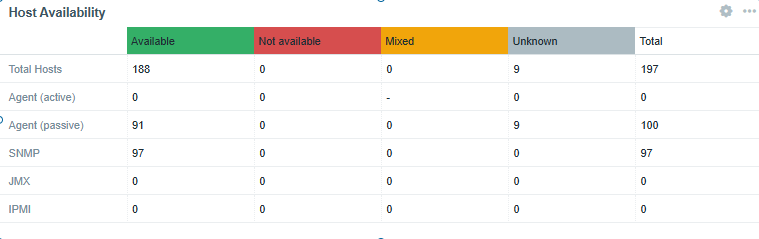

      I did select all IF types, I did also do show only totals, as I don't care about the different ones, I just want to see the total...?

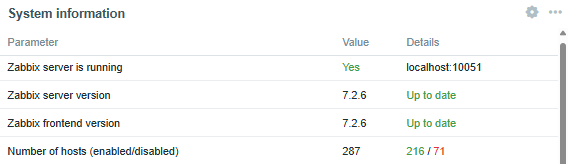

      Still this total does not match...
      Click image for larger version

Name:	image.png
Views:	82
Size:	14.0 KB
ID:	502731Click image for larger version

Name:	image.png
Views:	83
Size:	11.7 KB
ID:	502732​​

      Comment
