Report generating test failed - The Frontend URL has note been configured.

[syuusou]

Dear all,

There's the situation.
I deployed Zabbix 7.2.4 on our k8s cluster, and Zabbix server is using zabbix-server-mysql:7.2.4-ubuntu image.
There're several conf files under the directory /etc/zabbix in the Zabbix server pod.
The report conf is zabbix_server_reports.conf, and the content is like below.

### Option: StartReportWriters
#       Number of pre-forked report writer instances.
#
# Mandatory: no
# Range: 0-100
# Default:
# StartReportWriters=0

StartReportWriters=${ZBX_STARTREPORTWRITERS}

### Option: WebServiceURL
#       URL to Zabbix web service, used to perform web related tasks.
#       Example: [URL]http://localhost:10053/report[/URL]
#
# Mandatory: no
# Default:
# WebServiceURL=

WebServiceURL=${ZBX_WEBSERVICEURL}

I have built the zabbix server image with env set as blow.

StartReportWriters=10
WebServiceURL=http://<zabbix-web-nodeport-ip>:30053/report

Zabbix server pod's port mapping is set as below.

---
apiVersion: v1
kind: Service
metadata:
  name: zabbix-server
  namespace: zabbix
  labels:
    app: zabbix-server
spec:
  selector:
    app: zabbix-server
  ports:
  - name: zabbix-server
    port: 10051
    nodePort: 30051
  - name: zabbix-server-report
    port: 10053
    nodePort: 30053
  type: NodePort

Zabbix web container's yaml file is under below.
zabbix-web.yaml

apiVersion: apps/v1
kind: Deployment
metadata:
  labels:
    app: zabbix-web
  name: zabbix-web
  namespace: zabbix
spec:
  replicas: 1
  selector:
    matchLabels:
      app: zabbix-web
  template:
    metadata:
      labels:
        app: zabbix-web
    spec:
      containers:
      - image: zabbix/zabbix-web-nginx-mysql:alpine-7.2.4
        imagePullPolicy: IfNotPresent
        name: zabbix-web-nginx-mysql
        env:
        - name: DB_SERVER_HOST
          value: mysql844
        - name: MYSQL_USER
          value: zabbix
        - name: MYSQL_PASSWORD
          value: zabbix
        - name: ZBX_SERVER_HOST
          value: zabbix-server
        - name: PHP_TZ
          value: Asia/shanghai
        resources:
          requests:
            cpu: 100m
            memory: 2Gi
          limits:
            cpu: 500m
            memory: 4Gi
---
apiVersion: v1
kind: Service
metadata:
  labels:
    app: zabbix-web
  name: zabbix-web
  namespace: zabbix
spec:
  ports:
  - name: web
    port: 8080
    protocol: TCP
    targetPort: 8080
    nodePort: 30080
  - name: report
    port: 10053
    protocol: TCP
    targetPort: 10053
    nodePort: 30053
  selector:
    app: zabbix-web
  type: NodePort

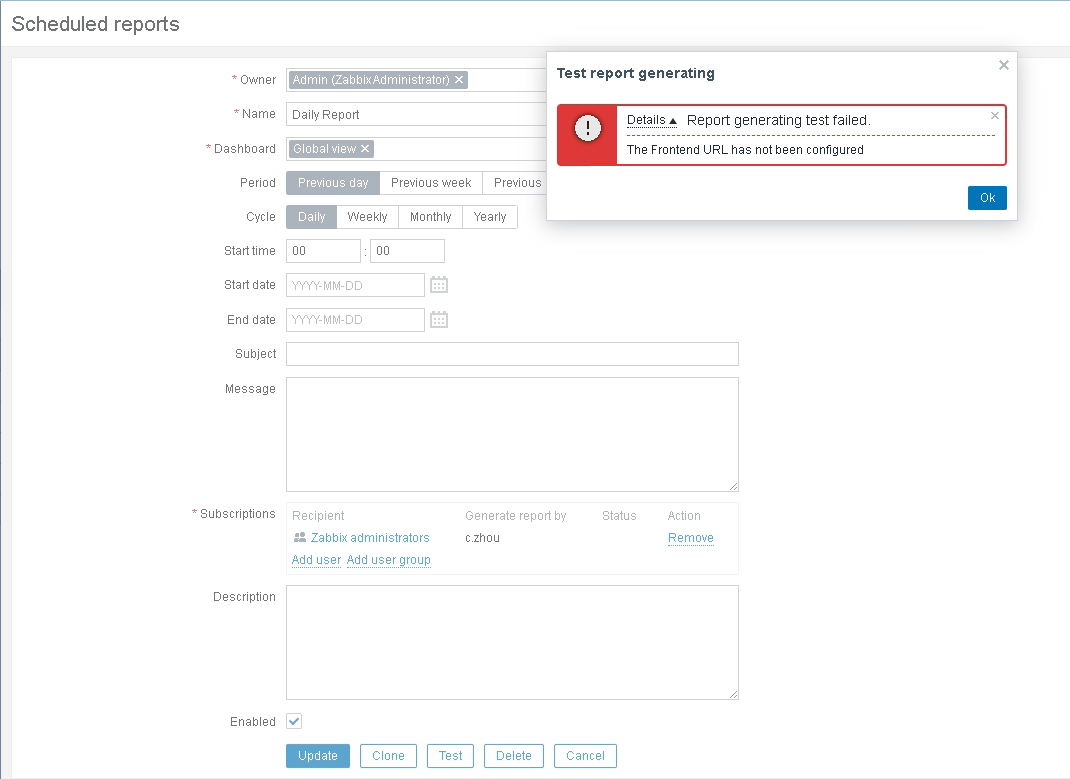

When I navigate to the web portal: Reports -> Scheduled reports select one and click the Test button, it gives me an error:
Report generating test failed.
The frontend URL has not been configured.

So, what steps should I do to normally generate the reports?
