Windows Filesystem - Item Free Space and Used Space, same value

[grefabu]

Hi,

I've the problem, that the value of the items 'Free Space' and 'Used Space' for the Template 'Windows by Zabbix agent' show the same.
The value from 'Used Space' is the real anyway,...




Zabbix server version 7.2.15
Zabbix Agent 2 (64-bit) 7.2.3.2400

[grefabu]

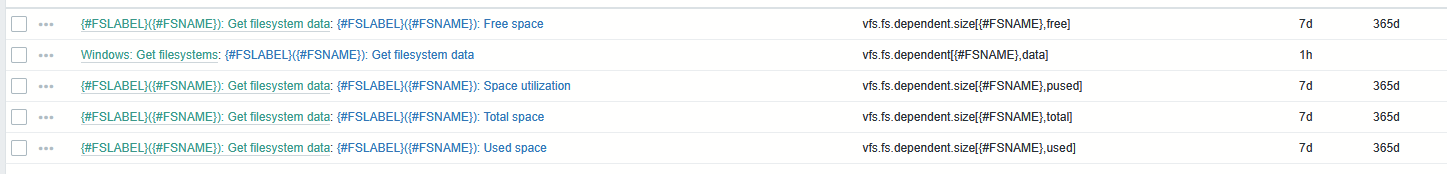

The definition in the template seem good:

[BP_Vital]

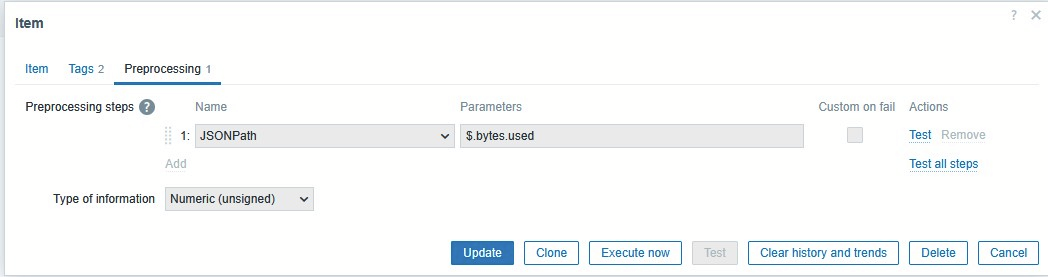

I'd start with checking latest data of master item (Get filesystem data), and preprocessing rules of dependent items.

[grefabu]

Hi,

{"fsname":"C:","fslabel":"WINDOWS","options":nu ll, "bytes":{"used":32224813056,"free":53119815680 ,"to tal":85344628736,"pused":37.758454788856511,"pfre e ":62.241545211143489},"fsdrivetype":"fixed","f styp e":"NTFS"}





That's it!

But why.

[grefabu]

After some time I think it is an 'OSI Layer 8 Problem'

I don't remember, but the item is not a deafult one, so I'd to define it wrong myself,...
