    Want to collect consumption on each outlet PDU Raritan PX Dominion

    I need to collect the consumtion for each outlet to invoice customers.
    For the moment, I have these items. I found on the net how to find the right OID ont this site: https://mibbrowser.online/mibdb_sear...N-PX2-PDU2-MIB
    • Outlet Current (Amps): .1.3.6.1.4.1.13742.6.3.5.3.1.3.1.OUTLETID.1
    • Outlet Voltage: .1.3.6.1.4.1.13742.6.3.5.3.1.3.1.OUTLETID.4
    • Outlet State (On/Off): .1.3.6.1.4.1.13742.6.3.5.3.1.2.1.OUTLETID (1=On, 0=Off)

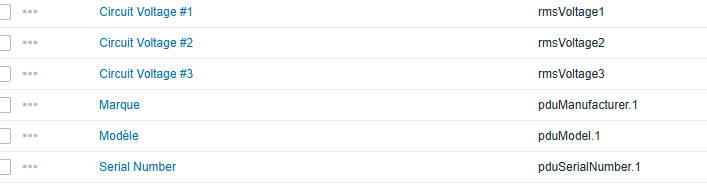

    Click image for larger version

Name:	image.png
Views:	0
Size:	13.5 KB
ID:	511903
