    Replicate Solarwinds "top 10 Interfaces" list

    Many people in the US are looking to move away from Solarwinds to other tools like Zabbix. Solarwinds suite of tools has been a staple for network administrators for years. They have "top usage" charts and graphs that seem to be difficult to reproduce in Zabbix. (for me anyway!)

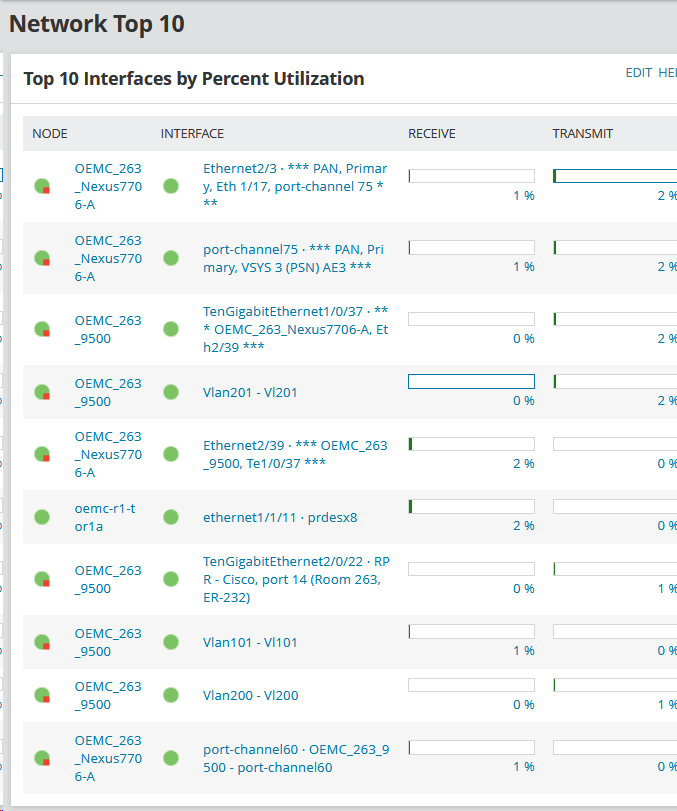

    For example, they have a chart that shows "top switch ports by percent utilization":

    Click image for larger version

Name:	image.png
Views:	0
Size:	65.0 KB
ID:	517045

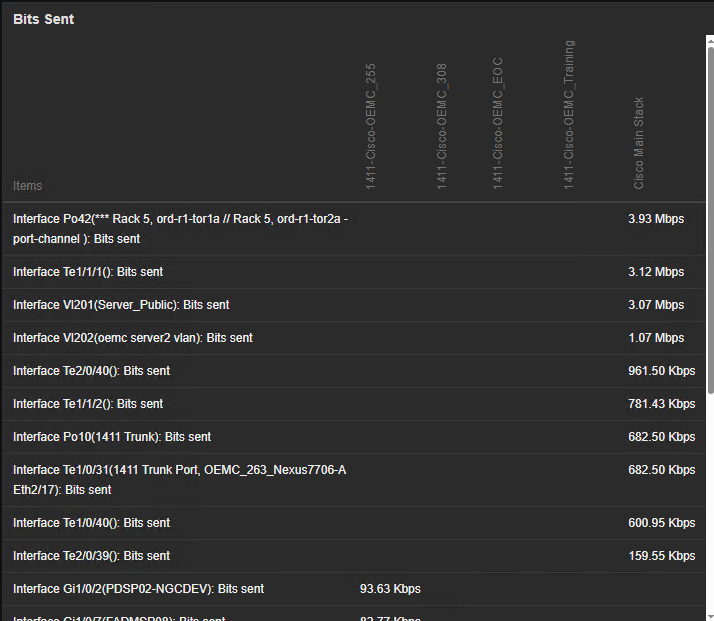

    This is across ALL switches and ports! The problem I see is that "Top Hosts" or "Top Items" in zabbix ends up creating something like this:

    Click image for larger version

Name:	image.png
Views:	0
Size:	147.7 KB
ID:	517046

    Since the items names to not match, it will not create a single list that I can sort in reverse order.

    Is there a way to hack one of these widgets? One thing I thought of was to use a powershell script that calls the API to pull data from zabbix, and then pull it back into zabbix as CSV or JSON.

    Am I missing something? Is there an easier solution?

    Thank you.

    -Tom
    ​​
