Patch for more readable graph dates

[kmradke]

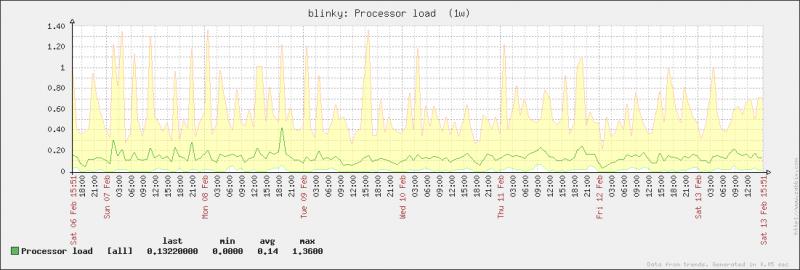

Not being accustomed to the european date format used in the graphs, I created this little patch to include weekday names and abbreviated month names in graphs. Instead of "16.02" this would use "Tue 16 Feb".

This probably should be configurable, but it was easiest to just change the hardcoded format in include/classes/class.cchart.php:



diff class.cchart.php.orig class.cchart.php

1146c1146
<                       else if($interval > 86400) $date_format = 'd.m';
---
>                       else if($interval > 86400) $date_format = 'D d M';
1164c1164
<               $str = date('d.m H:i',$this->stime);
---
>               $str = date('D d M H:i',$this->stime);
1178c1178
<               $str = date('d.m H:i',$endtime);
---
>               $str = date('D d M H:i',$endtime);
1193,1194c1193,1194
<                       if(date('Hi', $new_time) == 0) $date_format = 'd.m';
<                       else $date_format = 'd.m H:i';
---
>                       if(date('Hi', $new_time) == 0) $date_format = 'D d M';
>                       else $date_format = 'D d M H:i';

[tchjts1]

Excellent idea. The European format is throwing off my users as well.

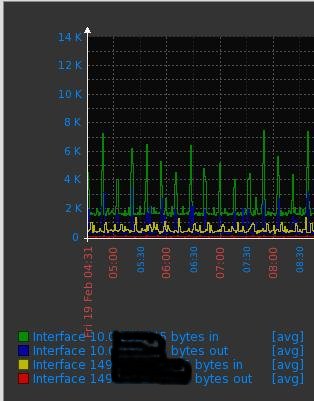

I think your patch works well on simple graphs that only have one item, but when you look at compound graphs with 2 or more items in it, the date extends down into the metrics text.

[zabbix_zen]

Hi.

Even with the overlapping issue it should be sugested to Zabbix DEV team.
They'll decide if it should be incorporated as is or with some modification.

Please file a request on,

https://support.zabbix.com/browse/

[kmradke]

The overlap seemed hit and miss. I have some graphs with a larger number of items that do not overlap. I'm sure that could easily be remedied with a more complex patch. I'll go ahead and add it as a feature request https://support.zabbix.com/browse/ZBXNEXT-255 .

[tchjts1]

I've also pointed it out to Alexei. Sounded like he liked it and was open to implementing it at some point.
