    Zabbix-Extras 2.1 for Zabbix 2.4

    This project is intended as extend the native options of Zabbix 2.4.0 or up. For previous version of Zabbix still using Zabbix-Extras version 1.2 (available in forum).

    New features on Zabbix-Extras 2.1:
    Option to off-line install;
    Possibility to change the type of graph in latest data;
    Install SNMP-Builder;
    Online test of Agent Item Keys from frontend;

    For more details about the plugin and install guides (in Brazilian Portuguese), please see http://spinola.net.br/blog.

    ZabTree - Hierarchical Tree Service - SERPRO / Rodrigo Dias (https://www.zabbix.com/forum/showthr...t=41584&page=4)
    ZabGeo - Plugin Zabbix integration with Google Maps - Aristotenes Araújo.
    Installation instructions

    Installer available in English and Portuguese !

    About the author

    Zabbix-Extras Built by Adail Horst
    Submit your issues using the Github issue tracker
    Adail Horst
    OCA/OCP - Oracle Application Server
    ZABBIX Certified Specialist
    http://www.spinola.net.br/blog (Blog sobre Zabbix e tecnologia)
  • PacMan
    Junior Member
    • Sep 2014
    • 14

    #2
    After installation, have a error in SNMP Builder:
    "Function: get_oid_tree. Command: /snmptranslate -Ts -M /usr/share/zabbix/extras/snmp-builder/mibs -m DISMAN-SCRIPT-MIB. Error: 127. Message: "
    Any ideas what wrong?

    OS: Ubuntu 14.04

    Comment

    • spaww
      Senior Member
      Zabbix Certified Specialist
      • May 2009
      • 178

      #3
      Originally posted by PacMan
      After installation, have a error in SNMP Builder:
      "Function: get_oid_tree. Command: /snmptranslate -Ts -M /usr/share/zabbix/extras/snmp-builder/mibs -m DISMAN-SCRIPT-MIB. Error: 127. Message: "
      Any ideas what wrong?

      OS: Ubuntu 14.04

      Pacman,

      Please check if you are using zabbix 2.4 and if you have snmp-tools package.
      Adail Horst
      OCA/OCP - Oracle Application Server
      ZABBIX Certified Specialist
      http://www.spinola.net.br/blog (Blog sobre Zabbix e tecnologia)

      Comment

      • angelhc
        Senior Member
        Zabbix Certified Specialist
        • Nov 2009
        • 226

        #4
        Hello!
        First of all, thank you very much for your work, it's so good and I think some of the features are a must to have on the official distro.

        I've a question about the zabtree plugin, Where can I find information about the functionality of this plugin? and about the login procedure?
        I ask this because I've problems to make it runs and thinks it's so interesting!

        Thanks!
        Number of hosts 1600,Number of items +90k,Number of triggers +22k, Number of users +100, New values per second +1270

        http://zabbixes.wordpress.com/

        Comment

        • selvakumaran
          Junior Member
          • Dec 2014
          • 22

          #5
          Zabbix-Extras 2.1 for Zabbix 2.4

          hi,
          while i install zabbix-extras in zabbix 2.4 receive the below error.kindly help us to solve the problem

          [root@ZABBIX selva]# sh instalaExtras.sh
          instalaExtras.sh: line 784: unalias: rm: not found
          -->Mensagem Versao do Linux - OK (centos - 6.6)
          -->Mensagem Instalando dialog (pre requisito para todo o processo)
          -->Mensagem ============== Instalando pacote(s) (dialog ) =================
          Loaded plugins: fastestmirror, refresh-packagekit, security
          Setting up Install Process
          Loading mirror speeds from cached hostfile
          * base: mirror.dhakacom.com
          * epel: ftp.riken.jp
          * extras: mirrors.viethosting.vn
          * updates: mirrors.viethosting.vn
          Package dialog-1.1-9.20080819.1.el6.x86_64 already installed and latest version
          Nothing to do
          53
          -->Mensagem Instalacao abortada (instalaExtras.sh: line 91: dialog: command not found)...
          [root@ZABBIX selva]#

          Comment

          • spaww
            Senior Member
            Zabbix Certified Specialist
            • May 2009
            • 178

            #6
            Originally posted by selvakumaran
            hi,
            while i install zabbix-extras in zabbix 2.4 receive the below error.kindly help us to solve the problem

            [root@ZABBIX selva]# sh instalaExtras.sh
            instalaExtras.sh: line 784: unalias: rm: not found
            -->Mensagem Versao do Linux - OK (centos - 6.6)
            -->Mensagem Instalando dialog (pre requisito para todo o processo)
            -->Mensagem ============== Instalando pacote(s) (dialog ) =================
            Loaded plugins: fastestmirror, refresh-packagekit, security
            Setting up Install Process
            Loading mirror speeds from cached hostfile
            * base: mirror.dhakacom.com
            * epel: ftp.riken.jp
            * extras: mirrors.viethosting.vn
            * updates: mirrors.viethosting.vn
            Package dialog-1.1-9.20080819.1.el6.x86_64 already installed and latest version
            Nothing to do
            53
            -->Mensagem Instalacao abortada (instalaExtras.sh: line 91: dialog: command not found)...
            [root@ZABBIX selva]#
            Hi,

            And if you try to type: dialog ... what apear ? The command still available ?
            Adail Horst
            OCA/OCP - Oracle Application Server
            ZABBIX Certified Specialist
            http://www.spinola.net.br/blog (Blog sobre Zabbix e tecnologia)

            Comment

            • selvakumaran
              Junior Member
              • Dec 2014
              • 22

              #7
              Zabbix-Extras 2.1 for Zabbix 2.4

              Hi,
              i removed dialog-1.1-9.20080819.1.el6.x86_64 and rerun the script. working fine.

              Thank you

              Comment

              • selvakumaran
                Junior Member
                • Dec 2014
                • 22

                #8
                Hi ,

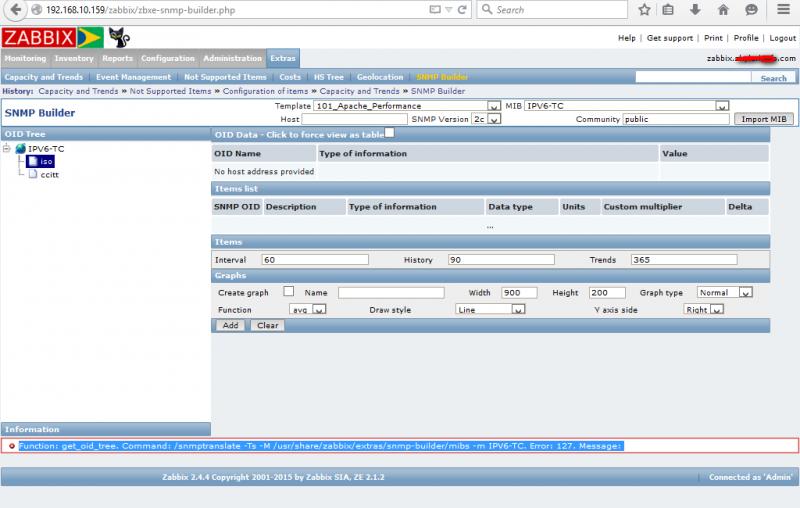

                i got the below error while selecting snmp builder mib

                Function: get_oid_tree. Command: /snmptranslate -Ts -M /usr/share/zabbix/extras/snmp-builder/mibs -m IPV6-TC. Error: 127. Message:
                Attached Files

                Comment

                • selvakumaran
                  Junior Member
                  • Dec 2014
                  • 22

                  #9
                  Zabbix-Extras 2.1 for Zabbix 2.4

                  Hi ,
                  i got the below error while selecting snmp builder mib

                  Function: get_oid_tree. Command: /snmptranslate -Ts -M /usr/share/zabbix/extras/snmp-builder/mibs -m IPV6-TC. Error: 127. Message:

                  Comment
