Discussion thread for official Zabbix Dell templates

[AlexL]

This thread is designed to provide grounds for discussion of the official Zabbix Template for Dell.
The template and details of the template will be available in GIT repository.
Zabbix is always looking for ways to improve our services and to make our users happier.
We pride ourselves on doing our best each and every day, but we know that there is always something more to learn.
We would like to hear back from you to know what have you liked and what would you improve in the template.

[Rodrigo Lotierzo]

Hello friends frm the forum.

Can anyone provide the link do the R740 SNMP XML template? I could not find it in the link https://www.zabbix.com/integrations/dell_r740_snmp.

Thnaks in advance!

[vitalijs.m]

Link to template repository has been added to https://www.zabbix.com/integrations/dell_r740_snmp

[Rodrigo Lotierzo]

Thank you very much!

[cyber]

"Dell" is very vague term here. They have a huge amount of different devices...
You could post a link to what you are talking about..
You have "Monitoring of DELL hardware via DELL OpenManager" listed twice under

https://www.zabbix.com/integrations/dell

Once via share.zabbix.com and other is direct link to same github page...

[EHRETic]

Hi there,

For now, I always used the template "Dell iDRAC SNMP" for all my DRAC interfaces but with the upcoming 6.0 version, I'm thinking about using those new ones.

But those templates are "only" covering Rx20s and Rx40s series.
What about Rx30s which are broadly used? Should we use any of the existing one instead, but which one (20 or 40)?

Thanks in advance!

[elkropac]

Hi, i have just upgraded to zabbix 6.0 and i'm looking for those redfish templates. Running diff on them, they seem like they are the same, just differs in "Rxx0" labels. It feels like there should only be one template for all server models (unless the api differs in some older/newer versions)

[lllDez]

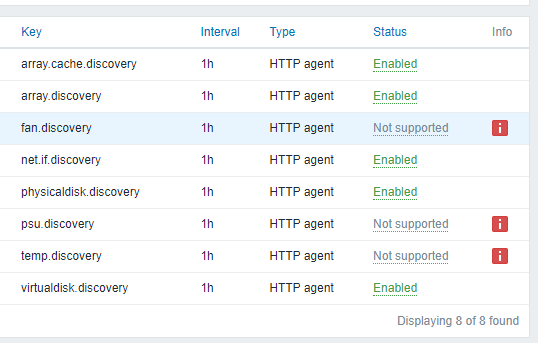

Hello! I tried using this template on the R640, and three out of eight discoveries didn't work.



Here are the errors:

Preprocessing failed for: {"@odata.context":"/redfish/v1/$metadata#SensorCollection.SensorCollection","@oda ta.id":"/redfish...
1. Failed: Error: maximum count of HttpRequest objects was reached
at [anon] (httprequest.c:155) internal
at [anon] () native strict construct preventsyield
at request (function:2)
at [anon] (function:67) preventsyield
at forEach () native strict preventsyield
at [anon] (function:74) preventsyield

Preprocessing failed for: {"@odata.context":"/redfish/v1/$metadata#SensorCollection.SensorCollection","@oda ta.id":"/redfish...
1. Failed: Error: maximum count of HttpRequest objects was reached
at [anon] (httprequest.c:155) internal
at [anon] () native strict construct preventsyield
at request (function:2)
at [anon] (function:83) preventsyield
at forEach () native strict preventsyield
at [anon] (function:88) preventsyield

Preprocessing failed for: {"@odata.context":"/redfish/v1/$metadata#SensorCollection.SensorCollection","@oda ta.id":"/redfish...
1. Failed: Error: maximum count of HttpRequest objects was reached
at [anon] (httprequest.c:155) internal
at [anon] () native strict construct preventsyield
at request (function:2)
at [anon] (function:83) preventsyield
at forEach () native strict preventsyield
at [anon] (function:88) preventsyield

It appears that this template is trying to make a large number of requests to the Redfish API, causing it to get blocked. It doesn't seem like this template is just doesn't compatible with the R640. Can you please help me figure out how to make it work?

[Tristis Oris]

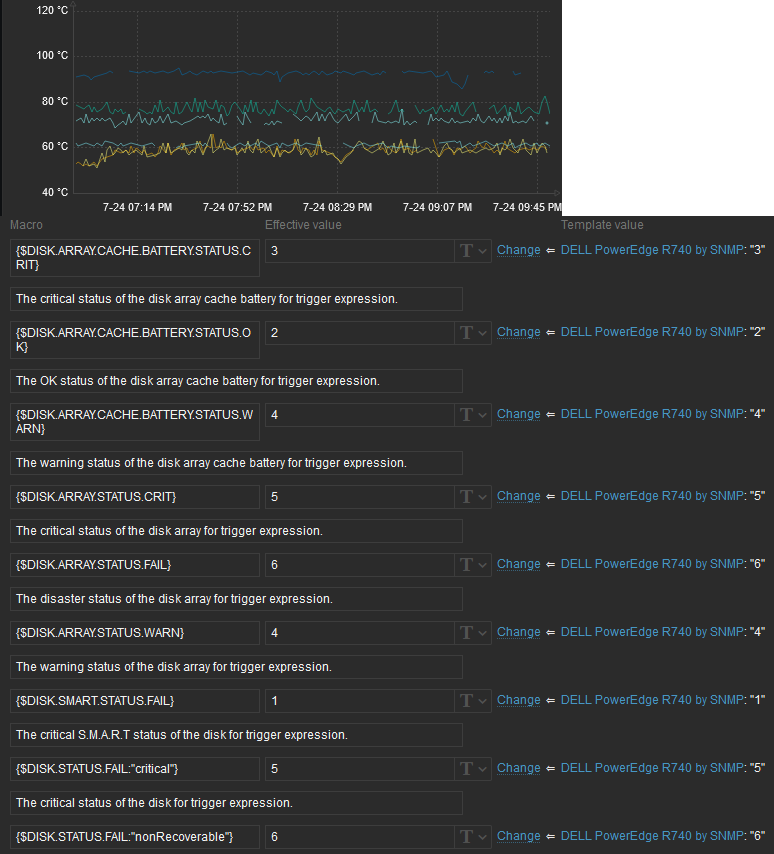

i don't understand what happens at version 7.

temp is over 90*, but no one trigger is active.
At macro values only weird numbers. what is it?

[Tristis Oris]

Install latest 7.4 templates.

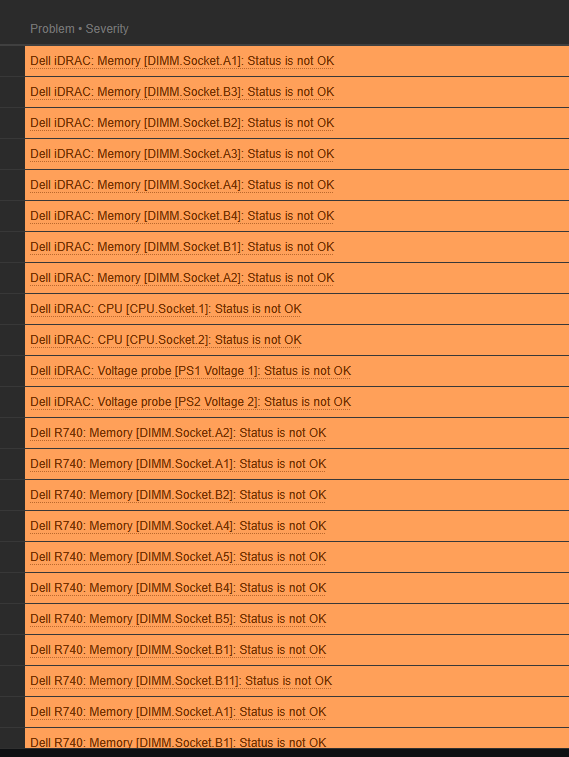

You miss dependency for EVERY "not OK" trigger with host status. Since when server is shutdown - everything is not ok. memory, temp, fan..



with enabled servers it also works badly.

[Anatolius]

Hello, will DELL PowerEdge R720 by SNMP(or R740) template work for R730xd? Specifically temperature monitoring
