zabbix server Memory Fill Up

[hughmcl]

Here's a copy of top:-

top - 10:26:09 up 2 days, 12:08, 3 users, load average: 0.78, 0.75, 0.67
Tasks: 168 total, 1 running, 167 sleeping, 0 stopped, 0 zombie
Cpu(s): 8.0%us, 3.6%sy, 4.6%ni, 81.1%id, 2.1%wa, 0.1%hi, 0.5%si, 0.0%st
Mem: 3369668k total, 3240296k used, 129372k free, 128168k buffers
Swap: 6225896k total, 506380k used, 5719516k free, 1357788k cached

PID USER PR NI VIRT RES SHR S %CPU %MEM TIME+ COMMAND
3836 mysql 15 0 799m 350m 3332 S 42 10.6 1416:06 mysqld
17566 zabbix 20 5 9668 3648 2188 S 17 0.1 6:00.46 zabbix_server
17544 zabbix 20 5 351m 247m 1588 S 2 7.5 0:55.94 zabbix_server
17545 zabbix 20 5 336m 237m 1596 S 2 7.2 1:04.32 zabbix_server
17543 zabbix 20 5 337m 237m 1592 S 1 7.2 0:55.46 zabbix_server
17547 zabbix 20 5 341m 240m 1600 S 1 7.3 1:02.82 zabbix_server
17550 zabbix 28 5 8836 1524 876 S 1 0.0 0:10.57 zabbix_server

The processes are now taking over 237MB each.

Is there anything else we can get you copies of to help?

[snivek]

I too am experiencing what seems to be a memory leak. I am running Ubuntu (in a VM) that has 1GB of memory associated with it. This is a 1.6.2 install compiled form source.

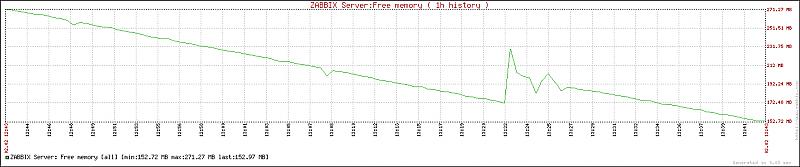

Here is a snap of TOP and I also attached a graph of the server free memory ( the increase you see was when I reduced the number of apache servers and restarted apache).

top - 13:47:21 up 2:56, 2 users, load average: 0.35, 0.29, 0.42
Tasks: 92 total, 4 running, 88 sleeping, 0 stopped, 0 zombie
Cpu(s): 18.3%us, 8.3%sy, 0.3%ni, 72.4%id, 0.7%wa, 0.0%hi, 0.0%si, 0.0%st
Mem: 1035232k total, 893296k used, 141936k free, 115740k buffers
Swap: 409616k total, 0k used, 409616k free, 255744k cached

PID USER PR NI VIRT RES SHR S %MEM %CPU TIME+ COMMAND
4600 zabbix 25 5 116m 78m 1720 S 7.8 0.3 0:18.40 zabbix_server
4597 zabbix 25 5 116m 78m 1748 S 7.8 0.3 0:19.51 zabbix_server
4601 zabbix 25 5 116m 78m 1716 S 7.8 0.3 0:16.81 zabbix_server
4598 zabbix 25 5 108m 72m 1744 S 7.2 0.0 0:14.79 zabbix_server
4599 zabbix 25 5 100m 66m 1720 S 6.6 0.3 0:19.27 zabbix_server
4240 mysql 20 0 134m 46m 5572 S 4.6 21.3 21:55.29 mysqld
21424 www-data 20 0 30144 13m 3636 S 1.3 0.7 0:11.95 apache2
21314 www-data 20 0 30112 13m 3636 S 1.3 0.0 0:13.69 apache2
21423 www-data 20 0 29868 13m 3704 S 1.3 0.0 0:13.65 apache2
21540 www-data 20 0 29580 12m 3636 S 1.3 1.0 0:12.11 apache2
21417 www-data 20 0 29324 12m 3704 S 1.2 0.0 0:11.43 apache2
21359 www-data 20 0 29152 12m 3704 S 1.2 1.0 0:15.32 apache2
21549 www-data 20 0 28400 11m 3616 S 1.2 0.0 0:12.45 apache2
21311 root 20 0 23496 6944 3932 S 0.7 0.0 0:00.09 apache2
4406 snmp 20 0 8492 3728 2092 S 0.4 0.0 0:00.09 snmpd
4637 zabbix 25 5 10432 2956 1828 S 0.3 0.3 0:10.20 zabbix_server
4538 root 20 0 5008 2716 1448 S 0.3 0.0 0:00.36 bash
4622 zabbix 25 5 10372 2536 1460 S 0.2 0.0 0:00.72 zabbix_server

[hughmcl]

Here's some info that may help?

I ran valgrind on the zabbix_server with memcheck and watched the processes that grew and i've grepped the log for those processes so here is info from them:-

==16130==
==16130== ERROR SUMMARY: 117 errors from 1 contexts (suppressed: 51 from 1)
==16130== malloc/free: in use at exit: 21,007,250 bytes in 15,270 blocks.
==16130== malloc/free: 246,998 allocs, 231,728 frees, 596,280,150 bytes allocated.
==16130== For counts of detected errors, rerun with: -v
==16130== searching for pointers to 15,270 not-freed blocks.
==16130== checked 1,453,624 bytes.
==16130==
==16130==
==16130== 18,840 bytes in 942 blocks are definitely lost in loss record 78 of 86
==16130== at 0x40053C0: malloc (vg_replace_malloc.c:149)
==16130== by 0x258AA1: netsnmp_udp_transport (in /usr/lib/libnetsnmp.so.10.0.1)
==16130== by 0x259130: netsnmp_udp_create_tstring (in /usr/lib/libnetsnmp.so.10.0.1)
==16130== by 0x250929: netsnmp_tdomain_transport (in /usr/lib/libnetsnmp.so.10.0.1)
==16130== by 0x22156C: snmp_sess_open (in /usr/lib/libnetsnmp.so.10.0.1)
==16130== by 0x22181C: snmp_open (in /usr/lib/libnetsnmp.so.10.0.1)
==16130== by 0x80519EA: get_snmp (checks_snmp.c:476)
==16130== by 0x805229E: get_value_snmp (checks_snmp.c:743)
==16130== by 0x8055052: get_value (poller.c:69)
==16130== by 0x8055446: main_poller_loop (poller.c:448)
==16130== by 0x804E146: MAIN_ZABBIX_ENTRY (server.c:1142)
==16130== by 0x8068BB3: daemon_start (daemon.c:190)
==16130==
==16130==
==16130== 18,091,936 (123,336 direct, 17,968,600 indirect) bytes in 1,250 blocks are definitely lost in loss record 84 of 86
==16130== at 0x40053C0: malloc (vg_replace_malloc.c:149)
==16130== by 0x41CE82C: my_malloc (in /usr/local/mysql/lib/mysql/libmysqlclient.so.15.0.0)
==16130== by 0x41EAAB0: mysql_store_result (in /usr/local/mysql/lib/mysql/libmysqlclient.so.15.0.0)
==16130== by 0x8075545: zbx_db_vselect (db.c:718)
==16130== by 0x8072120: __zbx_DBselect (db.c:246)
==16130== by 0x8072240: zbx_host_key_string (db.c:2198)
==16130== by 0x808212C: update_triggers (functions.c:161)
==16130== by 0x8055645: main_poller_loop (poller.c:480)
==16130== by 0x804E146: MAIN_ZABBIX_ENTRY (server.c:1142)
==16130== by 0x8068BB3: daemon_start (daemon.c:190)
==16130== by 0x804DD40: main (server.c:974)
==16130==
==16130==
==16130== 2,498,332 bytes in 308 blocks are possibly lost in loss record 86 of 86
==16130== at 0x40053C0: malloc (vg_replace_malloc.c:149)
==16130== by 0x41CE82C: my_malloc (in /usr/local/mysql/lib/mysql/libmysqlclient.so.15.0.0)
==16130== by 0x41D1989: alloc_root (in /usr/local/mysql/lib/mysql/libmysqlclient.so.15.0.0)
==16130== by 0x41EB8DE: cli_read_rows (in /usr/local/mysql/lib/mysql/libmysqlclient.so.15.0.0)
==16130== by 0x41EAAED: mysql_store_result (in /usr/local/mysql/lib/mysql/libmysqlclient.so.15.0.0)
==16130== by 0x8075545: zbx_db_vselect (db.c:718)
==16130== by 0x8072120: __zbx_DBselect (db.c:246)
==16130== by 0x8072240: zbx_host_key_string (db.c:2198)
==16130== by 0x808216C: update_triggers (functions.c:166)
==16130== by 0x8055645: main_poller_loop (poller.c:480)
==16130== by 0x804E146: MAIN_ZABBIX_ENTRY (server.c:1142)
==16130== by 0x8068BB3: daemon_start (daemon.c:190)
==16130==
==16130== LEAK SUMMARY:
==16130== definitely lost: 142,176 bytes in 2,192 blocks.
==16130== indirectly lost: 17,968,600 bytes in 3,442 blocks.
==16130== possibly lost: 2,498,332 bytes in 308 blocks.
==16130== still reachable: 398,142 bytes in 9,328 blocks.
==16130== suppressed: 0 bytes in 0 blocks.
==16130== Reachable blocks (those to which a pointer was found) are not shown.
==16130== To see them, rerun with: --show-reachable=yes



==16131==
==16131== ERROR SUMMARY: 117 errors from 1 contexts (suppressed: 51 from 1)
==16131== malloc/free: in use at exit: 20,851,225 bytes in 15,221 blocks.
==16131== malloc/free: 245,132 allocs, 229,911 frees, 591,987,224 bytes allocated.
==16131== For counts of detected errors, rerun with: -v
==16131== searching for pointers to 15,221 not-freed blocks.
==16131== checked 1,527,540 bytes.
==16131==
==16131==
==16131== 18,560 bytes in 928 blocks are definitely lost in loss record 91 of 99
==16131== at 0x40053C0: malloc (vg_replace_malloc.c:149)
==16131== by 0x258AA1: netsnmp_udp_transport (in /usr/lib/libnetsnmp.so.10.0.1)
==16131== by 0x259130: netsnmp_udp_create_tstring (in /usr/lib/libnetsnmp.so.10.0.1)
==16131== by 0x250929: netsnmp_tdomain_transport (in /usr/lib/libnetsnmp.so.10.0.1)
==16131== by 0x22156C: snmp_sess_open (in /usr/lib/libnetsnmp.so.10.0.1)
==16131== by 0x22181C: snmp_open (in /usr/lib/libnetsnmp.so.10.0.1)
==16131== by 0x80519EA: get_snmp (checks_snmp.c:476)
==16131== by 0x805229E: get_value_snmp (checks_snmp.c:743)
==16131== by 0x8055052: get_value (poller.c:69)
==16131== by 0x8055446: main_poller_loop (poller.c:448)
==16131== by 0x804E146: MAIN_ZABBIX_ENTRY (server.c:1142)
==16131== by 0x8068BB3: daemon_start (daemon.c:190)
==16131==
==16131==
==16131== 17,844,852 (121,952 direct, 17,722,900 indirect) bytes in 1,236 blocks are definitely lost in loss record 95 of 99
==16131== at 0x40053C0: malloc (vg_replace_malloc.c:149)
==16131== by 0x41CE82C: my_malloc (in /usr/local/mysql/lib/mysql/libmysqlclient.so.15.0.0)
==16131== by 0x41EAAB0: mysql_store_result (in /usr/local/mysql/lib/mysql/libmysqlclient.so.15.0.0)
==16131== by 0x8075545: zbx_db_vselect (db.c:718)
==16131== by 0x8072120: __zbx_DBselect (db.c:246)
==16131== by 0x8072240: zbx_host_key_string (db.c:2198)
==16131== by 0x808216C: update_triggers (functions.c:166)
==16131== by 0x8055645: main_poller_loop (poller.c:480)
==16131== by 0x804E146: MAIN_ZABBIX_ENTRY (server.c:1142)
==16131== by 0x8068BB3: daemon_start (daemon.c:190)
==16131== by 0x804DD40: main (server.c:974)
==16131==
==16131==
==16131== 2,506,452 bytes in 309 blocks are possibly lost in loss record 98 of 99
==16131== at 0x40053C0: malloc (vg_replace_malloc.c:149)
==16131== by 0x41CE82C: my_malloc (in /usr/local/mysql/lib/mysql/libmysqlclient.so.15.0.0)
==16131== by 0x41EB854: cli_read_rows (in /usr/local/mysql/lib/mysql/libmysqlclient.so.15.0.0)
==16131== by 0x41EAAED: mysql_store_result (in /usr/local/mysql/lib/mysql/libmysqlclient.so.15.0.0)
==16131== by 0x8075545: zbx_db_vselect (db.c:718)
==16131== by 0x8072120: __zbx_DBselect (db.c:246)
==16131== by 0x8072190: zbx_host_key_function_string (db.c:2222)
==16131== by 0x807523E: DBget_function_result (db.c:300)
==16131== by 0x8089529: evaluate_expression (expression.c:1688)
==16131== by 0x8082118: update_triggers (functions.c:159)
==16131== by 0x8055645: main_poller_loop (poller.c:480)
==16131== by 0x804E146: MAIN_ZABBIX_ENTRY (server.c:1142)
==16131==
==16131== LEAK SUMMARY:
==16131== definitely lost: 140,512 bytes in 2,164 blocks.
==16131== indirectly lost: 17,722,900 bytes in 3,397 blocks.
==16131== possibly lost: 2,506,452 bytes in 309 blocks.
==16131== still reachable: 481,361 bytes in 9,351 blocks.
==16131== suppressed: 0 bytes in 0 blocks.
==16131== Reachable blocks (those to which a pointer was found) are not shown.
==16131== To see them, rerun with: --show-reachable=yes



So do I take it that it's an issue with the mysqlclient? or is it an issue with zabbix_server talking to the client?

I'm using mysql-5.0.67.


Hugh

[hughmcl]

Any updates?

I'm having to restart my zabbix_server process every 2-3 hours.

Zabbix engineers/developers find anything useful with the information i posted?

[pace]

1. DBStartSyncers: Default
2. Output of ps for zabbix_server after running for about 1 hour:

zabbix 4885 0.0 0.1 10676 2040 ? SN 00:51 0:00 /usr/local/sbin/zabbix_server
zabbix 4887 0.0 8.1 127992 85440 ? SN 00:51 0:00 /usr/local/sbin/zabbix_server
zabbix 4888 0.0 7.9 125132 83312 ? SN 00:51 0:00 /usr/local/sbin/zabbix_server
zabbix 4889 0.0 7.8 123992 82704 ? SN 00:51 0:01 /usr/local/sbin/zabbix_server
zabbix 4890 0.0 8.0 127084 84872 ? SN 00:51 0:00 /usr/local/sbin/zabbix_server
zabbix 4891 0.0 8.2 128780 86000 ? SN 00:51 0:01 /usr/local/sbin/zabbix_server
zabbix 4892 0.0 0.1 10696 1612 ? SN 00:51 0:00 /usr/local/sbin/zabbix_server
zabbix 4893 0.0 0.1 10696 1612 ? SN 00:51 0:00 /usr/local/sbin/zabbix_server
zabbix 4894 0.0 0.1 10696 1612 ? SN 00:51 0:00 /usr/local/sbin/zabbix_server
zabbix 4895 0.0 0.1 10696 1612 ? SN 00:51 0:00 /usr/local/sbin/zabbix_server
zabbix 4896 0.0 0.1 10696 1612 ? SN 00:51 0:00 /usr/local/sbin/zabbix_server
zabbix 4897 0.0 0.1 10680 1784 ? SN 00:51 0:00 /usr/local/sbin/zabbix_server
zabbix 4898 0.0 0.1 10676 1512 ? SN 00:51 0:00 /usr/local/sbin/zabbix_server
zabbix 4899 0.0 0.1 10676 1584 ? SN 00:51 0:00 /usr/local/sbin/zabbix_server
zabbix 4900 0.0 0.1 10676 1524 ? SN 00:51 0:00 /usr/local/sbin/zabbix_server
zabbix 4901 0.0 0.2 12980 2620 ? SN 00:51 0:00 /usr/local/sbin/zabbix_server
zabbix 4902 0.0 0.1 10676 1524 ? SN 00:51 0:00 /usr/local/sbin/zabbix_server
zabbix 4903 0.0 0.2 10760 2456 ? SN 00:51 0:00 /usr/local/sbin/zabbix_server
zabbix 4904 0.0 0.2 10760 2444 ? SN 00:51 0:00 /usr/local/sbin/zabbix_server
zabbix 4905 0.0 0.2 10760 2508 ? SN 00:51 0:00 /usr/local/sbin/zabbix_server
zabbix 4906 0.0 0.3 11244 3452 ? SN 00:51 0:00 /usr/local/sbin/zabbix_server
zabbix 4907 0.0 0.3 11252 3408 ? SN 00:51 0:00 /usr/local/sbin/zabbix_server
zabbix 4908 0.0 0.2 12980 2612 ? SN 00:51 0:00 /usr/local/sbin/zabbix_server
zabbix 4909 0.0 0.1 10676 1528 ? SN 00:51 0:00 /usr/local/sbin/zabbix_server

3. Types of monitors: snmp, agent, agent-active, and simple checks

Leaking like a siv. Just for giggles, I updated all of my development packages to the latest and recompiled. That solved nothing.


pace

[Alexei]

The valgrind output was extremely useful. Thanks for this!

We have identified reason of the memory leaks, we do not free small chunks memory in a couple of places. The memory leaks happens ONLY in case if a poller cannot get information from Zabbix/SNMP Agent, one leak per each fail. That was the reason why it took so long to figure it out.

Please expect a patch shortly.

Thanks again to all participating in the bug hunting!

[richlv]

nice to see this one resolved. any information on which version introduced this problem ?

[Alexei]

nice to see this one resolved. any information on which version introduced this problem ?

It was introduced by some improvements we've made in 1.6.2.

[hughmcl]

Woohoo! Glad my valgrind dumps helped. Looking forward to the patches.


Hugh

[Alexei]

Here is the patch for 1.6.2. Thanks to all again!

[hughmcl]

Been using the patch now for 20+ minutes and don't see any increased memory usage! Looks like this fixed it. Thanks.


Hugh

[elvar]

Been using the patch now for 20+ minutes and don't see any increased memory usage! Looks like this fixed it. Thanks.


Hugh

Yes, I can confirm the same thing. It's so nice having this working.

[ggiesen]

This has fixed the problem for me as well. I can now kill my cron job that restarts zabbix every two hours to avoid running out of memory.

[kmitbo]

Patch from post #25 fixed problem.
Thank you!

[elvar]

Shouldn't a notice be attached to the "1.6.2 stable" link in the download section to this patch? Can 1.6.2 really be considered stable with a known memory leak?
