cisco snmpv3 reporting problem

[mistur]

Hi

since I migrate a zabbix 1.4 to zabbix 1.6, reporting from cisco 6500 or 2960 traffic doesn't work.

I have 2 different zabbix server, one in 1.4.5 and one in 1.6.2.

an example :

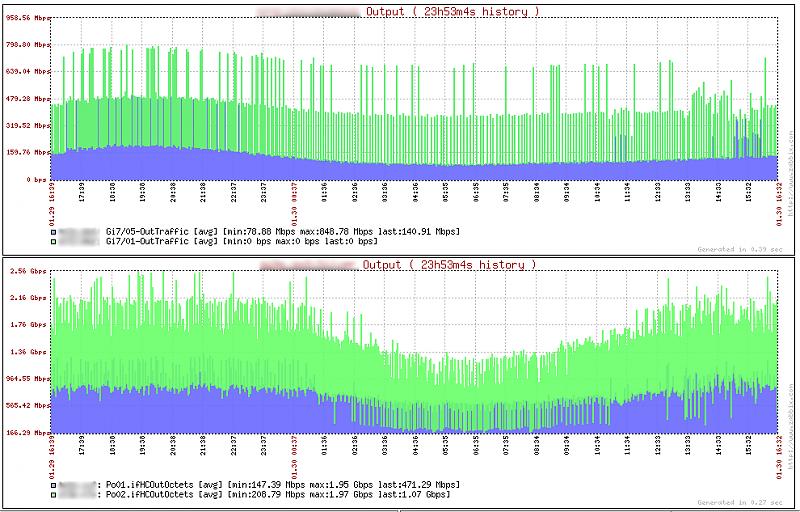

1st img : zabbix-1.6.2.jpg > bandwidth reporting from zabbix 1.6.2

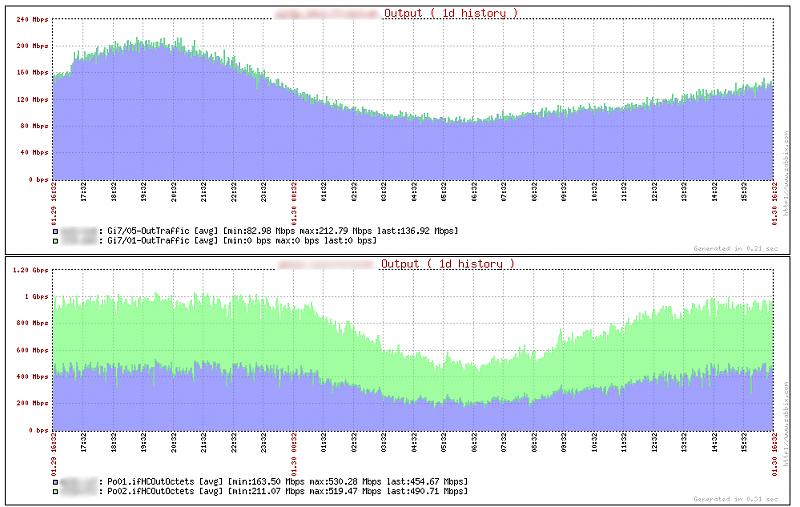

2nd img : zabbix-1.4.jpg > bandwidth reporting from zabbix 1.4.5

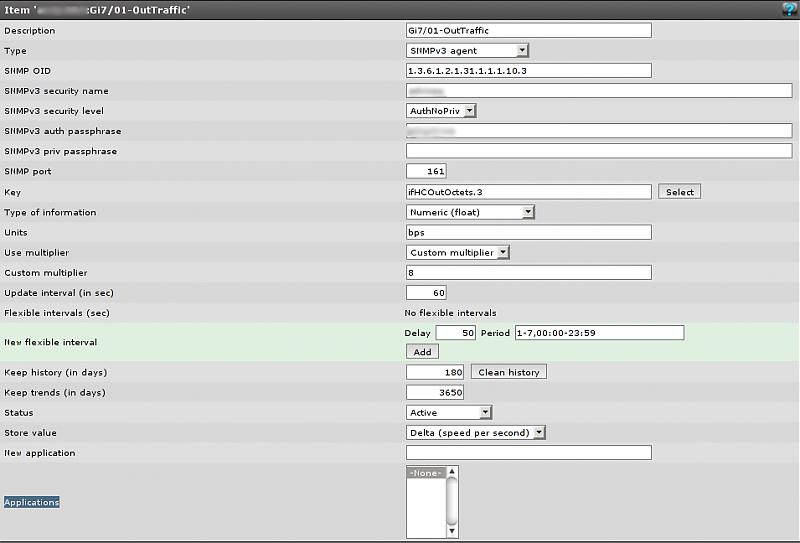

3rd img : zabbix-conf-outtraffic.jpg > item parameters.

The conf is exactly the same on the 2 servers (1.6 conf was on import of the 1.4.5)

configure for zabbix server 1.4.5 :

./configure --enable-agent --enable-static --with-net-snmp --with-libcurl --with-mysql --enable-ipv6

configure for zabbix server 1.6.2 :

./configure --prefix=/usr/local/zabbix-1.6.2 --enable-server --enable-agent --enable-proxy --with-net-snmp --with-libcurl --with-jabber --enable-static --enable-ipv6 --with-mysql

if someone have an idea, thx.

Yoann

[mistur]

anyone ?

2 others screeshot over 2 hours instead of 1 day

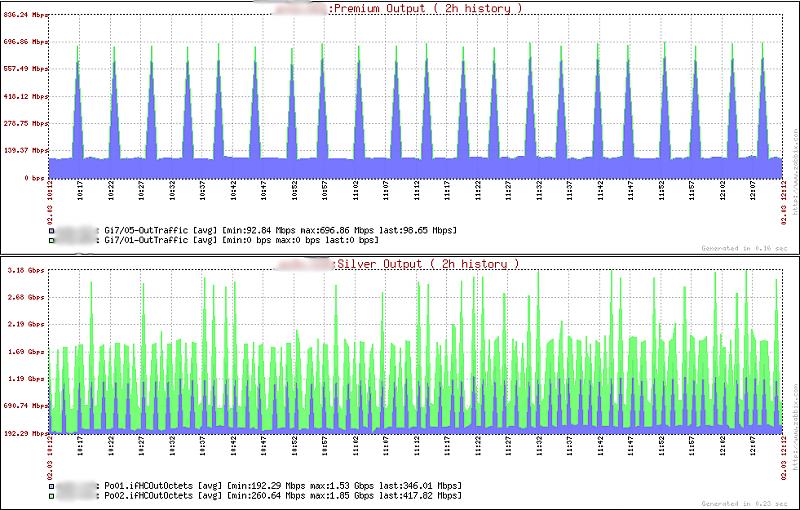

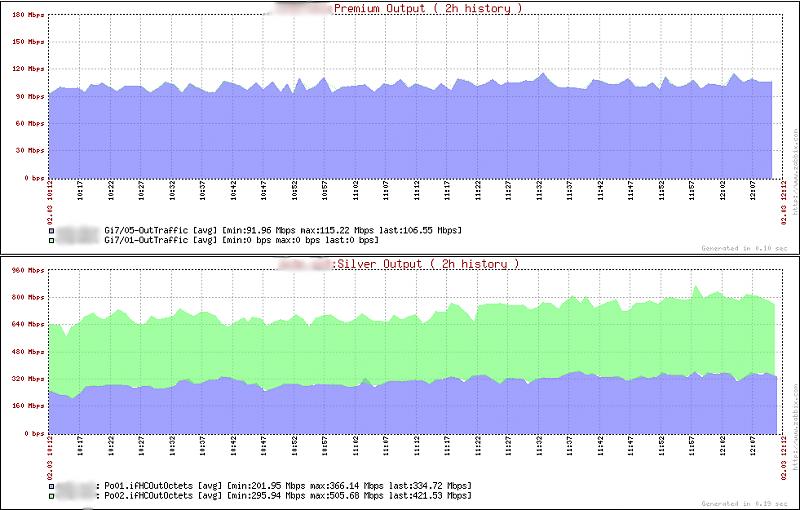

1st one : zabbix_1.4.5_2hours
2nd one : zabbix_1.6.2_2hours

Yoann

[mistur]

anyone can help me on this issue ?

regards

Yoann

[mistur]

a new element (related to this problem ?) :

$ snmpget -v 3 -l authNoPriv -u <user> -A <passwd> <host> 1.3.6.1.2.1.31.1.1.1.10.7
IF-MIB::ifHCOutOctets.7 = Counter64: 254354848148008

and the value on zabbix is "508715754138987" as Numeric (Interger 64 bits) type and no multiplier

so the value gets by zabbix is the double of the value get with snmpget

the snmpget is perform on the same host where the zabbix server is running

And If i change the Update interval (in sec) to 240s it seem to get value (Store value as : delta speed per second) close ti the one I have on zabbix 1.4.5 but with some creasy value some time.

I still don't understand why it works on zabbix 1.4.5 and not on 1.6.2

if someone has an idea ?

thx

Yoann
