Bug when editing a screen?

[tighep]

I'm running 1.6.3, and I think there's a bug that will cause a screen to disappear from the frontend. Here's the scenario.

Take a screen that has an empty cell, click on change in that cell.
Adjust the width and/or height, do not assign it an item, and click save.
The screen is now gone, and there is an item in the DB that looks like this:

+--------------+----------+--------------+------------+-------+--------+---+---+---------+---------+----------+--------+--------+-------+-----+---------+
| screenitemid | screenid | resourcetype | resourceid | width | height | x | y | colspan | rowspan | elements | valign | halign | style | url | dynamic |
+--------------+----------+--------------+------------+-------+--------+---+---+---------+---------+----------+--------+--------+-------+-----+---------+
| 24 | 10 | 0 | 0 | 150 | 100 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | | 0 |
+--------------+----------+--------------+------------+-------+--------+---+---+---------+---------+----------+--------+--------+-------+-----+---------+
1 row in set (0.00 sec)


It's the resourcetype or resourceid that causes the permissions issue and the screen to disappear. Thought I should pass it along.

Pat

[t2y]

Hi Aly(or other GUI developer),

I think this is bug. Please confirm my test result related to registering screen. I confirmed on zabbix-1.6.4.

how to reproduce)

1. "Create Screen" on Configuration/Screens window
   Name: EmptyScreenTest
   Columns: 1
   Rows: 1
2. Select "Edit" in "EmptyScreenTest"
3. Select "Change"
4. Select just "Save" without set "Graph name"
   # refer to 1st attached image

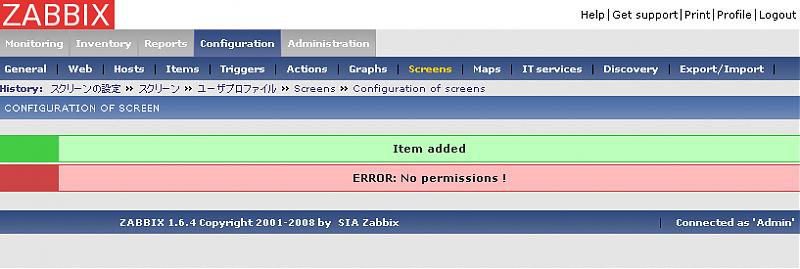

5. You can see "Item added" and "ERROR: No permission!"
   # refer to 2nd attached image

Additionally, this garbage data(screenitemid=3) is stored into "screens_items" table.

mysql> select * from screens_items;
+--------------+----------+--------------+------------+-------+--------+---+---+---------+---------+----------+--------+--------+-------+-----+---------+
| screenitemid | screenid | resourcetype | resourceid | width | height | x | y | colspan | rowspan | elements | valign | halign | style | url | dynamic |
+--------------+----------+--------------+------------+-------+--------+---+---+---------+---------+----------+--------+--------+-------+-----+---------+
| 2 | 2 | 2 | 2 | 0 | 0 | 0 | 0 | 2 | 0 | 0 | 0 | 0 | 0 | | 0 |
| 3 | 3 | 0 | 0 | 500 | 100 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | | 0 |
+--------------+----------+--------------+------------+-------+--------+---+---+---------+---------+----------+--------+--------+-------+-----+---------+
2 rows in set (0.00 sec)

I investigated a little. I think the cause is validation check in "screenedit.php". The $_REQUEST["resourceid"] hasn't checked(it's set zero) when we try to save screen cell. After that, we get error since it cannot find "resourceid".
We should check whether $_REQUEST["resourceid"] has a value configured from "Resource".

What do you think?

[Aly]

Yes, this should be fixed soon. Thank you.

Fixed. rev. 7174
