I have a weird problem. I’m not sure it’s a bug of zabbix 1.8.3 or not. In my environment there are two zabbix child nodes and a zabbix central root node. they are all 1.8.3 version. I created graphs in the child node and I can see it in the central node. if I want to see a graph in one day duration, fine, they are all correct in both child node and central root node. But unfortunately, if I want to see the graph in a week or a month duration, some of them didn’t show correctly in the central root node. they are very different from each other. In the central root node the graph seems absolutely ridiculous.

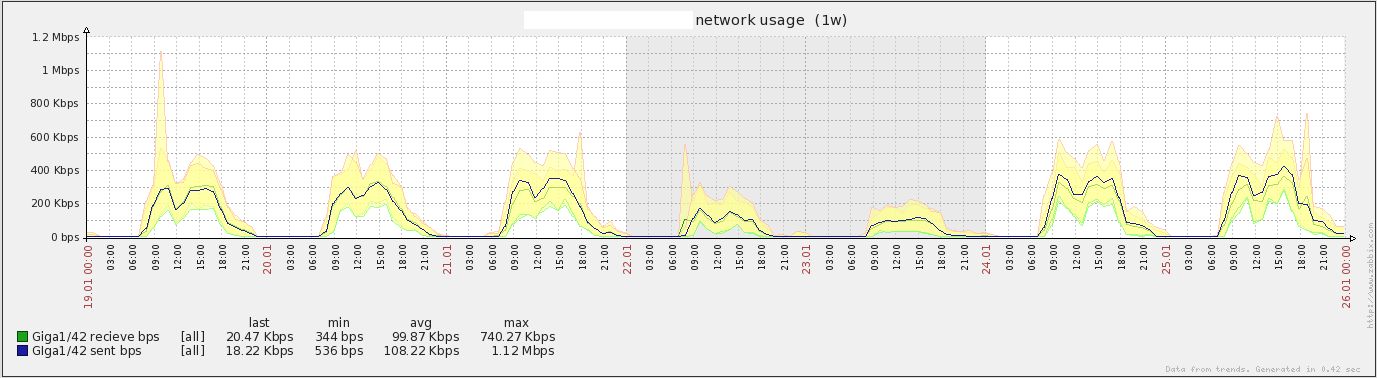

In child node:
[IMG]C:\Documents and Settings\jfang\Desktop\child node graph.jpg[/IMG]

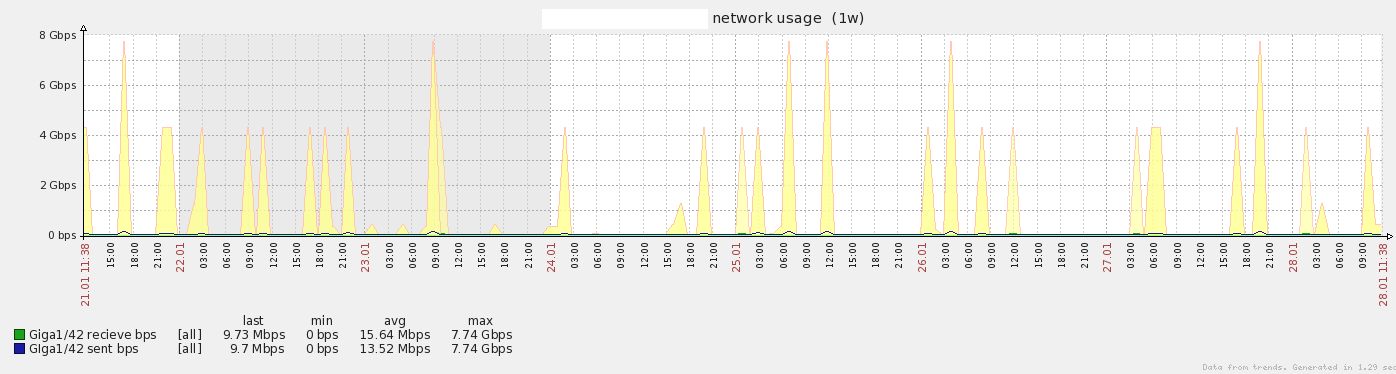

In central root node:
[IMG]C:\Documents and Settings\jfang\Desktop\root node graph.jpg[/IMG]
Then I tied to review the raw data in database, so I check the same item history table data in two nodes
In child node:
mysql> select * from history_uint where itemid='1101100000038938' limit 10;
+------------------+------------+--------+
| itemid | clock | value |
+------------------+------------+--------+
| 1101100000038938 | 1292314959 | 425216 |
| 1101100000038938 | 1292315019 | 344304 |
| 1101100000038938 | 1292315078 | 352744 |
| 1101100000038938 | 1292315140 | 301440 |
| 1101100000038938 | 1292315199 | 293400 |
| 1101100000038938 | 1292315258 | 311288 |
| 1101100000038938 | 1292315321 | 348552 |
| 1101100000038938 | 1292315378 | 304984 |
| 1101100000038938 | 1292315440 | 254312 |
| 1101100000038938 | 1292315498 | 205656 |
+------------------+------------+--------+
10 rows in set (0.06 sec)
mysql> select * from trends_uint where itemid='1101100000038938' limit 10;
+------------------+------------+-----+-----------+-----------+-----------+
| itemid | clock | num | value_min | value_avg | value_max |
+------------------+------------+-----+-----------+-----------+-----------+
| 1101100000038938 | 1292313600 | 38 | 205656 | 317660 | 425216 |
| 1101100000038938 | 1292317200 | 60 | 118840 | 261418 | 415752 |
| 1101100000038938 | 1292320800 | 60 | 50152 | 140950 | 313112 |
| 1101100000038938 | 1292324400 | 60 | 12728 | 52381 | 97152 |
| 1101100000038938 | 1292328000 | 60 | 8488 | 44897 | 82904 |
| 1101100000038938 | 1292331600 | 60 | 2728 | 28631 | 103960 |
| 1101100000038938 | 1292335200 | 60 | 1296 | 9998 | 35760 |
| 1101100000038938 | 1292338800 | 60 | 856 | 5704 | 19456 |
| 1101100000038938 | 1292342400 | 60 | 856 | 863 | 912 |
| 1101100000038938 | 1292346000 | 60 | 840 | 861 | 912 |
+------------------+------------+-----+-----------+-----------+-----------+
10 rows in set (0.00 sec)
In central root node:
mysql> select * from history_uint where itemid='1101100000038938' limit 10;
+------------------+------------+--------+
| itemid | clock | value |
+------------------+------------+--------+
| 1101100000038938 | 1292314959 | 425216 |
| 1101100000038938 | 1292315019 | 344304 |
| 1101100000038938 | 1292315078 | 352744 |
| 1101100000038938 | 1292315140 | 301440 |
| 1101100000038938 | 1292315199 | 293400 |
| 1101100000038938 | 1292315258 | 311288 |
| 1101100000038938 | 1292315321 | 348552 |
| 1101100000038938 | 1292315378 | 304984 |
| 1101100000038938 | 1292315440 | 254312 |
| 1101100000038938 | 1292315498 | 205656 |
+------------------+------------+--------+
10 rows in set (0.07 sec)
mysql> select * from trends_uint where itemid='1101100000038938' limit 10;
+------------------+------------+-----+-----------+-----------+------------+
| itemid | clock | num | value_min | value_avg | value_max |
+------------------+------------+-----+-----------+-----------+------------+
| 1101100000038938 | 1292313600 | 38 | 0 | 40788 | 1405034 |
| 1101100000038938 | 1292317200 | 59 | 0 | 94412 | 5044015 |
| 1101100000038938 | 1292320800 | 60 | 0 | 71722672 | 4294967295 |
| 1101100000038938 | 1292324400 | 60 | 0 | 2227 | 97550 |
| 1101100000038938 | 1292328000 | 60 | 0 | 71587431 | 4294967295 |
| 1101100000038938 | 1292331600 | 60 | 0 | 4515 | 97577 |
| 1101100000038938 | 1292335200 | 60 | 0 | 4514042 | 270242752 |
| 1101100000038938 | 1292338800 | 60 | 0 | 10188 | 180845 |
| 1101100000038938 | 1292342400 | 60 | 0 | 192445 | 9362891 |
| 1101100000038938 | 1292346000 | 60 | 0 | 129385621 | 7757393920 |
+------------------+------------+-----+-----------+-----------+------------+
10 rows in set (0.00 sec)
As we see, the history data are same. But trends data are different. I guess this is the reason why two nodes show different graph. Can anyone tell me how to solve this problem? Thank you for your help.
Central node zabbix server program version:
Zabbix Server v1.8.3 (revision 13093) (29 March 2010)
Compilation time: Jun 29 2010 15:41:27
Child node zabbix server program version:
Zabbix Server v1.8.3 (revision 13093) (29 March 2010)
Compilation time: Jun 29 2010 16:54:06
In child node:
[IMG]C:\Documents and Settings\jfang\Desktop\child node graph.jpg[/IMG]
In central root node:
[IMG]C:\Documents and Settings\jfang\Desktop\root node graph.jpg[/IMG]
Then I tied to review the raw data in database, so I check the same item history table data in two nodes
In child node:
mysql> select * from history_uint where itemid='1101100000038938' limit 10;
+------------------+------------+--------+
| itemid | clock | value |
+------------------+------------+--------+
| 1101100000038938 | 1292314959 | 425216 |
| 1101100000038938 | 1292315019 | 344304 |
| 1101100000038938 | 1292315078 | 352744 |
| 1101100000038938 | 1292315140 | 301440 |
| 1101100000038938 | 1292315199 | 293400 |
| 1101100000038938 | 1292315258 | 311288 |
| 1101100000038938 | 1292315321 | 348552 |
| 1101100000038938 | 1292315378 | 304984 |
| 1101100000038938 | 1292315440 | 254312 |
| 1101100000038938 | 1292315498 | 205656 |
+------------------+------------+--------+
10 rows in set (0.06 sec)
mysql> select * from trends_uint where itemid='1101100000038938' limit 10;
+------------------+------------+-----+-----------+-----------+-----------+
| itemid | clock | num | value_min | value_avg | value_max |
+------------------+------------+-----+-----------+-----------+-----------+
| 1101100000038938 | 1292313600 | 38 | 205656 | 317660 | 425216 |
| 1101100000038938 | 1292317200 | 60 | 118840 | 261418 | 415752 |
| 1101100000038938 | 1292320800 | 60 | 50152 | 140950 | 313112 |
| 1101100000038938 | 1292324400 | 60 | 12728 | 52381 | 97152 |
| 1101100000038938 | 1292328000 | 60 | 8488 | 44897 | 82904 |
| 1101100000038938 | 1292331600 | 60 | 2728 | 28631 | 103960 |
| 1101100000038938 | 1292335200 | 60 | 1296 | 9998 | 35760 |
| 1101100000038938 | 1292338800 | 60 | 856 | 5704 | 19456 |
| 1101100000038938 | 1292342400 | 60 | 856 | 863 | 912 |
| 1101100000038938 | 1292346000 | 60 | 840 | 861 | 912 |
+------------------+------------+-----+-----------+-----------+-----------+
10 rows in set (0.00 sec)
In central root node:
mysql> select * from history_uint where itemid='1101100000038938' limit 10;
+------------------+------------+--------+
| itemid | clock | value |
+------------------+------------+--------+
| 1101100000038938 | 1292314959 | 425216 |
| 1101100000038938 | 1292315019 | 344304 |
| 1101100000038938 | 1292315078 | 352744 |
| 1101100000038938 | 1292315140 | 301440 |
| 1101100000038938 | 1292315199 | 293400 |
| 1101100000038938 | 1292315258 | 311288 |
| 1101100000038938 | 1292315321 | 348552 |
| 1101100000038938 | 1292315378 | 304984 |
| 1101100000038938 | 1292315440 | 254312 |
| 1101100000038938 | 1292315498 | 205656 |
+------------------+------------+--------+
10 rows in set (0.07 sec)
mysql> select * from trends_uint where itemid='1101100000038938' limit 10;
+------------------+------------+-----+-----------+-----------+------------+
| itemid | clock | num | value_min | value_avg | value_max |
+------------------+------------+-----+-----------+-----------+------------+
| 1101100000038938 | 1292313600 | 38 | 0 | 40788 | 1405034 |
| 1101100000038938 | 1292317200 | 59 | 0 | 94412 | 5044015 |
| 1101100000038938 | 1292320800 | 60 | 0 | 71722672 | 4294967295 |
| 1101100000038938 | 1292324400 | 60 | 0 | 2227 | 97550 |
| 1101100000038938 | 1292328000 | 60 | 0 | 71587431 | 4294967295 |
| 1101100000038938 | 1292331600 | 60 | 0 | 4515 | 97577 |
| 1101100000038938 | 1292335200 | 60 | 0 | 4514042 | 270242752 |
| 1101100000038938 | 1292338800 | 60 | 0 | 10188 | 180845 |
| 1101100000038938 | 1292342400 | 60 | 0 | 192445 | 9362891 |
| 1101100000038938 | 1292346000 | 60 | 0 | 129385621 | 7757393920 |
+------------------+------------+-----+-----------+-----------+------------+
10 rows in set (0.00 sec)
As we see, the history data are same. But trends data are different. I guess this is the reason why two nodes show different graph. Can anyone tell me how to solve this problem? Thank you for your help.
Central node zabbix server program version:
Zabbix Server v1.8.3 (revision 13093) (29 March 2010)
Compilation time: Jun 29 2010 15:41:27
Child node zabbix server program version:
Zabbix Server v1.8.3 (revision 13093) (29 March 2010)
Compilation time: Jun 29 2010 16:54:06
