Zabbix 2.0 Monitoring JBOSS

[mrtz]

Hey everyone.

I´m having problems monitoring JBoss metrics/items.


Keys with java.lang works well.

i.e jmx["java.lang:type=Runtime",Uptime]


Keys with Catalina doesn´t work.

i.e jmx["Catalina:type=Server",serverInfo]


All items from Template JMX Tomcat is not supported and all items from Template JMX Generic works fine.

The JMX settings seems to be correct since all with java.lang is working.


Any help is appreciated!

Tnks

[tchjts1]

Try using double quotes, separated by a comma as below. This works for me.

jmx["Catalina:type=Server","serverInfo"]

if you have the polling frequency set to 3600 at the item, it will take an hour to update. Set it lower so you can get a quick test on it.

if you still have an error, hover your mouse over the red X (all the way to the right of the item at the host level) to see if it gives a detail of the issue.

[mrtz]

Thanks for ur reply.

I tried jmx["Catalina:type=Server","serverInfo"] like you said, tried 30s interval and still nothing.

Here is the message in the red X

Catalina:type=Server

Any idea what it could be?

Are you monitoring JBoss? What version?


Thanks again!

Try using double quotes, separated by a comma as below. This works for me.

jmx["Catalina:type=Server","serverInfo"]

if you have the polling frequency set to 3600 at the item, it will take an hour to update. Set it lower so you can get a quick test on it.

if you still have an error, hover your mouse over the red X (all the way to the right of the item at the host level) to see if it gives a detail of the issue.

[tchjts1]

Check how your item is set up. If I recall correctly, the stock Tomcat template was set to type Zabbix agent, and should be changed to JMX Agent

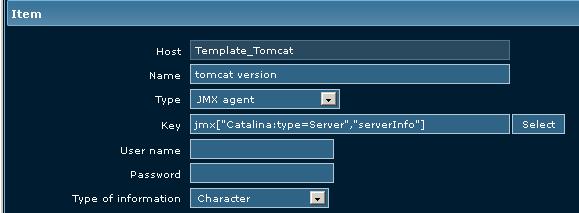

Here is how mine is set.

[mrtz]

Yes, i´m using JMX Agent

I made this changes in run.bat

set JAVA_OPTS=%JAVA_OPTS% -Djboss.platform.mbeanserver
set JAVA_OPTS=%JAVA_OPTS% -Djavax.management.builder.initial=org.jboss.system .server.jmx.MBeanServerBuilderImpl

And now i got the Tomcat version to work using double quotes like you said. But the rest of items doesn´t work that way.

Any tips??

Tnks

Check how your item is set up. If I recall correctly, the stock Tomcat template was set to type Zabbix agent, and should be changed to JMX Agent

Here is how mine is set.
