Graph Error - Zabbix 1.1

[reifegerste]

Hello,

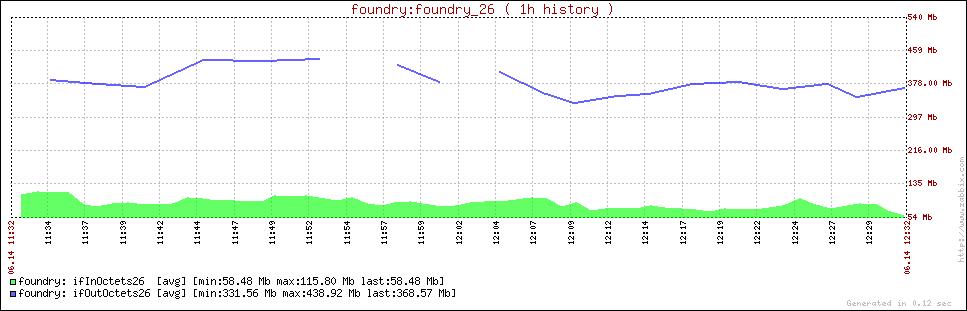

I have the problem this as of 500 Mbits of the graph simply is not drawn any more and the measurements completely then slip to below.
Example: http://81.3.14.227/zabbix/frontends/...om=0&width=916

I use SNMP V2

OID: 1.3.6.1.2.1.2.2.1.16.26
Nummeric (float)

Multiplikator: 8


Perhaps does anybody have a solution for the problem?

Please excuse my bad English.

Cu

Lars

[Voltsifer]

The same situation...
memory_limit =128 dont resolve the problem

[KarmaPolice]

Can you provide a list of values for that item? and the graph of the same time period...

I have a hunch it's not actually getting any values in that time period... which would indicate either a problem with connectivity to the device, or a problem with the software that runs the command...

[reifegerste]

Hi,

sure:

17564 1149711661 476471841.9649
17564 1149712022 456821443.0667
17564 1149712324 457670226.0000
17564 1149712625 462811629.3770
17564 1149712923 461655810.1695
17564 1149713224 445383012.8276

There can i set the memory limit? php.ini ?

Cuu
Lars

[reifegerste]

Any ideas?

Cuuu
Lars

[epifanova]

hmm.. why do you use "float" for integer values?

do you have any info about this items in zabbix_server log?

[reifegerste]

Hi,

i change it to numeric (integer 64 bit)
the same result

http://81.3.14.227/zabbix/frontends/php/chart2.php?graphid=4&stime=yyyymmddhhmm&period=3600&from=0&width=916

No faults are displayed in the Logfile.

Cuu

Lars
