  • catchvjay
    Junior Member
    • May 2013
    • 12
    #1

    Web Monitoring not working

    Hi Friends,

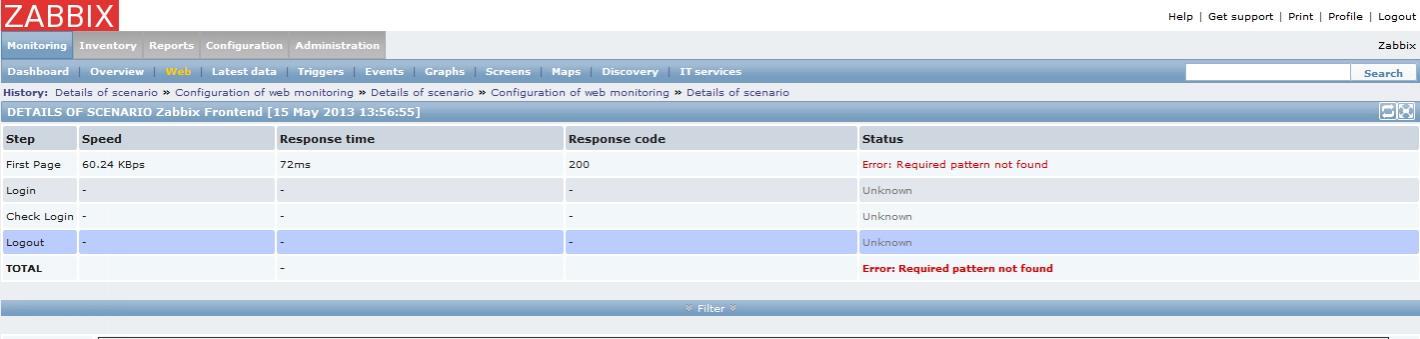

    I am trying to setup web monitoring in zabbix 2.0.6 as per zabbix documentation with real time scenario. I have set it up exactly same way as described in doc but i am receiving error in first step " Error: Required pattern not found". Can anyone tell me how to trouble shoot this kind of errors?

    I have created steps as per https://www.zabbix.com/documentation..._life_scenario.

    Thanks in advance for your time.

    Regards,
    Vijay
    Attached Files
    Tags: None
    • tchjts1
      Senior Member
      • May 2008
      • 1605
      #2

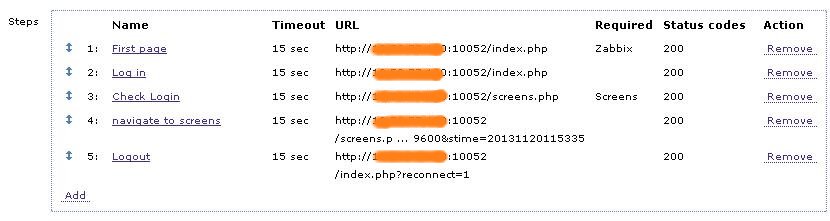

      These are the steps I use for the simple Zabbix frontend check.
      The only thing painted out is the IP of my Zabbix server.

      Maybe this will help.
      Attached Files

        Comment

        • catchvjay
          Junior Member
          • May 2013
          • 12
          #3
          Thanks for your time. The only difference i see with mine is you have specified port number in the URLs. Do we need to specify port numbers in urls? While accessing zabbix i don't specify port number in URL.

          Regards,
          Vijay

            Comment

            • tchjts1
              Senior Member
              • May 2008
              • 1605
              #4
              I think you would only have to use port number if you have a virtual host set up... which we do.

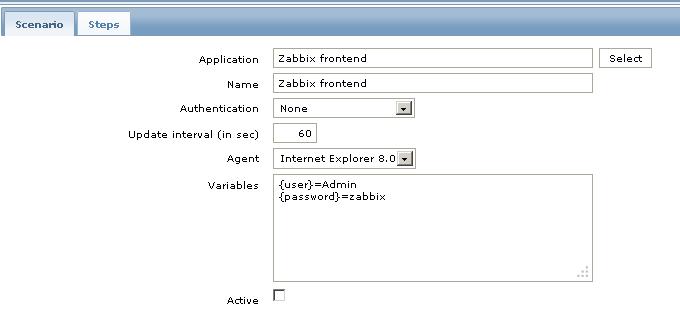

              Do you have the "scenario" section set up like this?
              Attached Files

                Comment

                • catchvjay
                  Junior Member
                  • May 2013
                  • 12
                  #5
                  After removing matched pattern i am able to setup web monitoring properly. Is there anyway i can get "Required String" field from the webpage in case of setting rule for it?

                  Regards,
                  Vijay

                    Comment

                    • Heilig
                      Senior Member
                      Zabbix Certified Trainer
                      Zabbix Certified SpecialistZabbix Certified Professional
                      • Mar 2013
                      • 366
                      #6
                      Please show configuration for scenario and step 1, so it will be easier to tell what the problem is.

                        Comment

                        • catchvjay
                          Junior Member
                          • May 2013
                          • 12
                          #7

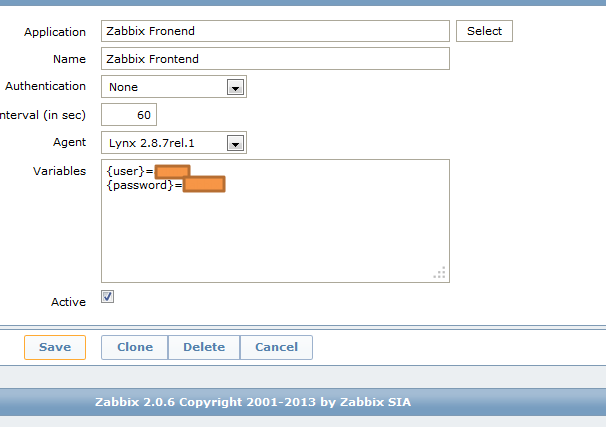

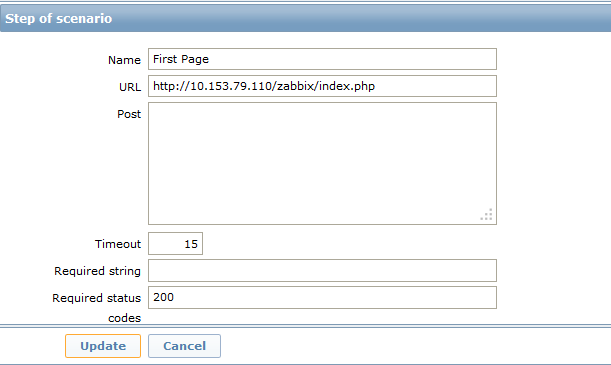

                          Here is Scenario and step 1 from my web monitoring.
                          Attached Files

                            Comment

                            • Heilig
                              Senior Member
                              Zabbix Certified Trainer
                              Zabbix Certified SpecialistZabbix Certified Professional
                              • Mar 2013
                              • 366
                              #8
                              Hmm, the settings is correct. Do I understand correctly that the error occurs when you add "Zabbix" to "Required string" in step1?
                              Try on zabbix server execute the command:
                              curl http://10.153.79.110/zabbix/index.php
                              and check that required string exist.

                                Comment

                                • catchvjay
                                  Junior Member
                                  • May 2013
                                  • 12
                                  #9
                                  Yeah inside content it does display Zabbix SIA.

                                  curl http://10.153.79.110/zabbix/index.php
                                  <!doctype html>
                                  <html>
                                  <head>
                                  <meta http-equiv="X-UA-Compatible" content="IE=Edge"/>
                                  <title>Zabbix</title>
                                  <meta name="Author" content="Zabbix SIA" />
                                  <meta charset="utf-8" />
                                  <link rel="shortcut icon" href="images/general/zabbix.ico" />
                                  <link rel="stylesheet" type="text/css" href="css.css" />
                                  <link rel="stylesheet" type="text/css" href="styles/themes/originalblue/main.css" />
                                  <!--[if lte IE 7]>
                                  <link rel="stylesheet" type="text/css" href="styles/ie.css" />
                                  <![endif]-->

                                    Comment

                                    • tchjts1
                                      Senior Member
                                      • May 2008
                                      • 1605
                                      #10
                                      I think I had the same issue when I included "SIA" in my required string.
                                      When I just made it "Zabbix", then it worked.

                                        Comment

                                        • catchvjay
                                          Junior Member
                                          • May 2013
                                          • 12
                                          #11
                                          Ohh my bad..I was typing "SIA Zabbix" instead of "Zabbix SIA" that is why it was crying out.

                                          Can we monitor report fetching functionality in a website via Zabbix?

                                          Regards,
                                          Vijay

                                            Comment

                                            • Heilig
                                              Senior Member
                                              Zabbix Certified Trainer
                                              Zabbix Certified SpecialistZabbix Certified Professional
                                              • Mar 2013
                                              • 366
                                              #12
                                              Originally posted by catchvjay
                                              Can we monitor report fetching functionality in a website via Zabbix?
                                              Sorry, but I don't understand your question.

                                                Comment

                                                • catchvjay
                                                  Junior Member
                                                  • May 2013
                                                  • 12
                                                  #13
                                                  Suppose we are generating reports for monthly bank statement by providing proper arguments. Can we monitor this kind report generating functionality of a website via zabbix?

                                                  Regards,
                                                  Vijay

                                                    Comment

                                                    • Heilig
                                                      Senior Member
                                                      Zabbix Certified Trainer
                                                      Zabbix Certified SpecialistZabbix Certified Professional
                                                      • Mar 2013
                                                      • 366
                                                      #14
                                                      You can, if information about the successful report generation is available for example, on web site (web monitoring) or in a log file (log file monitoring).

                                                        Comment

                                                        • catchvjay
                                                          Junior Member
                                                          • May 2013
                                                          • 12
                                                          #15
                                                          Thanks everyone for your time and support. I will try to test report generating functionality of my website via zabbix and update the results.

                                                          Regards,
                                                          Vijay

                                                            Comment
