Zabbix not reporting correctly

[isaac2k2]

I have setup Zabbix Server v2.0.9 and configured it to monitor ICMP Ping (Agentless Check). The issue I am seeing is that according to the documentation for the agent template, 0 - ICMP ping fails while, 1 - ICMP ping successful. The issue is the graph is reporting a value 0 which shouldn't be the case.

I am using the default key template icmpping[,,,,]. I have also changed it to icmpping but still reporting 0

I have enabled debug logging on the zabbix server and can see the following log:

314:20131112:063645.021 In add_icmpping_item() addr:'*server ip address*' count:3 interval:0 size:0 timeout:0
314:20131112:063645.021 End of add_icmpping_item()
314:20131112:063645.021 In substitute_key_macros() data:'icmpping'
314:20131112:063645.022 End of substitute_key_macros():SUCCEED data:'icmpping'
I have also from the zabbix server done fping <ip of destination host> and that response `<destination host ip> is live`

Anyone come across this before or am i missing any additional item config. Thanks

[joshuamcdo]

Re: ICMP

Can you post the trigger that is getting tripped?

[isaac2k2]

Can you post the trigger that is getting tripped?

I have not setup a trigger, just need normal reporting but the graph line is on 0 instead of 1

[joshuamcdo]

Re:

I have not setup a trigger, just need normal reporting but the graph line is on 0 instead of 1

Can you post the actual item with a substitute hostname?

[tchjts1]

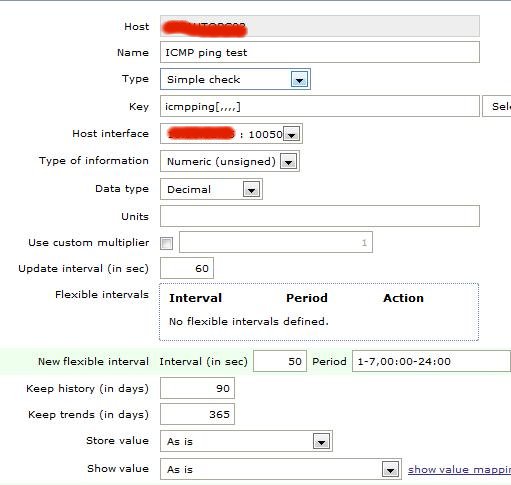

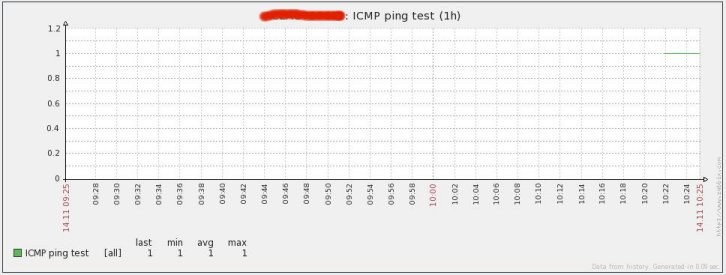

I am using 2.0.9 and did a quick test on one of my hosts. This is working fine for me:

[isaac2k2]

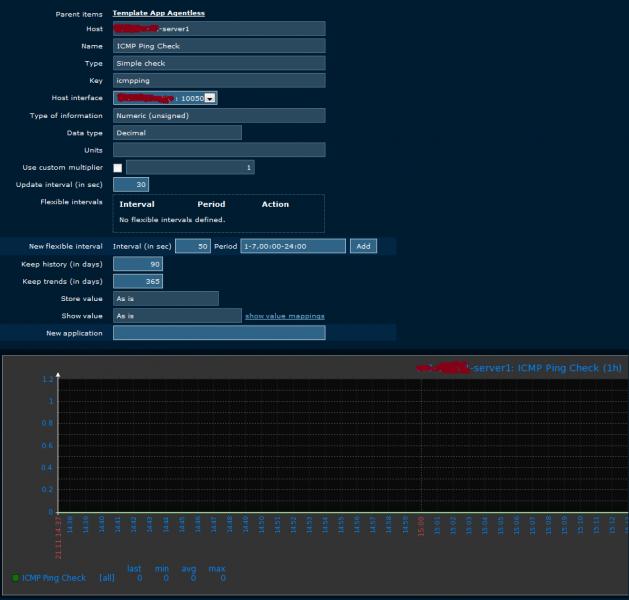

This is my setup and its same
