solr jmx monitoring

[gunnar]

Hello,

is there a working template for solr 4.2 and zabbix 2.2?

I have tried this: https://github.com/flaviotorres/zabbix
but it doesn't work since most of the keys don't exist in our solr installation.
I think all keys with /lucid are non standard

Any ideas how to access these mbeans keys?

solr/collection1
+search
+org.apache.solr.handler.StandardRequestHandler
+Attributes

Thanks,

Gunnar

[gunnar]

Keys I can read

I get now values for key like this:

jmx["solr/collection1:type=queryResultCache,id=org.apache.so lr.search.LRUCache","hits"]

I still didn't figure out how to read values from:
solr/collection1:id=org.apache.solr.handler.component.S earchHandler,type=/search
OR
solr/collection1:id=org.apache.solr.handler.component.S earchHandler,type=org.apache.solr.handler.componen t.SearchHandler

[gunnar]

Template available

I have put a template on github, it should work for you if you have one collection and it's named collection1, otherwise change according to your name:

https://github.com/akitogo/Zabbix-jmx-solr-template

[hackuracy]

Zabbix Solr Multicore

Hi,
I never found a template where core is easy to change or for multi core instance.
I try to do and share it :

https://github.com/Hackuracy/zabbix-solr-multicore

It's a primitive solution aggregating jmx jvm monitoring and core monitoring.
It use a very small python script which discovers core list.

Bye

[[email protected]]

Hello,

I am not able to monitor apache solr in my server, all of the items in solr are not supported status,
Jmx is enabled, few java metrics are woking fine.
Any help will be appreciated.

[dimir]

If you mouseover the red error icon on the right you should be able to see the reason for items being notsupported.

[[email protected]]

dimir , thanks for the reply.

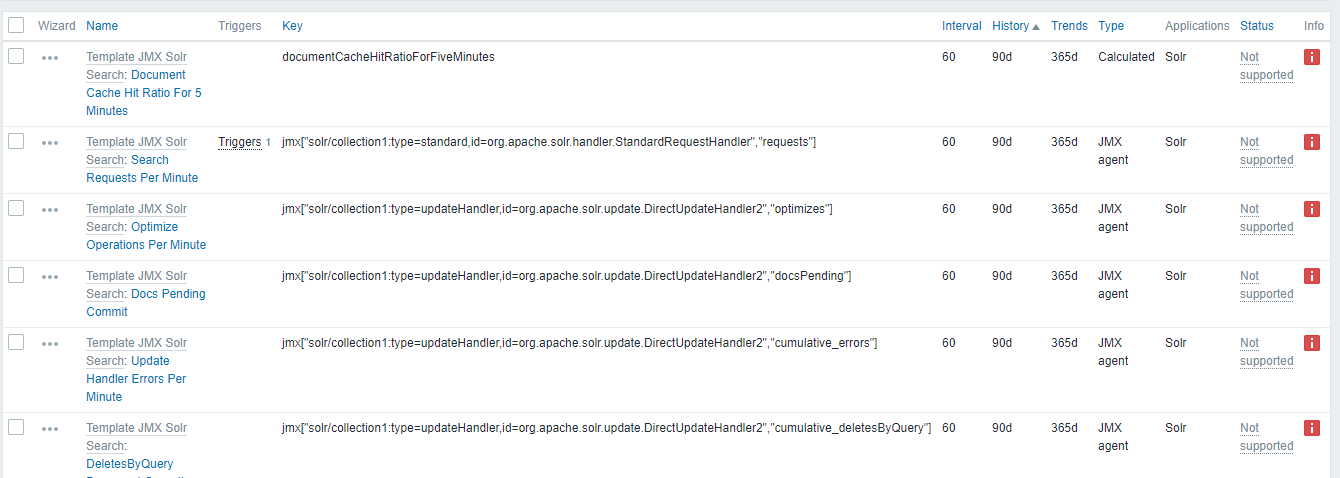

Please find the screenshot attached.

https://prnt.sc/pbq23d

https://prnt.sc/pbq6w9

Thanks.

[dimir]

Sorry, these error messages do not make any sense to me. :-(

[[email protected]]

Hello,

Is it possible for monitoring Solr with zabbix, if so please help me with a supported template and installation guide.

Thanks,
