Problem with maps after upgrade from Zabbix 3.4 to 4.0

[FedericoCoppola]

Hi guys,

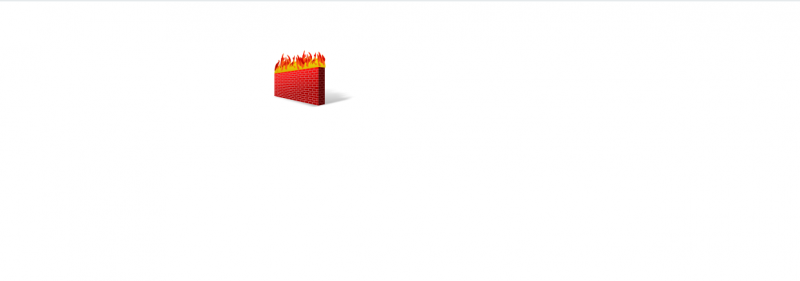

today I have updated my Zabbix and after the update process there is a problem: I can not see properly my maps but the graphs are OK.

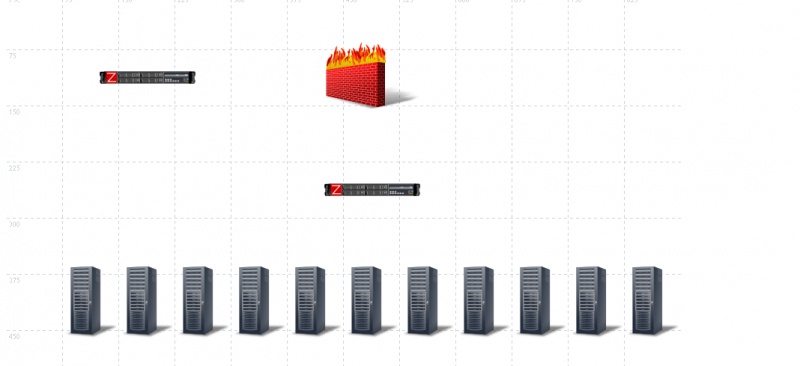

If I go to edit the map I can see it except the link beetween the devices.

I have attached some photos to the post

Thanks for the support
Federico

[gullevek]

I have the same problem after upgrade in Debian from 3.x to 4.0

I see some Javascript issue:

TypeError: can't convert null to object jsLoader.php:2049:2
SVGElement.prototype.update http://zabbix.HOST/jsLoader.php:2049:2
SVGElement.prototype.create http://zabbix.HOST/jsLoader.php:2158:3
SVGElement http://zabbix.HOST/jsLoader.php:1980:3
SVGCanvas.prototype.createElement http://zabbix.HOST/jsLoader.php:1337:13
SVGTextArea.prototype.create http://zabbix.HOST/jsLoader.php:1753:17
SVGCanvas.prototype.createElement http://zabbix.HOST/jsLoader.php:1334:13
SVGElement.prototype.add http://zabbix.HOST/jsLoader.php:2015:16
SVGMapShape.prototype.update http://zabbix.HOST/jsLoader.php:3370:3
SVGMap.prototype.updateOrderedItems/< http://zabbix.HOST/jsLoader.php:2612:3
forEach self-hosted:268:13 SVGMap.prototype.updateOrderedItems http://zabbix.HOST/jsLoader.php:2607:2
SVGMap.prototype.update/< http://zabbix.HOST/jsLoader.php:2693:3
ImageCache.prototype.invokeCallback http://zabbixHOST/jsLoader.php:1847:3
ImageCache.prototype.handleCallback http://zabbix.HOST/jsLoader.php:1866:3
ImageCache.prototype.onImageLoaded http://zabbix.HOST/jsLoader.php:1878:2
ImageCache.prototype.preload/</image.onload http://zabbix.HOST/jsLoader.php:1935:4

When I create a new map and a dd a new element I also get this error:

When I add a new element:

TypeError: can't convert null to object jsLoader.php:823:2
SVGElement.prototype.update http://zabbix.HOST/jsLoader.php:823:2
SVGElement.prototype.create http://zabbix.HOST/jsLoader.php:932:3
SVGElement http://zabbix.HOST/jsLoader.php:754:3
SVGCanvas.prototype.createElement http://zabbix.HOST/jsLoader.php:111:13
SVGTextArea.prototype.create http://zabbix.HOST/jsLoader.php:527:17
SVGCanvas.prototype.createElement http://zabbix.HOST/jsLoader.php:108:13
SVGElement.prototype.add http://zabbix.HOST/jsLoader.php:789:16
SVGMapElement.prototype.updateLabel http://zabbix.HOST/jsLoader.php:1741:17
SVGMapElement.prototype.update http://zabbix.HOST/jsLoader.php:1817:2
SVGMap.prototype.updateItems/< http://zabbix.HOST/jsLoader.php:1357:3
forEach self-hosted:268:13 SVGMap.prototype.updateItems http://zabbix.HOST/jsLoader.php:1352:2
SVGMap.prototype.update/< http://zabbix.HOST/jsLoader.php:1466:3
ImageCache.prototype.invokeCallback http://zabbix.HOST/jsLoader.php:621:3
ImageCache.prototype.handleCallback http://zabbix.HOST/jsLoader.php:640:3
ImageCache.prototype.onImageLoaded http://zabbix.HOST/jsLoader.php:652:2
ImageCache.prototype.preload/</image.onload http://zabbix.HOST/jsLoader.php:709:4

And when I move it too ...

The map only shows the first element, the rest is dropped (I assume because of the JS error)

[FedericoCoppola]

Hi gullevek,
thanks for the answare.
Where did you see this error? When you create the maps?
I have checked the log in /var/log/zabbix/zabbix_server.log but I did not found any error log about maps

Could it be a permission problem?

Thanks for the support
Federico

[gullevek]

They are in the browser window. Those are all Javascript errors. I see them in Chrome and Firefox

But I do not know the reason, besides that it seems to be some issue with the images (SVG map) and something missing. Thought I checked my GUI resources and all images load fine there

[kk_dev]

Hi! I have same problem.
I see error in console browser

[kk_dev]

I get last php frontend from github https://github.com/zabbix/zabbix/tre.../frontends/php and this bug not watched .

[kieranc]

I'm still having this problem. It first started when I upgraded to 4.0, but I've since installed 4.0.1, 4.0.2 and 4.0.3 and the problem still exists. I tried pulling in jsLoader.php from github but the problem remains. I'm using zabbix on debian buster, is anyone else having this problem or found a solution?

[kieranc]

Interestingly, if i log in as guest, the map is visible but has no labels.

[kk_dev]

I'm still having this problem. It first started when I upgraded to 4.0, but I've since installed 4.0.1, 4.0.2 and 4.0.3 and the problem still exists. I tried pulling in jsLoader.php from github but the problem remains. I'm using zabbix on debian buster, is anyone else having this problem or found a solution?

It is work for me https://stackoverflow.com/questions/...-after-upgrade .
I pull all front-end, not only jsLoader.php .

[kieranc]

Turns out this is the relevant bug:

https://support.zabbix.com/browse/ZBX-15040

It's specific to the debian package which uses prototype.js v1.7.1 instead of 1.6.1

Replacing the symlink at /usr/share/zabbix/js/vendors/prototype.js with prototype.js v1.6.1 resolves the problem.

Hope that helps someone!
