    LLD behavior question

    Hi

    I'm trying to understand how LLD works.
    (zabbix v4.2.8)

    I'll create UserParameter:
    Code:
    UserParameter=test.discovery[*],/usr/local/bin/test.discovery '$1'
    Bash script /usr/local/bin/test.discovery contains:
    Code:
    #!/bin/bash

    if [ -z "${1}" ] ; then
      echo '{"data":[{"{#UNIXTIME}":"System UNIX time","{#NANOSEC}":"System nanoseconds"}]}'
    elif [ "${1}" = "System UNIX time" ] ; then
      /bin/date +%s
    elif [ "${1}" = "System nanoseconds" ] ; then
      /bin/date +%N
    fi
    When i ask from agent with
    sudo -uzabbix zabbix_agentd -t test.discovery
    Result will be:
    Code:
    test.discovery                                [t|{"data":[{"{#UNIXTIME}":"System UNIX time","{#NANOSEC}":"System nanoseconds"}]}]

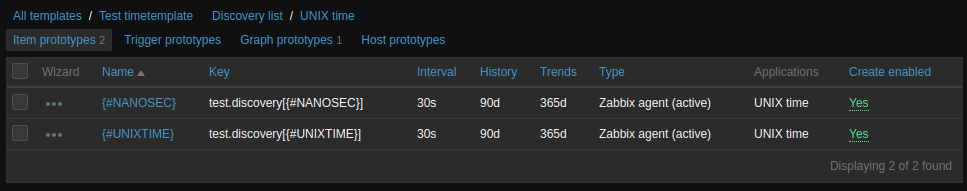

    So far, so good. Now i create template with 2 item prototypes:

    Click image for larger version

Name:	2.png
Views:	194
Size:	35.4 KB
ID:	390814
    Everything seems to be OK, and after i assign template to host, items will be discovered and data starts to come in:
    Click image for larger version

Name:	3.png
Views:	120
Size:	18.6 KB
ID:	390815

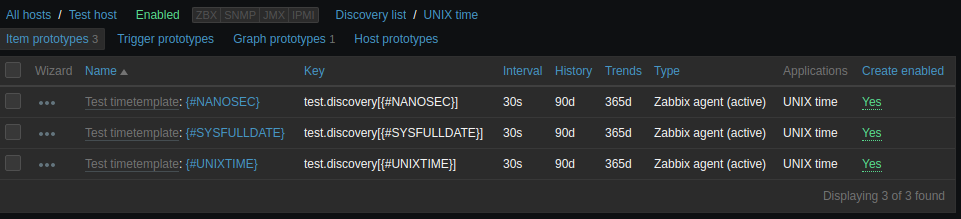

    Now i'll create third item prototype in template:
    Click image for larger version

Name:	4.png
Views:	122
Size:	49.6 KB
ID:	390816

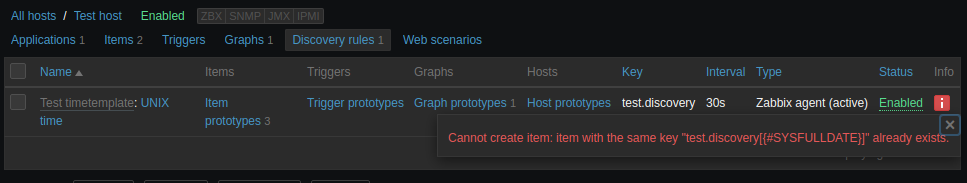

    And after that discovery rule gives me an error:
    Click image for larger version

Name:	5.png
Views:	122
Size:	36.0 KB
ID:	390817
    So, now, template contains item prototype which macro name that does not exist on agent side.

    Why does it give me error? I mean, should it be the whole point on "discovery" for some items to be discovered and some not?
    Is'nt it so that template can contain mote item prototypes than agent data?
