Cannot bind to LDAP server

[synex]

Hi there,

I seem to have an issue with setting up LDAP authentication with Active Directory, these are my settings:


I am able to run ldapsearch without any issues to the same base DN that I am using for the configuration. However when I run it on zabbix it does not work, showing the cannot bind to LDAP error.



I am running ubuntu 18.04 and zabbix 5.0.1, I also have php-ldap installed.

Any help will be much appreciated!

Thanks!

[cjbidwell]

Were you able to get this resolved? Curious what you did if so. Using RHEL8 on mine and I am getting the same issue, however I'm trying ldaps (tcp/636) and am importing the certificates (I think) correctly into openldap, but still having issues.

[synex]

Were you able to get this resolved? Curious what you did if so. Using RHEL8 on mine and I am getting the same issue, however I'm trying ldaps (tcp/636) and am importing the certificates (I think) correctly into openldap, but still having issues.

I gave up on this and set up monitoring with a different supplier.

[tim.mooney]

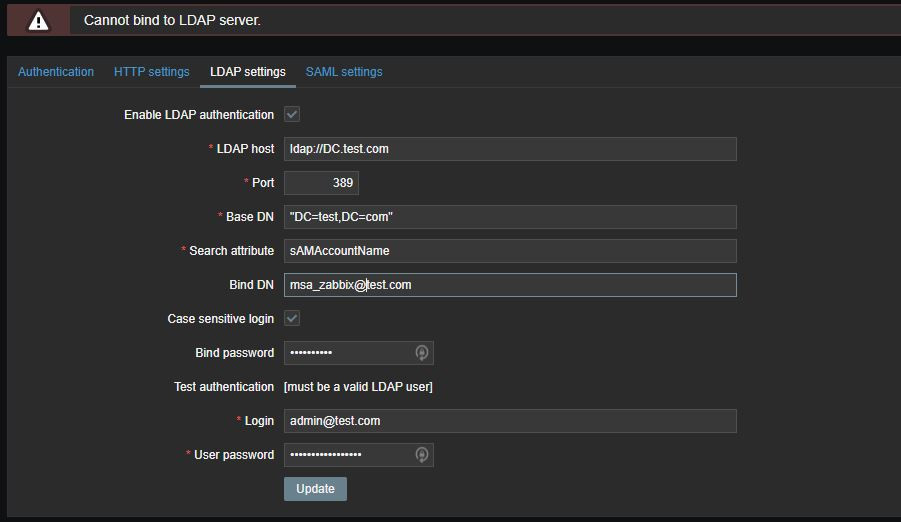

synex 's screenshot shows config for an LDAP simple bind over a clear text channel.

Microsoft is phasing out any support for that, as it's a very insecure config. Your Active Directory admins may have already made the changes that prevents AD from allowing that.

cjbidwell , using tcp/636 is definitely a better way to go for this, and importing your AD's CA is also a good idea.

Are you using the latest Zabbix 5.0.4 packages?

If you run

openssl s_client -connect you.ad.server.here:636

from your Zabbix server and then examine the top of the output from openssl's s_client, does it appear that the certificate verification succeeded?

[cjbidwell]

So I verified that I can connect to the ad server over 636. So not sure why my web app cannot do this.

[Russell517]

For those who might be stuck in this, there is one more thing you might want to check. If you've validated that there are no firewalls blocking the connection, and you can run ldapsearch/ldapwhoami, but zabbix always fails, make sure your CA is READABLE by the www-data user. I had to figure this out by trying to establish the connection as www-data:

$ ldapwhoami -x -H ldaps://ad.server.com -d 4
TLS: could not use CA certificate file `/usr/local/share/ca-certificates/ad.server-ca.crt': Error while reading file. (-64)
ldap_sasl_bind(SIMPLE): Can't contact LDAP server (-1)
