Filesystem Data is Being Gathered, but no Graphs are Displayed

[Zxarr]

Just starting with Zabbix to monitor some physical Linux hosts. In a lot of the hosts I've added, I can see collected data for the Filesystems, but no Filesystem Graphs appear in the Graphs section for that host.

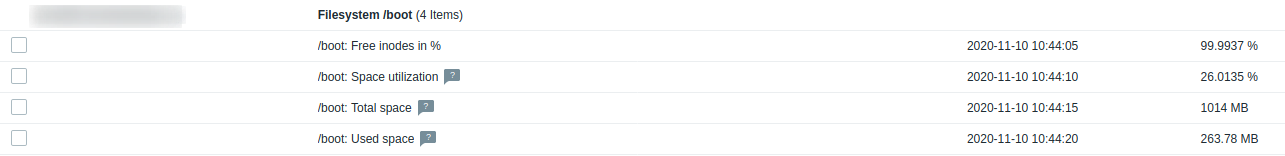

What does appear is disk I/O for the physical devices, and that's great, but I'd like to see the Space Utilization for these hosts in a little pie chart, or something. As you can see from the attached image, I can see the data. I just would like it presented on the Graph page.

The hosts in question are running the zabbix-agent v5.2 on RHEL 7.x. All hosts are set to permissive for SeLinux.

Oddly, the older RHEL 6 hosts, running v4.x of the agent are showing the pie charts, but not the disk I/O. I'm assuming that the I/O is not supported with agent 4.x versions?

[NilsA]

Is there a graph / graph prototype in the template you are applying onto your Linux hosts?

[Zxarr]

Is there a graph / graph prototype in the template you are applying onto your Linux hosts?

I'm using the same template for all hosts: Linux by Zabbix agent. If I follow the linked templates down I find that there's a Graph Prototype under a linked template: Linux filesystems by Zabbix agent.

While I've been puzzling this out another, related, oddity has occurred. I threw a Zabbix agent on a RHEL 6.x box (agent 4.x as I cannot install 5.x on RHEL 6). With the exact same template as all the other hosts, it's showing the pie charts for disk space, however, the disk I/O graph is now missing!

So to sum up:

RHEL 7.x / Zabbix Agent 5.2 -- Collects the data for filesystem and disk I/O, only displays disk I/O. Using Linux by Zabbix agent template.
RHEL 6.x / Zabbix Agent 4.4 -- Collects the data for filesystem and disk I/O, only displays the filesystem pie charts. Using Linux by Zabbix agent template.

[NilsA]

What is the version of your Zabbix server?

[Zxarr]

What is the version of your Zabbix server?

$ zabbix_server --version
zabbix_server (Zabbix) 5.2.0
Revision bcf99fb248 26 October 2020, compilation time: Oct 26 2020 08:17:13

Copyright (C) 2020 Zabbix SIA
License GPLv2+: GNU GPL version 2 or later <http://gnu.org/licenses/gpl.html>.
This is free software: you are free to change and redistribute it according to
the license. There is NO WARRANTY, to the extent permitted by law.

This product includes software developed by the OpenSSL Project
for use in the OpenSSL Toolkit (http://www.openssl.org/).

Compiled with OpenSSL 1.1.1f 31 Mar 2020
Running with OpenSSL 1.1.1f 31 Mar 2020

[Tariq Hasan]

Hi

I am experiencing similar. A few months back we upgraded the server to 5.0.4, whereby the clients were still on 3.x.
We were seeing FS usage graphs and pie charts.
But when the agents were upgraded to 5.0.4, the pie charts and FS usage graphs disappeared.
Any idea why?

regards

Tariq

[Reyza]

$ zabbix_server --version
zabbix_server (Zabbix) 5.2.0
Revision bcf99fb248 26 October 2020, compilation time: Oct 26 2020 08:17:13

Copyright (C) 2020 Zabbix SIA
License GPLv2+: GNU GPL version 2 or later <http://gnu.org/licenses/gpl.html>.
This is free software: you are free to change and redistribute it according to
the license. There is NO WARRANTY, to the extent permitted by law.

This product includes software developed by the OpenSSL Project
for use in the OpenSSL Toolkit (http://www.openssl.org/).

Compiled with OpenSSL 1.1.1f 31 Mar 2020
Running with OpenSSL 1.1.1f 31 Mar 2020

Hi

Did you ever find a solution to this? I'm getting the same/similar issue
