    Problem zabbix history syncer processes

    I have a problem with the processes of history Syncer, normally start synchronizing the values ​​in the database, but after a few minutes the timing of the process becomes increasingly slow, this is the queue server grow and shoot all triggers NODATA currently have to do a restart of Zabbix Server every 10 minutes.

    Zabbix Server
    Dell R420 Intel (R) Xeon (R) CPU @ 2.50GHz E5-2450 v2 - 32 processors, 128 GB of RAM
    Zabbix Server 2.2.11 3800 nvps, 330895 items, 2952 hosts and 90000 triggers.

    Database
    Intel (R) Xeon (R) CPU @ 2.50GHz 24 0 E5-2640 processors, 64 GB of RAM
    MySQL 5.6.19-log MySQL Community Server (GPL), partitioned tables history, history_unit, trends, trends_units
    Disabled housekeeping, three months history of history and history_unit, 9 months of historical trends and trends_unit
    *
    Below the settings:

    zabbix_server.conf
    ############ GENERAL PARAMETERS ################

    LogFile = / var / log / zabbix / zabbix_server.log
    DebugLevel = 3
    #include = / Opt / zabbix-server / server_include
    PidFile = / var / run / zabbix / zabbix_server.pid
    FpingLocation = / usr / sbin / fping
    ExternalScripts = / usr / lib / zabbix / externalscripts
    AlertScriptsPath = / usr / lib / zabbix / alertscripts
    Timeout = 30
    LogFileSize = 1
    ListenIP = 0.0.0.0
    ListenPort = 10051
    AllowRoot = 0
    ############ DATABASE PARAMETERS ################

    Dbhost = IP
    DBName = zabbix
    Dbuser = zabbix_app_usr
    DBPassword = PASSWORD
    DbPort = 3306

    ############ ADVANCED PARAMETERS ################
    StartPollers = 20
    StartPollersUnreachable = 50
    StartTrappers = 700
    StartPingers = 20
    StartDiscoverers = 50
    StartHTTPPollers = 50
    CacheSize = 4G
    StartDBSyncers = 80
    HistoryCacheSize = 2G
    TrendCacheSize = 2G
    HistoryTextCacheSize = 2G
    ValueCacheSize = 20G
    SenderFrequency = 30
    UnreachablePeriod = 45
    UnavailableDelay = 60
    UnreachableDelay = 60
    StartTimers = 500

    # VMWare Tunning
    StartVMwareCollectors = 100
    VMwareCacheSize = 128M
    VMwareFrequency = 60


    Database

    my.cnf

    [client]
    port = 3306
    socket = /var/run/mysql/mysql.sock
    # disable-auto-rehash = 1
    # default-character-set = utf8
    #reconnect = 1
    #WAIT


    [mysqld]
    port = 3306
    socket = /var/run/mysql/mysql.sock

    bind-address = IP
    datadir = / var / lib / mysql / datadir

    federated

    lower-case-table-names
    skip-name-resolve
    transaction-isolation = READ-COMMITTED
    binlog_format = ROW

    log-slave-updates
    slave-skip-errors = 1062,1452,1032,1236

    relay-log = napsao-nix-mysql-zBX-3-relay-bin

    log-error = / var / lib / mysql / log / napsao-nix-mysql-zBX-5.err
    log-bin = / var / lib / mysql / bin_log / napsao-nix-mysql-zBX-3
    # slow-query-log = / var / lib / mysql / log / napsao-nix-mysql-zBX-5_slow_query.log
    tmpdir = / var / lib / mysql / temporary

    max_binlog_size = 8MB

    wait_timeout = 31104000
    interactive_timeout = 31104000

    key_buffer = 256M
    max_allowed_packet = 51200M
    sort_buffer_size = 4M
    read_buffer_size = 4M
    read_rnd_buffer_size = 8M
    myisam_sort_buffer_size = 32M
    thread_cache_size = 50
    query_cache_size = 128M

    thread_concurrency = 4

    server-id = 5
    auto_increment_increment = 2
    auto_increment_offset = 2

    innodb_flush_method = O_DIRECT
    innodb_data_home_dir = / var / lib / mysql / innodb /
    innodb_file_per_table
    innodb_file_io_threads = 18
    innodb_flush_log_at_trx_commit = 2
    innodb_log_group_home_dir = / var / lib / mysql / redolog /
    innodb_buffer_pool_size = 42062M
    innodb_log_file_size = 50M
    innodb_log_buffer_size = 8M
    innodb_lock_wait_timeout = 500

    max_connections = 5000

    [mysqldump]
    quick
    max_allowed_packet = 16M

    [mysql]
    in the self-rehash

    [isamchk]
    key_buffer = 128M
    sort_buffer_size = 128M
    read_buffer = 2M
    write_buffer = 2M

    [myisamchk]
    key_buffer = 64M
    sort_buffer_size = 64M
    read_buffer = 2M
    write_buffer = 2M

    [mysqlhotcopy]
    interactive-timeout

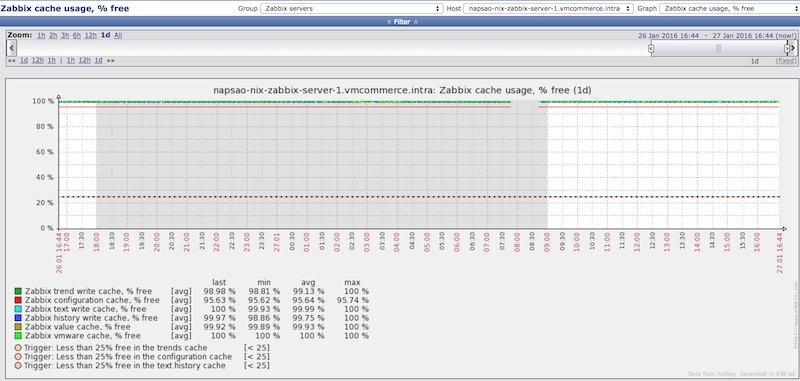

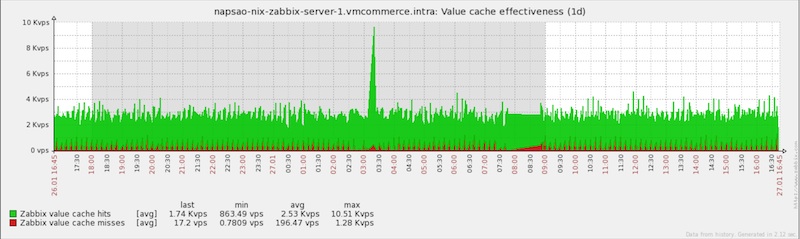

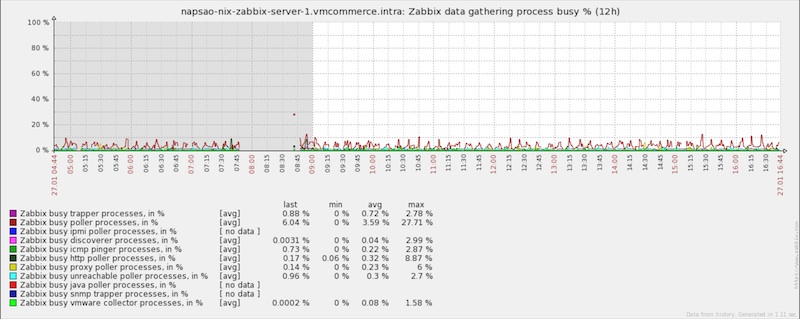

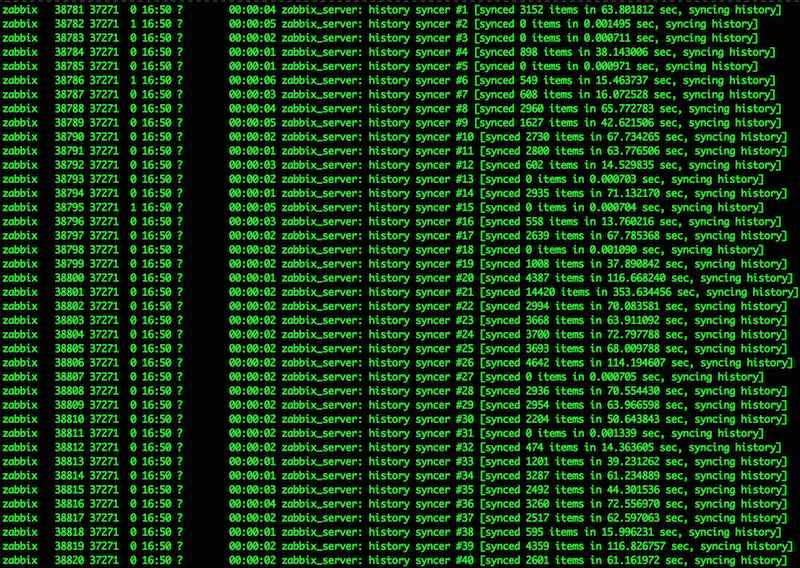

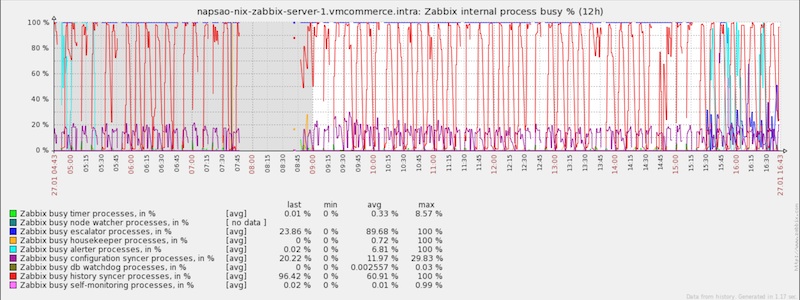

    Attached some zabbix performance charts.

    Can anyone help me with the problem?
    Attached Files

    #2
    Hello and welcome to Zabbix forums!

    Here is what could possibly be causing this:
    • Disk performance is hitting he limit
    • Network performance to DB is bad or limited
    • DB tuning can be improved



    Few ideas for you where to start:

    As for Zabbix settings (zabbix_server.conf):
    • Enable LogSlowQueries=3000 to see which queries are slow and how bad this is.
    • StartDBSyncers = 8 because each DB syncer is capable of processing ~1000 nvps so having more than you need might actually decrease the performance.


    At least this could be the starting point. After that maybe you will actually find that the problem is hidden somewhere else.

    Good luck with this!

    Best regards,
    Ingus
