Graphs not showing values

[qix]

Hello all,

I'm having trouble showing values in graphs that have been collected by Zabbix.

For example, I have the following values in my database:

DB000443: Processor load
Showing history of 3600 seconds(1 h)
[from: 2006.Nov.06 13:36:35] [till: 2006.Nov.06 14:36:35]

2006-11-06 14:36:33	1162820193	0.0167
2006-11-06 14:36:28	1162820188	0.0333
2006-11-06 14:36:23	1162820183	0.0333
2006-11-06 14:36:18	1162820178	0.0333
2006-11-06 14:36:12	1162820172	0.0167
2006-11-06 14:36:06	1162820166	0.0167
2006-11-06 14:36:01	1162820161	0.0167
2006-11-06 14:35:56	1162820156	0.0167
2006-11-06 14:35:51	1162820151	0.0167
2006-11-06 14:35:46	1162820146	0.0167
2006-11-06 14:35:41	1162820141	0.0167
2006-11-06 14:33:03	1162819983	0.0167
2006-11-06 14:31:27	1162819887	0.1000
2006-11-06 14:29:10	1162819750	0.5333
2006-11-06 14:26:51	1162819611	0.0333
2006-11-06 14:25:08	1162819508	0.0333
2006-11-06 14:22:37	1162819357	0.0500
2006-11-06 14:20:38	1162819238	0.0167
2006-11-06 14:18:03	1162819083	0.0000
2006-11-06 14:15:38	1162818938	0.0167
2006-11-06 14:14:01	1162818841	0.0000
2006-11-06 14:11:55	1162818715	0.0000
2006-11-06 14:09:55	1162818595	0.0333
2006-11-06 14:07:52	1162818472	0.0000
2006-11-06 14:05:39	1162818339	0.0000
2006-11-06 14:02:55	1162818175	0.0500
2006-11-06 13:59:59	1162817999	0.0000
2006-11-06 13:57:56	1162817876	0.0167
2006-11-06 13:55:23	1162817723	0.0500
2006-11-06 13:53:09	1162817589	0.0333
2006-11-06 13:51:35	1162817495	0.0167
2006-11-06 13:49:57	1162817397	0.0333
2006-11-06 13:48:15	1162817295	0.0333
2006-11-06 13:46:25	1162817185	0.0167
2006-11-06 13:43:59	1162817039	0.0333
2006-11-06 13:41:51	1162816911	0.0333
2006-11-06 13:40:16	1162816816	0.0167
2006-11-06 13:38:22	1162816702	0.0500
2006-11-06 13:36:39	1162816599	0.1000

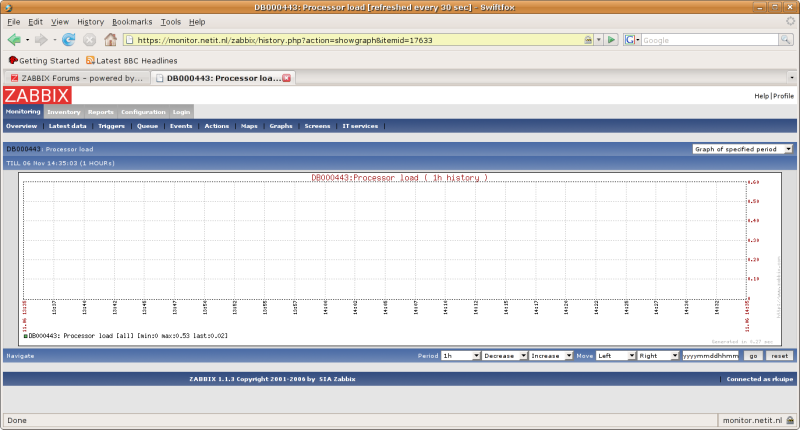

However, if I graph these values I get the graphic in attachment 'Screenshot Graph Processor load 1h.png'. In other words, it's not showing anything.

When increase the period with 4h I get the graph like attachment 'Screenshot Processor load 5h.png'.
In other words, everything looks fine.

I'm using zabbix 1.1.3 upgraded from 1.1.2.
The item has the following timers:

Update interval 5 sec
Keep history 7 days
Keep trends 365 days

I have this problem with various items, although not all of them.
I hope someone can help me find the solution to this problem.

[qix]

The problems seems to be solved

I had already started tweaking my settings because I saw the queue's we're running full. This seemed to cause the problem with the values not showing.
I have set about everything that needs to be polled at least 300 seconds.

I should have searched the forum better though, I suddenly stumbled accross this post during another search:

http://www.zabbix.com/forum/showthread.php?t=3322&page=1&pp=10&highlight=threads

It described the same problem and solution.
