Struggling with JIT for Azure AD SAML (v 6.4)

[HB78]

Hello,
i quite beginning with zabbix during the last weeks and I struggle to put in place JIT provisionning with AzureAD SAML through an Enterprise App.
The SAML part is working fine, i can logon with an existing username i created manually, fitting my UPN.
Example [email protected]
But if i start from nothing, enable & configure the JIT option , i should be able to login as [email protected] even if it is not existing.
I don't know where to look at , i suppose an issue with my group mapping

memberOf is the Group Claim custom i did :

[smolki]

I am also trying to run it in this environment. Without result.
I am able to achieve authorization only with an already created user.
JIT, does not work, we need support how to run the service in MS Azure.

[YouDontKnowMe]

I have the same problem.

SAML authentication only works if a user is already provisioned in Zabbix.

When I try to authenticate with JIT enabled, I'm getting the error "Incorrect user name or password or account is temporarily blocked".

[ro_bitussin]

I was finally able to get this working. For my SAML setup, I used this guide from another post https://www.joostdeheer.nl/zabbix/Za...SO_AzureAD.pdf

In Azure, I had to adjust the following settings in my group claim:

• "Which Groups associated with the user should be returned in the claim?" > Set to "Groups assigned to the application"
• "Source Attribute" > Set to "Cloud-only group display names"
• Checked "Customize the name of the group claim" > Set to "memberOf"

In Zabbix

• Group Name Attribute > set to "memberOf"
• User name Attribute > set to "username" (claim setup from the guide)
• User Group Mapping, SAML group pattern > Matches group assigned to the application in Azure AD
• Checked "Enable SCIM Provisioning"

I would also verify that the user role has the correct privileges.

[HB78]

Hi,
Just to close the topic, JIT is just working great now , my issue was more on Azure Claims !
I had to change the group Claim i made.

From ro_bitbussin answer i simply adapted the choice to be : Security Groups + select SAMaccountname ( the default was Group ID which is reporting ... ID and not names !)
My custom Name stayed as is ("memberOf")
That permit me to have multiple groups like XYZ-Admins, XYZ-Viewer, etc and then play with User Group mapping
Just need to be sure not to have overlaps : user can't be viewer and admin , I presume ; not sure what happen

[ltep]

Can someone share the PDF from https://www.joostdeheer.nl/zabbix/Za...SO_AzureAD.pdf ? The URL doesn't work anymore.

[polcape]

Hi HB78,
I have same issue.

I can't configure provisioning on AzureAd side, it give me an error.

Do you solve?

Thanks

[gianlucas94]

Hi there,

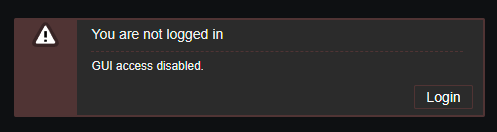

In my case every user is being provisioned with their roles and groups but when they try to login into zabbix they get this message:


And when I go back to the user list in Zabbix, the user that tried to login go to the group disabled.

Someone can help me ?


Thanks!

[andrebello87]

Hi guys,

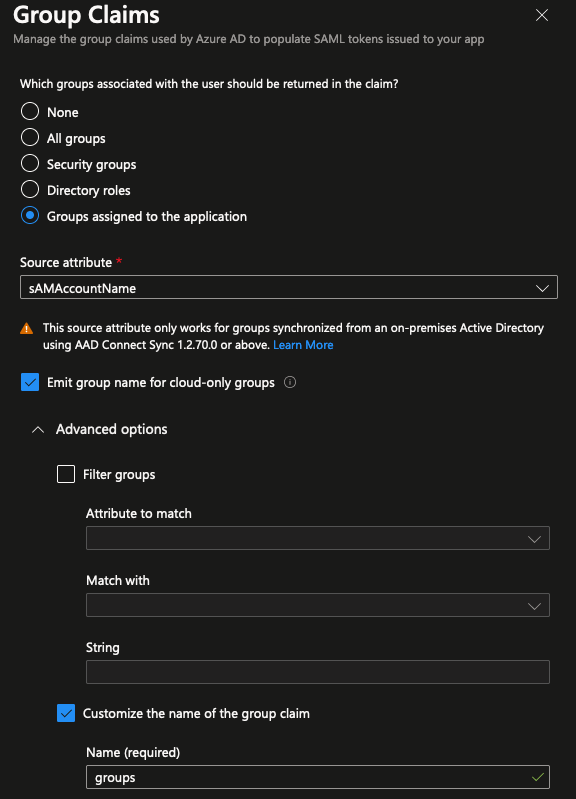

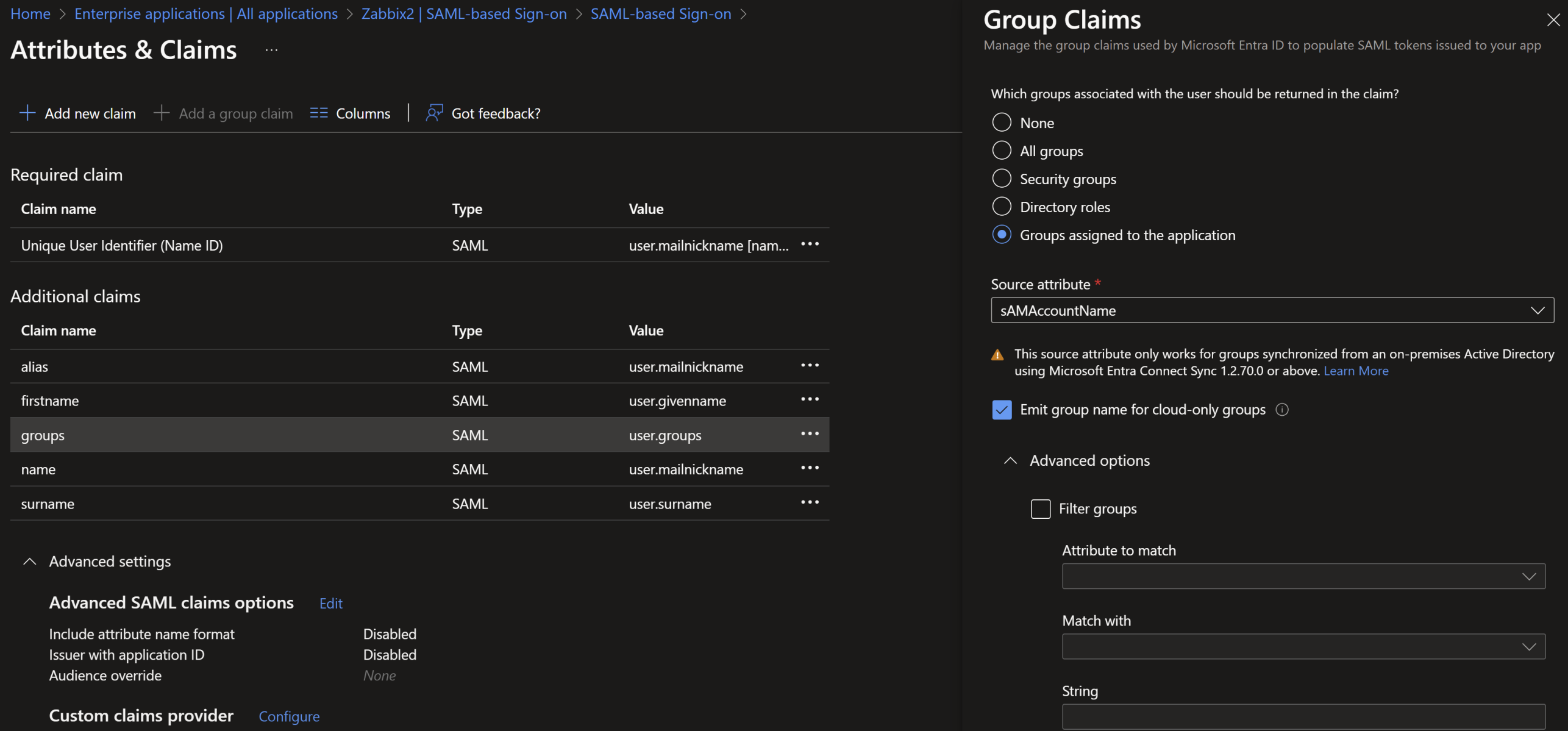

I resolved my problem, was missing the to configure Group Claims in the Enterprise applications.

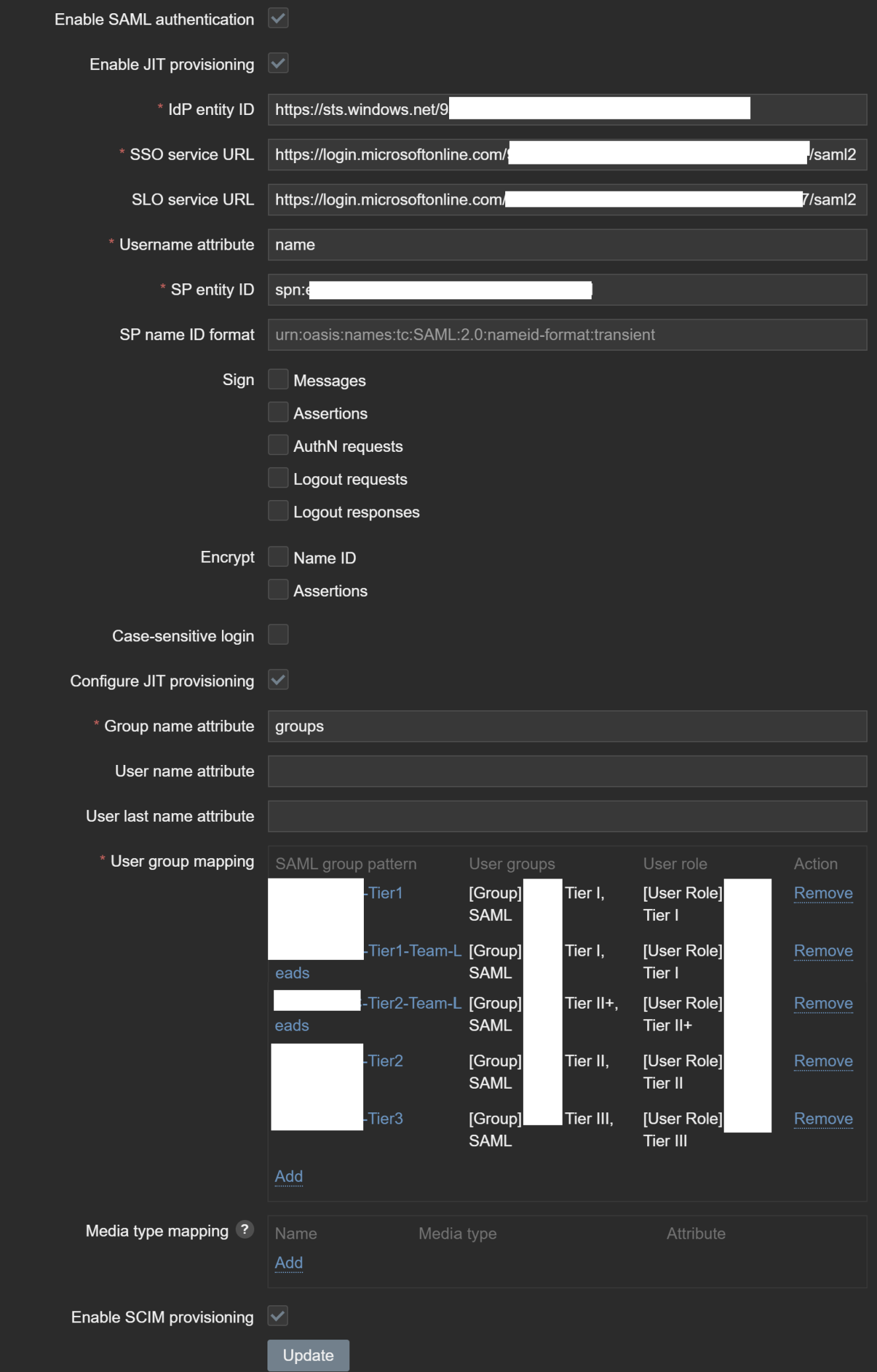

I customized the name of the group claim to groups, so we need to configure the same name in the front Zabbix Server. Group name attribute = groups

.


Thanks

[MRedbourne]

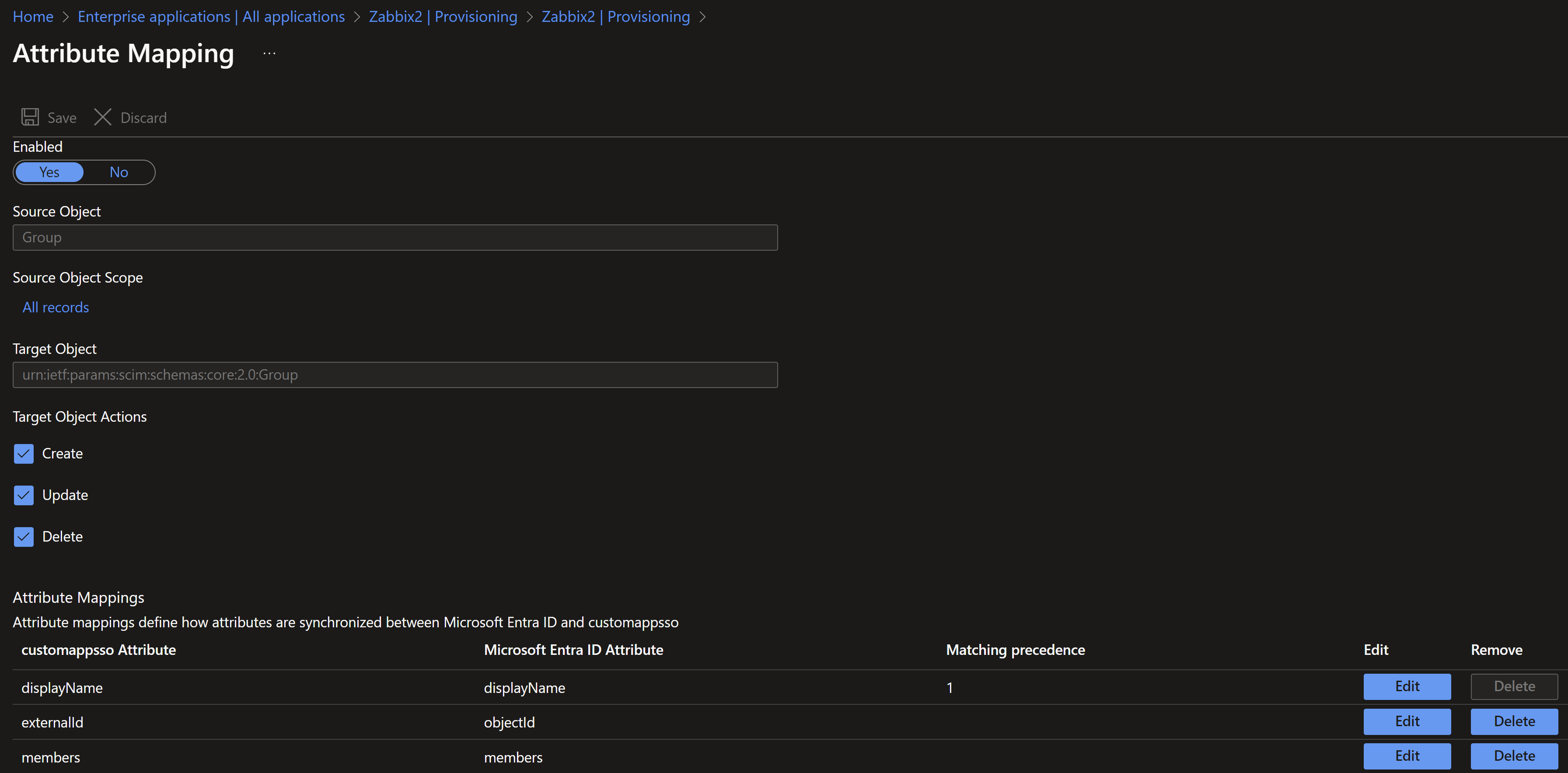

Going to pile onto this thread. We're also having issues with the SCIM setup. I've tried a variety of configs for Provisioning/claims, but can't get this to work. Is anyone able to point me in the right direction?

Edit: I should say what's wrong. We can get the accounts provisioned, but Zabbix isn't mapping our roles and groups correctly. Even trying fully generalized wildcards (Eg: the match pattern is '*', we can get this to map anything.

We're on Zabbix 6.4.8 (planned upgrade to 6.4.11 after change board approves), RHEL 9.3 64 bit. Standard apache build with PHP and a ton of hardening applied (CSP, X-Frames, HSTS, Information Disclosure, etc).
