Auto discovery action with snmp check.

[mgrzegorski]

Need some help setting up discovery action or some way to debug it, im on fresh zabbix installation 7.0.1.

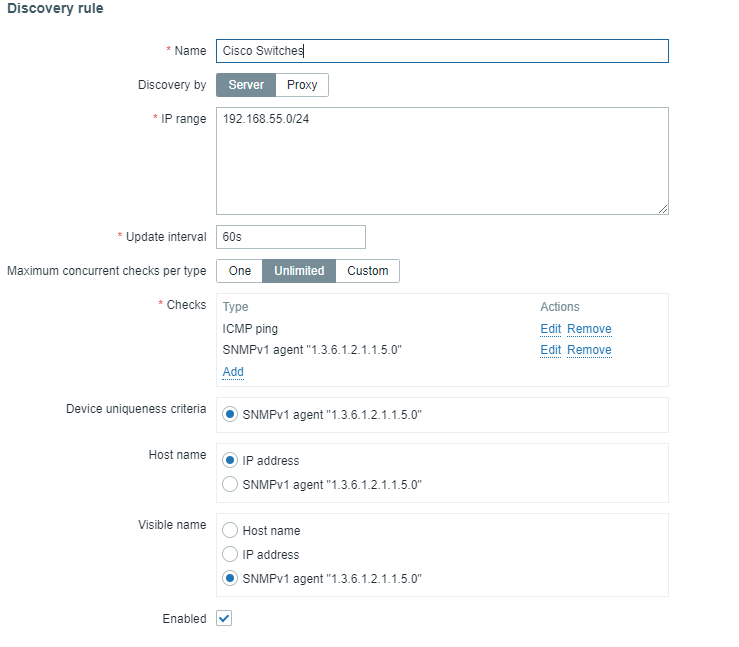

i have set up discovery

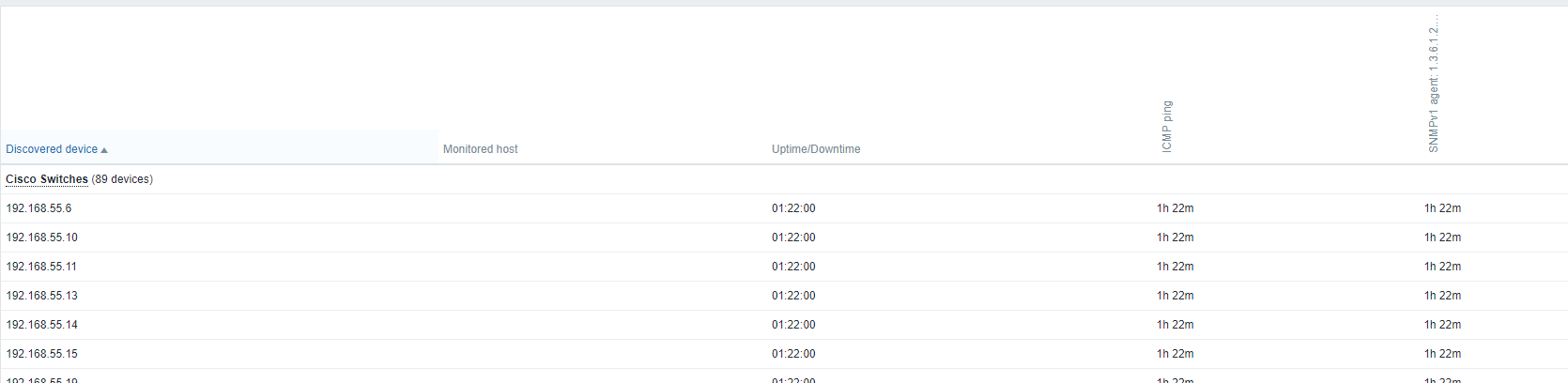

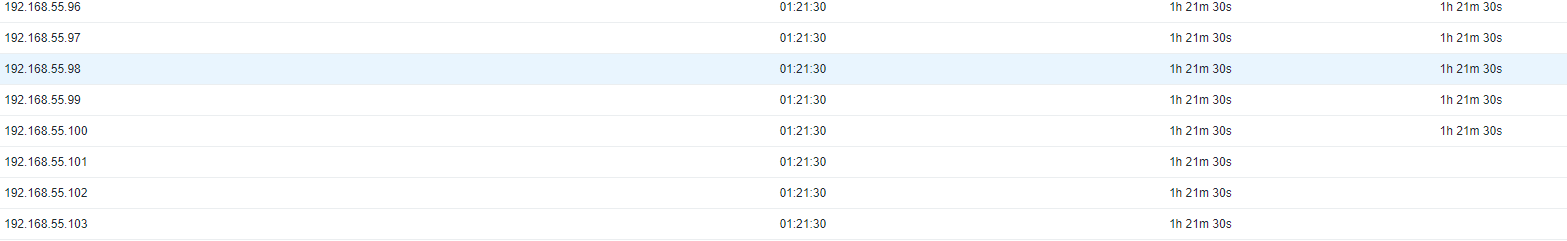

and it works, as in monitoring ->discovery i see all my things

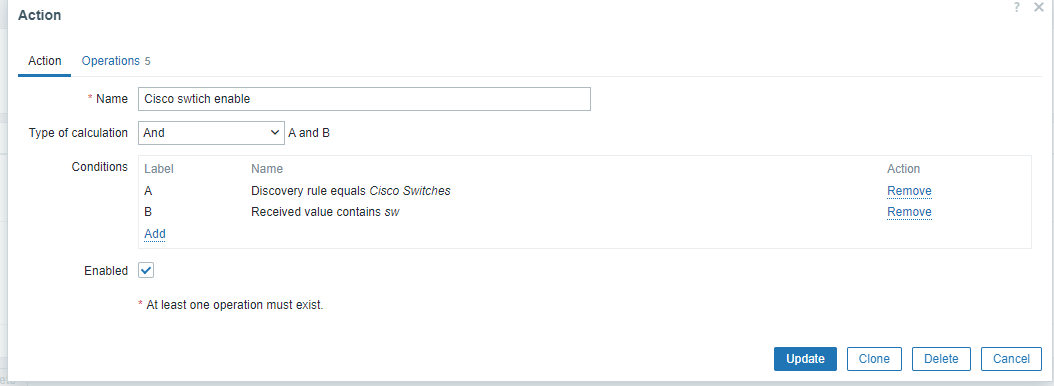

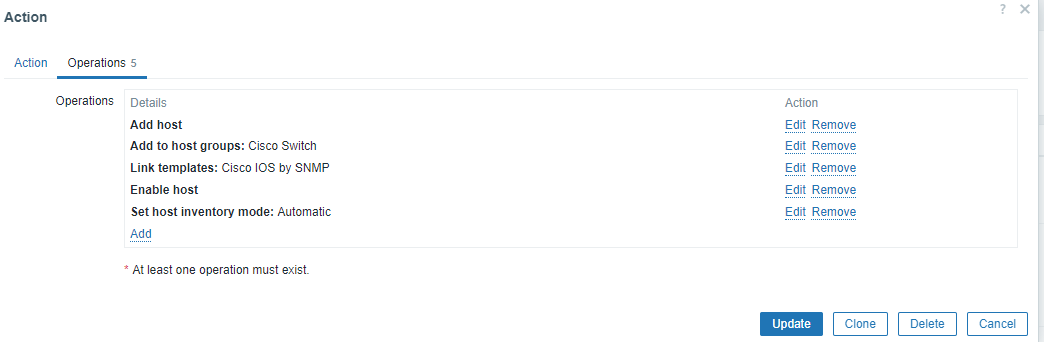

So now i want to auto add them to my hosts. The snmp check when done manually against my switches always returns sw_xxxx. And i want to use it as visible name for switches



Unfortunately this part doesn't work. I would appreciate if someone could help or maybe point me where i can even debug what zabbix is doing. Like on discovry page i see it found snmp but not waht value zabbix recived etc.

[tim.mooney]

I would appreciate if someone could help or maybe point me where i can even debug what zabbix is doing. Like on discovry page i see it found snmp but not waht value zabbix recived etc.

If you look at the manual page for zabbix_server, you'll see that there is a runtime-control option to dynamically increase the log level for either everything or for certain process "types". One of those process types is "discoverer". This means you can tell zabbix_server to log much more detailed log messages to zabbix_server.log file by doing something like:

sudo zabbix_server -R log_level_increase=discoverer
sudo zabbix_server -R log_level_increase=discoverer

Assuming that you use the default setting for DebugLevel (3 = Warnings) in your zabbix_server.conf, that would keep it at 3 for most parts of zabbix but dynamically increase it to 5 (extended debugging) for the discoverer process type. Just remember to decrease it again when you've collected the information you need.

Keep in mind that those log messages can be difficult to interpret in many cases, especially if you don't follow along through the source code.
