**tryllz** · 19-08-2024, 11:53

Anyone idea on this please ?

**Hamardaban** · 19-08-2024, 14:52

Most likely, this is due to the differences that still exist. Most items are currently being created in the LLD process. You need to look at the differences in the data returned by the LLD rules. And also pay attention to setting up macros for filtering LLD results.

As far as I can see, your data is collected by snmp requests - it is possible that permissions for the visibility of snmp data are configured differently on different servers. Use snmpwalk\snmpget to check the availability of data by the id used in the LLdetection.

**tryllz** · 20-08-2024, 14:01

Thank You Hamardaban

I'm digging into this, will see what I find..

Just that nothing was ever changed, everything is default, no Macro or any filtering is done within the templates..

**t00m1G** · 20-08-2024, 16:43

Hey,
If you use default settings you can also try with default Zabbix template https://git.zabbix.com/projects/ZBX/...ell_idrac_snmp
To check if maybe template generates this issue - as mentioned earlier by Hamardaban you can also use snmpget to check if for example "Dell4" returns with correct data while asking for exact values.

**tryllz** · 20-08-2024, 17:09

Thanks t00m1G

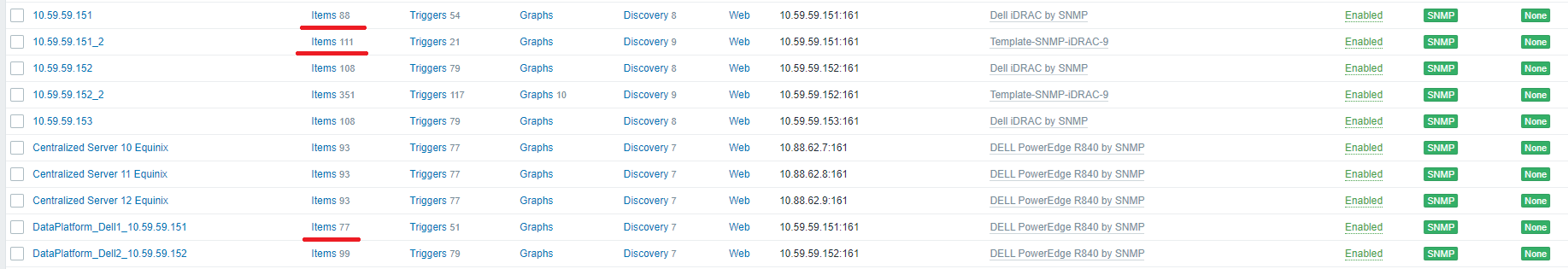

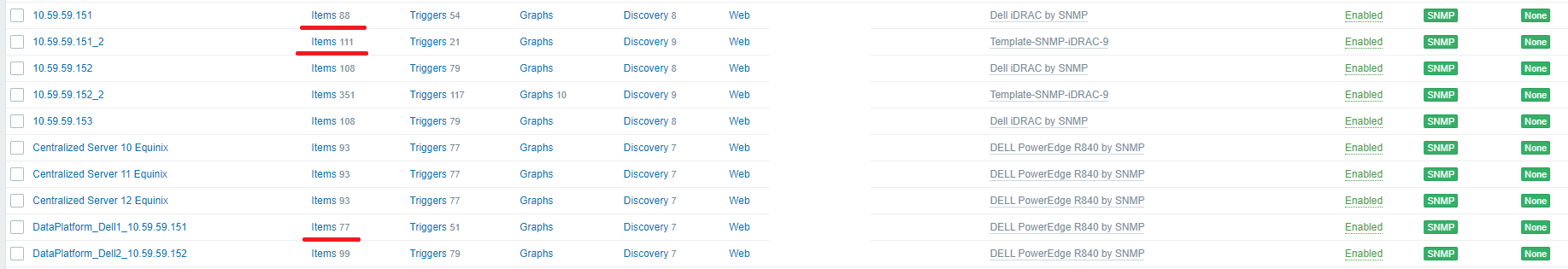

What I did was get a different template and added it to the same servers, and found its always the same set of servers that show less items, but all servers have the same BIOS version, and exactly hardware.

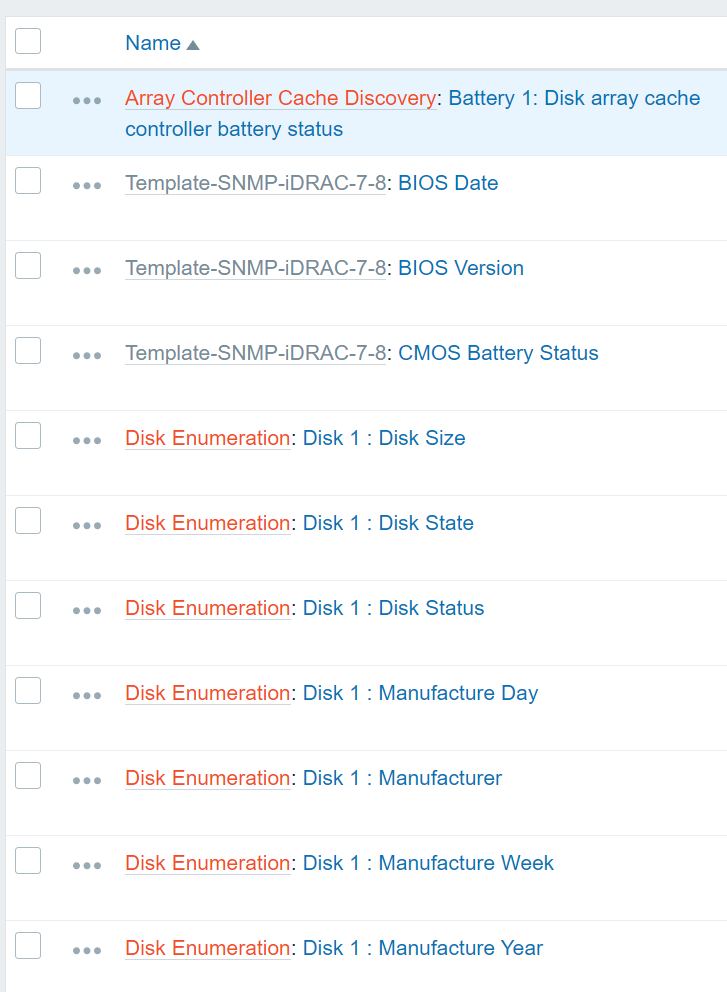

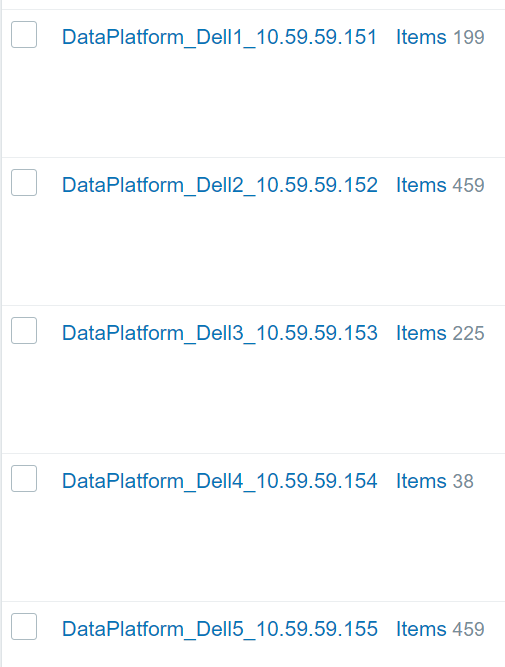

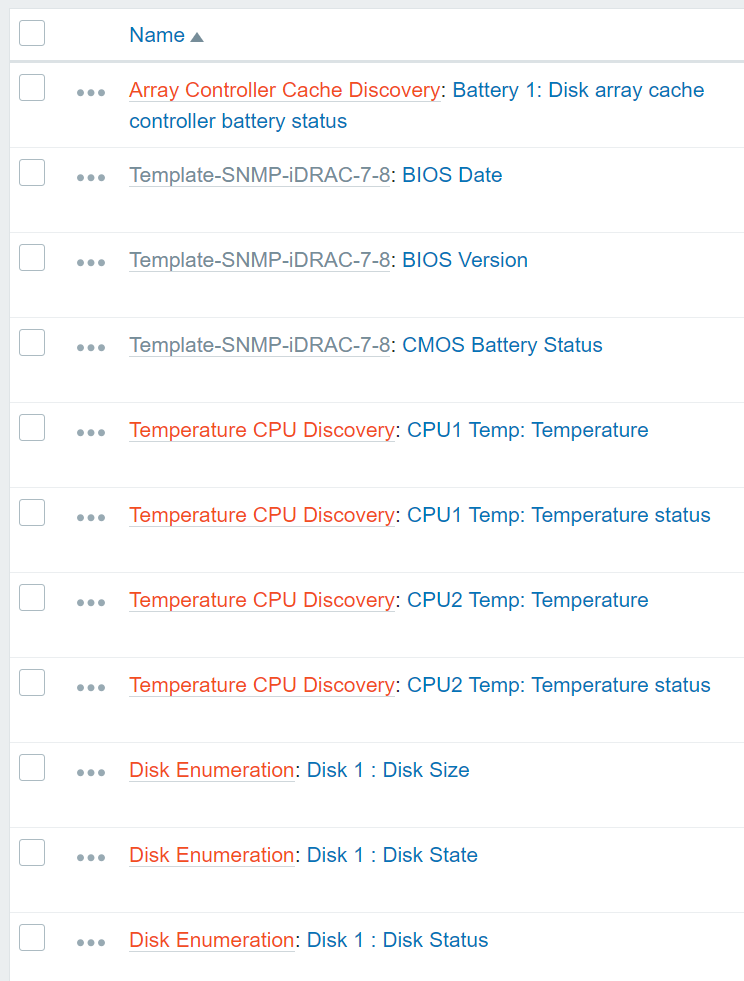

If you notice below server 151 has less items in all templates than server 152.

Will run snmpget and see what I get..

Attached Files

**tryllz** · 20-08-2024, 17:24

An output from snmpget..

HTML Code:

[root@zabbix ~]# snmpget -v2c -c test 10.59.59.151 system.sysUpTime.0
DISMAN-EVENT-MIB::sysUpTimeInstance = Timeticks: (2515819856) 291 days, 4:23:18.56

[root@zabbix ~]# snmpget -v2c -c test 10.59.59.152 system.sysUpTime.0
DISMAN-EVENT-MIB::sysUpTimeInstance = Timeticks: (2514066316) 290 days, 23:31:03.16

[root@zabbix ~]# snmpget -v2c -c test 10.59.59.152 1.3.6.1.4.1.674.10892.5.4.700.20.1.6.1.1
SNMPv2-SMI::enterprises.674.10892.5.4.700.20.1.6.1.1 = INTEGER: 460

[root@zabbix ~]# snmpget -v2c -c test 10.59.59.151 1.3.6.1.4.1.674.10892.5.4.700.20.1.6.1.1
SNMPv2-SMI::enterprises.674.10892.5.4.700.20.1.6.1.1 = No Such Instance currently exists at this OID <------ This is true as I could not find the item CPU in 151 server items

**tryllz** · 20-08-2024, 17:41

Output from snmpwalk

HTML Code:

[root@zabbix ~]# snmpwalk -v2c -c test 10.59.59.151 system.sysUpTime.0
DISMAN-EVENT-MIB::sysUpTimeInstance = Timeticks: (2515936003) 291 days, 4:42:40.03

[root@zabbix ~]# snmpwalk -v2c -c test 10.59.59.152 system.sysUpTime.0
DISMAN-EVENT-MIB::sysUpTimeInstance = Timeticks: (2514182482) 290 days, 23:50:24.82

[root@zabbix ~]# snmpwalk -v2c -c test 10.59.59.151 1.3.6.1.4.1.674.10892.5.4.700.20.1.6.1.1
SNMPv2-SMI::enterprises.674.10892.5.4.700.20.1.6.1.1 = No Such Instance currently exists at this OID

[root@zabbix ~]# snmpwalk -v2c -c test 10.59.59.152 1.3.6.1.4.1.674.10892.5.4.700.20.1.6.1.1
SNMPv2-SMI::enterprises.674.10892.5.4.700.20.1.6.1.1 = INTEGER: 460

**Hamardaban** · 20-08-2024, 20:14

Pls provide output for:
snmpwalk -v2c -c test -Ona 10.59.59.151 1.3.6.1.4.1.674.10892.5.4.700.20
snmpwalk -v2c -c test -Ona 10.59.59.152 1.3.6.1.4.1.674.10892.5.4.700.20

**tryllz** · 21-08-2024, 09:57

Thanks Hamardaban

Please find output below..

HTML Code:

[root@zabbix ~]# snmpwalk -v2c -c test -Ona 10.59.59.151 1.3.6.1.4.1.674.10892.5.4.700.20
.1.3.6.1.4.1.674.10892.5.4.700.20 = No Such Object available on this agent at this OID

[root@zabbix ~]# snmpwalk -v2c -c test -Ona 10.59.59.152 1.3.6.1.4.1.674.10892.5.4.700.20
.1.3.6.1.4.1.674.10892.5.4.700.20.1.1.1.1 = INTEGER: 1
.1.3.6.1.4.1.674.10892.5.4.700.20.1.1.1.2 = INTEGER: 1
.1.3.6.1.4.1.674.10892.5.4.700.20.1.1.1.3 = INTEGER: 1
.1.3.6.1.4.1.674.10892.5.4.700.20.1.1.1.4 = INTEGER: 1
.1.3.6.1.4.1.674.10892.5.4.700.20.1.2.1.1 = INTEGER: 1
.1.3.6.1.4.1.674.10892.5.4.700.20.1.2.1.2 = INTEGER: 2
.1.3.6.1.4.1.674.10892.5.4.700.20.1.2.1.3 = INTEGER: 3
.1.3.6.1.4.1.674.10892.5.4.700.20.1.2.1.4 = INTEGER: 4
.1.3.6.1.4.1.674.10892.5.4.700.20.1.3.1.1 = INTEGER: 0
.1.3.6.1.4.1.674.10892.5.4.700.20.1.3.1.2 = INTEGER: 0
.1.3.6.1.4.1.674.10892.5.4.700.20.1.3.1.3 = INTEGER: 0
.1.3.6.1.4.1.674.10892.5.4.700.20.1.3.1.4 = INTEGER: 0
.1.3.6.1.4.1.674.10892.5.4.700.20.1.4.1.1 = INTEGER: 2
.1.3.6.1.4.1.674.10892.5.4.700.20.1.4.1.2 = INTEGER: 2
.1.3.6.1.4.1.674.10892.5.4.700.20.1.4.1.3 = INTEGER: 2
.1.3.6.1.4.1.674.10892.5.4.700.20.1.4.1.4 = INTEGER: 2
.1.3.6.1.4.1.674.10892.5.4.700.20.1.5.1.1 = INTEGER: 3
.1.3.6.1.4.1.674.10892.5.4.700.20.1.5.1.2 = INTEGER: 3
.1.3.6.1.4.1.674.10892.5.4.700.20.1.5.1.3 = INTEGER: 3
.1.3.6.1.4.1.674.10892.5.4.700.20.1.5.1.4 = INTEGER: 3
.1.3.6.1.4.1.674.10892.5.4.700.20.1.6.1.1 = INTEGER: 460
.1.3.6.1.4.1.674.10892.5.4.700.20.1.6.1.2 = INTEGER: 460
.1.3.6.1.4.1.674.10892.5.4.700.20.1.6.1.3 = INTEGER: 230
.1.3.6.1.4.1.674.10892.5.4.700.20.1.6.1.4 = INTEGER: 310
.1.3.6.1.4.1.674.10892.5.4.700.20.1.7.1.1 = INTEGER: 3
.1.3.6.1.4.1.674.10892.5.4.700.20.1.7.1.2 = INTEGER: 3
.1.3.6.1.4.1.674.10892.5.4.700.20.1.7.1.3 = INTEGER: 3
.1.3.6.1.4.1.674.10892.5.4.700.20.1.7.1.4 = INTEGER: 3
.1.3.6.1.4.1.674.10892.5.4.700.20.1.8.1.1 = STRING: "CPU1 Temp"
.1.3.6.1.4.1.674.10892.5.4.700.20.1.8.1.2 = STRING: "CPU2 Temp"
.1.3.6.1.4.1.674.10892.5.4.700.20.1.8.1.3 = STRING: "System Board Inlet Temp"
.1.3.6.1.4.1.674.10892.5.4.700.20.1.8.1.4 = STRING: "System Board Exhaust Temp"
.1.3.6.1.4.1.674.10892.5.4.700.20.1.10.1.1 = INTEGER: 980
.1.3.6.1.4.1.674.10892.5.4.700.20.1.10.1.2 = INTEGER: 980
.1.3.6.1.4.1.674.10892.5.4.700.20.1.10.1.3 = INTEGER: 470
.1.3.6.1.4.1.674.10892.5.4.700.20.1.10.1.4 = INTEGER: 800
.1.3.6.1.4.1.674.10892.5.4.700.20.1.11.1.3 = INTEGER: 430
.1.3.6.1.4.1.674.10892.5.4.700.20.1.11.1.4 = INTEGER: 750
.1.3.6.1.4.1.674.10892.5.4.700.20.1.12.1.3 = INTEGER: 30
.1.3.6.1.4.1.674.10892.5.4.700.20.1.12.1.4 = INTEGER: 80
.1.3.6.1.4.1.674.10892.5.4.700.20.1.13.1.1 = INTEGER: 30
.1.3.6.1.4.1.674.10892.5.4.700.20.1.13.1.2 = INTEGER: 30
.1.3.6.1.4.1.674.10892.5.4.700.20.1.13.1.3 = INTEGER: -70
.1.3.6.1.4.1.674.10892.5.4.700.20.1.13.1.4 = INTEGER: 30
.1.3.6.1.4.1.674.10892.5.4.700.20.1.15.1.1 = INTEGER: 0
.1.3.6.1.4.1.674.10892.5.4.700.20.1.15.1.2 = INTEGER: 0
.1.3.6.1.4.1.674.10892.5.4.700.20.1.15.1.3 = INTEGER: 15
.1.3.6.1.4.1.674.10892.5.4.700.20.1.15.1.4 = INTEGER: 0

**tryllz** · 21-08-2024, 10:05

An output with the 700.20 removed for 151

HTML Code:

[root@zabbix ~]# snmpwalk -v2c -c test -Ona 10.59.59.151 1.3.6.1.4.1.674.10892.5.4
.1.3.6.1.4.1.674.10892.5.4.1.1.0 = INTEGER: 3
.1.3.6.1.4.1.674.10892.5.4.1.2.0 = INTEGER: 2
.1.3.6.1.4.1.674.10892.5.4.1.3.0 = INTEGER: 0
.1.3.6.1.4.1.674.10892.5.4.300.1.0 = INTEGER: 9
.1.3.6.1.4.1.674.10892.5.4.300.40.1.1.1.1 = INTEGER: 1
.1.3.6.1.4.1.674.10892.5.4.300.40.1.1.1.2 = INTEGER: 1
.1.3.6.1.4.1.674.10892.5.4.300.40.1.1.1.3 = INTEGER: 1
.1.3.6.1.4.1.674.10892.5.4.300.40.1.1.1.4 = INTEGER: 1
.1.3.6.1.4.1.674.10892.5.4.300.40.1.1.1.5 = INTEGER: 1
.1.3.6.1.4.1.674.10892.5.4.300.40.1.1.1.6 = INTEGER: 1
.1.3.6.1.4.1.674.10892.5.4.300.40.1.1.1.7 = INTEGER: 1
.1.3.6.1.4.1.674.10892.5.4.300.40.1.1.1.8 = INTEGER: 1
.1.3.6.1.4.1.674.10892.5.4.300.40.1.1.1.9 = INTEGER: 1
.1.3.6.1.4.1.674.10892.5.4.300.40.1.2.1.1 = INTEGER: 1
.1.3.6.1.4.1.674.10892.5.4.300.40.1.2.1.2 = INTEGER: 2
.1.3.6.1.4.1.674.10892.5.4.300.40.1.2.1.3 = INTEGER: 3
.1.3.6.1.4.1.674.10892.5.4.300.40.1.2.1.4 = INTEGER: 4
.1.3.6.1.4.1.674.10892.5.4.300.40.1.2.1.5 = INTEGER: 5
.1.3.6.1.4.1.674.10892.5.4.300.40.1.2.1.6 = INTEGER: 6
.1.3.6.1.4.1.674.10892.5.4.300.40.1.2.1.7 = INTEGER: 7
.1.3.6.1.4.1.674.10892.5.4.300.40.1.2.1.8 = INTEGER: 8
.1.3.6.1.4.1.674.10892.5.4.300.40.1.2.1.9 = INTEGER: 9
.1.3.6.1.4.1.674.10892.5.4.300.40.1.3.1.1 = INTEGER: 8
.1.3.6.1.4.1.674.10892.5.4.300.40.1.3.1.2 = INTEGER: 8
.1.3.6.1.4.1.674.10892.5.4.300.40.1.3.1.3 = INTEGER: 8
.1.3.6.1.4.1.674.10892.5.4.300.40.1.3.1.4 = INTEGER: 8
.1.3.6.1.4.1.674.10892.5.4.300.40.1.3.1.5 = INTEGER: 8
.1.3.6.1.4.1.674.10892.5.4.300.40.1.3.1.6 = INTEGER: 8
.1.3.6.1.4.1.674.10892.5.4.300.40.1.3.1.7 = INTEGER: 8
.1.3.6.1.4.1.674.10892.5.4.300.40.1.3.1.8 = INTEGER: 8
.1.3.6.1.4.1.674.10892.5.4.300.40.1.3.1.9 = INTEGER: 8
.1.3.6.1.4.1.674.10892.5.4.300.40.1.4.1.1 = INTEGER: 2
.1.3.6.1.4.1.674.10892.5.4.300.40.1.4.1.2 = INTEGER: 2
.1.3.6.1.4.1.674.10892.5.4.300.40.1.4.1.3 = INTEGER: 2
.1.3.6.1.4.1.674.10892.5.4.300.40.1.4.1.4 = INTEGER: 2
.1.3.6.1.4.1.674.10892.5.4.300.40.1.4.1.5 = INTEGER: 2
.1.3.6.1.4.1.674.10892.5.4.300.40.1.4.1.6 = INTEGER: 2
.1.3.6.1.4.1.674.10892.5.4.300.40.1.4.1.7 = INTEGER: 2
.1.3.6.1.4.1.674.10892.5.4.300.40.1.4.1.8 = INTEGER: 2
.1.3.6.1.4.1.674.10892.5.4.300.40.1.4.1.9 = INTEGER: 2
.1.3.6.1.4.1.674.10892.5.4.300.40.1.5.1.1 = STRING: "An OEM diagnostic event occurred."
.1.3.6.1.4.1.674.10892.5.4.300.40.1.5.1.2 = STRING: "An OEM diagnostic event occurred."
.1.3.6.1.4.1.674.10892.5.4.300.40.1.5.1.3 = STRING: "An OEM diagnostic event occurred."
.1.3.6.1.4.1.674.10892.5.4.300.40.1.5.1.4 = STRING: "An OEM diagnostic event occurred."
.1.3.6.1.4.1.674.10892.5.4.300.40.1.5.1.5 = STRING: "An OEM diagnostic event occurred."
.1.3.6.1.4.1.674.10892.5.4.300.40.1.5.1.6 = STRING: "An OEM diagnostic event occurred."
.1.3.6.1.4.1.674.10892.5.4.300.40.1.5.1.7 = STRING: "An OEM diagnostic event occurred."
.1.3.6.1.4.1.674.10892.5.4.300.40.1.5.1.8 = STRING: "An OEM diagnostic event occurred."
.1.3.6.1.4.1.674.10892.5.4.300.40.1.5.1.9 = STRING: "Log cleared."
.1.3.6.1.4.1.674.10892.5.4.300.40.1.6.1.1 = INTEGER: 2
.1.3.6.1.4.1.674.10892.5.4.300.40.1.6.1.2 = INTEGER: 2
.1.3.6.1.4.1.674.10892.5.4.300.40.1.6.1.3 = INTEGER: 2
.1.3.6.1.4.1.674.10892.5.4.300.40.1.6.1.4 = INTEGER: 2
.1.3.6.1.4.1.674.10892.5.4.300.40.1.6.1.5 = INTEGER: 2
.1.3.6.1.4.1.674.10892.5.4.300.40.1.6.1.6 = INTEGER: 2
.1.3.6.1.4.1.674.10892.5.4.300.40.1.6.1.7 = INTEGER: 2
.1.3.6.1.4.1.674.10892.5.4.300.40.1.6.1.8 = INTEGER: 2
.1.3.6.1.4.1.674.10892.5.4.300.40.1.6.1.9 = INTEGER: 2
.1.3.6.1.4.1.674.10892.5.4.300.40.1.7.1.1 = INTEGER: 3
.1.3.6.1.4.1.674.10892.5.4.300.40.1.7.1.2 = INTEGER: 3
.1.3.6.1.4.1.674.10892.5.4.300.40.1.7.1.3 = INTEGER: 3
.1.3.6.1.4.1.674.10892.5.4.300.40.1.7.1.4 = INTEGER: 3
.1.3.6.1.4.1.674.10892.5.4.300.40.1.7.1.5 = INTEGER: 3
.1.3.6.1.4.1.674.10892.5.4.300.40.1.7.1.6 = INTEGER: 3
.1.3.6.1.4.1.674.10892.5.4.300.40.1.7.1.7 = INTEGER: 3
.1.3.6.1.4.1.674.10892.5.4.300.40.1.7.1.8 = INTEGER: 3
.1.3.6.1.4.1.674.10892.5.4.300.40.1.7.1.9 = INTEGER: 3
.1.3.6.1.4.1.674.10892.5.4.300.40.1.8.1.1 = STRING: "20240807130410.000000-360"
.1.3.6.1.4.1.674.10892.5.4.300.40.1.8.1.2 = STRING: "20240807130410.000000-360"
.1.3.6.1.4.1.674.10892.5.4.300.40.1.8.1.3 = STRING: "20240807130410.000000-360"
.1.3.6.1.4.1.674.10892.5.4.300.40.1.8.1.4 = STRING: "20240807130410.000000-360"
.1.3.6.1.4.1.674.10892.5.4.300.40.1.8.1.5 = STRING: "20240807123741.000000-360"
.1.3.6.1.4.1.674.10892.5.4.300.40.1.8.1.6 = STRING: "20240807123741.000000-360"
.1.3.6.1.4.1.674.10892.5.4.300.40.1.8.1.7 = STRING: "20240807123741.000000-360"
.1.3.6.1.4.1.674.10892.5.4.300.40.1.8.1.8 = STRING: "20240807123741.000000-360"
.1.3.6.1.4.1.674.10892.5.4.300.40.1.8.1.9 = STRING: "20240807123555.000000-360"

**Hamardaban** · 21-08-2024, 10:22

The server 151 does not give the temperature table, which means that it does not have it (firmware?) or does the user have no rights to view (search for the words "view" or "zone" in the SNMP settings)
1) Check the sameness of the BIOS firmware on the servers.
2) check the rights of the test user (if you created it)
3) Try switching to using the SNMPv3 protocol.

**tryllz** · 21-08-2024, 10:29

151 BIOS information

HTML Code:

BIOS Version 1.3.7
iDRAC Firmware Version 3.15.17.15
iDRAC MAC Address 4c:d9:8f:b2:10:6f

152 BIOS information

HTML Code:

BIOS Version 1.3.7
iDRAC Firmware Version 3.15.17.15
iDRAC MAC Address 4c:d9:8f:b2:1f:e9

test is not a user its the community string.

I'm looking into SNMP v3..

**tryllz** · 21-08-2024, 10:34

Noted, thanks a lot for your guidance..
