Issues with SNMP walk

[boyarskij]

Hi All!
Tryed to get Cisco Eigrp OID from cisco router and faced with the strange behaivor.

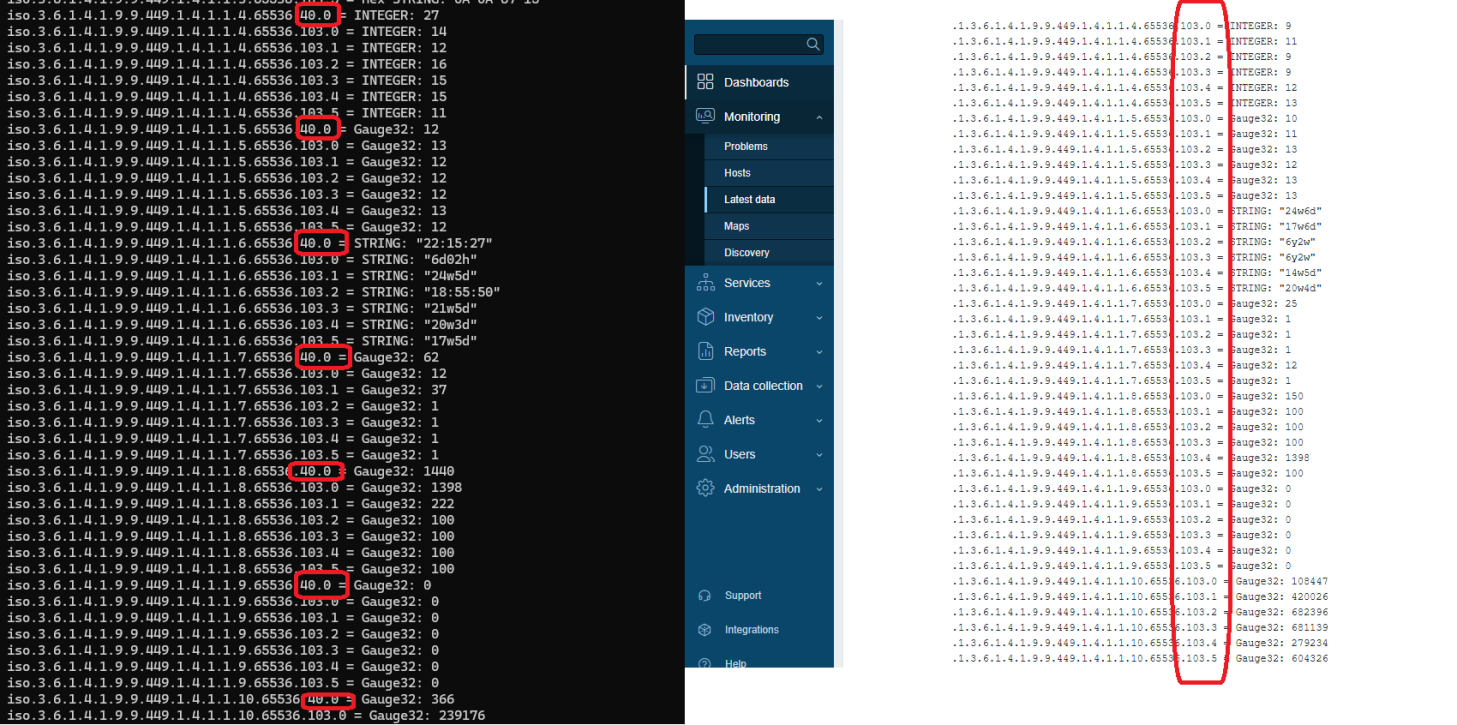

When i did snmpwalk from linux console, i've got this:

+++ cutted
iso.3.6.1.4.1.9.9.449.1.4.1.1.5.65536.40.0 = Gauge32: 12
iso.3.6.1.4.1.9.9.449.1.4.1.1.5.65536.103.0 = Gauge32: 13
iso.3.6.1.4.1.9.9.449.1.4.1.1.5.65536.103.1 = Gauge32: 12
iso.3.6.1.4.1.9.9.449.1.4.1.1.5.65536.103.2 = Gauge32: 12
iso.3.6.1.4.1.9.9.449.1.4.1.1.5.65536.103.3 = Gauge32: 12
iso.3.6.1.4.1.9.9.449.1.4.1.1.5.65536.103.4 = Gauge32: 13
iso.3.6.1.4.1.9.9.449.1.4.1.1.5.65536.103.5 = Gauge32: 12
iso.3.6.1.4.1.9.9.449.1.4.1.1.6.65536.40.0 = STRING: "22:15:27"
iso.3.6.1.4.1.9.9.449.1.4.1.1.6.65536.103.0 = STRING: "6d02h"
iso.3.6.1.4.1.9.9.449.1.4.1.1.6.65536.103.1 = STRING: "24w5d"
iso.3.6.1.4.1.9.9.449.1.4.1.1.6.65536.103.2 = STRING: "18:55:50"
iso.3.6.1.4.1.9.9.449.1.4.1.1.6.65536.103.3 = STRING: "21w5d"
iso.3.6.1.4.1.9.9.449.1.4.1.1.6.65536.103.4 = STRING: "20w3d"
iso.3.6.1.4.1.9.9.449.1.4.1.1.6.65536.103.5 = STRING: "17w5d"
iso.3.6.1.4.1.9.9.449.1.4.1.1.7.65536.40.0 = Gauge32: 62
iso.3.6.1.4.1.9.9.449.1.4.1.1.7.65536.103.0 = Gauge32: 12
iso.3.6.1.4.1.9.9.449.1.4.1.1.7.65536.103.1 = Gauge32: 37
iso.3.6.1.4.1.9.9.449.1.4.1.1.7.65536.103.2 = Gauge32: 1
iso.3.6.1.4.1.9.9.449.1.4.1.1.7.65536.103.3 = Gauge32: 1
iso.3.6.1.4.1.9.9.449.1.4.1.1.7.65536.103.4 = Gauge32: 1
iso.3.6.1.4.1.9.9.449.1.4.1.1.7.65536.103.5 = Gauge32: 1
---- cutted

And this is right.

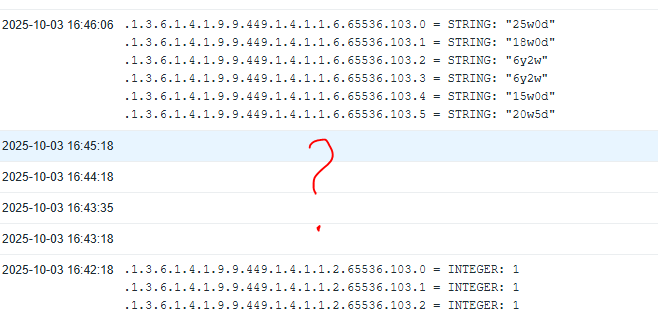

When i created Zabbix Item with snmp walk with same OID i've got that:

.1.3.6.1.4.1.9.9.449.1.4.1.1.5.65536.103.0 = Gauge32: 12
.1.3.6.1.4.1.9.9.449.1.4.1.1.5.65536.103.1 = Gauge32: 14
.1.3.6.1.4.1.9.9.449.1.4.1.1.5.65536.103.2 = Gauge32: 14
.1.3.6.1.4.1.9.9.449.1.4.1.1.5.65536.103.3 = Gauge32: 10
.1.3.6.1.4.1.9.9.449.1.4.1.1.5.65536.103.4 = Gauge32: 13
.1.3.6.1.4.1.9.9.449.1.4.1.1.5.65536.103.5 = Gauge32: 10
.1.3.6.1.4.1.9.9.449.1.4.1.1.6.65536.103.0 = STRING: "24w6d"
.1.3.6.1.4.1.9.9.449.1.4.1.1.6.65536.103.1 = STRING: "17w6d"
.1.3.6.1.4.1.9.9.449.1.4.1.1.6.65536.103.2 = STRING: "6y2w"
.1.3.6.1.4.1.9.9.449.1.4.1.1.6.65536.103.3 = STRING: "6y2w"
.1.3.6.1.4.1.9.9.449.1.4.1.1.6.65536.103.4 = STRING: "14w5d"
.1.3.6.1.4.1.9.9.449.1.4.1.1.6.65536.103.5 = STRING: "20w4d"
.1.3.6.1.4.1.9.9.449.1.4.1.1.7.65536.103.0 = Gauge32: 25
.1.3.6.1.4.1.9.9.449.1.4.1.1.7.65536.103.1 = Gauge32: 1
.1.3.6.1.4.1.9.9.449.1.4.1.1.7.65536.103.2 = Gauge32: 1
.1.3.6.1.4.1.9.9.449.1.4.1.1.7.65536.103.3 = Gauge32: 1
.1.3.6.1.4.1.9.9.449.1.4.1.1.7.65536.103.4 = Gauge32: 12
.1.3.6.1.4.1.9.9.449.1.4.1.1.7.65536.103.5 = Gauge32: 1​

And that isnt rigth.
Feeling that zabbix ignored some subtrees. .65536.40 and got only .65536.103.

is it bug or feature?
PS Zabbix 7.0.12

[SanMonitor]

hey boyarskij,

just for troubleshooting purposes, if you configure a zabbix item with the specific sub .40 OID, do you get data?

Kind regards
SanMonitor

[boyarskij]

It is a good question! Definitely no!
But Why?
at the same time, via linux console and snmpwalk is OK.

[cyber]

Sure those are sme devices? Data for same OID-s, is so different, that I have questions about it ..

iso.3.6.1.4.1.9.9.449.1.4.1.1.6.65536.103.0 = STRING: "6d02h"
iso.3.6.1.4.1.9.9.449.1.4.1.1.6.65536.103.1 = STRING: "24w5d"

vs

.1.3.6.1.4.1.9.9.449.1.4.1.1.6.65536.103.0 = STRING: "24w6d"
.1.3.6.1.4.1.9.9.449.1.4.1.1.6.65536.103.1 = STRING: "17w6d"

[boyarskij]

Oh. My bad. Thanks a lot guys.
I do snmpwalk to one router, and link template to another.
inattention
