command-line import/export facility dynamic items, triggers and graphs

[dvb]

The script ran fine for me and built the template as I would expect. However, when attempting to import at the host level, I got this error:

XML file contains errors. Fatal Error 65: attributes construct error [ Line: 23689 | Column: 16 ]

The offending line:

<graph name="[Port GigabitEthernet1/36] 37 "MX480 ge-0/2/9 Trunk"" width="900" height="400">

The problem was due to the additional quotes around "MX480 ge-0/2/9 Trunk". Once I removed those, the template imported successfully.

What seems to give the import facility heartburn is the presence of quotes within a quoted string.

For those working with the script, it would probably be a good idea not to use quotes in your device port descriptions. I only had to deal with one port, but I could see this being a real pain if you have hundreds or thousands of ports to contend with.

Hopefully, this will help someone.

[smoc]

Hello,
Thx for the great tool, the script ran just fine for me but i have one problem with Cisco Router Series 3745, script is stop after FAN_4 OIDs and recive "ERROR: No response from remote host 'xxx.xxx.xxx.xxx'. Snmpwalk for this device works ok. What can i do with this ?.

[dima_dm]

Hello,
Thx for the great tool, the script ran just fine for me but i have one problem with Cisco Router Series 3745, script is stop after FAN_4 OIDs and recive "ERROR: No response from remote host 'xxx.xxx.xxx.xxx'. Snmpwalk for this device works ok. What can i do with this ?.

Check Firewall settings, such as limits on packets per second etc. Is there any packet loss on the network? See CPU utilization on Cisco Router Series 3745.

[enzochen]

the xml template not work well

I have downloaded your script and ran it.
But the xml I have made can not work.
When I import the template zabbix report some errors.
I need your help.

Errors:
Error in query [INSERT INTO items (itemid,description,key_,hostid,delay,history,stat us,type,snmp_community,snmp_oid,value_type,data_ty pe,trapper_hosts,snmp_port,units,multiplier,delta, snmpv3_securityname,snmpv3_securitylevel,snmpv3_au thpassphrase,snmpv3_privpassphrase,formula,trends, logtimefmt,valuemapid,delay_flex,params,ipmi_senso r,templateid,authtype,username,password,publickey, privatekey) VALUES (34046,'% CPU','Cpu',10124,60*cisco,7,0,4,'public','.1.3.6.1 .4.1.9.2.1.56.0',3,0,'',161,'',0,0,'',0,'','','1', 365,'',0,'','','',0,0,'','','','')] [Unknown column 'cisco' in 'field list']

Cannot create Item.

[dima_dm]

Errors:
Error in query [INSERT INTO items (itemid,description,key_,hostid,delay,history,stat us,type,snmp_community,snmp_oid,value_type,data_ty pe,trapper_hosts,snmp_port,units,multiplier,delta, snmpv3_securityname,snmpv3_securitylevel,snmpv3_au thpassphrase,snmpv3_privpassphrase,formula,trends, logtimefmt,valuemapid,delay_flex,params,ipmi_senso r,templateid,authtype,username,password,publickey, privatekey) VALUES (34046,'% CPU','Cpu',10124,60*cisco,7,0,4,'public','.1.3.6.1 .4.1.9.2.1.56.0',3,0,'',161,'',0,0,'',0,'','','1', 365,'',0,'','','',0,0,'','','','')] [Unknown column 'cisco' in 'field list']

Cannot create Item.

Problem in string "60*cisco", must be number.
Check scrip parameters
./cisco_xml.pl Hostname HostIP 75 5 public 5 lab-cisco

[enzochen]

thx


many thx
the script now works well
thx a lot

[aigars]

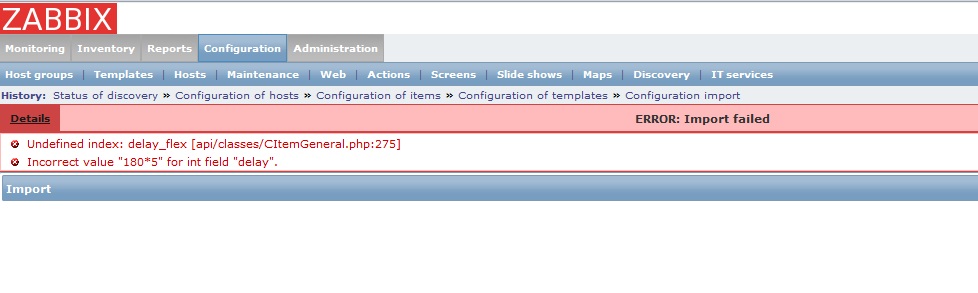

Tested on Zabbix v.2.0. Script is creating template fine, but fails when importing in zabbix. I guessing something changed in new zabbix version.

Undefined index: delay_flex [api/classes/CItemGeneral.php:275]
Incorrect value "180*5" for int field "delay".

[matjing]

command-line import/export facility dynamic items, triggers and graphs

yes I too have a similar issue on zabbix 2.0.0.

    Undefined index: delay_flex [api/classes/CItemGeneral.php:275]
    Incorrect value "180*5" for int field "delay".

mat

[tabolkin]

The format of a template changed if to compare 1.6 and 2.0,
it is necessary to make changes in cisco_xml.pl for a faultless import of templates

[tabolkin]

yes I too have a similar issue on zabbix 2.0.0.

    Undefined index: delay_flex [api/classes/CItemGeneral.php:275]
    Incorrect value "180*5" for int field "delay".

mat

to remove this error in the cisco_xml.pl file replace expression of *$slow' for a gap.

thus use of parameter of a time delay to become impossible

[Gagarin]

to remove this error in the cisco_xml.pl file replace expression of *$slow' for a gap.

thus use of parameter of a time delay to become impossible

After my replacement $slow integer values in script I got following error in zabbix 2.0.2:
ERROR: Import failed
...
Created: Trigger "{HOSTNAME} reloaded" on Template_Cisco_C2950_10.125.0.7".
Item "{HOSTNAME}:Port_FastEthernet0_1_OutOctets" does not exist.

This template is imported without problems into zabbix 1.8.11.

[pavlod]

This one is work for me on Zabbix 2.0.2

changes:
- <delay>60*$slow</delay> changed to numerical values
- {HOSTNAME} changed to $hostname (new template format)

[sabbirjoy]

about template

This one is work for me on Zabbix 2.0.2

changes:
- <delay>60*$slow</delay> changed to numerical values
- {HOSTNAME} changed to $hostname (new template format)

hi,i am new in zabbix and also in linux...i am trying to import your given cisco template b,but your file extension is .pl ,which is not supported ,and i saw some post to convert in xml, can you give me some easy idea or some screenshots how to convert it ,i m using my zabbix in ubuntu ...so ,here i cannt install even net snmp ...

[dima_dm]

hi,i am new in zabbix and also in linux...i am trying to import your given cisco template b,but your file extension is .pl ,which is not supported ,and i saw some post to convert in xml, can you give me some easy idea or some screenshots how to convert it ,i m using my zabbix in ubuntu ...so ,here i cannt install even net snmp ...

You must run this perl script to generate template
./cisco_xml.pl Hostname HostIP 75 5 public 5 lab-cisco
read this instruction

http://www.zabbix.com/forum/showthread.php?t=15400

You may run this script on any linux system, that have SNMP access on monitored device.

[dima_dm]

This one is work for me on Zabbix 2.0.2

changes:
- <delay>60*$slow</delay> changed to numerical values
- {HOSTNAME} changed to $hostname (new template format)

New version for Zabbix 2.0 cisco_xml.20121024.zip
minor bugfix for http://www.zabbix.com/forum/showpost...0&postcount=72
