Zabbix Dynamic PDF Report Generation

[martinm_76]

$z_server = 'http://10.x.x.230/zabbix';
$z_user = 'zabbix';
$z_pass = 'zabbix';


I use uWamp on windows

can not login

Two things: Remember ending slash in URL: 'http://10.x.x.230/zabbix/';
$z_user would normally be 'admin'. Are you sure you have a 'zabbix' user?

[execve]

Hello Martin,

I have problem with displaying trigger/acknowledgement information in my Report. My custom graphs and items works fine.
When I look into Apache logs, I see:

[Fri May 08 22:16:38 2015] [error] [client IP.IP.IP.IP] PHP Warning:  Creating default object from empty value in /usr/share/zabbix/report/inc/ZabbixAPI.class.php on line 122, referer: http://domain.com/zabbix/report/chooser.php
[Fri May 08 22:16:39 2015] [error] [client IP.IP.IP.IP] PHP Warning:  fwrite(): 21 is not a valid stream resource in /usr/share/zabbix/report/inc/createpdf.functions.php on line 170, referer: http://domain.com/zabbix/report/chooser.php
[Fri May 08 22:16:39 2015] [error] [client IP.IP.IP.IP] PHP Warning:  fwrite(): 21 is not a valid stream resource in /usr/share/zabbix/report/inc/createpdf.functions.php on line 173, referer: http://domain.com/zabbix/report/chooser.php
[Fri May 08 22:16:39 2015] [error] [client IP.IP.IP.IP] PHP Warning:  fclose(): 21 is not a valid stream resource in /usr/share/zabbix/report/inc/createpdf.functions.php on line 174, referer: http://domain.com/zabbix/report/chooser.php

My:
Zabbix server ver. 2.2.9
OS: CentOS 6

[pantera]

Two things: Remember ending slash in URL: 'http://10.x.x.230/zabbix/';
$z_user would normally be 'admin'. Are you sure you have a 'zabbix' user?

result: for zabbix user

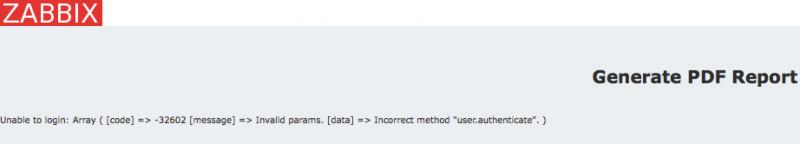

Unable to login: Array ( [code] => -32602 [message] => Invalid params. [data] => Incorrect method "user.authenticate". )

I changed the name to frontend login user

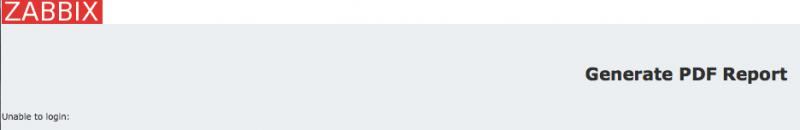

result : empty page

[taken]

Host grp generate only 1 host

hello Guys,
I got strange problem with Zabbix PDF report Generator.
When i go to https://xxx.pl/zabbix/report/ login to my Zabbix account and choice Host Group, Select DNS servers host group, Report range last week, he generate only 1 DNS server report... but in this host grp there is 7 hosts... he only generate report for 1 server in host grp.

This is report what he generate:
XXXX

Another problem:
I saw problem with text in red background if name of Company is big he don`t wordwraps - he cut letters.

Thanks
TaKeN

[vlam]

Hi Guys

When going to URL https://x.x.x.x/zabbix/report/ i get the following screen and am not sure on how to fix it (See Attachment). Can someone please tell me what I am doing wrong?

My Config is as follow:

<?php
//CONFIGURABLE
# zabbix server info(user must have API access)
$z_server = 'https://x.x.x.x/zabbix/';
$z_user = 'Admin';
$z_pass = 'Sup3rS3cur3';
# Temporary directory for storing pdf data and graphs - must exist
$z_tmp_path = './tmp';
# Directory for storing PDF reports
$pdf_report_dir = './reports';
# Root URL to reports
$pdf_report_url = $z_server ."report/reports";
# paper settings
$paper_format = 'A4'; // formats supported: 4A0, 2A0, A0 -> A10, B0 -> B10, C0 -> C10, RA0 -> RA4, SRA0 -> SRA4, LETTER, LEGAL, EXECUTIVE, FOLIO
$paper_orientation = 'portrait'; // formats supported: portrait / landscape
# time zone - see http://php.net/manual/en/timezones.php
$timezone = 'Africa/Johannesburg';
# Logo used in PDF - may be empty
# TODO: Specify image size!
$pdf_logo = './images/zabbix.png';
$company_name = 'Business Connexion';

//DO NOT CHANGE BELOW THIS LINE
$z_tmp_cookies = "/tmp/";
$z_url_index = $z_server ."index.php";
$z_url_graph = $z_server ."chart2.php";
$z_url_api = $z_server ."api_jsonrpc.php";
$z_login_data = "name=" .$z_user ."&password=" .$z_pass ."&autologin=1&enter=Sign+in";
?>

[vlam]

Hi Guys

When going to URL https://x.x.x.x/zabbix/report/ i get the following screen and am not sure on how to fix it (See Attachment). Can someone please tell me what I am doing wrong?

My Config is as follow:

<?php
//CONFIGURABLE
# zabbix server info(user must have API access)
$z_server = 'https://x.x.x.x/zabbix/';
$z_user = 'Admin';
$z_pass = 'Sup3rS3cur3';
# Temporary directory for storing pdf data and graphs - must exist
$z_tmp_path = './tmp';
# Directory for storing PDF reports
$pdf_report_dir = './reports';
# Root URL to reports
$pdf_report_url = $z_server ."report/reports";
# paper settings
$paper_format = 'A4'; // formats supported: 4A0, 2A0, A0 -> A10, B0 -> B10, C0 -> C10, RA0 -> RA4, SRA0 -> SRA4, LETTER, LEGAL, EXECUTIVE, FOLIO
$paper_orientation = 'portrait'; // formats supported: portrait / landscape
# time zone - see http://php.net/manual/en/timezones.php
$timezone = 'Africa/Johannesburg';
# Logo used in PDF - may be empty
# TODO: Specify image size!
$pdf_logo = './images/zabbix.png';
$company_name = 'Business Connexion';

//DO NOT CHANGE BELOW THIS LINE
$z_tmp_cookies = "/tmp/";
$z_url_index = $z_server ."index.php";
$z_url_graph = $z_server ."chart2.php";
$z_url_api = $z_server ."api_jsonrpc.php";
$z_login_data = "name=" .$z_user ."&password=" .$z_pass ."&autologin=1&enter=Sign+in";
?>

I found an earlier post where someone said to change the /inc/ZabbixAPI.class.php file line where it states user.Authenticate to user.login which I did and now I get the following error. (Strangely I can login on the frontend with the user)

[vlam]

Update on my Previous problem, I have solved it by replacing the version of PDF report with the latest 0.9 version from martinm and now I get past the login and also gets to the part where it asks for the server selection and generate of report. My current problem that I am getting is it comes back with

The requested URL /report/reports/Server_Name.pdf was not found on this server.

What can this be and how do I fix it?

Thanks

[martinm_76]

Update on my Previous problem, I have solved it by replacing the version of PDF report with the latest 0.9 version from martinm and now I get past the login and also gets to the part where it asks for the server selection and generate of report. My current problem that I am getting is it comes back with

The requested URL /report/reports/Server_Name.pdf was not found on this server.

What can this be and how do I fix it?

Thanks

Most likely, your rights are incorrect on tmp and/or reports.
They need to either be 777 or owned by the webserver user.

chmod 777 tmp reports

It *should* already be set, but it seems many people do not get this result when they unpack the archive ...

[martinm_76]

Hello Martin,

I have problem with displaying trigger/acknowledgement information in my Report. My custom graphs and items works fine.
When I look into Apache logs, I see:

[Fri May 08 22:16:38 2015] [error] [client IP.IP.IP.IP] PHP Warning:  Creating default object from empty value in /usr/share/zabbix/report/inc/ZabbixAPI.class.php on line 122, referer: http://domain.com/zabbix/report/chooser.php
[Fri May 08 22:16:39 2015] [error] [client IP.IP.IP.IP] PHP Warning:  fwrite(): 21 is not a valid stream resource in /usr/share/zabbix/report/inc/createpdf.functions.php on line 170, referer: http://domain.com/zabbix/report/chooser.php
[Fri May 08 22:16:39 2015] [error] [client IP.IP.IP.IP] PHP Warning:  fwrite(): 21 is not a valid stream resource in /usr/share/zabbix/report/inc/createpdf.functions.php on line 173, referer: http://domain.com/zabbix/report/chooser.php
[Fri May 08 22:16:39 2015] [error] [client IP.IP.IP.IP] PHP Warning:  fclose(): 21 is not a valid stream resource in /usr/share/zabbix/report/inc/createpdf.functions.php on line 174, referer: http://domain.com/zabbix/report/chooser.php

My:
Zabbix server ver. 2.2.9
OS: CentOS 6

Hmm .. I know there are a few cases where these fwrite and fclose show up. I have not spent time debugging them since I get the expected data in my reports. It you select debug and have triggers selected, do you get a dump of them on your screen?

As always, I have developed these latest iterations on Zabbix 2.4 and I haven't tested it on anything else.

[martinm_76]

hello Guys,
I got strange problem with Zabbix PDF report Generator.
When i go to https://xxx.pl/zabbix/report/ login to my Zabbix account and choice Host Group, Select DNS servers host group, Report range last week, he generate only 1 DNS server report... but in this host grp there is 7 hosts... he only generate report for 1 server in host grp.

This is report what he generate:

http://taken.pl/DNS.pdf

Another problem:
I saw problem with text in red background if name of Company is big he don`t wordwraps - he cut letters.

Thanks
TaKeN

I believe this was one of the things I fixed in 0.9. Could you please use that in stead of 0.8?

[taken]

I believe this was one of the things I fixed in 0.9. Could you please use that in stead of 0.8?

Hey You got right but still problem with cut Company name exist in 0.9.

Thanks

[vlam]

Most likely, your rights are incorrect on tmp and/or reports.
They need to either be 777 or owned by the webserver user.

chmod 777 tmp reports

It *should* already be set, but it seems many people do not get this result when they unpack the archive ...

Hi Martin

Thanks for the help, I got it working so now it is just to give it a look and feel of our company sites

Thanks

[vlam]

Hi Martin

First off my programming skills is horrible and to see something like this that you have created is great. I would however like to find out from you if it would be possible to have a section list of the graphs and triggers for when you select the host. An example requirement that was given to me is as follow: We are monitoring shared FortiGate devices that is shared between multiple client but when a specific client requires a report of his Firewall status then you don't want to pull a report of everything. Same when a client is doing a server performance test for an DB or application then you done need uptime and Disk usage stats.

Would it be possible to create and add-on that can have a server graph/monitored metric selection box?

Thanks

[martinm_76]

Hi Martin

First off my programming skills is horrible and to see something like this that you have created is great. I would however like to find out from you if it would be possible to have a section list of the graphs and triggers for when you select the host. An example requirement that was given to me is as follow: We are monitoring shared FortiGate devices that is shared between multiple client but when a specific client requires a report of his Firewall status then you don't want to pull a report of everything. Same when a client is doing a server performance test for an DB or application then you done need uptime and Disk usage stats.

Would it be possible to create and add-on that can have a server graph/monitored metric selection box?

Thanks

Well, it would take some doing, but I suppose you could have one more page before the actual graphing where you could return the list of graphs and such for individual selection. It it not easily accomplished with triggers, though, as there can be many for any item, but I suppose you could have an intermediate step of selecting which items you want triggers for. It could be a veeeery long list, though, and probably only feasible with one host selected in stead of a host group.

I am not sure when I would get around to do that, but it is an interesting idea.

Perhaps the originators of the versions I based 0.8 onwards on, Travis Mathis and Ronny Pettersen, could be interested in tackling this?
Someone else? If not, I may get around to it within a month or two, as I think it is a good idea, but implementation will require a fair bit of thought and man hours, and I have to prioritize paying engagements.

[waardd]

Image doesn't show for me.
What browsers have you tried (and what versions)? Is the result identical in all of them?
Have you cleared your cache/Run the report on a machine you have never tried it on with the same result?
Is there a proxy between you and the server?

I had an issue with not seeing the contents of the dropdowns at one point, but I think I got it sorted by making sure I was completely logged out (which may be slightly problematic for you, since it seems the logout function is not playing ball) and making sure I cleared all cookies for the given page.

Try with pure IP URL and with FQDN URL (e.g. zabbix.yourcompany.com/report/).

It may also be your php.ini file that is blocking functionality that is needed. Have the default php.ini been modified in any way?

There are probably more things that could be the cause, but those are what springs to mind. That and it works fine on my CentOS 6.6 64-bit.

Check if your values resemble this in php.ini:

[PHP]
engine = On
short_open_tag = Off
asp_tags = Off
precision = 14
y2k_compliance = On
output_buffering = 4096
zlib.output_compression = Off
implicit_flush = Off
unserialize_callback_func =
serialize_precision = 100
allow_call_time_pass_reference = Off
safe_mode = Off
safe_mode_gid = Off
safe_mode_include_dir =
safe_mode_exec_dir =
safe_mode_allowed_env_vars = PHP_
safe_mode_protected_env_vars = LD_LIBRARY_PATH
disable_functions =
disable_classes =
expose_php = On
max_execution_time = 30
max_input_time = 60
memory_limit = 128M
error_reporting = E_ALL & ~E_DEPRECATED
display_errors = Off
display_startup_errors = Off
log_errors = On
log_errors_max_len = 1024
ignore_repeated_errors = Off
ignore_repeated_source = Off
report_memleaks = On
track_errors = Off
html_errors = Off
variables_order = "GPCS"
request_order = "GP"
register_globals = Off
register_long_arrays = Off
register_argc_argv = Off
auto_globals_jit = On
post_max_size = 8M
magic_quotes_gpc = Off
magic_quotes_runtime = Off
magic_quotes_sybase = Off
auto_prepend_file =
auto_append_file =
default_mimetype = "text/html"
doc_root =
user_dir =
enable_dl = Off
file_uploads = On
upload_max_filesize = 2M
allow_url_fopen = On
allow_url_include = Off
default_socket_timeout = 60
[Date]
date.timezone='Europe/Berlin';

More besides, but those parts ought to be the important bits.

My PHP has the same values (except for up and download size, its higher then yours.
I tried the direct URL and got the same result on multiple browsers.

=====
HostID: 10348
Report Type: host
Time Period: 3600
Temp image path: /appl/mcv/html/zabbix/frontends/php/report/tmp/zabbix_report_u5HpkO

(id
jk-8009 worker threads(id:372)
http-8080 worker threads(id:373)
http-8443 worker threads(id:374)
sessions /(id:375)
3150-cpu(id:387)
3150-load(id:391)
3148-cpu(id:392)
3148-load(id:393)
Space in Queue(id:437)
Space in Queue(id:438)
Space in Queue(id:439)
and so on
=====

The selection list for Hosts is filled but with blanks.
The selectioon list for HostGroups is filled and readable but has the same effect when creating a report:

====
GroupID: 53
Report Type: hostgroup
Time Period: 3600
Temp image path: /appl/mcv/html/zabbix/frontends/php/report/tmp/zabbix_report_qqbyT7

(id
jk-8009 worker threads(id:372)
http-8080 worker threads(id:373)
http-8443 worker threads(id:374)
sessions /(id:375)
3150-cpu(id:387)
3150-load(id:391)
3148-cpu(id:392)
3148-load(id:393)
Space in Queue(id:437)
Space in Queue(id:438)
Space in Queue(id:439)
MySQL Threads(id:470)
MySQL Questions(id:471)
MySQL slow queries(id:472)
and so on
====
