HPE Server Hardware Monitoring Template ZBX V2.2 For Zabbix 3.4 MPA (ACTIVE AGENT)

[DeltaCentral]

This template is an updated version of the original (MMARKWITZZ) - ZBX2 template.

~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~ ~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~
Date Template Updated: 27.11.2018 / Zabbix Version: 3.4 +

Original Template Creator & Builder: mmarkwitzz
CREDIT DUE TO : mmarkwitzz
Zabbix Profile Link: https://www.zabbix.com/forum/member/40584-mmarkwitzz

Main (HP Server ZBX2 Template) Zabbix Template Forum Page:
https://www.zabbix.com/forum/zabbix-...onitoring-zbx2

~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~ ~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~


Updates and amendments have been made to this new template and can confirm it works with Zabbix 3.4.

IMPORTANT: In order for this template to work you need to first ensure that you are able to view the hardware status in your HP Insight Management portal on your server. If you are unable to get this working or having troubles then please see this guide prior to using the template below. This template is mainly for Zabbix (ACTIVE) Agent setups.


HP Insight Management Server Monitoring - HOW TO FIX / GET WORKING
https://www.deltacentral.co.uk/hpe-s...re-monitoring/


Template Updates and Amendments

Zabbix Member: Nick0909
Zabbix Member: DeltaCentral (Jag Singh)


1. Ensure Your HP Server Has (HP Insight Management) Installed And Is Working Correctly.
2. Install Template Into Zabbix MPA (Monitoring Platform Appliance) Front End - Ensure (Value Mappings Are Imported).
3. Insert User Parameters Below Into Your (Zabbix Active Agent Config File) And Ensure All 4 x (VBS) Scripts Are In The Correct Location On The Server Side In The Zabbix Folder, See RED Below.
3. Setup Your (Host) On The Zabbix MPA Front End and Assign This (Template) To Your Host.
4. Restart The Zabbix Active Agent On The Server Side And Wait For Values To Update On The Zabbix MPA Front End Using Latest Data Section.


Zabbix Client ACTIVE AGENT - Parameter Insertions - Required / (Zabbix_Agentd.Conf)
~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~ ~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~ ~

#HP Discovery
UserParameter = hp.discovery[*],cscript "C:\Zabbix\zabbix_hp_discovery.vbs" //Nologo "$1"

#HP WBEM
UserParameter = hp.wbem[*],cscript "C:\Zabbix\zabbix_hp_wbem.vbs" //Nologo "$1" "$2" "$3"

#HP SYSTEM
UserParameter = hp.system[*],cscript "C:\Zabbix\zabbix_hp_system.vbs" //Nologo "$1"

#HP EVENT LOG Query
UserParameter = eventlog.query[*],cscript "C:\Zabbix\zabbix_win_eventlog.vbs" //Nologo "$1" "$2"

#ALLOW ABNORMAL CHARACTERS IN USERPARAMETERS ARGUMEMTS
UnsafeUserParameters=1

~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~ ~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~ ~

Template ** CHANGE LOG **
// Template Updates / Amendments / Additions //

- Line Correction In VBS (zabbix_hp_discovery.vbs) For PowmetPairs(PROP_PMETNO, x) = PROPNAME_PMETNO & "|" & strNo (Zabbix Member: NICK0909)
- Removed (Unit) Value [2Ok*Err] from All Low Level Discovery List Rules (Item Prototype) In Template - (Zabbix Member: DeltaCentral)
- Updated Interval Time Update For All LLD Rules (Shorter) In Template - (Zabbix Member: DeltaCentral)
- Updated Interval Time Update & History Data Values (Shorter) In Template - (Zabbix Member: DeltaCentral)
- Log Size Data Value Changed To [500] In Zabbix_VBS_Logger Script - (Zabbix Member: DeltaCentral)
- Value Mappings Created & Assigned For All Low Level Discovery Rules (See Below) - (Zabbix Member: DeltaCentral)

[AlessandroInfo]

Hello, thank you for your post.
I'm using Zabbix 4.0.7, and I'm trying to use this template.
I imported it into my Zabbix server, applied template to my host, and on the host I copied the vbs files and add the parameters into the zabbix_agentd.conf file. In this file I added also the "ServerActive=IpOfMyZabbixServer" and "Timeout=30" paramenters, but I'm having a trouble when I checking the server. The message error appear: "Cannot send request: wrong discovery rule type." I think the problem is the active agent: how can resolve it?
I'm a new user of Zabbix, sorry me if it is a stupid question

Thank you,
Alessandro

[DeltaCentral]

Hi AlessandroInfo

The error message you are getting is most likely due to a discrepancy in either your (Zabbix Agent ACTIVE) template or (Windows OS ACTIVE) template which you have assigned to your ACTIVE host. I have attached an XML file, which contains both the following templates below, please import, assign the (Template OS Windows ACTIVE) to your host and let me know if the error message goes away.

Template App Zabbix Agent ACTIVE
Template OS Windows ACTIVE

You only need to assign your ACTIVE host the (Template OS Windows ACTIVE) as the (Template App Zabbix Agent ACTIVE) would be automatically added and linked.

Thanks, DC

[AlessandroInfo]

Hi DC,
thank you for your reply.
I tried but not solved. I imported your template "Template OS Windows ACTIVE", assign only it this to my host (I removed the previous templates) and if I check now one of the discovery rules. I'm notice now that the Zabbix agent now seems offline.... maybe some configuration of active agent is not correct? How can I check this? Before changing the tempate the ZBX icon was green.
Thank you very much,
Alessandro

[DeltaCentral]

Hi AlessandroInfo

In Active mode monitoring the [ZBX] icon will never be lit, It will only be lit if you are using Passive mode. Is the host on your network locally or outside of your network on another network behind a firewall?

[AlessandroInfo]

Hi AlessandroInfo

In Active mode monitoring the [ZBX] icon will never be lit, It will only be lit if you are using Passive mode. Is the host on your network locally or outside of your network on another network behind a firewall?

Hi Dc,
thank you, there is a lot I have to learn
Host is locally, with Windows firewall disactivated for this testing (before I allowed Zabbix agent on Windows firewall).
What you suggest me to try to do to solve this problem?
Thank you

[araneon]

Thank you so much for your work.

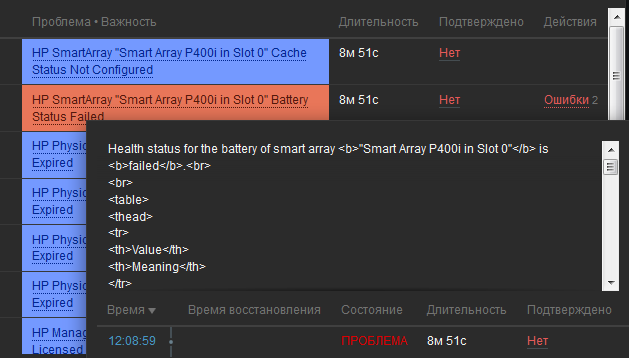

Tell me this is normal when my trigger is triggered and if I click on the “Problem” with a mouse, then a pop-up window opens with a description and is there text with HTML tags?

[AlessandroInfo]

Thank you so much for your work.
Tell me this is normal when my trigger is triggered and if I click on the “Problem” with a mouse, then a pop-up window opens with a description and is there text with HTML tags?

Hi, I have the same result on different web browser, but I'm not worried for it The trigger works, this is the important thing
But if DeltaCentral resolve it, he's welcome!

[andy1976]

Great work. Thanks.
Is it possible to adapt this to Linux-Server ?

[bcnx]

Would it be a problem to convert this template to a non-Active one?
