  • anG
    Junior Member
    • Aug 2015
    • 23
    #46
    Originally posted by michael.weber
    Perhaps i will investigate some time in SNMP Monitoring for MSA. but actually it is not possible to Monitor the drives. i am waiting for a "broken" drive to check the SNMP OIDs if i can discover the broken HDD.
    can you run this?
    Code:
     snmpwalk -m ALL -c COMMUNITY> -v2c >IP> .1.3.6.1.3.94.1.8
    here you should see the "Overall Status" with Shelfs, temperatures. perhaps we build a SNMP template with These values?!
    Code:
    FCMGMT-MIB::connUnitSensorIndex.' ....%.l........'.64 = INTEGER: 64
FCMGMT-MIB::connUnitSensorName.' ....%.l........'.1 = STRING: "On-Board Temperature 1-Ctlr A"
FCMGMT-MIB::connUnitSensorName.' ....%.l........'.2 = STRING: "On-Board Temperature 1-Ctlr B"
FCMGMT-MIB::connUnitSensorName.' ....%.l........'.3 = STRING: "On-Board Temperature 2-Ctlr A"
FCMGMT-MIB::connUnitSensorName.' ....%.l........'.4 = STRING: "On-Board Temperature 2-Ctlr B"
FCMGMT-MIB::connUnitSensorName.' ....%.l........'.5 = STRING: "On-Board Temperature 3-Ctlr A"
FCMGMT-MIB::connUnitSensorName.' ....%.l........'.6 = STRING: "On-Board Temperature 3-Ctlr B"
FCMGMT-MIB::connUnitSensorName.' ....%.l........'.7 = STRING: "Disk Controller Temp-Ctlr A"
FCMGMT-MIB::connUnitSensorName.' ....%.l........'.8 = STRING: "Disk Controller Temp-Ctlr B"
FCMGMT-MIB::connUnitSensorName.' ....%.l........'.9 = STRING: "Memory Controller Temp-Ctlr A"
FCMGMT-MIB::connUnitSensorName.' ....%.l........'.10 = STRING: "Memory Controller Temp-Ctlr B"
FCMGMT-MIB::connUnitSensorName.' ....%.l........'.11 = STRING: "Capacitor Pack Voltage-Ctlr A"
FCMGMT-MIB::connUnitSensorName.' ....%.l........'.12 = STRING: "Capacitor Pack Voltage-Ctlr B"
FCMGMT-MIB::connUnitSensorName.' ....%.l........'.13 = STRING: "Capacitor Cell 1 Voltage-Ctlr A"
FCMGMT-MIB::connUnitSensorName.' ....%.l........'.14 = STRING: "Capacitor Cell 1 Voltage-Ctlr B"
FCMGMT-MIB::connUnitSensorName.' ....%.l........'.15 = STRING: "Capacitor Cell 2 Voltage-Ctlr A"
FCMGMT-MIB::connUnitSensorName.' ....%.l........'.16 = STRING: "Capacitor Cell 2 Voltage-Ctlr B"
FCMGMT-MIB::connUnitSensorName.' ....%.l........'.17 = STRING: "Capacitor Cell 3 Voltage-Ctlr A"
FCMGMT-MIB::connUnitSensorName.' ....%.l........'.18 = STRING: "Capacitor Cell 3 Voltage-Ctlr B"
FCMGMT-MIB::connUnitSensorName.' ....%.l........'.19 = STRING: "Capacitor Cell 4 Voltage-Ctlr A"
FCMGMT-MIB::connUnitSensorName.' ....%.l........'.20 = STRING: "Capacitor Cell 4 Voltage-Ctlr B"
FCMGMT-MIB::connUnitSensorName.' ....%.l........'.21 = STRING: "Capacitor Charge-Ctlr A"
FCMGMT-MIB::connUnitSensorName.' ....%.l........'.22 = STRING: "Capacitor Charge-Ctlr B"
FCMGMT-MIB::connUnitSensorName.' ....%.l........'.23 = STRING: "Overall Unit Status"
FCMGMT-MIB::connUnitSensorName.' ....%.l........'.24 = STRING: "Temperature Loc: upper-IOM A"
FCMGMT-MIB::connUnitSensorName.' ....%.l........'.25 = STRING: "Temperature Loc: lower-IOM B"
FCMGMT-MIB::connUnitSensorName.' ....%.l........'.26 = STRING: "Temperature Loc: left-PSU"
FCMGMT-MIB::connUnitSensorName.' ....%.l........'.27 = STRING: "Temperature Loc: right-PSU"
FCMGMT-MIB::connUnitSensorName.' ....%.l........'.28 = STRING: "Voltage 12V Loc: upper-IOM A"
FCMGMT-MIB::connUnitSensorName.' ....%.l........'.29 = STRING: "Voltage 5V Loc: upper-IOM A"
FCMGMT-MIB::connUnitSensorName.' ....%.l........'.30 = STRING: "Voltage 12V Loc: lower-IOM B"
FCMGMT-MIB::connUnitSensorName.' ....%.l........'.31 = STRING: "Voltage 5V Loc: lower-IOM B"
FCMGMT-MIB::connUnitSensorName.' ....%.l........'.32 = STRING: "Voltage 12V Loc: left-PSU"
FCMGMT-MIB::connUnitSensorName.' ....%.l........'.33 = STRING: "Voltage 5V Loc: left-PSU"
FCMGMT-MIB::connUnitSensorName.' ....%.l........'.34 = STRING: "Voltage 3.3V Loc: left-PSU"
FCMGMT-MIB::connUnitSensorName.' ....%.l........'.35 = STRING: "Voltage 12V Loc: right-PSU"
FCMGMT-MIB::connUnitSensorName.' ....%.l........'.36 = STRING: "Voltage 5V Loc: right-PSU"
FCMGMT-MIB::connUnitSensorName.' ....%.l........'.37 = STRING: "Voltage 3.3V Loc: right-PSU"
FCMGMT-MIB::connUnitSensorName.' ....%.l........'.38 = STRING: "Current 12V Loc: upper-IOM A"
FCMGMT-MIB::connUnitSensorName.' ....%.l........'.39 = STRING: "Current 12V Loc: lower-IOM B"
FCMGMT-MIB::connUnitSensorName.' ....%.l........'.40 = STRING: "Current 12V Loc: left-PSU"
FCMGMT-MIB::connUnitSensorName.' ....%.l........'.41 = STRING: "Current 5V Loc: left-PSU"
FCMGMT-MIB::connUnitSensorName.' ....%.l........'.42 = STRING: "Current 12V Loc: right-PSU"
FCMGMT-MIB::connUnitSensorName.' ....%.l........'.43 = STRING: "Current 5V Loc: right-PSU"
FCMGMT-MIB::connUnitSensorName.' ....%.l........'.44 = STRING: "Overall Unit Status"
FCMGMT-MIB::connUnitSensorName.' ....%.l........'.45 = STRING: "Temperature Loc: upper-IOM A"
FCMGMT-MIB::connUnitSensorName.' ....%.l........'.46 = STRING: "Temperature Loc: lower-IOM B"
FCMGMT-MIB::connUnitSensorName.' ....%.l........'.47 = STRING: "Temperature Loc: left-PSU"
FCMGMT-MIB::connUnitSensorName.' ....%.l........'.48 = STRING: "Temperature Loc: right-PSU"
FCMGMT-MIB::connUnitSensorName.' ....%.l........'.49 = STRING: "Voltage 12V Loc: upper-IOM A"
FCMGMT-MIB::connUnitSensorName.' ....%.l........'.50 = STRING: "Voltage 5V Loc: upper-IOM A"
FCMGMT-MIB::connUnitSensorName.' ....%.l........'.51 = STRING: "Voltage 12V Loc: lower-IOM B"
FCMGMT-MIB::connUnitSensorName.' ....%.l........'.52 = STRING: "Voltage 5V Loc: lower-IOM B"
FCMGMT-MIB::connUnitSensorName.' ....%.l........'.53 = STRING: "Voltage 12V Loc: left-PSU"
FCMGMT-MIB::connUnitSensorName.' ....%.l........'.54 = STRING: "Voltage 5V Loc: left-PSU"
FCMGMT-MIB::connUnitSensorName.' ....%.l........'.55 = STRING: "Voltage 3.3V Loc: left-PSU"
FCMGMT-MIB::connUnitSensorName.' ....%.l........'.56 = STRING: "Voltage 12V Loc: right-PSU"
FCMGMT-MIB::connUnitSensorName.' ....%.l........'.57 = STRING: "Voltage 5V Loc: right-PSU"
FCMGMT-MIB::connUnitSensorName.' ....%.l........'.58 = STRING: "Voltage 3.3V Loc: right-PSU"
FCMGMT-MIB::connUnitSensorName.' ....%.l........'.59 = STRING: "Current 12V Loc: upper-IOM A"
FCMGMT-MIB::connUnitSensorName.' ....%.l........'.60 = STRING: "Current 12V Loc: lower-IOM B"
FCMGMT-MIB::connUnitSensorName.' ....%.l........'.61 = STRING: "Current 12V Loc: left-PSU"
FCMGMT-MIB::connUnitSensorName.' ....%.l........'.62 = STRING: "Current 5V Loc: left-PSU"
FCMGMT-MIB::connUnitSensorName.' ....%.l........'.63 = STRING: "Current 12V Loc: right-PSU"
FCMGMT-MIB::connUnitSensorName.' ....%.l........'.64 = STRING: "Current 5V Loc: right-PSU"
FCMGMT-MIB::connUnitSensorStatus.' ....%.l........'.1 = INTEGER: ok(3)
FCMGMT-MIB::connUnitSensorStatus.' ....%.l........'.2 = INTEGER: ok(3)
FCMGMT-MIB::connUnitSensorStatus.' ....%.l........'.3 = INTEGER: ok(3)
FCMGMT-MIB::connUnitSensorStatus.' ....%.l........'.4 = INTEGER: ok(3)
FCMGMT-MIB::connUnitSensorStatus.' ....%.l........'.5 = INTEGER: ok(3)
FCMGMT-MIB::connUnitSensorStatus.' ....%.l........'.6 = INTEGER: ok(3)
FCMGMT-MIB::connUnitSensorStatus.' ....%.l........'.7 = INTEGER: ok(3)
FCMGMT-MIB::connUnitSensorStatus.' ....%.l........'.8 = INTEGER: ok(3)
FCMGMT-MIB::connUnitSensorStatus.' ....%.l........'.9 = INTEGER: ok(3)
FCMGMT-MIB::connUnitSensorStatus.' ....%.l........'.10 = INTEGER: ok(3)
FCMGMT-MIB::connUnitSensorStatus.' ....%.l........'.11 = INTEGER: ok(3)
FCMGMT-MIB::connUnitSensorStatus.' ....%.l........'.12 = INTEGER: ok(3)
FCMGMT-MIB::connUnitSensorStatus.' ....%.l........'.13 = INTEGER: ok(3)
FCMGMT-MIB::connUnitSensorStatus.' ....%.l........'.14 = INTEGER: ok(3)
FCMGMT-MIB::connUnitSensorStatus.' ....%.l........'.15 = INTEGER: ok(3)
FCMGMT-MIB::connUnitSensorStatus.' ....%.l........'.16 = INTEGER: ok(3)
FCMGMT-MIB::connUnitSensorStatus.' ....%.l........'.17 = INTEGER: ok(3)
FCMGMT-MIB::connUnitSensorStatus.' ....%.l........'.18 = INTEGER: ok(3)
FCMGMT-MIB::connUnitSensorStatus.' ....%.l........'.19 = INTEGER: ok(3)
FCMGMT-MIB::connUnitSensorStatus.' ....%.l........'.20 = INTEGER: ok(3)
FCMGMT-MIB::connUnitSensorStatus.' ....%.l........'.21 = INTEGER: ok(3)
FCMGMT-MIB::connUnitSensorStatus.' ....%.l........'.22 = INTEGER: ok(3)
FCMGMT-MIB::connUnitSensorStatus.' ....%.l........'.23 = INTEGER: ok(3)
FCMGMT-MIB::connUnitSensorStatus.' ....%.l........'.24 = INTEGER: ok(3)
FCMGMT-MIB::connUnitSensorStatus.' ....%.l........'.25 = INTEGER: ok(3)
FCMGMT-MIB::connUnitSensorStatus.' ....%.l........'.26 = INTEGER: ok(3)
FCMGMT-MIB::connUnitSensorStatus.' ....%.l........'.27 = INTEGER: ok(3)
FCMGMT-MIB::connUnitSensorStatus.' ....%.l........'.28 = INTEGER: ok(3)
FCMGMT-MIB::connUnitSensorStatus.' ....%.l........'.29 = INTEGER: ok(3)
FCMGMT-MIB::connUnitSensorStatus.' ....%.l........'.30 = INTEGER: ok(3)
FCMGMT-MIB::connUnitSensorStatus.' ....%.l........'.31 = INTEGER: ok(3)
FCMGMT-MIB::connUnitSensorStatus.' ....%.l........'.32 = INTEGER: ok(3)
FCMGMT-MIB::connUnitSensorStatus.' ....%.l........'.33 = INTEGER: ok(3)
FCMGMT-MIB::connUnitSensorStatus.' ....%.l........'.34 = INTEGER: ok(3)
FCMGMT-MIB::connUnitSensorStatus.' ....%.l........'.35 = INTEGER: ok(3)
FCMGMT-MIB::connUnitSensorStatus.' ....%.l........'.36 = INTEGER: ok(3)
FCMGMT-MIB::connUnitSensorStatus.' ....%.l........'.37 = INTEGER: ok(3)
FCMGMT-MIB::connUnitSensorStatus.' ....%.l........'.38 = INTEGER: ok(3)
FCMGMT-MIB::connUnitSensorStatus.' ....%.l........'.39 = INTEGER: ok(3)
FCMGMT-MIB::connUnitSensorStatus.' ....%.l........'.40 = INTEGER: ok(3)
FCMGMT-MIB::connUnitSensorStatus.' ....%.l........'.41 = INTEGER: ok(3)
FCMGMT-MIB::connUnitSensorStatus.' ....%.l........'.42 = INTEGER: ok(3)
FCMGMT-MIB::connUnitSensorStatus.' ....%.l........'.43 = INTEGER: ok(3)
FCMGMT-MIB::connUnitSensorStatus.' ....%.l........'.44 = INTEGER: ok(3)
FCMGMT-MIB::connUnitSensorStatus.' ....%.l........'.45 = INTEGER: ok(3)
FCMGMT-MIB::connUnitSensorStatus.' ....%.l........'.46 = INTEGER: ok(3)
FCMGMT-MIB::connUnitSensorStatus.' ....%.l........'.47 = INTEGER: ok(3)
FCMGMT-MIB::connUnitSensorStatus.' ....%.l........'.48 = INTEGER: ok(3)
FCMGMT-MIB::connUnitSensorStatus.' ....%.l........'.49 = INTEGER: ok(3)
FCMGMT-MIB::connUnitSensorStatus.' ....%.l........'.50 = INTEGER: ok(3)
FCMGMT-MIB::connUnitSensorStatus.' ....%.l........'.51 = INTEGER: ok(3)
FCMGMT-MIB::connUnitSensorStatus.' ....%.l........'.52 = INTEGER: ok(3)
FCMGMT-MIB::connUnitSensorStatus.' ....%.l........'.53 = INTEGER: ok(3)
FCMGMT-MIB::connUnitSensorStatus.' ....%.l........'.54 = INTEGER: ok(3)
FCMGMT-MIB::connUnitSensorStatus.' ....%.l........'.55 = INTEGER: ok(3)
FCMGMT-MIB::connUnitSensorStatus.' ....%.l........'.56 = INTEGER: ok(3)
FCMGMT-MIB::connUnitSensorStatus.' ....%.l........'.57 = INTEGER: ok(3)
FCMGMT-MIB::connUnitSensorStatus.' ....%.l........'.58 = INTEGER: ok(3)
FCMGMT-MIB::connUnitSensorStatus.' ....%.l........'.59 = INTEGER: ok(3)
FCMGMT-MIB::connUnitSensorStatus.' ....%.l........'.60 = INTEGER: ok(3)
FCMGMT-MIB::connUnitSensorStatus.' ....%.l........'.61 = INTEGER: ok(3)
FCMGMT-MIB::connUnitSensorStatus.' ....%.l........'.62 = INTEGER: ok(3)
FCMGMT-MIB::connUnitSensorStatus.' ....%.l........'.63 = INTEGER: ok(3)
FCMGMT-MIB::connUnitSensorStatus.' ....%.l........'.64 = INTEGER: ok(3)
    Thanks! VERY good idea to use SNMP template for monitoring.
    We investigate some time to pull datas from our msa using SNMP too, but have not good resalts. We find only traps.mib(( ( branch "enterprise" is almost empty). What else "useful" SNMP OID`s do you know?

    Output:
    Code:
    root@app19:~# snmpwalk -m ALL -cpublic -v2c 10.192.165.61 .1.3.6.1.3.94.1.8


SNMPv2-SMI::experimental.94.1.8.1.1.32.112.0.192.255.215.125.201.0.0.0.0.0.0.0.0.1 = Hex-STRING: 20 70 00 C0 FF D7 7D C9 00 00 00 00 00 00 00 00
SNMPv2-SMI::experimental.94.1.8.1.1.32.112.0.192.255.215.125.201.0.0.0.0.0.0.0.0.2 = Hex-STRING: 20 70 00 C0 FF D7 7D C9 00 00 00 00 00 00 00 00
SNMPv2-SMI::experimental.94.1.8.1.1.32.112.0.192.255.215.125.201.0.0.0.0.0.0.0.0.3 = Hex-STRING: 20 70 00 C0 FF D7 7D C9 00 00 00 00 00 00 00 00
SNMPv2-SMI::experimental.94.1.8.1.1.32.112.0.192.255.215.125.201.0.0.0.0.0.0.0.0.4 = Hex-STRING: 20 70 00 C0 FF D7 7D C9 00 00 00 00 00 00 00 00
SNMPv2-SMI::experimental.94.1.8.1.1.32.112.0.192.255.215.125.201.0.0.0.0.0.0.0.0.5 = Hex-STRING: 20 70 00 C0 FF D7 7D C9 00 00 00 00 00 00 00 00
SNMPv2-SMI::experimental.94.1.8.1.1.32.112.0.192.255.215.125.201.0.0.0.0.0.0.0.0.6 = Hex-STRING: 20 70 00 C0 FF D7 7D C9 00 00 00 00 00 00 00 00
SNMPv2-SMI::experimental.94.1.8.1.1.32.112.0.192.255.215.125.201.0.0.0.0.0.0.0.0.7 = Hex-STRING: 20 70 00 C0 FF D7 7D C9 00 00 00 00 00 00 00 00
SNMPv2-SMI::experimental.94.1.8.1.1.32.112.0.192.255.215.125.201.0.0.0.0.0.0.0.0.8 = Hex-STRING: 20 70 00 C0 FF D7 7D C9 00 00 00 00 00 00 00 00
SNMPv2-SMI::experimental.94.1.8.1.1.32.112.0.192.255.215.125.201.0.0.0.0.0.0.0.0.9 = Hex-STRING: 20 70 00 C0 FF D7 7D C9 00 00 00 00 00 00 00 00
SNMPv2-SMI::experimental.94.1.8.1.1.32.112.0.192.255.215.125.201.0.0.0.0.0.0.0.0.10 = Hex-STRING: 20 70 00 C0 FF D7 7D C9 00 00 00 00 00 00 00 00
SNMPv2-SMI::experimental.94.1.8.1.1.32.112.0.192.255.215.125.201.0.0.0.0.0.0.0.0.11 = Hex-STRING: 20 70 00 C0 FF D7 7D C9 00 00 00 00 00 00 00 00
SNMPv2-SMI::experimental.94.1.8.1.1.32.112.0.192.255.215.125.201.0.0.0.0.0.0.0.0.12 = Hex-STRING: 20 70 00 C0 FF D7 7D C9 00 00 00 00 00 00 00 00
SNMPv2-SMI::experimental.94.1.8.1.1.32.112.0.192.255.215.125.201.0.0.0.0.0.0.0.0.13 = Hex-STRING: 20 70 00 C0 FF D7 7D C9 00 00 00 00 00 00 00 00
SNMPv2-SMI::experimental.94.1.8.1.1.32.112.0.192.255.215.125.201.0.0.0.0.0.0.0.0.14 = Hex-STRING: 20 70 00 C0 FF D7 7D C9 00 00 00 00 00 00 00 00
SNMPv2-SMI::experimental.94.1.8.1.1.32.112.0.192.255.215.125.201.0.0.0.0.0.0.0.0.15 = Hex-STRING: 20 70 00 C0 FF D7 7D C9 00 00 00 00 00 00 00 00
SNMPv2-SMI::experimental.94.1.8.1.1.32.112.0.192.255.215.125.201.0.0.0.0.0.0.0.0.16 = Hex-STRING: 20 70 00 C0 FF D7 7D C9 00 00 00 00 00 00 00 00
SNMPv2-SMI::experimental.94.1.8.1.1.32.112.0.192.255.215.125.201.0.0.0.0.0.0.0.0.17 = Hex-STRING: 20 70 00 C0 FF D7 7D C9 00 00 00 00 00 00 00 00
SNMPv2-SMI::experimental.94.1.8.1.1.32.112.0.192.255.215.125.201.0.0.0.0.0.0.0.0.18 = Hex-STRING: 20 70 00 C0 FF D7 7D C9 00 00 00 00 00 00 00 00
SNMPv2-SMI::experimental.94.1.8.1.1.32.112.0.192.255.215.125.201.0.0.0.0.0.0.0.0.19 = Hex-STRING: 20 70 00 C0 FF D7 7D C9 00 00 00 00 00 00 00 00
SNMPv2-SMI::experimental.94.1.8.1.1.32.112.0.192.255.215.125.201.0.0.0.0.0.0.0.0.20 = Hex-STRING: 20 70 00 C0 FF D7 7D C9 00 00 00 00 00 00 00 00
SNMPv2-SMI::experimental.94.1.8.1.1.32.112.0.192.255.215.125.201.0.0.0.0.0.0.0.0.21 = Hex-STRING: 20 70 00 C0 FF D7 7D C9 00 00 00 00 00 00 00 00
SNMPv2-SMI::experimental.94.1.8.1.1.32.112.0.192.255.215.125.201.0.0.0.0.0.0.0.0.22 = Hex-STRING: 20 70 00 C0 FF D7 7D C9 00 00 00 00 00 00 00 00
SNMPv2-SMI::experimental.94.1.8.1.1.32.112.0.192.255.215.125.201.0.0.0.0.0.0.0.0.23 = Hex-STRING: 20 70 00 C0 FF D7 7D C9 00 00 00 00 00 00 00 00
SNMPv2-SMI::experimental.94.1.8.1.1.32.112.0.192.255.215.125.201.0.0.0.0.0.0.0.0.24 = Hex-STRING: 20 70 00 C0 FF D7 7D C9 00 00 00 00 00 00 00 00
SNMPv2-SMI::experimental.94.1.8.1.1.32.112.0.192.255.215.125.201.0.0.0.0.0.0.0.0.25 = Hex-STRING: 20 70 00 C0 FF D7 7D C9 00 00 00 00 00 00 00 00
SNMPv2-SMI::experimental.94.1.8.1.1.32.112.0.192.255.215.125.201.0.0.0.0.0.0.0.0.26 = Hex-STRING: 20 70 00 C0 FF D7 7D C9 00 00 00 00 00 00 00 00
SNMPv2-SMI::experimental.94.1.8.1.1.32.112.0.192.255.215.125.201.0.0.0.0.0.0.0.0.27 = Hex-STRING: 20 70 00 C0 FF D7 7D C9 00 00 00 00 00 00 00 00
SNMPv2-SMI::experimental.94.1.8.1.1.32.112.0.192.255.215.125.201.0.0.0.0.0.0.0.0.28 = Hex-STRING: 20 70 00 C0 FF D7 7D C9 00 00 00 00 00 00 00 00
SNMPv2-SMI::experimental.94.1.8.1.1.32.112.0.192.255.215.125.201.0.0.0.0.0.0.0.0.29 = Hex-STRING: 20 70 00 C0 FF D7 7D C9 00 00 00 00 00 00 00 00
SNMPv2-SMI::experimental.94.1.8.1.1.32.112.0.192.255.215.125.201.0.0.0.0.0.0.0.0.30 = Hex-STRING: 20 70 00 C0 FF D7 7D C9 00 00 00 00 00 00 00 00
SNMPv2-SMI::experimental.94.1.8.1.1.32.112.0.192.255.215.125.201.0.0.0.0.0.0.0.0.31 = Hex-STRING: 20 70 00 C0 FF D7 7D C9 00 00 00 00 00 00 00 00
SNMPv2-SMI::experimental.94.1.8.1.1.32.112.0.192.255.215.125.201.0.0.0.0.0.0.0.0.32 = Hex-STRING: 20 70 00 C0 FF D7 7D C9 00 00 00 00 00 00 00 00
SNMPv2-SMI::experimental.94.1.8.1.1.32.112.0.192.255.215.125.201.0.0.0.0.0.0.0.0.33 = Hex-STRING: 20 70 00 C0 FF D7 7D C9 00 00 00 00 00 00 00 00
SNMPv2-SMI::experimental.94.1.8.1.2.32.112.0.192.255.215.125.201.0.0.0.0.0.0.0.0.1 = INTEGER: 1
SNMPv2-SMI::experimental.94.1.8.1.2.32.112.0.192.255.215.125.201.0.0.0.0.0.0.0.0.2 = INTEGER: 2
SNMPv2-SMI::experimental.94.1.8.1.2.32.112.0.192.255.215.125.201.0.0.0.0.0.0.0.0.3 = INTEGER: 3
SNMPv2-SMI::experimental.94.1.8.1.2.32.112.0.192.255.215.125.201.0.0.0.0.0.0.0.0.4 = INTEGER: 4
SNMPv2-SMI::experimental.94.1.8.1.2.32.112.0.192.255.215.125.201.0.0.0.0.0.0.0.0.5 = INTEGER: 5
SNMPv2-SMI::experimental.94.1.8.1.2.32.112.0.192.255.215.125.201.0.0.0.0.0.0.0.0.6 = INTEGER: 6
SNMPv2-SMI::experimental.94.1.8.1.2.32.112.0.192.255.215.125.201.0.0.0.0.0.0.0.0.7 = INTEGER: 7
SNMPv2-SMI::experimental.94.1.8.1.2.32.112.0.192.255.215.125.201.0.0.0.0.0.0.0.0.8 = INTEGER: 8
SNMPv2-SMI::experimental.94.1.8.1.2.32.112.0.192.255.215.125.201.0.0.0.0.0.0.0.0.9 = INTEGER: 9
SNMPv2-SMI::experimental.94.1.8.1.2.32.112.0.192.255.215.125.201.0.0.0.0.0.0.0.0.10 = INTEGER: 10
SNMPv2-SMI::experimental.94.1.8.1.2.32.112.0.192.255.215.125.201.0.0.0.0.0.0.0.0.11 = INTEGER: 11
SNMPv2-SMI::experimental.94.1.8.1.2.32.112.0.192.255.215.125.201.0.0.0.0.0.0.0.0.12 = INTEGER: 12
SNMPv2-SMI::experimental.94.1.8.1.2.32.112.0.192.255.215.125.201.0.0.0.0.0.0.0.0.13 = INTEGER: 13
SNMPv2-SMI::experimental.94.1.8.1.2.32.112.0.192.255.215.125.201.0.0.0.0.0.0.0.0.14 = INTEGER: 14
SNMPv2-SMI::experimental.94.1.8.1.2.32.112.0.192.255.215.125.201.0.0.0.0.0.0.0.0.15 = INTEGER: 15
SNMPv2-SMI::experimental.94.1.8.1.2.32.112.0.192.255.215.125.201.0.0.0.0.0.0.0.0.16 = INTEGER: 16
SNMPv2-SMI::experimental.94.1.8.1.2.32.112.0.192.255.215.125.201.0.0.0.0.0.0.0.0.17 = INTEGER: 17
SNMPv2-SMI::experimental.94.1.8.1.2.32.112.0.192.255.215.125.201.0.0.0.0.0.0.0.0.18 = INTEGER: 18
SNMPv2-SMI::experimental.94.1.8.1.2.32.112.0.192.255.215.125.201.0.0.0.0.0.0.0.0.19 = INTEGER: 19
SNMPv2-SMI::experimental.94.1.8.1.2.32.112.0.192.255.215.125.201.0.0.0.0.0.0.0.0.20 = INTEGER: 20
SNMPv2-SMI::experimental.94.1.8.1.2.32.112.0.192.255.215.125.201.0.0.0.0.0.0.0.0.21 = INTEGER: 21
SNMPv2-SMI::experimental.94.1.8.1.2.32.112.0.192.255.215.125.201.0.0.0.0.0.0.0.0.22 = INTEGER: 22
SNMPv2-SMI::experimental.94.1.8.1.2.32.112.0.192.255.215.125.201.0.0.0.0.0.0.0.0.23 = INTEGER: 23
SNMPv2-SMI::experimental.94.1.8.1.2.32.112.0.192.255.215.125.201.0.0.0.0.0.0.0.0.24 = INTEGER: 24
SNMPv2-SMI::experimental.94.1.8.1.2.32.112.0.192.255.215.125.201.0.0.0.0.0.0.0.0.25 = INTEGER: 25
SNMPv2-SMI::experimental.94.1.8.1.2.32.112.0.192.255.215.125.201.0.0.0.0.0.0.0.0.26 = INTEGER: 26
SNMPv2-SMI::experimental.94.1.8.1.2.32.112.0.192.255.215.125.201.0.0.0.0.0.0.0.0.27 = INTEGER: 27
SNMPv2-SMI::experimental.94.1.8.1.2.32.112.0.192.255.215.125.201.0.0.0.0.0.0.0.0.28 = INTEGER: 28
SNMPv2-SMI::experimental.94.1.8.1.2.32.112.0.192.255.215.125.201.0.0.0.0.0.0.0.0.29 = INTEGER: 29
SNMPv2-SMI::experimental.94.1.8.1.2.32.112.0.192.255.215.125.201.0.0.0.0.0.0.0.0.30 = INTEGER: 30
SNMPv2-SMI::experimental.94.1.8.1.2.32.112.0.192.255.215.125.201.0.0.0.0.0.0.0.0.31 = INTEGER: 31
SNMPv2-SMI::experimental.94.1.8.1.2.32.112.0.192.255.215.125.201.0.0.0.0.0.0.0.0.32 = INTEGER: 32
SNMPv2-SMI::experimental.94.1.8.1.2.32.112.0.192.255.215.125.201.0.0.0.0.0.0.0.0.33 = INTEGER: 33
SNMPv2-SMI::experimental.94.1.8.1.3.32.112.0.192.255.215.125.201.0.0.0.0.0.0.0.0.1 = STRING: "CPU Temperature (Controller Module A)"
SNMPv2-SMI::experimental.94.1.8.1.3.32.112.0.192.255.215.125.201.0.0.0.0.0.0.0.0.2 = STRING: "CPU Temperature (Controller Module B)"
SNMPv2-SMI::experimental.94.1.8.1.3.32.112.0.192.255.215.125.201.0.0.0.0.0.0.0.0.3 = STRING: "FPGA Temperature (Controller Module A)"
SNMPv2-SMI::experimental.94.1.8.1.3.32.112.0.192.255.215.125.201.0.0.0.0.0.0.0.0.4 = STRING: "FPGA Temperature (Controller Module B)"
SNMPv2-SMI::experimental.94.1.8.1.3.32.112.0.192.255.215.125.201.0.0.0.0.0.0.0.0.5 = STRING: "Onboard Temperature 1 (Controller Module A)"
SNMPv2-SMI::experimental.94.1.8.1.3.32.112.0.192.255.215.125.201.0.0.0.0.0.0.0.0.6 = STRING: "Onboard Temperature 1 (Controller Module B)"
SNMPv2-SMI::experimental.94.1.8.1.3.32.112.0.192.255.215.125.201.0.0.0.0.0.0.0.0.7 = STRING: "Onboard Temperature 2 (Controller Module A)"
SNMPv2-SMI::experimental.94.1.8.1.3.32.112.0.192.255.215.125.201.0.0.0.0.0.0.0.0.8 = STRING: "Onboard Temperature 2 (Controller Module B)"
SNMPv2-SMI::experimental.94.1.8.1.3.32.112.0.192.255.215.125.201.0.0.0.0.0.0.0.0.9 = STRING: "Capacitor Temperature (Controller Module A)"
SNMPv2-SMI::experimental.94.1.8.1.3.32.112.0.192.255.215.125.201.0.0.0.0.0.0.0.0.10 = STRING: "Capacitor Temperature (Controller Module B)"
SNMPv2-SMI::experimental.94.1.8.1.3.32.112.0.192.255.215.125.201.0.0.0.0.0.0.0.0.11 = STRING: "CM Temperature, Upper (Controller Module A)"
SNMPv2-SMI::experimental.94.1.8.1.3.32.112.0.192.255.215.125.201.0.0.0.0.0.0.0.0.12 = STRING: "CM Temperature, Lower (Controller Module B)"
SNMPv2-SMI::experimental.94.1.8.1.3.32.112.0.192.255.215.125.201.0.0.0.0.0.0.0.0.13 = STRING: "Power Supply 1 Temperature"
SNMPv2-SMI::experimental.94.1.8.1.3.32.112.0.192.255.215.125.201.0.0.0.0.0.0.0.0.14 = STRING: "Power Supply 2 Temperature"
SNMPv2-SMI::experimental.94.1.8.1.3.32.112.0.192.255.215.125.201.0.0.0.0.0.0.0.0.15 = STRING: "Capacitor Pack Voltage (Controller Module A)"
SNMPv2-SMI::experimental.94.1.8.1.3.32.112.0.192.255.215.125.201.0.0.0.0.0.0.0.0.16 = STRING: "Capacitor Pack Voltage (Controller Module B)"
SNMPv2-SMI::experimental.94.1.8.1.3.32.112.0.192.255.215.125.201.0.0.0.0.0.0.0.0.17 = STRING: "Capacitor Cell 1 Voltage (Controller Module A)"
SNMPv2-SMI::experimental.94.1.8.1.3.32.112.0.192.255.215.125.201.0.0.0.0.0.0.0.0.18 = STRING: "Capacitor Cell 1 Voltage (Controller Module B)"
SNMPv2-SMI::experimental.94.1.8.1.3.32.112.0.192.255.215.125.201.0.0.0.0.0.0.0.0.19 = STRING: "Capacitor Cell 2 Voltage (Controller Module A)"
SNMPv2-SMI::experimental.94.1.8.1.3.32.112.0.192.255.215.125.201.0.0.0.0.0.0.0.0.20 = STRING: "Capacitor Cell 2 Voltage (Controller Module B)"
SNMPv2-SMI::experimental.94.1.8.1.3.32.112.0.192.255.215.125.201.0.0.0.0.0.0.0.0.21 = STRING: "Capacitor Cell 3 Voltage (Controller Module A)"
SNMPv2-SMI::experimental.94.1.8.1.3.32.112.0.192.255.215.125.201.0.0.0.0.0.0.0.0.22 = STRING: "Capacitor Cell 3 Voltage (Controller Module B)"
SNMPv2-SMI::experimental.94.1.8.1.3.32.112.0.192.255.215.125.201.0.0.0.0.0.0.0.0.23 = STRING: "Capacitor Cell 4 Voltage (Controller Module A)"
SNMPv2-SMI::experimental.94.1.8.1.3.32.112.0.192.255.215.125.201.0.0.0.0.0.0.0.0.24 = STRING: "Capacitor Cell 4 Voltage (Controller Module B)"
SNMPv2-SMI::experimental.94.1.8.1.3.32.112.0.192.255.215.125.201.0.0.0.0.0.0.0.0.25 = STRING: "Capacitor Charge (Controller Module A)"
SNMPv2-SMI::experimental.94.1.8.1.3.32.112.0.192.255.215.125.201.0.0.0.0.0.0.0.0.26 = STRING: "Capacitor Charge (Controller Module B)"
SNMPv2-SMI::experimental.94.1.8.1.3.32.112.0.192.255.215.125.201.0.0.0.0.0.0.0.0.27 = STRING: "Power Supply 1 Voltage, 12V"
SNMPv2-SMI::experimental.94.1.8.1.3.32.112.0.192.255.215.125.201.0.0.0.0.0.0.0.0.28 = STRING: "Power Supply 1 Voltage, 5V"
SNMPv2-SMI::experimental.94.1.8.1.3.32.112.0.192.255.215.125.201.0.0.0.0.0.0.0.0.29 = STRING: "Power Supply 1 Voltage, 3.3V"
SNMPv2-SMI::experimental.94.1.8.1.3.32.112.0.192.255.215.125.201.0.0.0.0.0.0.0.0.30 = STRING: "Power Supply 2 Voltage, 12V"
SNMPv2-SMI::experimental.94.1.8.1.3.32.112.0.192.255.215.125.201.0.0.0.0.0.0.0.0.31 = STRING: "Power Supply 2 Voltage, 5V"
SNMPv2-SMI::experimental.94.1.8.1.3.32.112.0.192.255.215.125.201.0.0.0.0.0.0.0.0.32 = STRING: "Power Supply 2 Voltage, 3.3V"
SNMPv2-SMI::experimental.94.1.8.1.3.32.112.0.192.255.215.125.201.0.0.0.0.0.0.0.0.33 = STRING: "Overall Unit Status"
SNMPv2-SMI::experimental.94.1.8.1.4.32.112.0.192.255.215.125.201.0.0.0.0.0.0.0.0.1 = INTEGER: 3
SNMPv2-SMI::experimental.94.1.8.1.4.32.112.0.192.255.215.125.201.0.0.0.0.0.0.0.0.2 = INTEGER: 3
SNMPv2-SMI::experimental.94.1.8.1.4.32.112.0.192.255.215.125.201.0.0.0.0.0.0.0.0.3 = INTEGER: 3
SNMPv2-SMI::experimental.94.1.8.1.4.32.112.0.192.255.215.125.201.0.0.0.0.0.0.0.0.4 = INTEGER: 3
SNMPv2-SMI::experimental.94.1.8.1.4.32.112.0.192.255.215.125.201.0.0.0.0.0.0.0.0.5 = INTEGER: 3
SNMPv2-SMI::experimental.94.1.8.1.4.32.112.0.192.255.215.125.201.0.0.0.0.0.0.0.0.6 = INTEGER: 3
SNMPv2-SMI::experimental.94.1.8.1.4.32.112.0.192.255.215.125.201.0.0.0.0.0.0.0.0.7 = INTEGER: 3
SNMPv2-SMI::experimental.94.1.8.1.4.32.112.0.192.255.215.125.201.0.0.0.0.0.0.0.0.8 = INTEGER: 3
SNMPv2-SMI::experimental.94.1.8.1.4.32.112.0.192.255.215.125.201.0.0.0.0.0.0.0.0.9 = INTEGER: 3
SNMPv2-SMI::experimental.94.1.8.1.4.32.112.0.192.255.215.125.201.0.0.0.0.0.0.0.0.10 = INTEGER: 3
SNMPv2-SMI::experimental.94.1.8.1.4.32.112.0.192.255.215.125.201.0.0.0.0.0.0.0.0.11 = INTEGER: 3
SNMPv2-SMI::experimental.94.1.8.1.4.32.112.0.192.255.215.125.201.0.0.0.0.0.0.0.0.12 = INTEGER: 3
SNMPv2-SMI::experimental.94.1.8.1.4.32.112.0.192.255.215.125.201.0.0.0.0.0.0.0.0.13 = INTEGER: 3
SNMPv2-SMI::experimental.94.1.8.1.4.32.112.0.192.255.215.125.201.0.0.0.0.0.0.0.0.14 = INTEGER: 3
SNMPv2-SMI::experimental.94.1.8.1.4.32.112.0.192.255.215.125.201.0.0.0.0.0.0.0.0.15 = INTEGER: 3
SNMPv2-SMI::experimental.94.1.8.1.4.32.112.0.192.255.215.125.201.0.0.0.0.0.0.0.0.16 = INTEGER: 3
SNMPv2-SMI::experimental.94.1.8.1.4.32.112.0.192.255.215.125.201.0.0.0.0.0.0.0.0.17 = INTEGER: 3
SNMPv2-SMI::experimental.94.1.8.1.4.32.112.0.192.255.215.125.201.0.0.0.0.0.0.0.0.18 = INTEGER: 3
SNMPv2-SMI::experimental.94.1.8.1.4.32.112.0.192.255.215.125.201.0.0.0.0.0.0.0.0.19 = INTEGER: 3
SNMPv2-SMI::experimental.94.1.8.1.4.32.112.0.192.255.215.125.201.0.0.0.0.0.0.0.0.20 = INTEGER: 3
SNMPv2-SMI::experimental.94.1.8.1.4.32.112.0.192.255.215.125.201.0.0.0.0.0.0.0.0.21 = INTEGER: 3
SNMPv2-SMI::experimental.94.1.8.1.4.32.112.0.192.255.215.125.201.0.0.0.0.0.0.0.0.22 = INTEGER: 3
SNMPv2-SMI::experimental.94.1.8.1.4.32.112.0.192.255.215.125.201.0.0.0.0.0.0.0.0.23 = INTEGER: 3
SNMPv2-SMI::experimental.94.1.8.1.4.32.112.0.192.255.215.125.201.0.0.0.0.0.0.0.0.24 = INTEGER: 3
SNMPv2-SMI::experimental.94.1.8.1.4.32.112.0.192.255.215.125.201.0.0.0.0.0.0.0.0.25 = INTEGER: 3
SNMPv2-SMI::experimental.94.1.8.1.4.32.112.0.192.255.215.125.201.0.0.0.0.0.0.0.0.26 = INTEGER: 3
SNMPv2-SMI::experimental.94.1.8.1.4.32.112.0.192.255.215.125.201.0.0.0.0.0.0.0.0.27 = INTEGER: 3
SNMPv2-SMI::experimental.94.1.8.1.4.32.112.0.192.255.215.125.201.0.0.0.0.0.0.0.0.28 = INTEGER: 3
SNMPv2-SMI::experimental.94.1.8.1.4.32.112.0.192.255.215.125.201.0.0.0.0.0.0.0.0.29 = INTEGER: 3
SNMPv2-SMI::experimental.94.1.8.1.4.32.112.0.192.255.215.125.201.0.0.0.0.0.0.0.0.30 = INTEGER: 3
SNMPv2-SMI::experimental.94.1.8.1.4.32.112.0.192.255.215.125.201.0.0.0.0.0.0.0.0.31 = INTEGER: 3
SNMPv2-SMI::experimental.94.1.8.1.4.32.112.0.192.255.215.125.201.0.0.0.0.0.0.0.0.32 = INTEGER: 3
SNMPv2-SMI::experimental.94.1.8.1.4.32.112.0.192.255.215.125.201.0.0.0.0.0.0.0.0.33 = INTEGER: 3
SNMPv2-SMI::experimental.94.1.8.1.5.32.112.0.192.255.215.125.201.0.0.0.0.0.0.0.0.1 = ""
SNMPv2-SMI::experimental.94.1.8.1.5.32.112.0.192.255.215.125.201.0.0.0.0.0.0.0.0.2 = ""
SNMPv2-SMI::experimental.94.1.8.1.5.32.112.0.192.255.215.125.201.0.0.0.0.0.0.0.0.3 = ""
SNMPv2-SMI::experimental.94.1.8.1.5.32.112.0.192.255.215.125.201.0.0.0.0.0.0.0.0.4 = ""
SNMPv2-SMI::experimental.94.1.8.1.5.32.112.0.192.255.215.125.201.0.0.0.0.0.0.0.0.5 = ""
SNMPv2-SMI::experimental.94.1.8.1.5.32.112.0.192.255.215.125.201.0.0.0.0.0.0.0.0.6 = ""
SNMPv2-SMI::experimental.94.1.8.1.5.32.112.0.192.255.215.125.201.0.0.0.0.0.0.0.0.7 = ""
SNMPv2-SMI::experimental.94.1.8.1.5.32.112.0.192.255.215.125.201.0.0.0.0.0.0.0.0.8 = ""
SNMPv2-SMI::experimental.94.1.8.1.5.32.112.0.192.255.215.125.201.0.0.0.0.0.0.0.0.9 = ""
SNMPv2-SMI::experimental.94.1.8.1.5.32.112.0.192.255.215.125.201.0.0.0.0.0.0.0.0.10 = ""
SNMPv2-SMI::experimental.94.1.8.1.5.32.112.0.192.255.215.125.201.0.0.0.0.0.0.0.0.11 = ""
SNMPv2-SMI::experimental.94.1.8.1.5.32.112.0.192.255.215.125.201.0.0.0.0.0.0.0.0.12 = ""
SNMPv2-SMI::experimental.94.1.8.1.5.32.112.0.192.255.215.125.201.0.0.0.0.0.0.0.0.13 = ""
SNMPv2-SMI::experimental.94.1.8.1.5.32.112.0.192.255.215.125.201.0.0.0.0.0.0.0.0.14 = ""
SNMPv2-SMI::experimental.94.1.8.1.5.32.112.0.192.255.215.125.201.0.0.0.0.0.0.0.0.15 = ""
SNMPv2-SMI::experimental.94.1.8.1.5.32.112.0.192.255.215.125.201.0.0.0.0.0.0.0.0.16 = ""
SNMPv2-SMI::experimental.94.1.8.1.5.32.112.0.192.255.215.125.201.0.0.0.0.0.0.0.0.17 = ""
SNMPv2-SMI::experimental.94.1.8.1.5.32.112.0.192.255.215.125.201.0.0.0.0.0.0.0.0.18 = ""
SNMPv2-SMI::experimental.94.1.8.1.5.32.112.0.192.255.215.125.201.0.0.0.0.0.0.0.0.19 = ""
SNMPv2-SMI::experimental.94.1.8.1.5.32.112.0.192.255.215.125.201.0.0.0.0.0.0.0.0.20 = ""
SNMPv2-SMI::experimental.94.1.8.1.5.32.112.0.192.255.215.125.201.0.0.0.0.0.0.0.0.21 = ""
SNMPv2-SMI::experimental.94.1.8.1.5.32.112.0.192.255.215.125.201.0.0.0.0.0.0.0.0.22 = ""
SNMPv2-SMI::experimental.94.1.8.1.5.32.112.0.192.255.215.125.201.0.0.0.0.0.0.0.0.23 = ""
SNMPv2-SMI::experimental.94.1.8.1.5.32.112.0.192.255.215.125.201.0.0.0.0.0.0.0.0.24 = ""
SNMPv2-SMI::experimental.94.1.8.1.5.32.112.0.192.255.215.125.201.0.0.0.0.0.0.0.0.25 = ""
SNMPv2-SMI::experimental.94.1.8.1.5.32.112.0.192.255.215.125.201.0.0.0.0.0.0.0.0.26 = ""
SNMPv2-SMI::experimental.94.1.8.1.5.32.112.0.192.255.215.125.201.0.0.0.0.0.0.0.0.27 = ""
SNMPv2-SMI::experimental.94.1.8.1.5.32.112.0.192.255.215.125.201.0.0.0.0.0.0.0.0.28 = ""
SNMPv2-SMI::experimental.94.1.8.1.5.32.112.0.192.255.215.125.201.0.0.0.0.0.0.0.0.29 = ""
SNMPv2-SMI::experimental.94.1.8.1.5.32.112.0.192.255.215.125.201.0.0.0.0.0.0.0.0.30 = ""
SNMPv2-SMI::experimental.94.1.8.1.5.32.112.0.192.255.215.125.201.0.0.0.0.0.0.0.0.31 = ""
SNMPv2-SMI::experimental.94.1.8.1.5.32.112.0.192.255.215.125.201.0.0.0.0.0.0.0.0.32 = ""
SNMPv2-SMI::experimental.94.1.8.1.5.32.112.0.192.255.215.125.201.0.0.0.0.0.0.0.0.33 = ""
SNMPv2-SMI::experimental.94.1.8.1.6.32.112.0.192.255.215.125.201.0.0.0.0.0.0.0.0.1 = STRING: "CPU Temperature (Controller Module A): 49C 120F"
SNMPv2-SMI::experimental.94.1.8.1.6.32.112.0.192.255.215.125.201.0.0.0.0.0.0.0.0.2 = STRING: "CPU Temperature (Controller Module B): 50C 122F"
SNMPv2-SMI::experimental.94.1.8.1.6.32.112.0.192.255.215.125.201.0.0.0.0.0.0.0.0.3 = STRING: "FPGA Temperature (Controller Module A): 51C 124F"
SNMPv2-SMI::experimental.94.1.8.1.6.32.112.0.192.255.215.125.201.0.0.0.0.0.0.0.0.4 = STRING: "FPGA Temperature (Controller Module B): 45C 113F"
SNMPv2-SMI::experimental.94.1.8.1.6.32.112.0.192.255.215.125.201.0.0.0.0.0.0.0.0.5 = STRING: "Onboard Temperature 1 (Controller Module A): 31C 88F"
SNMPv2-SMI::experimental.94.1.8.1.6.32.112.0.192.255.215.125.201.0.0.0.0.0.0.0.0.6 = STRING: "Onboard Temperature 1 (Controller Module B): 27C 81F"
SNMPv2-SMI::experimental.94.1.8.1.6.32.112.0.192.255.215.125.201.0.0.0.0.0.0.0.0.7 = STRING: "Onboard Temperature 2 (Controller Module A): 39C 102F"
SNMPv2-SMI::experimental.94.1.8.1.6.32.112.0.192.255.215.125.201.0.0.0.0.0.0.0.0.8 = STRING: "Onboard Temperature 2 (Controller Module B): 34C 93F"
SNMPv2-SMI::experimental.94.1.8.1.6.32.112.0.192.255.215.125.201.0.0.0.0.0.0.0.0.9 = STRING: "Capacitor Temperature (Controller Module A): 23C 73F"
SNMPv2-SMI::experimental.94.1.8.1.6.32.112.0.192.255.215.125.201.0.0.0.0.0.0.0.0.10 = STRING: "Capacitor Temperature (Controller Module B): 22C 72F"
SNMPv2-SMI::experimental.94.1.8.1.6.32.112.0.192.255.215.125.201.0.0.0.0.0.0.0.0.11 = STRING: "CM Temperature, Upper (Controller Module A): 30C 86F"
SNMPv2-SMI::experimental.94.1.8.1.6.32.112.0.192.255.215.125.201.0.0.0.0.0.0.0.0.12 = STRING: "CM Temperature, Lower (Controller Module B): 27C 81F"
SNMPv2-SMI::experimental.94.1.8.1.6.32.112.0.192.255.215.125.201.0.0.0.0.0.0.0.0.13 = STRING: "Power Supply 1 Temperature: 24C 75F"
SNMPv2-SMI::experimental.94.1.8.1.6.32.112.0.192.255.215.125.201.0.0.0.0.0.0.0.0.14 = STRING: "Power Supply 2 Temperature: 25C 77F"
SNMPv2-SMI::experimental.94.1.8.1.6.32.112.0.192.255.215.125.201.0.0.0.0.0.0.0.0.15 = STRING: "Capacitor Pack Voltage (Controller Module A):  8.20V"
SNMPv2-SMI::experimental.94.1.8.1.6.32.112.0.192.255.215.125.201.0.0.0.0.0.0.0.0.16 = STRING: "Capacitor Pack Voltage (Controller Module B):  8.19V"
SNMPv2-SMI::experimental.94.1.8.1.6.32.112.0.192.255.215.125.201.0.0.0.0.0.0.0.0.17 = STRING: "Capacitor Cell 1 Voltage (Controller Module A):  2.03V"
SNMPv2-SMI::experimental.94.1.8.1.6.32.112.0.192.255.215.125.201.0.0.0.0.0.0.0.0.18 = STRING: "Capacitor Cell 1 Voltage (Controller Module B):  2.03V"
SNMPv2-SMI::experimental.94.1.8.1.6.32.112.0.192.255.215.125.201.0.0.0.0.0.0.0.0.19 = STRING: "Capacitor Cell 2 Voltage (Controller Module A):  2.06V"
SNMPv2-SMI::experimental.94.1.8.1.6.32.112.0.192.255.215.125.201.0.0.0.0.0.0.0.0.20 = STRING: "Capacitor Cell 2 Voltage (Controller Module B):  2.03V"
SNMPv2-SMI::experimental.94.1.8.1.6.32.112.0.192.255.215.125.201.0.0.0.0.0.0.0.0.21 = STRING: "Capacitor Cell 3 Voltage (Controller Module A):  2.03V"
SNMPv2-SMI::experimental.94.1.8.1.6.32.112.0.192.255.215.125.201.0.0.0.0.0.0.0.0.22 = STRING: "Capacitor Cell 3 Voltage (Controller Module B):  2.04V"
SNMPv2-SMI::experimental.94.1.8.1.6.32.112.0.192.255.215.125.201.0.0.0.0.0.0.0.0.23 = STRING: "Capacitor Cell 4 Voltage (Controller Module A):  2.08V"
SNMPv2-SMI::experimental.94.1.8.1.6.32.112.0.192.255.215.125.201.0.0.0.0.0.0.0.0.24 = STRING: "Capacitor Cell 4 Voltage (Controller Module B):  2.08V"
SNMPv2-SMI::experimental.94.1.8.1.6.32.112.0.192.255.215.125.201.0.0.0.0.0.0.0.0.25 = STRING: "Capacitor Charge (Controller Module A): 96%"
SNMPv2-SMI::experimental.94.1.8.1.6.32.112.0.192.255.215.125.201.0.0.0.0.0.0.0.0.26 = STRING: "Capacitor Charge (Controller Module B): 96%"
SNMPv2-SMI::experimental.94.1.8.1.6.32.112.0.192.255.215.125.201.0.0.0.0.0.0.0.0.27 = STRING: "Power Supply 1 Voltage, 12V: 12.04V"
SNMPv2-SMI::experimental.94.1.8.1.6.32.112.0.192.255.215.125.201.0.0.0.0.0.0.0.0.28 = STRING: "Power Supply 1 Voltage, 5V:  5.15V"
SNMPv2-SMI::experimental.94.1.8.1.6.32.112.0.192.255.215.125.201.0.0.0.0.0.0.0.0.29 = STRING: "Power Supply 1 Voltage, 3.3V:  3.50V"
SNMPv2-SMI::experimental.94.1.8.1.6.32.112.0.192.255.215.125.201.0.0.0.0.0.0.0.0.30 = STRING: "Power Supply 2 Voltage, 12V: 11.95V"
SNMPv2-SMI::experimental.94.1.8.1.6.32.112.0.192.255.215.125.201.0.0.0.0.0.0.0.0.31 = STRING: "Power Supply 2 Voltage, 5V:  5.13V"
SNMPv2-SMI::experimental.94.1.8.1.6.32.112.0.192.255.215.125.201.0.0.0.0.0.0.0.0.32 = STRING: "Power Supply 2 Voltage, 3.3V:  3.50V"
SNMPv2-SMI::experimental.94.1.8.1.6.32.112.0.192.255.215.125.201.0.0.0.0.0.0.0.0.33 = STRING: "Overall status value:  OK"
SNMPv2-SMI::experimental.94.1.8.1.7.32.112.0.192.255.215.125.201.0.0.0.0.0.0.0.0.1 = INTEGER: 8
SNMPv2-SMI::experimental.94.1.8.1.7.32.112.0.192.255.215.125.201.0.0.0.0.0.0.0.0.2 = INTEGER: 8
SNMPv2-SMI::experimental.94.1.8.1.7.32.112.0.192.255.215.125.201.0.0.0.0.0.0.0.0.3 = INTEGER: 8
SNMPv2-SMI::experimental.94.1.8.1.7.32.112.0.192.255.215.125.201.0.0.0.0.0.0.0.0.4 = INTEGER: 8
SNMPv2-SMI::experimental.94.1.8.1.7.32.112.0.192.255.215.125.201.0.0.0.0.0.0.0.0.5 = INTEGER: 8
SNMPv2-SMI::experimental.94.1.8.1.7.32.112.0.192.255.215.125.201.0.0.0.0.0.0.0.0.6 = INTEGER: 8
SNMPv2-SMI::experimental.94.1.8.1.7.32.112.0.192.255.215.125.201.0.0.0.0.0.0.0.0.7 = INTEGER: 8
SNMPv2-SMI::experimental.94.1.8.1.7.32.112.0.192.255.215.125.201.0.0.0.0.0.0.0.0.8 = INTEGER: 8
SNMPv2-SMI::experimental.94.1.8.1.7.32.112.0.192.255.215.125.201.0.0.0.0.0.0.0.0.9 = INTEGER: 8
SNMPv2-SMI::experimental.94.1.8.1.7.32.112.0.192.255.215.125.201.0.0.0.0.0.0.0.0.10 = INTEGER: 8
SNMPv2-SMI::experimental.94.1.8.1.7.32.112.0.192.255.215.125.201.0.0.0.0.0.0.0.0.11 = INTEGER: 7
SNMPv2-SMI::experimental.94.1.8.1.7.32.112.0.192.255.215.125.201.0.0.0.0.0.0.0.0.12 = INTEGER: 7
SNMPv2-SMI::experimental.94.1.8.1.7.32.112.0.192.255.215.125.201.0.0.0.0.0.0.0.0.13 = INTEGER: 7
SNMPv2-SMI::experimental.94.1.8.1.7.32.112.0.192.255.215.125.201.0.0.0.0.0.0.0.0.14 = INTEGER: 7
SNMPv2-SMI::experimental.94.1.8.1.7.32.112.0.192.255.215.125.201.0.0.0.0.0.0.0.0.15 = INTEGER: 8
SNMPv2-SMI::experimental.94.1.8.1.7.32.112.0.192.255.215.125.201.0.0.0.0.0.0.0.0.16 = INTEGER: 8
SNMPv2-SMI::experimental.94.1.8.1.7.32.112.0.192.255.215.125.201.0.0.0.0.0.0.0.0.17 = INTEGER: 8
SNMPv2-SMI::experimental.94.1.8.1.7.32.112.0.192.255.215.125.201.0.0.0.0.0.0.0.0.18 = INTEGER: 8
SNMPv2-SMI::experimental.94.1.8.1.7.32.112.0.192.255.215.125.201.0.0.0.0.0.0.0.0.19 = INTEGER: 8
SNMPv2-SMI::experimental.94.1.8.1.7.32.112.0.192.255.215.125.201.0.0.0.0.0.0.0.0.20 = INTEGER: 8
SNMPv2-SMI::experimental.94.1.8.1.7.32.112.0.192.255.215.125.201.0.0.0.0.0.0.0.0.21 = INTEGER: 8
SNMPv2-SMI::experimental.94.1.8.1.7.32.112.0.192.255.215.125.201.0.0.0.0.0.0.0.0.22 = INTEGER: 8
SNMPv2-SMI::experimental.94.1.8.1.7.32.112.0.192.255.215.125.201.0.0.0.0.0.0.0.0.23 = INTEGER: 8
SNMPv2-SMI::experimental.94.1.8.1.7.32.112.0.192.255.215.125.201.0.0.0.0.0.0.0.0.24 = INTEGER: 8
SNMPv2-SMI::experimental.94.1.8.1.7.32.112.0.192.255.215.125.201.0.0.0.0.0.0.0.0.25 = INTEGER: 8
SNMPv2-SMI::experimental.94.1.8.1.7.32.112.0.192.255.215.125.201.0.0.0.0.0.0.0.0.26 = INTEGER: 8
SNMPv2-SMI::experimental.94.1.8.1.7.32.112.0.192.255.215.125.201.0.0.0.0.0.0.0.0.27 = INTEGER: 5
SNMPv2-SMI::experimental.94.1.8.1.7.32.112.0.192.255.215.125.201.0.0.0.0.0.0.0.0.28 = INTEGER: 5
SNMPv2-SMI::experimental.94.1.8.1.7.32.112.0.192.255.215.125.201.0.0.0.0.0.0.0.0.29 = INTEGER: 5
SNMPv2-SMI::experimental.94.1.8.1.7.32.112.0.192.255.215.125.201.0.0.0.0.0.0.0.0.30 = INTEGER: 5
SNMPv2-SMI::experimental.94.1.8.1.7.32.112.0.192.255.215.125.201.0.0.0.0.0.0.0.0.31 = INTEGER: 5
SNMPv2-SMI::experimental.94.1.8.1.7.32.112.0.192.255.215.125.201.0.0.0.0.0.0.0.0.32 = INTEGER: 5
SNMPv2-SMI::experimental.94.1.8.1.7.32.112.0.192.255.215.125.201.0.0.0.0.0.0.0.0.33 = INTEGER: 7
SNMPv2-SMI::experimental.94.1.8.1.8.32.112.0.192.255.215.125.201.0.0.0.0.0.0.0.0.1 = INTEGER: 3
SNMPv2-SMI::experimental.94.1.8.1.8.32.112.0.192.255.215.125.201.0.0.0.0.0.0.0.0.2 = INTEGER: 3
SNMPv2-SMI::experimental.94.1.8.1.8.32.112.0.192.255.215.125.201.0.0.0.0.0.0.0.0.3 = INTEGER: 3
SNMPv2-SMI::experimental.94.1.8.1.8.32.112.0.192.255.215.125.201.0.0.0.0.0.0.0.0.4 = INTEGER: 3
SNMPv2-SMI::experimental.94.1.8.1.8.32.112.0.192.255.215.125.201.0.0.0.0.0.0.0.0.5 = INTEGER: 3
SNMPv2-SMI::experimental.94.1.8.1.8.32.112.0.192.255.215.125.201.0.0.0.0.0.0.0.0.6 = INTEGER: 3
SNMPv2-SMI::experimental.94.1.8.1.8.32.112.0.192.255.215.125.201.0.0.0.0.0.0.0.0.7 = INTEGER: 3
SNMPv2-SMI::experimental.94.1.8.1.8.32.112.0.192.255.215.125.201.0.0.0.0.0.0.0.0.8 = INTEGER: 3
SNMPv2-SMI::experimental.94.1.8.1.8.32.112.0.192.255.215.125.201.0.0.0.0.0.0.0.0.9 = INTEGER: 3
SNMPv2-SMI::experimental.94.1.8.1.8.32.112.0.192.255.215.125.201.0.0.0.0.0.0.0.0.10 = INTEGER: 3
SNMPv2-SMI::experimental.94.1.8.1.8.32.112.0.192.255.215.125.201.0.0.0.0.0.0.0.0.11 = INTEGER: 3
SNMPv2-SMI::experimental.94.1.8.1.8.32.112.0.192.255.215.125.201.0.0.0.0.0.0.0.0.12 = INTEGER: 3
SNMPv2-SMI::experimental.94.1.8.1.8.32.112.0.192.255.215.125.201.0.0.0.0.0.0.0.0.13 = INTEGER: 3
SNMPv2-SMI::experimental.94.1.8.1.8.32.112.0.192.255.215.125.201.0.0.0.0.0.0.0.0.14 = INTEGER: 3
SNMPv2-SMI::experimental.94.1.8.1.8.32.112.0.192.255.215.125.201.0.0.0.0.0.0.0.0.15 = INTEGER: 9
SNMPv2-SMI::experimental.94.1.8.1.8.32.112.0.192.255.215.125.201.0.0.0.0.0.0.0.0.16 = INTEGER: 9
SNMPv2-SMI::experimental.94.1.8.1.8.32.112.0.192.255.215.125.201.0.0.0.0.0.0.0.0.17 = INTEGER: 9
SNMPv2-SMI::experimental.94.1.8.1.8.32.112.0.192.255.215.125.201.0.0.0.0.0.0.0.0.18 = INTEGER: 9
SNMPv2-SMI::experimental.94.1.8.1.8.32.112.0.192.255.215.125.201.0.0.0.0.0.0.0.0.19 = INTEGER: 9
SNMPv2-SMI::experimental.94.1.8.1.8.32.112.0.192.255.215.125.201.0.0.0.0.0.0.0.0.20 = INTEGER: 9
SNMPv2-SMI::experimental.94.1.8.1.8.32.112.0.192.255.215.125.201.0.0.0.0.0.0.0.0.21 = INTEGER: 9
SNMPv2-SMI::experimental.94.1.8.1.8.32.112.0.192.255.215.125.201.0.0.0.0.0.0.0.0.22 = INTEGER: 9
SNMPv2-SMI::experimental.94.1.8.1.8.32.112.0.192.255.215.125.201.0.0.0.0.0.0.0.0.23 = INTEGER: 9
SNMPv2-SMI::experimental.94.1.8.1.8.32.112.0.192.255.215.125.201.0.0.0.0.0.0.0.0.24 = INTEGER: 9
SNMPv2-SMI::experimental.94.1.8.1.8.32.112.0.192.255.215.125.201.0.0.0.0.0.0.0.0.25 = INTEGER: 6
SNMPv2-SMI::experimental.94.1.8.1.8.32.112.0.192.255.215.125.201.0.0.0.0.0.0.0.0.26 = INTEGER: 6
SNMPv2-SMI::experimental.94.1.8.1.8.32.112.0.192.255.215.125.201.0.0.0.0.0.0.0.0.27 = INTEGER: 9
SNMPv2-SMI::experimental.94.1.8.1.8.32.112.0.192.255.215.125.201.0.0.0.0.0.0.0.0.28 = INTEGER: 9
SNMPv2-SMI::experimental.94.1.8.1.8.32.112.0.192.255.215.125.201.0.0.0.0.0.0.0.0.29 = INTEGER: 9
SNMPv2-SMI::experimental.94.1.8.1.8.32.112.0.192.255.215.125.201.0.0.0.0.0.0.0.0.30 = INTEGER: 9
SNMPv2-SMI::experimental.94.1.8.1.8.32.112.0.192.255.215.125.201.0.0.0.0.0.0.0.0.31 = INTEGER: 9
SNMPv2-SMI::experimental.94.1.8.1.8.32.112.0.192.255.215.125.201.0.0.0.0.0.0.0.0.32 = INTEGER: 9
SNMPv2-SMI::experimental.94.1.8.1.8.32.112.0.192.255.215.125.201.0.0.0.0.0.0.0.0.33 = INTEGER: 2
    Last edited by anG; 29-06-2016, 12:49.

      Comment

      • michael.weber
        Senior Member
        • Nov 2015
        • 121
        #47
        That are the only "usefull" oids that i know for MSA at the Moment. The oids are described in the FCMGMT-MIB Mib.

          Comment

          • remmal
            Junior Member
            • Jun 2016
            • 3
            #48
            I have a problem with my zabbix 3.0 (CentOS 7). "Value should be a JSON object" what is the reason?

            json answer:

            Code:
            {
   "data" : [
      {
         "{#KEY}" : "A",
         "{#CLASS}" : "Controller"
      },
      {
         "{#KEY}" : "B",
         "{#CLASS}" : "Controller"
      }
   ]
}
            Last edited by remmal; 22-07-2016, 13:27.

              Comment

              • michael.weber
                Senior Member
                • Nov 2015
                • 121
                #49
                the Manual execution of the script produces the json Output? can you check the Output with the zabbix Client

                Code:
                /usr/local/sbin/zabbix_get -s127.0.01 -p10050 -k<KEY>

                  Comment

                  • remmal
                    Junior Member
                    • Jun 2016
                    • 3
                    #50
                    Originally posted by michael.weber
                    the Manual execution of the script produces the json Output? can you check the Output with the zabbix Client

                    Code:
                    /usr/local/sbin/zabbix_get -s127.0.01 -p10050 -k<KEY>
                    here is the output of this command:

                    Code:
                    {
   "data" : []
}

                      Comment

                      • michael.weber
                        Senior Member
                        • Nov 2015
                        • 121
                        #51
                        Timeout while executing a shell script.
                        this can be fixed by rasising the max execution time on the Agent!

                        Please check your configs:
                        Code:
                        ### Option: Timeout
#       Specifies how long we wait for agent, SNMP device or external check (in seconds).
#
# Mandatory: no
# Range: 1-30
# Default: 3
Timeout=10
                        i recommend 25 seks.

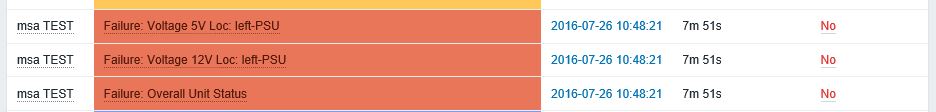

                        Other idea i am working on:
                        SNMP template.
                        It is not possible to Monitor specific HDDs or Temperatur. But u can Monitor Hardware failure. please find attached the template.
                        I am still working on it, but it should work.
                        Attached Files

                          Comment

                          • remmal
                            Junior Member
                            • Jun 2016
                            • 3
                            #52
                            Originally posted by michael.weber
                            this can be fixed by rasising the max execution time on the Agent!

                            Please check your configs:
                            Code:
                            ### Option: Timeout
#       Specifies how long we wait for agent, SNMP device or external check (in seconds).
#
# Mandatory: no
# Range: 1-30
# Default: 3
Timeout=10
                            i recommend 25 seks.


                            Other idea i am working on:
                            SNMP template.
                            It is not possible to Monitor specific HDDs or Temperatur. But u can Monitor Hardware failure. please find attached the template.
                            I am still working on it, but it should work.
                            That's not the problem. Zabbix is already Timeout=30 seconds

                            Code:
                            ### Option: Timeout
#	Spend no more than Timeout seconds on processing
#
# Mandatory: no
# Range: 1-30
# Default:
# Timeout=3

Timeout=30

                              Comment

                              • michael.weber
                                Senior Member
                                • Nov 2015
                                • 121
                                #53
                                kann you try to delete the host and readd it.. at the Moment i dont have any other idea.

                                  Comment

                                  • AlexDiamantopulo
                                    Junior Member
                                    • Mar 2016
                                    • 6
                                    #54
                                    Ubuntu 14.04

                                    Guys, I have two questions:
                                    - I can't find speedyCGI package for Ubuntu 14.04, can someone help me with this?

                                    - Is there a reason why you prefer script over SNMP?

                                    Thanks,
                                    Alex.

                                      Comment

                                      • alex1602
                                        Junior Member
                                        • Jun 2014
                                        • 4
                                        #55
                                        Well the script worked quite well but the msa cannot handle the load on the API.

                                        for speedy on ubuntu 14.04:

                                        apt-get install libperl-dev
                                        cpan install CGI::SpeedyCGI

                                        This compile run will fail you can fix it following this guy : http://www.fseitz.de/blog/index.php?...mpilieren.html

                                        after that you will have to get into the build folder that contains your change to the source (eg: cd /root/.cpan/build/CGI-SpeedyCGI-2.22-dbFkZ9/) and run:

                                        perl Makefile.PL
                                        make
                                        make install


                                        after that it will be installed under: /usr/local/bin/speedy

                                        I will wait with patience for your snmp solution

                                          Comment

                                          • michael.weber
                                            Senior Member
                                            • Nov 2015
                                            • 121
                                            #56
                                            I am sorry but there is no way (at the Moment) to Monitor the MSA 2040 with SNMP.
                                            I got a System with a broken HDD but i am not able to find any OID/MIB that tells me that any Hardware is broken. I am sorry because i wanted to use SNMP instead of external checks, too.

                                              Comment

                                              • retor
                                                Junior Member
                                                • Nov 2013
                                                • 8
                                                #57
                                                This will help you to make an SNMP template?

                                                corrected link
                                                1. https://h20566.www2.hpe.com/hpsc/swd...19a7e5409&mode
                                                Attached Files
                                                Last edited by retor; 03-03-2017, 12:45. Reason: corrected link

                                                  Comment

                                                  • michael.weber
                                                    Senior Member
                                                    • Nov 2015
                                                    • 121
                                                    #58
                                                    at the Moment we are not able to query the MSA with SNMP for single drives and their Status.
                                                    MIB: CPQHOST-MIB contains
                                                    OID: .1.3.6.1.4.1.232.11.2.5.1
                                                    NAME: cpqHoIfPhysMapTable
                                                    Description: A table of interface to physical hardware mappings.

                                                    But this OID is deprecated and "no-accessible".

                                                    i cant find any other "Hardware Status" related oid.
                                                    I already had a MSA 2040 with a failed harddrive. even a complete SNMPWALK over the MSA did not provide any useful Information about the failed drive.

                                                    So atm we are "stuck" at HP, to provide some OIDs

                                                      Comment

                                                      • retor
                                                        Junior Member
                                                        • Nov 2013
                                                        • 8
                                                        #59
                                                        If no disks have a template ready?
                                                        For example enough to monitor the status vdisk and health vdisk

                                                        I hope to help.
                                                        Progress Customer Community
                                                        https://community.whatsupgold.com/library/mib_repository/hp_mibs#


                                                        I have the script that is posted above, is also a problem with poll
                                                        although timeout increased to 30 seconds.
                                                        Last edited by retor; 03-03-2017, 14:29.

                                                          Comment

                                                          • mitsubishi
                                                            Junior Member
                                                            • Sep 2017
                                                            • 1
                                                            #60
                                                            How do I change a script if I do not use speedycgi? I have a system of debian jessie

                                                              Comment

                                                              Previous 1 2 3 4 5 template Next
                                                              Working...
