ICMP monitoring with map events

[carlos_souza]

Hello to all.

I just installed zabbix preload iso, and still not know all the features of zabbix. I'm trying to create a map of my network monitoring based solely on ICMP. I want that when a host is not responding to ping, it appears highlighted in the network map. Does anyone know any way to do this?

Grateful.

[aib]

Did you have a chance to read the documentation?
Configuring a network map

It's pretty simple after you do some experiments.
Just don't forget to SAVE map before you close the browser's window.

[carlos_souza]

I already read the map manual. Let me explain exactly what is happening.
I have included a device with icmp monitoring. In the menu Configuration->Hosts, my device 192.168.168.X is down (no response for icmp requests). So, I added this device in the map, and the map show me that the device is ok. No matter what i do, the device is always ok on the map, everytime.
Can you have any idea what is happening?
Sorry for my poor english, I hope you understand what I intended to say.

Grateful.

[steveboyson]

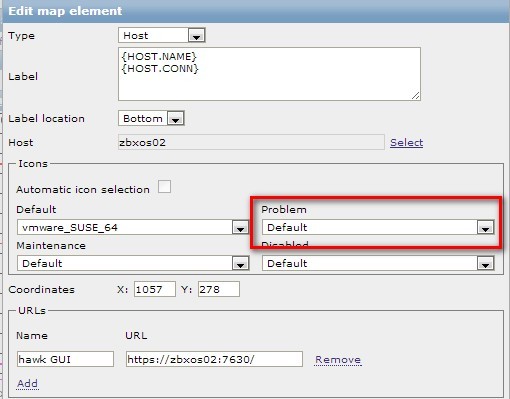

Just make sure the icon settings for your host are set correctly.

[aib]

I already read the map manual. Let me explain exactly what is happening.
I have included a device with icmp monitoring. In the menu Configuration->Hosts, my device 192.168.168.X is down (no response for icmp requests). So, I added this device in the map, and the map show me that the device is ok. No matter what i do, the device is always ok on the map, everytime.
Can you have any idea what is happening?
Sorry for my poor english, I hope you understand what I intended to say.

Grateful.

When you added device to map - did you change the Type from IMAGE to HOST? Did you fill the field HOST with correct name of device?

PS I did the same mistakes. I added some IMAGEs on map and long wondered why nothing happens with my devices on map? I predict that your next question will be about LINKS between devices and Labels for Links.

PPS sorry for my English, I hope I explained what I meant.

[carlos_souza]

Thanks for the replies, even I could not solve my problem. I'll show some pictures, maybe this will help solve my problem.

I added my device with ICMP monitoring. Note that my device is down (note the red Z in the "Monitoring" column) (picture 1).

Added this host on my map. In case of problem, the icon changes to the cloud. (shown in picture 2)

However, the Monitoring menu-> Maps-> Map My device is still ok. (picture 3)


Anyone have any idea what might be happening?

Grateful.

[steveboyson]

The red Z means only that the zabbix agent can not be reached.
If you define just an icmpping item: that works without an active or running zabbix agent. So if this is your only item, the host is up and OK.

Nothing wrong here.

[carlos_souza]

Thanx for the answers!!!
I found the problem (but still haven't found the solution...)

The problem is the zabbix user can't have permission to execute fping application. So, I executed the following commands as root user:

chown root:zabbix /usr/sbin/fping
chmod 4710 /usr/sbin/fping

But the user zabbix still have not permission to execute fping, but the root user can.

Sorry for the idiots questions, but I'm new in Linux...

Grateful!

[steveboyson]

Permissions should be:

zabbix@zabbix:~> ls -l /usr/sbin/fping*
-rws--x--- 1 root zabbix 31400 Jan 31 2013 /usr/sbin/fping
-rws--x--- 1 root zabbix 31408 Jan 31 2013 /usr/sbin/fping6

Is the host alive (e.g. is it reachable via fping/ping) or is it dead?

[carlos_souza]

The permissions are like you showed to me... but when I run the command /usr/sbin/fping 127.0.0.1 like zabbix user, it retun to me "permission denied"...

[steveboyson]

zabbix:~ # su - zabbix --shell=/bin/bash
zabbix@zabbix:~> /usr/sbin/fping 127.0.0.1
127.0.0.1 is alive
zabbix@zabbix:~> ls -l /usr/sbin/fping*
-rws--x--- 1 root zabbix 31400 Jan 31 2013 /usr/sbin/fping
-rws--x--- 1 root zabbix 31408 Jan 31 2013 /usr/sbin/fping6
zabbix@zabbix:~>


Has to work, definitely. Do you have selinux enabled on your system?

[carlos_souza]

zabbix:~ # su - zabbix --shell=/bin/bash
zabbix@zabbix:~> /usr/sbin/fping 127.0.0.1
127.0.0.1 is alive
zabbix@zabbix:~> ls -l /usr/sbin/fping*
-rws--x--- 1 root zabbix 31400 Jan 31 2013 /usr/sbin/fping
-rws--x--- 1 root zabbix 31408 Jan 31 2013 /usr/sbin/fping6
zabbix@zabbix:~>


Has to work, definitely. Do you have selinux enabled on your system?

Sorry, but i still not work. The permission is:

-rws--x--- 1 root zabbix 31400 Jan 31 2013 /usr/sbin/fping
-rws--x--- 1 root zabbix 31408 Jan 31 2013 /usr/sbin/fping6

However, i don't know if SElinux is enabled... how to disable it?

[aib]

However, i don't know if SElinux is enabled... how to disable it?

How do I turn off SELINUX in Redhat or CentOS?

[carlos_souza]

SElinux aparently is not running...
I've installed Zabbix with a preload ISO and with a .vmdk (I have two installations). Both aren't working the ICMP monitoring...

[aib]

Could you tell a little bit more about ICMP pings?

Could you change DebugLevel=4 and give some information from zabbix_server.log file where we can read about errors with ICMP/fping correlated?
