VMware CPU Usage in percentage

[Luis Pereira]

Hello, there!

I'm using VMware template to monitoring a VMware host.

The CPU usage item returns data in Hz.

Is there a way to monitoring CPU usage by percentage, instead Hz?

Thank you in advanced!

[only_one_me]

You can divide it by CPU freq (vmware.hv.hw.cpu.freq) multiplied by threads (vmware.hv.hw.cpu.threads).

[only_one_me]

Nah, just use vmware.hv.perfcounter[{$URL},{HOST.HOST},"cpu/usage[average]"] or vmware.hv.perfcounter[{$URL},{HOST.HOST},"cpu/utilization[average]"]

[Luis Pereira]

Hello!

Thank you.

I have had this idea.

It's working fine!

[Andrey123987456]

Good day everyone. Please tell me how to set one parameter in zabbix. There is a network node, you need to select the parameter when the node was last on the network and time was written. Who can tell which way is best done.

[ybuddhika]

Hi,

Can anyone provide a way to monitor VMware memory usage in percentage?

[yasith]

Hello everyone,

To get VMware CPU usage as a percentage I created a new key on my template (Template VM VMware Hypervisor).

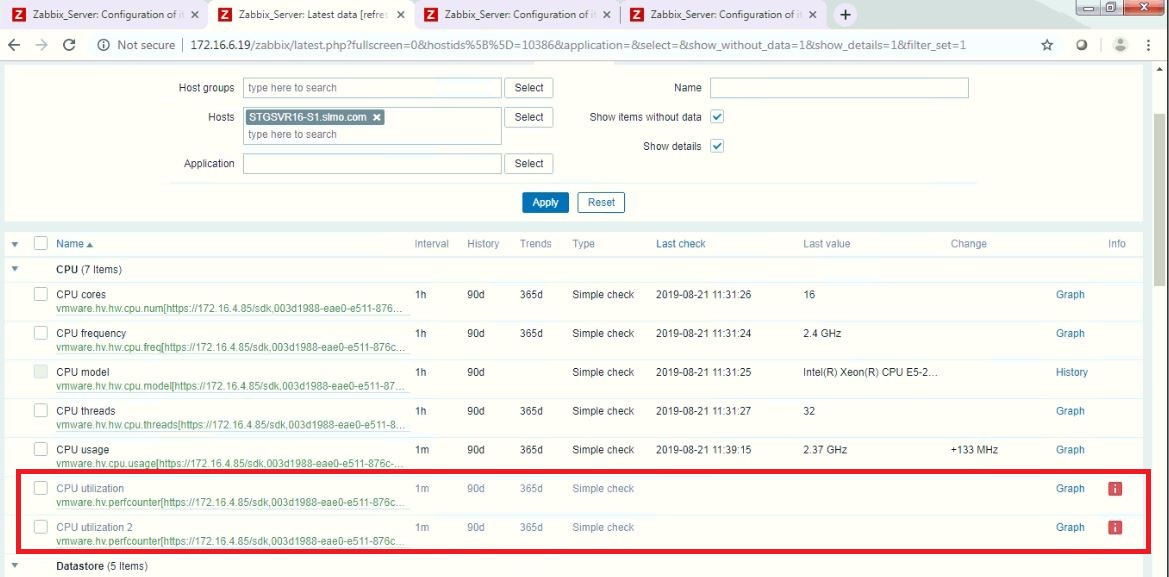

But after 1 min interval, I got an error with that "performance counter is not available"

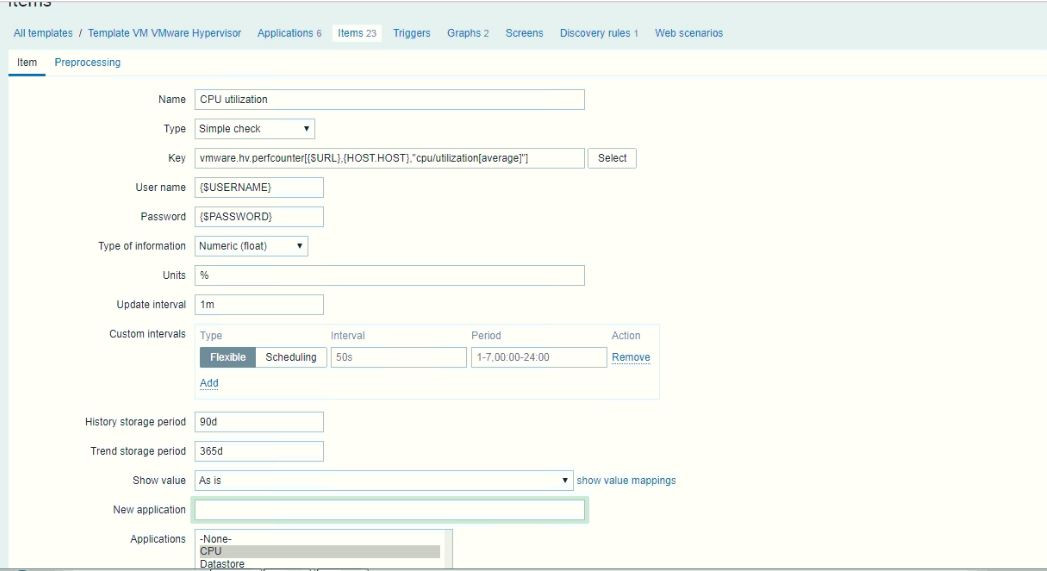

In the below, I attached the images related to how I create a new item and what is the error I got.

Please give me feedback to solve this.

Thank you in advance!

[acatic1]

Hello!

Thank you.

I have had this idea.

It's working fine!

Could you share a screenshot of how you configured that? Thank you!

[Jipso11]

Hi,

Can anyone provide a way to monitor VMware memory usage in percentage?

last("vmware.hv.memory.used[{$URL},{$UUID}]")/last("vmware.hv.hw.memory[{$URL},{$UUID}]")*100

[zaheerabbas1988]

Nah, just use vmware.hv.perfcounter[{$URL},{HOST.HOST},"cpu/usage[average]"] or vmware.hv.perfcounter[{$URL},{HOST.HOST},"cpu/utilization[average]"]

Need help, getting the value greater than 100. I tried to change formula order but nothing seems to be working.

[vingertop]

Need help, getting the value greater than 100. I tried to change formula order but nothing seems to be working.

I put in a preprocessing step on that item :

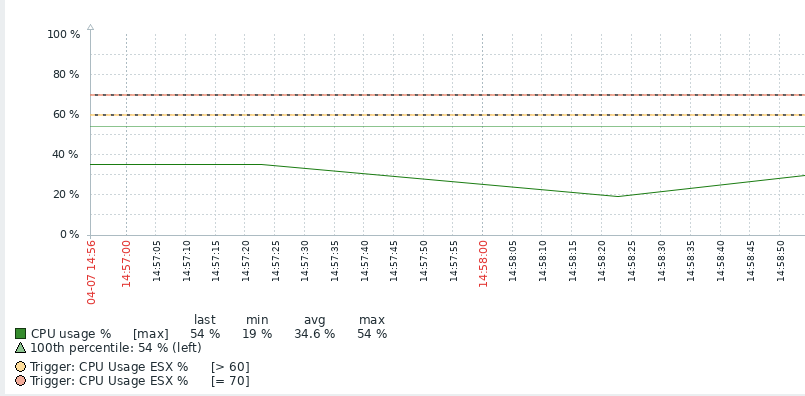

Afterwards the graphs and triggers work as expected :

[zaheerabbas1988]

@vingertop thank you, it solved my problem

[ahmetselman]

Can somebody add screenshot of item (CPU Usage in percentage) because even i add the key vmware.hv.perfcounter[{$URL},{HOST.HOST},"cpu/usage[average]"] there is no data...

[Jason Cage]

You could have a try key = vmware.hv.perfcounter[{$URL},{HOST.HOST},"cpu/utilization[average]"]

It works in my environment.

[ZaBeast]

Create new item set “Name” to “CPU usage (%)”, “Key” to vmware.hv.perfcounter[{$URL},{HOST.HOST},”cpu/usage[average]”] , “Type of information” to “Numeric (float), and “Unit” to “%”.

Note that there is another option if you cannot get the data about CPU percentage using the key vmware.hv.perfcounter[{$URL},{HOST.HOST},”cpu/usage[average]”]. Create a new item, set type to "Calculated", "Key" can be anything, "Type of information" to "Numeric (float)", and "Unit" to "%". Then in "formula" section divide CPU Hz (vmware.hv.cpu.usage) by the CPU frequency (vmware.hv.hw.cpu.freq) and multiplied by the threads (vmware.hv.hw.cpu.threads)

You can c/p that formula and find more information in this tutorial:
https://bestmonitoringtools.com/vmwa...ring_in_Zabbix

[ismailsarp]

Hi,

Can anyone provide a way to monitor VMware memory usage in percentage?

You can run it as follows.

VMware: Memory usage (%)
vmware.hv.perfcounter[{$VMWARE.URL},{$VMWARE.HV.UUID},"mem/usage[average]"]


VMware: CPU usage (%)
vmware.hv.perfcounter[{$VMWARE.URL},{$VMWARE.HV.UUID},"cpu/utilization[average]"]

I tried zabbix 6.2.6 version. Working fine.
