Hello everyone,
I am writing to ask you for information about the change of logo for zabbix 5,
I have recently upgraded from zabbix 4 to 5 and I can not restore the custom logos,

thanks for help

[sancho]

Hi alescri ,

You can modify it by editing the file /usr/share/zabbix/assets/image/icon-sprite.svg

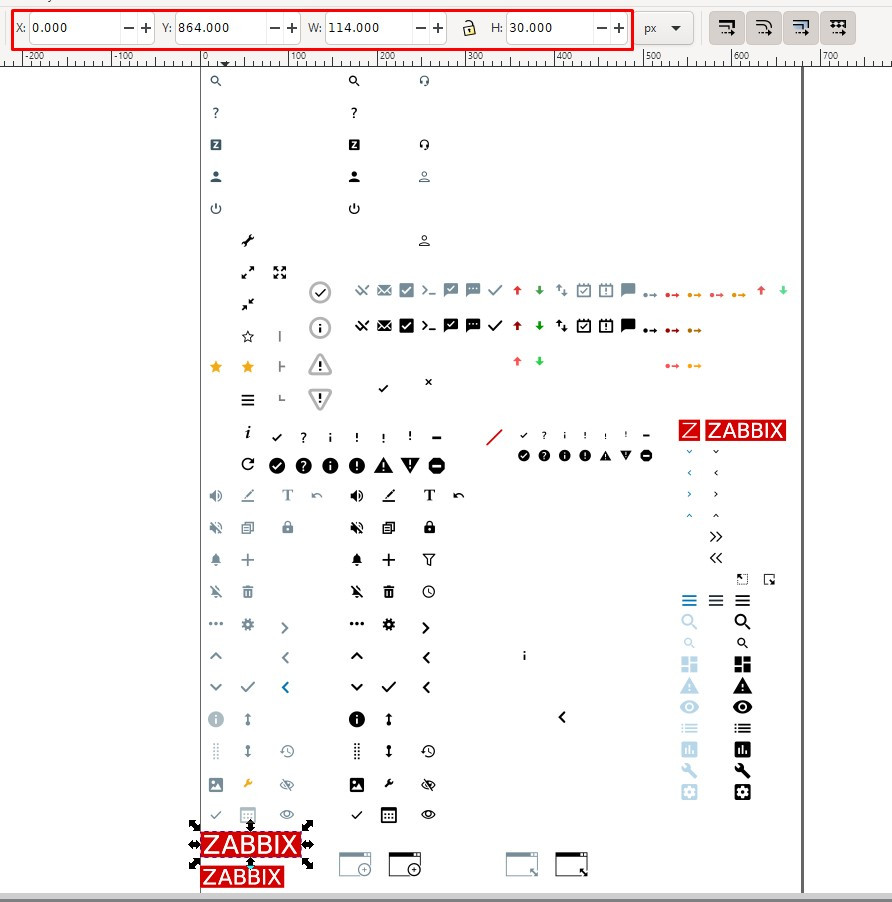

On windows you can modify it with the Inkscape software.

Remember to make a copy of the original icon-sprite.svg before

Regards

[alescri]

Hi alescri ,

You can modify it by editing the file /usr/share/zabbix/assets/image/icon-sprite.svg

On windows you can modify it with the Inkscape software.

Remember to make a copy of the original icon-sprite.svg before

Regards

thanks for your reply , i already modified the icon-sprite using illustrator, but doesn't work i will try with inkscape .

Regards

[sancho]

The images you are replacing must have the same X-Y position and size as the original.

[alescri]

now it works, I had to import the logo in png and not in vector format
thank you so much
regards

[peppelauro]

I think that the better solution is:

https://www.zabbix.com/documentation/current/en/manual/web_interface/rebranding

[[email protected]]

https://www.zabbix.com/documentation/current/en/manual/web_interface/rebranding

This is not working for me. Please look into my configuration.


++++++++++++++++++++++++++++++++++++++++++++++++++ ++++++++++++++++++++++++++++++++++++++++++++++++++ ++
[root@zabbix ~]# cat /usr/share/zabbix/local/conf/brand.conf.php
<?php return [
'BRAND_LOGO' => '/usr/share/zabbix/assets/zabbix-logos/custom_logo.png',
'BRAND_LOGO_SIDEBAR' => '/usr/share/zabbix/assets/zabbix-logos/custom_logo_sidebar.png',
'BRAND_LOGO_SIDEBAR_COMPACT' => '/usr/share/zabbix/assets/zabbix-logos/custom_logo_sidebar_compact.png',
'BRAND_FOOTER' => '@ Zabbix #SLTiDC',
'BRAND_HELP_URL' => 'http://zabbix.example.com/help/'
];
[root@zabbix ~]#

[root@zabbix zabbix-logos]# pwd
/usr/share/zabbix/assets/zabbix-logos
[root@zabbix zabbix-logos]#
[root@zabbix zabbix-logos]#
[root@zabbix zabbix-logos]# ls -la
total 16
drwxr-xr-x. 2 root root 99 Jul 17 20:20 .
drwxr-xr-x. 6 root root 64 Jul 17 14:05 ..
-rw-r--r--. 1 root root 4536 Jul 17 13:30 custom_logo.png
-rw-r--r--. 1 root root 1059 Jul 17 13:30 custom_logo_sidebar_compact.png
-rw-r--r--. 1 root root 3138 Jul 17 13:30 custom_logo_sidebar.png
[root@zabbix zabbix-logos]#

++++++++++++++++++++++++++++++++++++++++++++++++++ ++++++++++++++++++++++++++++++++++++++++++++++++++ +++++++++




Please advise ...!

[vladimir_lv]

Here is manual

https://www.zabbix.com/forum/zabbix-suggestions-and-feedback/442548-to-replace-z-logo-on-my-own-installation

[[email protected]]

Not working on Zabbix 6

[ggs_admin]

try to create "images" folder in the /usr/share/zabbix/ and upload the needed logo to there.
Then make sure that you have corrected the path to following:

'BRAND_LOGO' => './images/custom_logo.png',
'BRAND_LOGO_SIDEBAR' => './images/custom_logo_sidebar.png',
'BRAND_LOGO_SIDEBAR_COMPACT' => './images/custom_logo_sidebar_compact.png',

[edier88]

If anyone finds this useful:
The guide of thie following page gives a better solution on how to change logo and rebranding of our Zabbix: (It works for version 6 as well)

https://www.zabbix.com/documentation/5.0/en/manual/web_interface/rebranding

The thing is that I was a bit confused with the directory where the file "brand.conf.php" has to be created. The correct directory is: /usr/share/zabbix/local/conf
Do that procedure instead it is an easier way to change logo and rebranding.
