**PavelZ** · 04-03-2025, 15:40

I noticed another obvious problem:
You show the disk /dev/sda Raid 1 Volume, i.e. consisting of two physical ones.
If smartctl returns one set of indicators. Obviously, it cannot combine two sets of data.
The device should not be called /dev/sda.
Usually for Windows, disks are polled separately with the -d driver specified.
There is some key or naming convention there.

"scsi_vendor": "Intel",\r\n "scsi_product": "Raid 1 Volume",\r\n

Try to find the correct command. It will be something like:
smartctl -a /dev/csmi0,1

I do not have this exact controller model and it is difficult for me to give a ready-made recipe. But I hope this information will help you.

**PavelZ** · 05-03-2025, 08:04

@INFinite Please note that the template is designed to exclude some devices that do not support queries. There are two macros {$SMART.DISK.NAME.MATCHES} and {$SMART.DISK.NAME.NOT_MATCHES}
If you exclude /dev/sda, the errors will disappear.

But does smartctl --scan also output other devices on its list? You need to make sure of this.

**INFinite** · 05-03-2025, 12:47

Originally posted by PavelZ

@INFinite Please note that the template is designed to exclude some devices that do not support queries. There are two macros {$SMART.DISK.NAME.MATCHES} and {$SMART.DISK.NAME.NOT_MATCHES}
If you exclude /dev/sda, the errors will disappear.

But does smartctl --scan also output other devices on its list? You need to make sure of this.

I admit that I could have done something wrong, so I'll give you a screenshot. If everything is correct, then the result has not changed.

C:\Windows\system32>smartctl --scan
/dev/sda -d scsi # /dev/sda, SCSI device
/dev/sdb -d ata # /dev/sdb, ATA device
/dev/sdc -d sat # /dev/sdc [SAT], ATA device
/dev/csmi0,0 -d ata # /dev/csmi0,0, ATA device
/dev/csmi0,1 -d ata # /dev/csmi0,1, ATA device
/dev/nvme0 -d nvme # /dev/nvme0, NVMe device

There's a regular intel soft raid. In Agent version 6.4, it perfectly sees the disks behind this raid.
Here is the output from Agent 6.4:

Code:

C:\Windows\system32>"C:\Program Files\Zabbix Agent 2\zabbix_agent2.exe" -c "C:\P
rogram Files\Zabbix Agent 2\zabbix_agent2.conf" -t smart.disk.discovery
smart.disk.discovery                          [s|[{"{#NAME}":"csmi0,0","{#DISKTY
PE}":"ssd","{#MODEL}":"KINGSTON SV300S37A60G","{#SN}":"50026B7246018A2F","{#PATH
}":"/dev/csmi0,0","{#RAIDTYPE}":"","{#ATTRIBUTES}":"Raw_Read_Error_Rate Retired_
Block_Count Power_On_Hours_and_Msec Power_Cycle_Count Program_Fail_Count Erase_F
ail_Count Unexpect_Power_Loss_Ct Wear_Range_Delta Program_Fail_Count Erase_Fail_
Count Reported_Uncorrect Airflow_Temperature_Cel Temperature_Celsius ECC_Uncorr_
Error_Count Reallocated_Event_Count Unc_Soft_Read_Err_Rate Soft_ECC_Correct_Rate
 Life_Curve_Status SSD_Life_Left SandForce_Internal SandForce_Internal Lifetime_
Writes_GiB Lifetime_Reads_GiB"},{"{#NAME}":"csmi0,1","{#DISKTYPE}":"ssd","{#MODE
L}":"KINGSTON SV300S37A60G","{#SN}":"50026B7246018A2C","{#PATH}":"/dev/csmi0,1",
"{#RAIDTYPE}":"","{#ATTRIBUTES}":"Raw_Read_Error_Rate Retired_Block_Count Power_
On_Hours_and_Msec Power_Cycle_Count Program_Fail_Count Erase_Fail_Count Unexpect
_Power_Loss_Ct Wear_Range_Delta Program_Fail_Count Erase_Fail_Count Reported_Unc
orrect Airflow_Temperature_Cel Temperature_Celsius ECC_Uncorr_Error_Count Reallo
cated_Event_Count Unc_Soft_Read_Err_Rate Soft_ECC_Correct_Rate Life_Curve_Status
 SSD_Life_Left SandForce_Internal SandForce_Internal Lifetime_Writes_GiB Lifetim
e_Reads_GiB"},{"{#NAME}":"nvme0","{#DISKTYPE}":"nvme","{#MODEL}":"","{#SN}":"","
{#PATH}":"/dev/nvme0","{#RAIDTYPE}":"","{#ATTRIBUTES}":""},{"{#NAME}":"sdc","{#D
ISKTYPE}":"hdd","{#MODEL}":"ST1000LM024 HN-M101MBB","{#SN}":"S30CJ9CFC09569","{#
PATH}":"/dev/sdc","{#RAIDTYPE}":"","{#ATTRIBUTES}":"Raw_Read_Error_Rate Throughp
ut_Performance Spin_Up_Time Start_Stop_Count Reallocated_Sector_Ct Seek_Error_Ra
te Seek_Time_Performance Power_On_Hours Spin_Retry_Count Calibration_Retry_Count
 Power_Cycle_Count G-Sense_Error_Rate Power-Off_Retract_Count Temperature_Celsiu
s Hardware_ECC_Recovered Reallocated_Event_Count Current_Pending_Sector Offline_
Uncorrectable UDMA_CRC_Error_Count Multi_Zone_Error_Rate Load_Retry_Count Load_C
ycle_Count"}]]

Today, once again trying to find a solution on the Internet, I came across bug report ZBX-26098 with the same problem.

**PavelZ** · 05-03-2025, 13:08

Today, once again trying to find a solution on the Internet, I came across bug report ZBX-26098 with the same problem.https://support.zabbix.com/projects/...sues/ZBX-26098

A very similar problem. Similar configuration with Intel software raid 1

Well, what's the problem with a certain number of unsupported items? Other disks are being queried.

**INFinite** · 05-03-2025, 13:30

Originally posted by PavelZ

Well, what's the problem with a certain number of unsupported items? Other disks are being queried.

I tried to exclude all disks, but it's still an error

Code:

Cannot fetch data.: got error executing worker pool: smartctl returned error: unknown error from smartctl.

**PavelZ** · 05-03-2025, 13:39

This filter works during autodiscovery /dev/sda polling will still not work.
You need to delete the problematic items and run discovery again.

**INFinite** · 05-03-2025, 14:36

Originally posted by PavelZ

This filter works during autodiscovery /dev/sda polling will still not work.
You need to delete the problematic items and run discovery again.

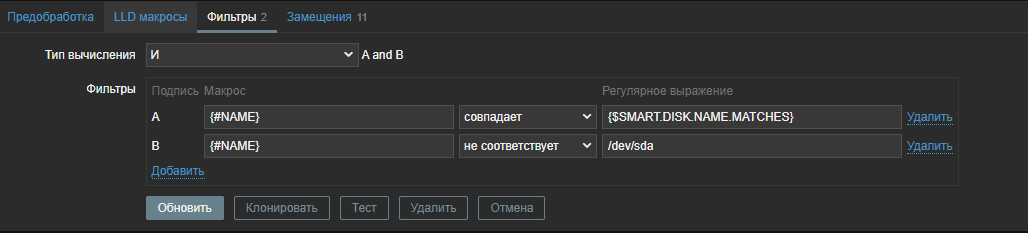

I disconnected the template from the node with the data deletion, reconnected it, and configured the filter and started detection. The error is the same.
If I got something wrong, could you describe in more detail what needs to be done.

**PavelZ** · 05-03-2025, 18:32

As usual, you need to take things apart and check them piece by piece:

autodiscovery should return list of device name as json.
filters should filter out /dev/sda and other problematic devices.
master Items should be created only for those disks that smartctl can query.
master items should be queried without errors
dependent items should be calculated from json.

**AlexPRN** · 11-03-2025, 08:42

Hello.
Current Agent version on Windows aren't work with SMART. When I run

Code:

C:\Program Files\Zabbix Agent 2>zabbix_agent2.exe -c zabbix_agent2.conf -t smart.disk.discovery

on 7.2.x verisons it returns:

Code:

smart.disk.discovery                          [m|ZBX_NOTSUPPORTED] [Cannot fetch data.: got error executing worker pool: failed to execute smartctl: "{\r\n  \"json_format_version\": [\r\n  ................... : exit status 32.]

But on 6.2.9 Agent everything works fine. What's the reason, anyone know?

**PavelZ** · 11-03-2025, 10:42

AlexPRN
We discussed similar issues a bit above. Could you please clarify what specific disks you have? Are you using raid? What is the operating system version?
Are you updating the template inside zabbix server when update agent?

**teiteoer** · 26-03-2025, 13:10

Hello everyone,

I'm trying to use smart.disk.discovery from the SMART by Zabbix agent 2 template, but I'm getting the following error:

cannot parse response: cannot find pair with name "value"

My system has 2x NVMe drives and 1x SATA SSD.

Here’s what I get when running smartctl -a -j:

For the SATA SSD (/dev/sda):

Code:

"smart_status": {
"passed": true
}

For /dev/nvme0:

Code:

"smart_status": {
"passed": true,
"nvme": {
"value": 0
}
}

For /dev/nvme1:

Code:

"smart_status": {
"passed": false,
"nvme": {
"value": 4,
"spare_below_threshold": false,
"temperature_above_or_below_threshold": false,
"reliability_degraded": true,
"media_read_only": false,
"volatile_memory_backup_failed": false,
"persistent_memory_region_unreliable": false,
"other": 0
}
}

It seems like Zabbix expects a "value" field directly under "smart_status", but NVMe devices return a nested structure instead.

Has anyone encountered this issue or found a workaround?
Is this a known limitation, or is there something I can adjust in the template or item configuration to handle NVMe responses properly?

Any guidance would be appreciated!

Thanks in advance!

**PavelZ** · 26-03-2025, 21:59

Don't you want to make sure the zabbix agent version match template version first? I don't see any version information from you.
It would be stupid to do complex debugging without checking something simple.

**PavelZ** · 26-03-2025, 22:12

"smart_status": {
"passed": false,

You noticed that there is a failure here, right?
This is certainly not encouraging. It is possible that Zabbix does not have enough different broken hardware to test the agent's behavior in such situations.

I suggest recording agent log and the full outputs of all commands so that they can be simulated after replacing the disk.

**anmg** · 06-04-2025, 09:06

Hello!

Can not make to gather data from drives on Adaptec RAID controller.
scan command does not provide useful information

Code:

# sudo -u zabbix smartctl --scan
/dev/sda -d scsi # /dev/sda, SCSI device
/dev/sdb -d scsi # /dev/sdb, SCSI device

check RAID controller type:

Code:

# lspci | grep RAID
02:00.0 RAID bus controller: Adaptec Series 6 - 6G SAS/PCIe 2 (rev 01)

use lsscsi to determine actual drives' names. below is 2 separate Logical Volumes RAID1 each.

Code:

# lsscsi -g
[0:0:0:0] disk Adaptec spegel V1.0 /dev/sda /dev/sg0
[0:0:1:0] disk Adaptec LogicalDrv 1 V1.0 /dev/sdb /dev/sg1
[0:1:0:0] disk ST1000NM0011 SN03 - /dev/sg2
[0:1:1:0] disk ST1000DM003-9YN1 CC46 - /dev/sg3
[0:1:2:0] disk WDC WD8004FRYZ-01VAE 01.0 - /dev/sg4
[0:1:3:0] disk WDC WD8004FRYZ-01VAE 01.0 - /dev/sg5
[0:3:0:0] enclosu ADAPTEC Virtual SGPIO - /dev/sg6

dmesg output

Code:

# dmesg | grep scsi
[    0.668768] scsi host1: ahci
[    0.669251] scsi host2: ahci
[    0.672367] scsi host3: ahci
[    0.673256] scsi host4: ahci
[    0.673573] scsi host5: ahci
[    0.673970] scsi host6: ahci
[    1.138269] scsi host0: aacraid
[    1.139214] scsi 0:0:0:0: Direct-Access     Adaptec  spegel           V1.0 PQ: 0 ANSI: 2
[    1.140236] scsi 0:0:1:0: Direct-Access     Adaptec  LogicalDrv 1     V1.0 PQ: 0 ANSI: 2
[    1.153685] scsi 0:1:0:0: Direct-Access              ST1000NM0011     SN03 PQ: 1 ANSI: 5
[    1.156229] scsi 0:1:1:0: Direct-Access              ST1000DM003-9YN1 CC46 PQ: 1 ANSI: 5
[    1.158421] scsi 0:1:2:0: Direct-Access     WDC      WD8004FRYZ-01VAE 01.0 PQ: 1 ANSI: 5
[    1.160658] scsi 0:1:3:0: Direct-Access     WDC      WD8004FRYZ-01VAE 01.0 PQ: 1 ANSI: 5
[    1.191221] scsi 0:3:0:0: Enclosure         ADAPTEC  Virtual SGPIO         PQ: 0 ANSI: 5
[    1.227400] sd 0:0:0:0: Attached scsi generic sg0 type 0
[    1.227805] sd 0:0:1:0: Attached scsi generic sg1 type 0
[    1.228399] scsi 0:1:0:0: Attached scsi generic sg2 type 0
[    1.230211] scsi 0:1:1:0: Attached scsi generic sg3 type 0
[    1.230954] scsi 0:1:2:0: Attached scsi generic sg4 type 0
[    1.232649] scsi 0:1:3:0: Attached scsi generic sg5 type 0
[    1.232951] scsi 0:3:0:0: Attached scsi generic sg6 type 13

And finally I can get actual information from smartctl by for disk name /dev/sg2 - /dev/sg5

Code:

# smartctl -d sat --all /dev/sg2

lsscsi is to be installed, it was not preinstalled on Ubuntu 24.04.

So may be add more RAID controllers discovery logic to SMART plugin?

Also any suggestion how to use filters in Zabbix templates? will it be helpful if smartctl --scan does not return valid disk names?

**PavelZ** · 06-04-2025, 09:31

scan command does not provide useful information
# sudo -u zabbix smartctl --scan

I thought that zabbix agent2 runs smarctl --scan -d several times according to the number of drivers it knows. Isn't that so?

Let's update all programs, enable agent logs and see it.
