    Filesystem discovering finding too many filesystems

    Our zabbix server is running on 2.4.7 We are getting errors from filesystems that are no actually a filesystem.

    We are monitoring file name /sa which is an NFS mount. Yesterday we several alarms for disk space for volumes like this:

    "Free disk space is less than 20% on volume /sa/.snapshot/daily/2016-01-26_0010"

    The /sa/.snapshot directory stores NetApp snapshots. We are using the mounted filesystem discover rule from the the Template OS Linux. The NFS is mounted on many (>20) servers, but only this server found this "extra" volumes.

    1) What caused Zabbix to detect this other volumes?
    2) How can I remove the items and triggers that were generated, the delete box in the item and triggers screen are not active. I am running with Super_Admin privileges.

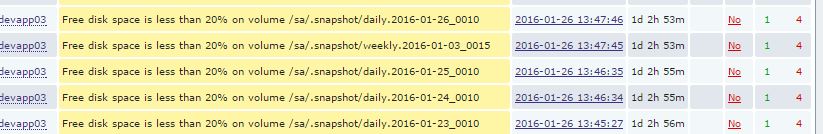

    I've attached a picture of the incorrect volume alarms.

    TIA
    Dave
    Attached Files
  • Atsushi
    Senior Member
    • Aug 2013
    • 2028

    #2
    If you're are using a Zabbix 2.4.7, I think that multiple filtering is usefull in the process of discovery.


    When you open "Mounted filesystem discovery" rule and select filter tab, you can see filtering rules.

    By default, it is set only for file system type({#FSTYPE}).
    Here, you will add a condition of the mount point({#FSNAME}).

    Please refer to this post.
