    issues gathering SNMPv3 data.

    Hi all,
    I have this issue gathering SNMPv3 data from 2 Cambium V1000 devices. I use Zabbix 6.4.18
    When both hosts are added to Zabbix, only 1 is receiving data. When the Zabbix server is restarted, it could be that host A is receiving data and host B not, or sometimes the other way around.
    Click image for larger version

Name:	dataurl806443.png
Views:	206
Size:	6.5 KB
ID:	491540
    When I click ‘execute now’ on the host that is not receiving data, data is updated normally within few seconds.
    Click image for larger version

Name:	dataurl806444.png
Views:	86
Size:	6.6 KB
ID:	491543

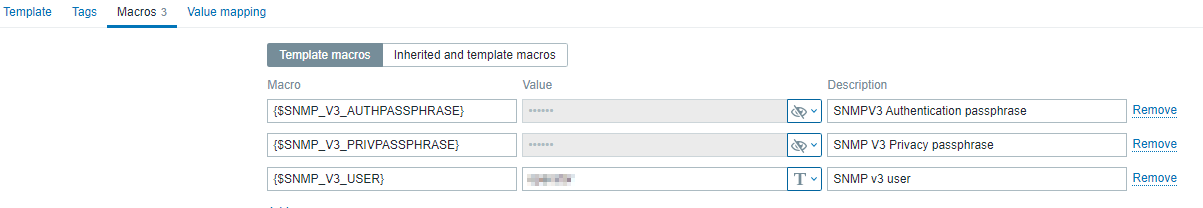

    Both hosts were added manually and are using a template I created myself. The template contains SNMPv3 username and Auth and Priv passwords. They are also correct, because the ‘execute now’ action is effectively gathering data
    Click image for larger version

Name:	dataurl806444.png
Views:	88
Size:	21.4 KB
ID:	491542
    The template contains a discovery rule to discover all ethernet interfaces, which is working fine as different items are added to the corresponding hosts.

    Snmpwalk from Zabbix server is working fine:
    Click image for larger version

Name:	dataurl806446.png
Views:	87
Size:	81.9 KB
ID:	491544
    Both hosts also have different SNMP Engine ID’s:
    Click image for larger version

Name:	dataurl806445.png
Views:	86
Size:	18.5 KB
ID:	491541
    I don’t really know what could be causing this. I am using already a lot of SNMPv3 devices in my Zabbix environment. Is there a maximum amount of SNMPv3 items that Zabbix can handle?
    Does anyone have an idea on what more to try, please?
