Redis template problem

[TDex96]

Hey guys!

I use Zabbix Server 7.0 LTS, and now i stucked with the Redis template. I have a simple standalone redis instance which i want to monitor with agent 2 active.
I have the session config in the plguins/redis.conf:

Plugins.Redis.Sessions.http39.Uri=tcp://localhost:6379

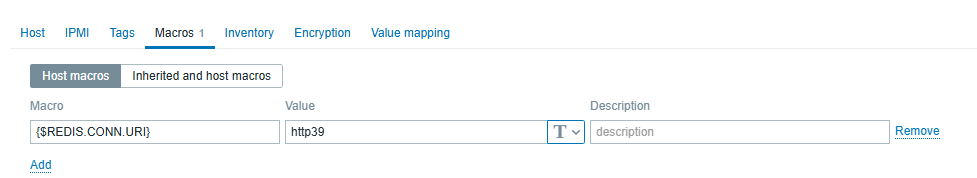

And for the host:

I use the following template:
Redis by Zabbix agent 2
I didn't got any error message in the agent log, however i used log level 5, so debugging but nothing.

Thank you veyry much if you have any suggestion!

[PavelZ]

default value for macro {$REDIS.CONN.URI} = "tcp://localhost:6379"
And it works great. Why change anything?

[TDex96]

Still not working with the default macro.

[PavelZ]

What about the agent settings? Did you restore them to their original state?

In addition, it is now common to configure Redis with a password. Here you will need to configure a password in the agent files

Try connecting with some diagnostic program as well - it seems that even telnet will work.

[TDex96]

Unfortunately my redis instances don't have password, it works on vlan. The redis plugin config files now untouched, and i tried to use with default settings, but nothing. In the agent config files i only edited the ServerActive and Hsotname variables. Now for the test i use a simple standalone redis from the apt repo. Nothing special. In the agent logs i also not saw anything with redis.

[PavelZ]

There is nothing wrong if the password is missing. This is not always a problem and should not affect the functionality of the template.

Maybe you can check each individual items? Are there any errors?
And then check autodiscovery status

[TDex96]

The discovery look like thos:

[PavelZ]

I see red signals. This means these are errors and now you have a place to get debug information

[TDex96]

Debug log on agent side?

[PavelZ]

I think you have installed agent version 1, but use template for agent2.
They both are quite compatible in terms of keys. Sometimes you can get them mixed up.

[TDex96]

Here is the agent version:

zabbix_agent2 -V
zabbix_agent2 (Zabbix) 7.0.12
Revision ada4cd46eae 22 April 2025, compilation time: Apr 22 2025 09:30:57, built with: go1.24.1
Plugin communication protocol version is 6.4.0

Server version:

 zabbix_server -V
zabbix_server (Zabbix) 7.0.11
Revision 7b462dfe68e 27 March 2025, compilation time: Mar 27 2025 06:24:15

Now i turned on DebugLevel=4 and i only see my other plugin information, which is Mysql. Mysql works fine but i can't see any Redis related log.

If i see right, i use agent 2 and the template is also for agent 2.
