4 图形

概述

可以从 Configuration → Templates (配置→模板)访问模板的自定义图列表, 然后单击相应模板的Graphs(图)。

可以从 Configuration → Hosts (配置→主机)访问主机的自定义图列表,然后单击相应主机的图。

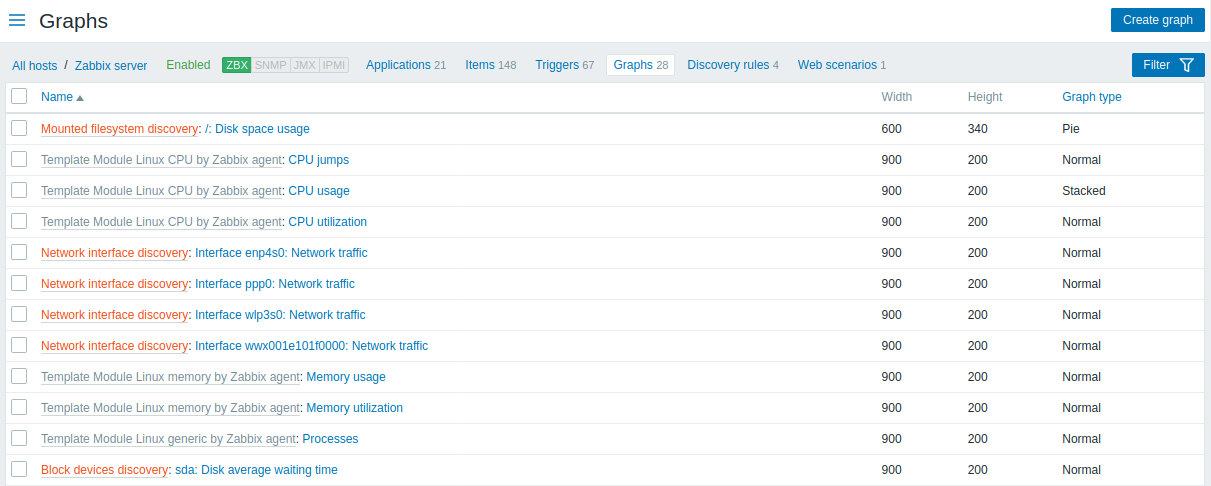

显示现有图的列表。.

显示数据:

Name 自定义图的名称,显示图细节的蓝色链接。
点击图名的链接来打开图.configuration form.
如果主机图属于模板,则模板名称将在图名称之前,以灰色链接显示。 单击模板链接打开模板级的图列表。
如果图是从图原型创建的,则其名称前面是低级别发现规则名,并以橙色显示。单击发现规则名将打开图原型列表
Width 图显示的宽度
Height 图显示的长度
Graph type 图显示的类型 - Normal, (正常图形), Stacked,(叠加图形), Pie (饼状图形) 或者 Exploded.(分解饼状图形).

配置新的图,可以点击顶部右上角的 Create graph 按钮。

批量编辑选项

列表下面的按键会提供一些批量编辑选项:

  • Copy - 将图复制到其他主机或模板上。
  • Delete - 删除图

要使用这些选项,请在各个图之前标记复选框,然后单击所需的按钮

4 Graphs

Overview

The custom graph list for a template can be accessed from Configuration → Templates and then clicking on Graphs for the respective template.

The custom graph list for a host can be accessed from Configuration → Hosts and then clicking on Graphs for the respective host.

A list of existing graphs is displayed.

Displayed data:

Column Description
Name Name of the custom graph, displayed as a blue link to graph details.
Clicking on the graph name link opens the graph configuration form.
If the host graph belongs to a template, the template name is displayed before the graph name, as a grey link. Clicking on the template link will open the graph list on the template level.
If the graph has been created from a graph prototype, its name is preceded by the low level discovery rule name, in orange. Clicking on the discovery rule name will open the graph prototype list.
Width Graph width is displayed.
Height Graph height is displayed.
Graph type Graph type is displayed - Normal, Stacked, Pie or Exploded.

To configure a new graph, click on the Create graph button in the top right-hand corner.

Mass editing options

Buttons below the list offer some mass-editing options:

  • Copy - copy the graphs to other hosts or templates
  • Delete - delete the graphs

To use these options, mark the checkboxes before the respective graphs, then click on the required button.
