Another way to monitor Oracle

[saink]

butmonitor oracle 11GR2problem

hi,dalle,my english is poor
Zabbix 1.8.3+Orabbix1.03（RHEL5U2） monitor Oracl11GR2，but Zabbix draw Graph，displaying data is wrong，not right. I Query the database,find all data,for example,sga hit rate... These data different from data from Zabbix. This problem ,I can't resolve.Please help me,thanks

[dalle]

Don't worry about your english so zabbix show data that are wrong? or better show data that aren't right? i've a question for you how many database you have inside orabbix? please try with just one db and check if data are right and let me know

[saink]

help

two oracle server,
one ORACLE11GR1 192.168.113.117
,the other ORACLE11GR2(vmware Virtual Machine ),192.168.113.137
Firstly,I create only one host,IP is(192.168.113.117,Oracle Template) connect ORACLE11GR2
I can see display ,but I No attention data.Beacuse two server ORACLE_SID is orcl bothly ,I changed IP ,now IP is changed to 192.168.113.137,restart zabbix agentd and orabbix ,after a few minuses,zabbix Show image,the same as 192.168.113.117, In addition,data of Zabbix image compare data that query from database,Very different. 192.168.113.117 Oacle shutdown ,Zabbix display one broken,but after a few minuses,zabbix continous dislpaly image

[dalle]

two oracle server,
one ORACLE11GR1 192.168.113.117
,the other ORACLE11GR2(vmware Virtual Machine ),192.168.113.137
Firstly,I create only one host,IP is(192.168.113.117,Oracle Template) connect ORACLE11GR2
I can see display ,but I No attention data.Beacuse two server ORACLE_SID is orcl bothly ,I changed IP ,now IP is changed to 192.168.113.137,restart zabbix agentd and orabbix ,after a few minuses,zabbix Show image,the same as 192.168.113.117, In addition,data of Zabbix image compare data that query from database,Very different. 192.168.113.117 Oacle shutdown ,Zabbix display one broken,but after a few minuses,zabbix continous dislpaly image

the ORACLE_SID doesen't matter you can create an host e.g. chip that has the first database and another e.g. dale that has the second

CHIP.Url=jdbcracle:thin:@192.168.113.117:1521:ORCL
CHIP.User=zabbix
CHIP.Password=password

DALE.Url=jdbcracle:thin:@192.168.113.137:1521:ORCL
DALE.User=zabbix
DALE.Password=password

in zabbix you need to create two host one with the name of "DALE" and another one with "CHIP"
i hope that this solve your trouble
please let me know

[saink]

137 11GR1 2Gmem

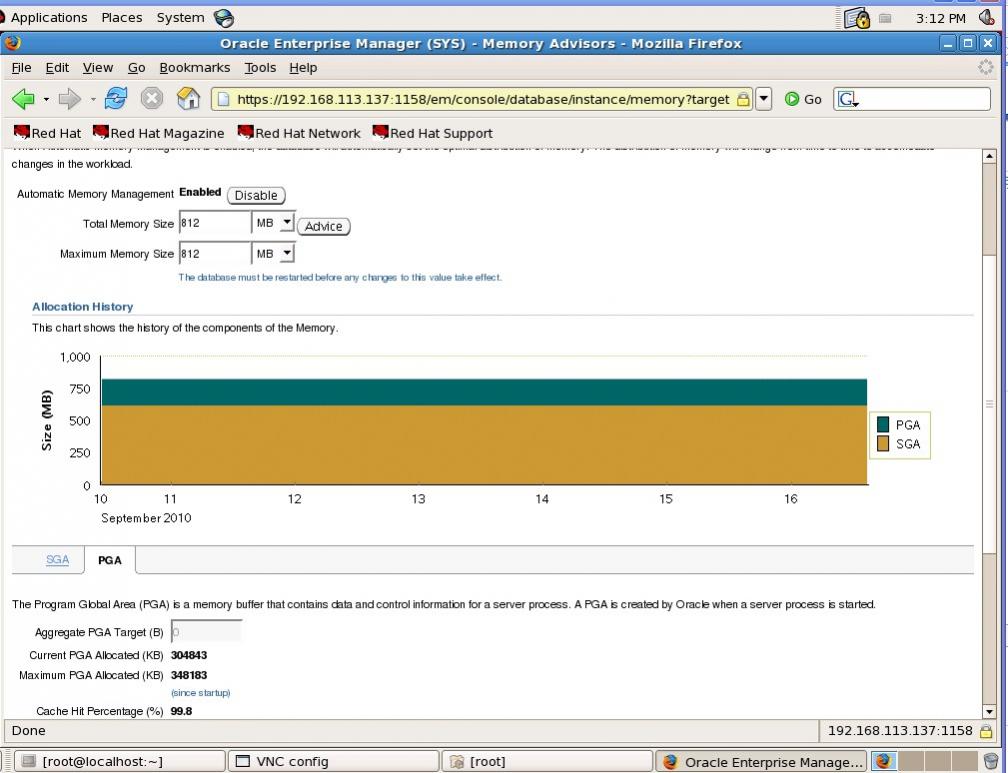

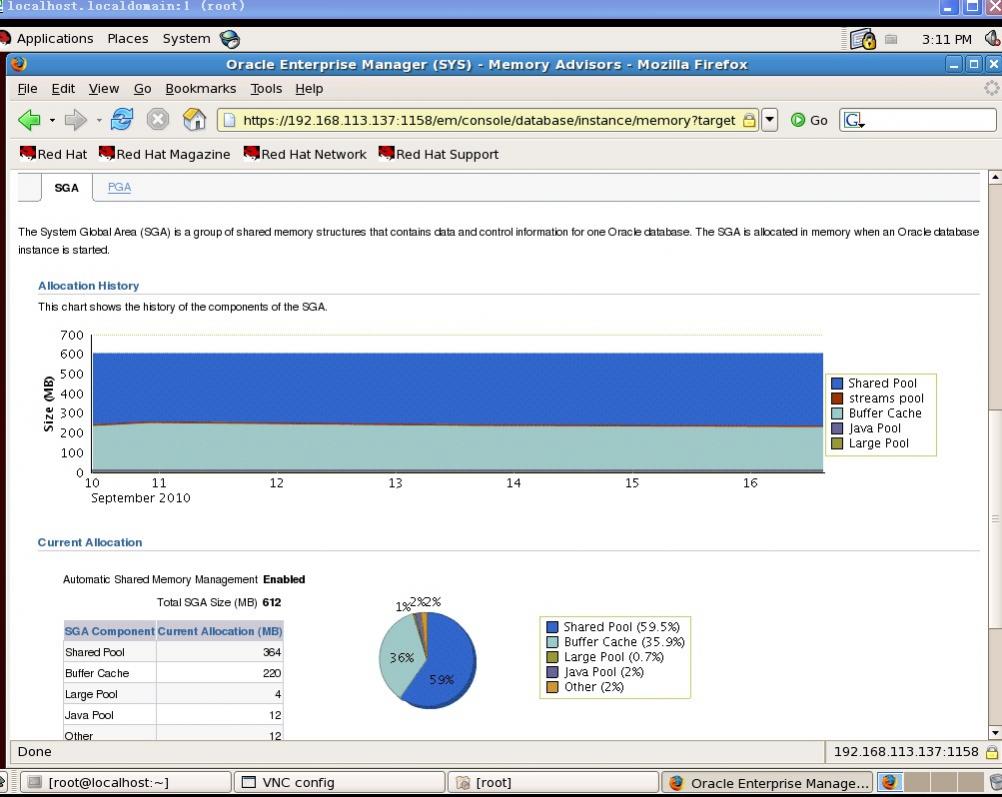

oracle oem
total mem 812MB
SGA 612 MB
PGA 304843KB

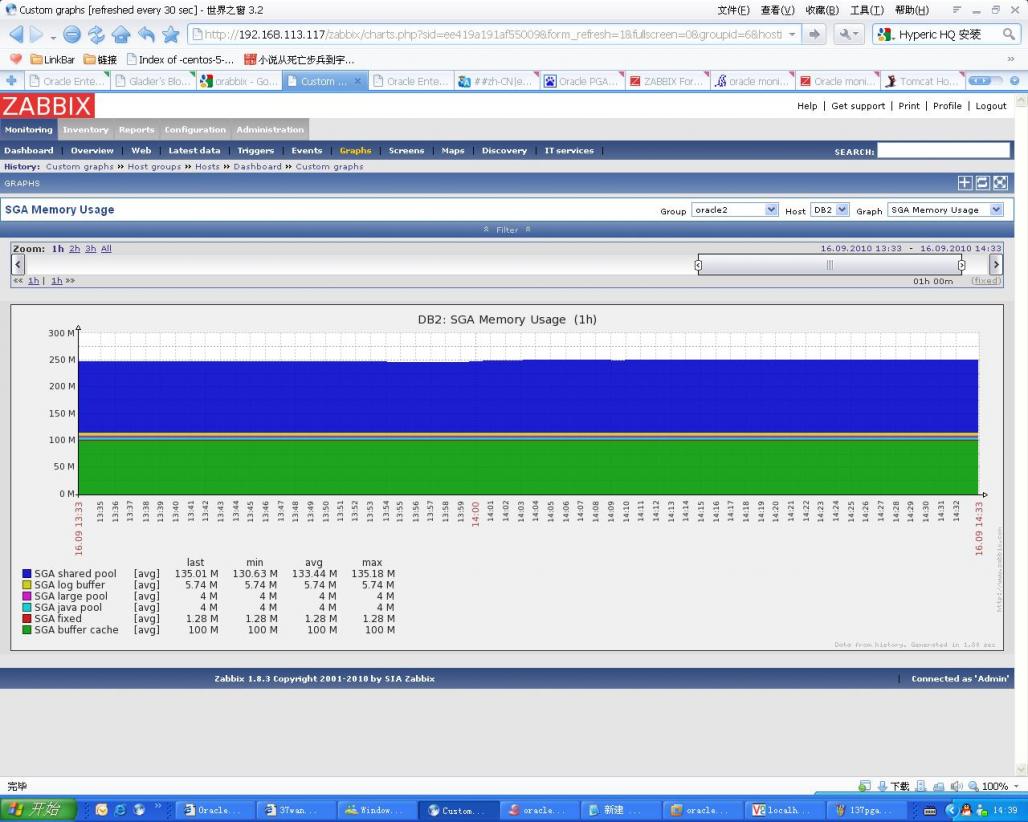

ZABBIX
PGA 110MB
sharepool 135MB
SGA 250MB

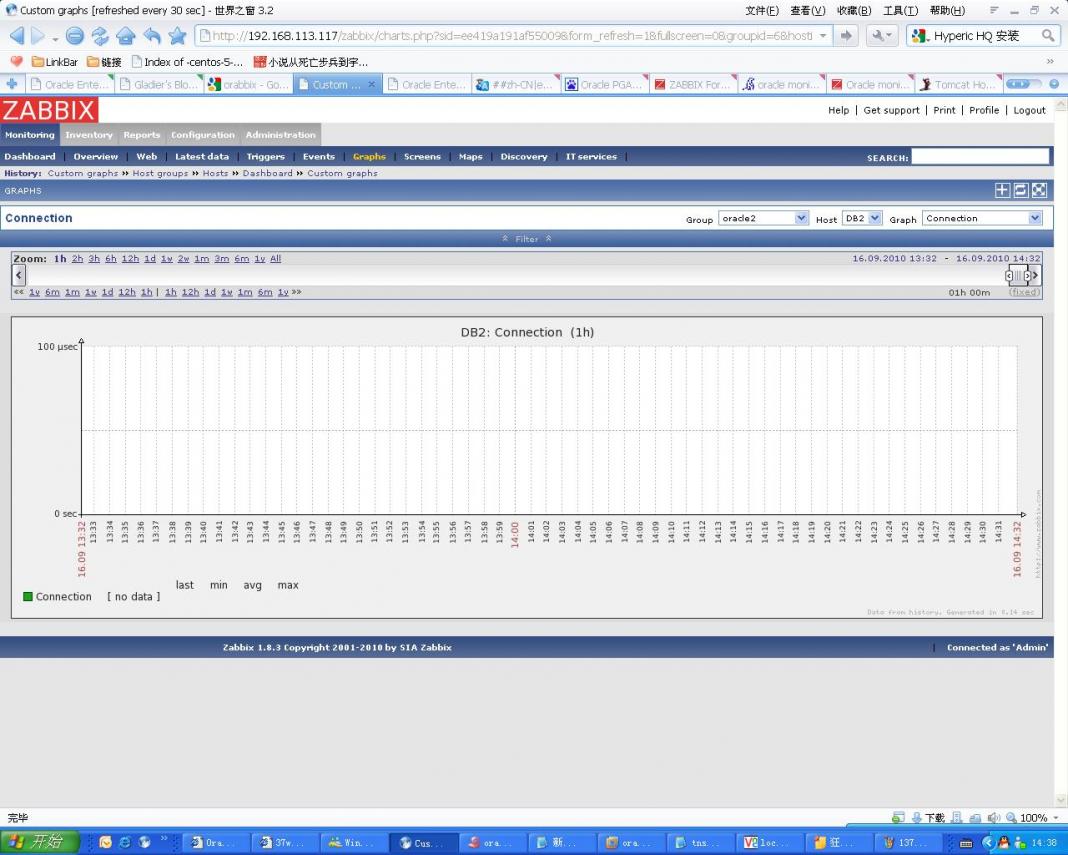

connection no data
data of image is wrong,Why?

[saink]

now zabbix can differently display 192.168.113.117 and 192.168.113.137 data,but data is wrong....

[dalle]

ok thankyou for your screenshot is quite clear that is not working right, Orabbix execute the following query
sga_buffer_cache.Query=SELECT to_char(ROUND(SUM(decode(pool,NULL,decode(name,'db _block_buffers',(bytes)/(1024*1024),'buffer_cache',(bytes)/(1024*1024),0),0)),2)) sga_bufcache FROM V$SGASTAT

sga_fixed.Query=SELECT TO_CHAR(ROUND(SUM(decode(pool,NULL,decode(name,'fi xed_sga',(bytes)/(1024*1024),0),0)),2)) sga_fixed FROM V$SGASTAT

sga_java_pool.Query=SELECT to_char(ROUND(SUM(decode(pool,'java pool',(bytes)/(1024*1024),0)),2)) sga_jpool FROM V$SGASTAT

sga_large_pool.Query=SELECT to_char(ROUND(SUM(decode(pool,'large pool',(bytes)/(1024*1024),0)),2)) sga_lpool FROM V$SGASTAT

sga_log_buffer.Query=SELECT TO_CHAR(ROUND(SUM(decode(pool,NULL,decode(name,'lo g_buffer',(bytes)/(1024*1024),0),0)),2)) sga_lbuffer FROM V$SGASTAT

sga_shared_pool.Query=SELECT TO_CHAR(ROUND(SUM(decode(pool,'shared pool',decode(name,'library cache',0,'dictionary cache',0,'free memory',0,'sql area',0,(bytes)/(1024*1024)),0)),2)) pool_misc FROM V$SGASTAT

please use sqlplus and connect to your database and verify that the returned values are valid (mine are right and i have 72 database instances monitored by orabbix I've verified on 3 of them and Orabbix retrieve right values ) may be that there is something wrong on configuration.
Please try to verify those values with sqlplus and compare them with Enterprise manager.
I have another question how many db have you inserted? may be that you have exchanged credentials between databases?
or may be that you have many "host" with the same name?

[saink]

192.168.113.137
I login on server ,the data is the same as data of oem,maybe config
[root@localhost ~]# su - oracle
[oracle@localhost ~]$ sqlplus / as sysdba

SQL*Plus: Release 11.1.0.6.0 - Production on Fri Sep 17 00:02:06 2010

Copyright (c) 1982, 2007, Oracle. All rights reserved.


Connected to:
Oracle Database 11g Enterprise Edition Release 11.1.0.6.0 - Production
With the Partitioning, OLAP, Data Mining and Real Application Testing options

SQL> SELECT to_char(ROUND(SUM(decode(pool,NULL,decode(name,'db _block_buffers',(bytes)/(1024*1024),'buffer_cache',(bytes)/(1024*1024),0),0)),2)) sga_bufcache FROM V$SGASTAT;

SGA_BUFCACHE
----------------------------------------
224

SQL> SELECT to_char(ROUND(SUM(decode(pool,'java pool',(bytes)/(1024*1024),0)),2)) sga_jpool FROM V$SGASTAT;

SGA_JPOOL
----------------------------------------
12

SQL> SELECT to_char(ROUND(SUM(decode(pool,'large pool',(bytes)/(1024*1024),0)),2)) sga_lpool FROM V$SGASTAT;

SGA_LPOOL
----------------------------------------
4

SQL> SELECT TO_CHAR(ROUND(SUM(decode(pool,NULL,decode(name,'lo g_buffer',(bytes)/(1024*1024),0),0)),2)) sga_lbuffer FROM V$SGASTAT
2 ;

SGA_LBUFFER
----------------------------------------
0

SQL> SELECT TO_CHAR(ROUND(SUM(decode(pool,'shared pool',decode(name,'library cache',0,'dictionary cache',0,'free memory',0,'sql area',0,(bytes)/(1024*1024)),0)),2)) pool_misc FROM V$SGASTAT;

POOL_MISC
----------------------------------------
234.99



---------------------------------------------------

Before two days,I install orabbix at 192.168.113.137 ,but stopped orabbix service , only run zabbix_agentd service （orabbix not running）

[root@localhost orabbix]# ps -ef |grep orabbix
root 847 32025 0 00:15 pts/1 00:00:00 grep orabbix
[root@localhost orabbix]# ll /etc/
Display all 231 possibilities? (y or n)
[root@localhost orabbix]# ps -ef |grep zabbix
root 1153 32025 0 00:19 pts/1 00:00:00 grep zabbix
zabbix 4737 1 0 Sep15 ? 00:00:00 /usr/local/zabbix/sbin/zabbix_agentd -c /usr/local/zabbix/zabbix_agentd.conf
zabbix 4738 4737 0 Sep15 ? 00:01:59 /usr/local/zabbix/sbin/zabbix_agentd -c /usr/local/zabbix/zabbix_agentd.conf
zabbix 4739 4737 0 Sep15 ? 00:00:04 /usr/local/zabbix/sbin/zabbix_agentd -c /usr/local/zabbix/zabbix_agentd.conf
zabbix 4740 4737 0 Sep15 ? 00:00:04 /usr/local/zabbix/sbin/zabbix_agentd -c /usr/local/zabbix/zabbix_agentd.conf
zabbix 4741 4737 0 Sep15 ? 00:00:05 /usr/local/zabbix/sbin/zabbix_agentd -c /usr/local/zabbix/zabbix_agentd.conf
zabbix 4742 4737 0 Sep15 ? 00:00:00 /usr/local/zabbix/sbin/zabbix_agentd -c /usr/local/zabbix/zabbix_agentd.conf

now on the 192.168.113.117 ,run zabbix server service ,agentd service,orabbix service ,Tomorrow I will paste orabbix configure file（192.168.113.117）。。。。。

[saink]

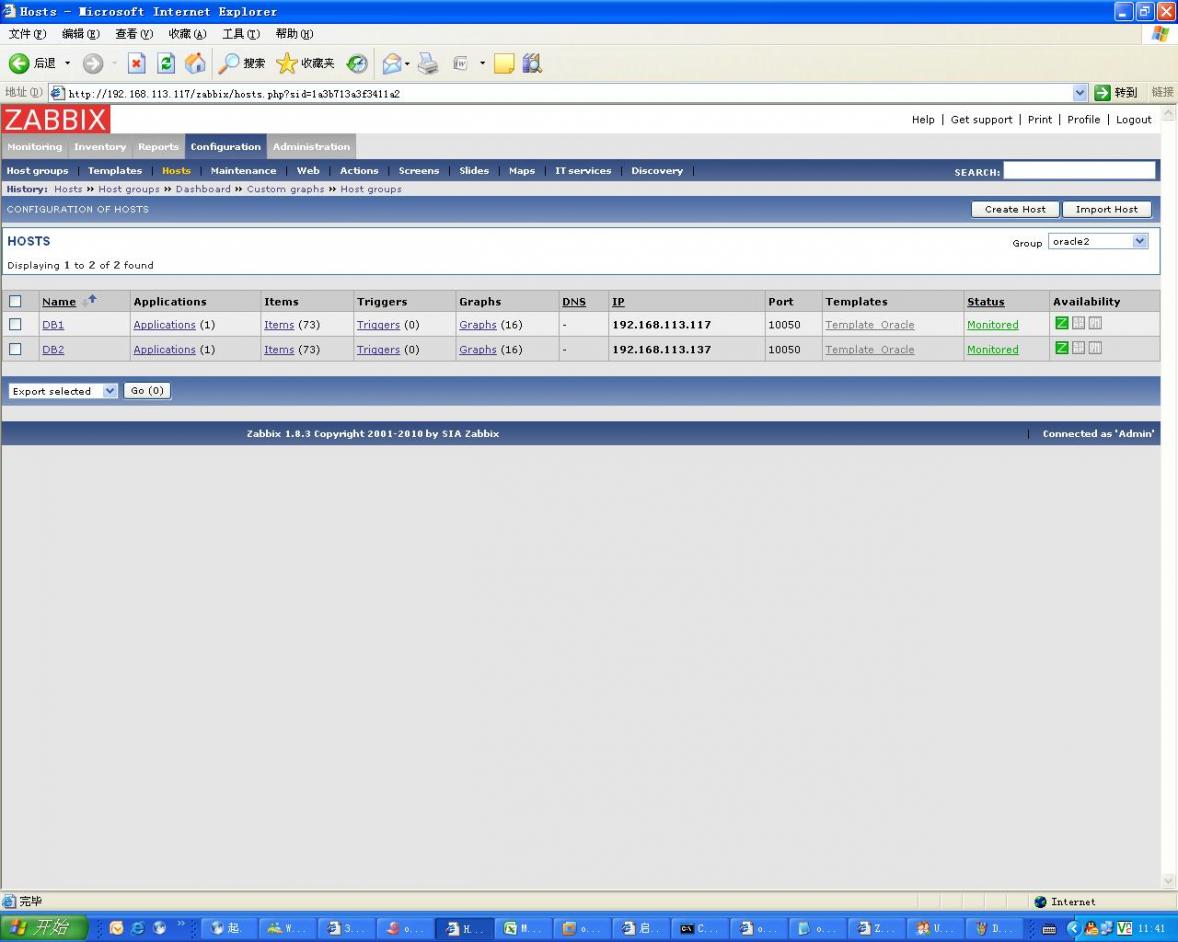

zabbix server 192.168.113.117 (&orabbix)
DB1 192.168.113.117 zabbix_agentd
DB2 192.168.113.137 zabbix_agentd

------------------------------------------------------------------------------192.168.113.117 config.props
[root@oracle init.d]# vim /opt/orabbix/conf/config.props

ZabbixServer1.Address=192.168.113.117
ZabbixServer1.Port=10051

#ZabbixServer2.Address=IP_ADDRESS_OF_ZABBIX_SERVER
#ZabbixServer2.Port=PORT_OF_ZABBIX_SERVER

#pidFile
OrabbixDaemon.PidFile=./logs/orabbix.pid
#frequency of item's refresh
OrabbixDaemon.Sleep=100
#MaxThreadNumber should be >= than the number of your databases
OrabbixDaemon.MaxThreadNumber=100

#put here your databases in a comma separated list
DatabaseList=DB1,DB2

#Configuration of Connection pool
#if not specified Orabbis is going to use default values (hardcoded)
#Maximum number of active connection inside pool
DatabaseList.MaxActive=10
#The maximum number of milliseconds that the pool will wait
#(when there are no available connections) for a connection to be returned
#before throwing an exception, or <= 0 to wait indefinitely.
DatabaseList.MaxWait=100
DatabaseList.MaxIdle=1

#define here your connection string for each database
DB1.Url=jdbcracle:thin:@192.168.113.117:1521rcl
DB1.User=zabbix
DB1.Password=zabbix
#Those values are optionals if not specified Orabbis is going to use the general values
DB1.MaxActive=10
DB1.MaxWait=100
DB1.MaxIdle=1


DB2.Url=jdbcracle:thin:@192.168.113.137:1521rcl
DB2.User=ZABBIX
DB2.Password=ZABBIX

DB2.MaxActive=10
DB2.MaxWait=100
DB2.MaxIdle=1

#DB3.Url=jdbcracle:thin:@server3.domain.example.com:<LISTENER_P ORT>B3
#DB3.User=zabbix
#DB3.Password=zabbix_password


#Query Parameter Files
QueryListFile=/opt/orabbix/conf/query.props
"/opt/orabbix/conf/config.props" [dos] 54L, 1590C

----------------------192.168.113.117-query data----------------------------

SQL> SELECT TO_CHAR(ROUND(SUM(decode(pool,NULL,decode(name,'fi xed_sga',(bytes)/(1024*1024),0),0)),2)) sga_fixed FROM V$SGASTAT;

SGA_FIXED
----------------------------------------
0

SQL> SELECT to_char(ROUND(SUM(decode(pool,NULL,decode(name,'db _block_buffers',(bytes)/(1024*1024),'buffer_cache',(bytes)/(1024*1024),0),0)),2)) sga_bufcache FROM V$SGASTAT;

SGA_BUFCACHE
----------------------------------------
100

SQL> SELECT TO_CHAR(ROUND(SUM(decode(pool,NULL,decode(name,'fi xed_sga',(bytes)/(1024*1024),0),0)),2)) sga_fixed FROM V$SGASTAT;

SGA_FIXED
----------------------------------------
0

SQL> SELECT to_char(ROUND(SUM(decode(pool,'java pool',(bytes)/(1024*1024),0)),2)) sga_jpool FROM V$SGASTAT;

SGA_JPOOL
----------------------------------------
4

SQL> SELECT to_char(ROUND(SUM(decode(pool,'large pool',(bytes)/(1024*1024),0)),2)) sga_lpool FROM V$SGASTAT;

SGA_LPOOL
----------------------------------------
4

SQL> SELECT TO_CHAR(ROUND(SUM(decode(pool,NULL,decode(name,'lo g_buffer',(bytes)/(1024*1024),0),0)),2)) sga_lbuffer FROM V$SGASTAT;

SGA_LBUFFER
----------------------------------------
0

SQL> SELECT TO_CHAR(ROUND(SUM(decode(pool,'shared pool',decode(name,'library cache',0,'dictionary cache',0,'free memory',0,'sql area',0,(bytes)/(1024*1024)),0)),2)) pool_misc FROM V$SGASTAT;

POOL_MISC
----------------------------------------


-----------------------192.168.113.137-query date--------------------------

SQL> SELECT TO_CHAR(ROUND(SUM(decode(pool,NULL,decode(name,'fi xed_sga',(bytes)/(1024*1024),0),0)),2)) sga_fixed FROM V$SGASTAT
2 ;

SGA_FIXED
----------------------------------------
0

SQL> SELECT to_char(ROUND(SUM(decode(pool,NULL,decode(name,'db _block_buffers',(bytes)/(1024*1024),'buffer_cache',(bytes)/(1024*1024),0),0)),2)) sga_bufcache FROM V$SGASTAT;

SGA_BUFCACHE
----------------------------------------
224

SQL> SELECT TO_CHAR(ROUND(SUM(decode(pool,NULL,decode(name,'fi xed_sga',(bytes)/(1024*1024),0),0)),2)) sga_fixed FROM V$SGASTAT;

SGA_FIXED
----------------------------------------
0

SQL> SELECT to_char(ROUND(SUM(decode(pool,'java pool',(bytes)/(1024*1024),0)),2)) sga_jpool FROM V$SGASTAT;

SGA_JPOOL
----------------------------------------
12

SQL> SELECT to_char(ROUND(SUM(decode(pool,'large pool',(bytes)/(1024*1024),0)),2)) sga_lpool FROM V$SGASTAT;

SGA_LPOOL
----------------------------------------
4

SQL> SELECT TO_CHAR(ROUND(SUM(decode(pool,NULL,decode(name,'lo g_buffer',(bytes)/(1024*1024),0),0)),2)) sga_lbuffer FROM V$SGASTAT;

SGA_LBUFFER
----------------------------------------
0

SQL> SELECT TO_CHAR(ROUND(SUM(decode(pool,'shared pool',decode(name,'library cache',0,'dictionary cache',0,'free memory',0,'sql area',0,(bytes)/(1024*1024)),0)),2)) pool_misc FROM V$SGASTAT
2 ;

POOL_MISC
----------------------------------------
235.84

SQL> SELECT TO_CHAR(ROUND(SUM(decode(pool,'shared pool',decode(name,'library cache',0,'dictionary cache',0,'free memory',0,'sql area',0,(bytes)/(1024*1024)),0)),2)) pool_misc FROM V$SGASTAT
2 ;

POOL_MISC
----------------------------------------
235.85

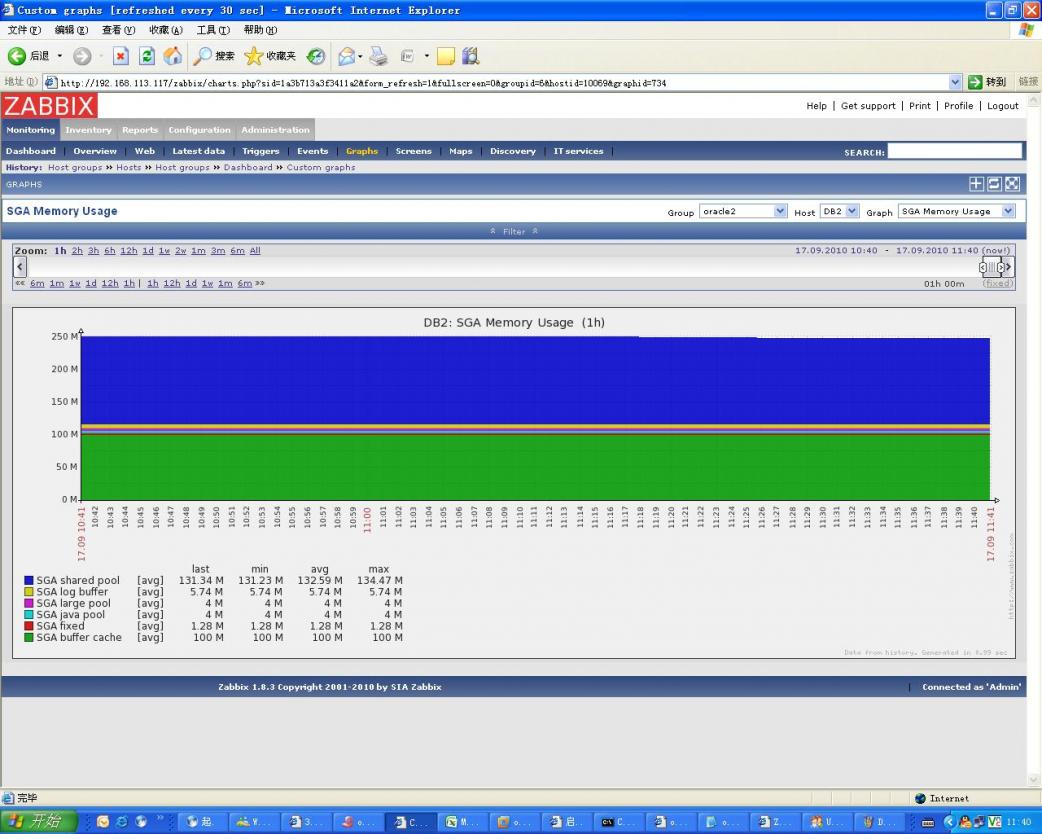

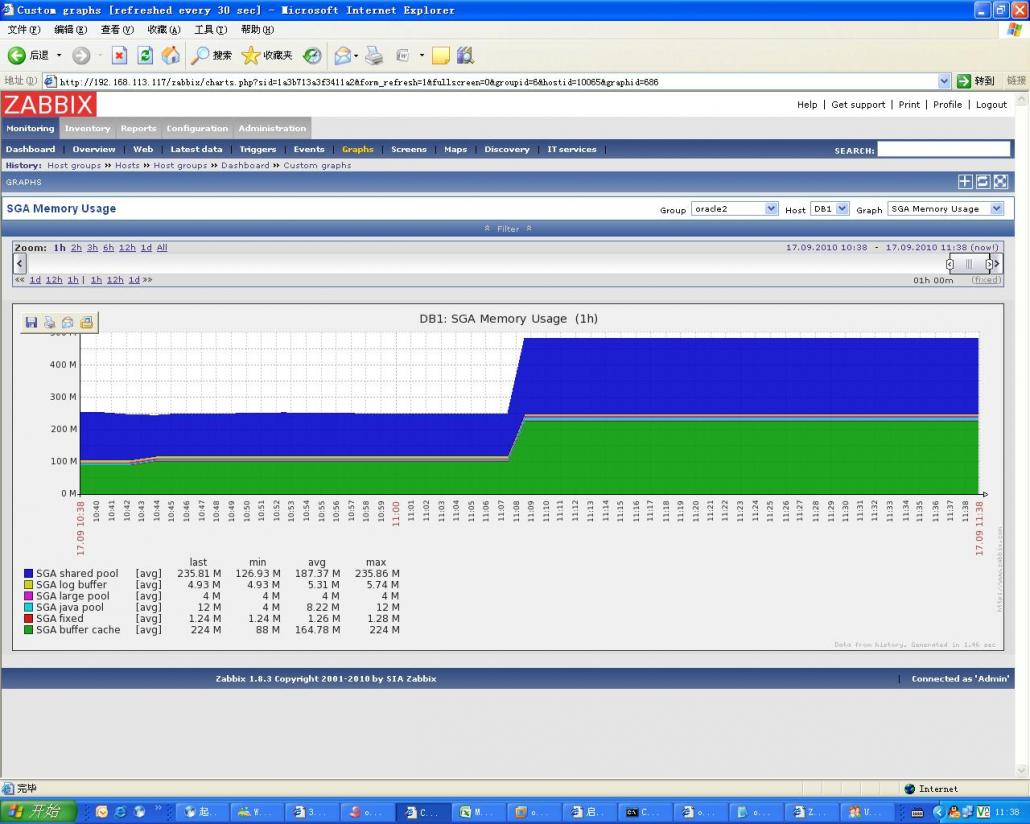

192.168.113.117 data(DB1) =DB2 data(image)
192.168.113.137 data(DB2) =DB1 data(image)
config.props(on the zabbix&orabbix server 192.168.113.117) no problem ,but zabbix display image data DB1 switching to DB2? Very strange problem?...
on the 192.168.113.137 I already install orabbix,but I stop orrabix service(now this orabbix service stopped)

[dalle]

I'm sorry this is never happened before
I've made a really little and stupid change that shouldn't change anything btw try with this in attach.

[saink]

how can I change parameter resolve this problem?

[dalle]

how can I change parameter resolve this problem?

i don't understand why this happen is never happened before... don't happen here whew i work and i have no clue why...
if you have patience i'm doing a mod and you can test if this solve.
I can't do it more because you are the first that show this trouble and I'm not able to reproduce this issue.

[dalle]

how can I change parameter resolve this problem?

replace your .jar with thisone
I've removed all the code that rebuild the database connection pooling
If you have some problem with your config file you should see more error logged on logfile I hope that your trouble is an "unprintable" char that fall in error my code so we should see all
let me know

[dalle]

any news? I'm cuorious to have a feedback about

[dalle]

replace your .jar with thisone
I've removed all the code that rebuild the database connection pooling
If you have some problem with your config file you should see more error logged on logfile I hope that your trouble is an "unprintable" char that fall in error my code so we should see all
let me know

I've added a new version this should solve all i hope
